# The Bacon Music VCVRack Modules "Bacon Music" is my set of EuroRack style plugins for [VCVRack](http://www.vcvrack.com). The modules are mostly inspired by me noodling around, and they sort of fall into a few groups: * Control voltage manipulation on 1v/oct signals to do things like glissando and musical quantization and a polyrhytmic clock; * Classic synth algorithms, including an implementation of the NES oscillators and a Karplus Strong implementation. * and finally, not very useful modulations and distortions and stuff. All the source is here, released under an Apache 2.0 license. You are free to use these modules as you see fit. If you happen to use them to make music you want to share, please do let me know, either by raising an issue on this github or by tagging me on twitter (@baconpaul) or soundcloud (@baconpaul). As of the release of Rack 0.6, these plugins will be built as part of the [v2 community distribution](https://github.com/VCVRack/community/tree/v2) so they should just be available for you to try. A massive thanks to the [Rack community team](https://github.com/VCVRack/community/issues/248) for maintaining these builds. I'm happy to hear any feedback and bug reports. The best way to reach me is to just open a github issue [right here on github](https://github.com/baconpaul/BaconPlugs/issues). Finally, all the [sample patches I used to make the screen-shots](https://github.com/baconpaul/BaconPlugs/tree/master/patches) are on the github here. I hope you enjoy the plugins! ## Control Voltage Manipulation and Clocks ### HarMoNee HarMoNee is a plugin which takes a 1v/oct CV signal and outputs two signals, one which is the original, and the second which is modified by a musical amount, like a minor 3rd. It spans plus or minus one octave, and is controlled by toggles. The toggles are additive. So if you want a fourth, choose a major third and a half step both. You get the idea.

### Glissinator Glissinator takes a control voltage which is undergoing change and smooths out that change with a linear glissando. It is not triggered by a gate, just by differences in the input CV. It never jumps discontinuously, so if the CV changes "target" value mid-gliss, the whole thing turns around. The slider will give you between 0 and 1 seconds of gliss time. There is a gate output which is +10v when the module is glissing and 0 when it isn't. Note that the Glissinator is a constant time gliss, not a constant slope gliss (which is what a slew limiter would do). A future version may have a switch to pick between the modes. Here's a sample patch.

### QuantEyes QuantEyes takes a CV signal and clamps it to certain values 1/12 of a volt apart. Functionally this means that CV signals which are changing on input will be clamped to a chromatic scale on output if all the notes are activated. But you can also deactivate certain notes to allow you to pick scales to which you quantize. Since quantizing to scales could be useful for multiple things driving oscillators, you can apply this quantization to up to 3 inputs using the same scale. Finally, you can choose where the "root" note is in CV space. The default is that 1 volt is the "R" note, but if you set root to 3, then 1 3/12 volts would be R. If you don't understand this, send in a changing signal, select only the R note in the set of LED buttons, and then twiddle the root note. Here's a (pretty cool sounding, I think) patch which combines QuantEyes with the Glissinator and HarMoNee modules.

### PolyGnome PolyGnome is a polyrhytmic clock generator. It can output up to 5 clock signals with strict fractional relationships between them. There is one clock which is the "1/1" clock controlled by the speed settings implemented exactly like the clock rate controls in SEQ3. Then there are 4 other clocks which are fractionally adjusted clocks. This way you can do a 1/1 vs a 5/3 vs a 4/5 polyrhythm easily in your rack. Here's an example which uses this to drive 3 independent oscillator / envelope sets all of which have pitch set through the QuantEyes module.

## Classic and 8-bit algorithms ### ChipWaves ChipWaves implements the NES triangle and pulse wave generator. It would have been impossible to implement without the careful description of the algorithms at [the NES Dev Wiki](http://wiki.nesdev.com/w/index.php/APU_Triangle). The NES has two tonal oscillators, a triangle wave and a pulse. The pulse has 4 different duty cycles. The triangle is a fixed wave. They are tuned by wavelength with values up to 2^11 clock cycles. Rather than expose this very digital interface, though, I've set up the inputs to be tuned to CV in exactly the same way as VCO-1. So the conversion from 1v/oct signal to the 2^11 different wavelengths based on the simulated clock frequency (I chose NTSC) is all done for you. Basically, it just works like an oscillator. Drop it in and go chip crazy. The sample patch runs it mixed along with a VCO-1 so I could check tuning. Here's how I did it.

### ChipNoise ChipNoise implements the NES noise generator without the NES envelope. It would have been impossible to implement without the careful description of the noise algorithm at [the NES Dev WIKI](http://wiki.nesdev.com/w/index.php/APU_Noise). I also appreciate the [lengthy conversation with @alto77](https://github.com/baconpaul/BaconPlugs/issues/6) which helped identify a bug in the 0.6.1 release and add a new feature. The NES noise system has 16 different frequencies; and two modes. The two modes generate either a long pseudo-random pattern or a set of short pseudo-random patterns. That long pattern is just long, but the short patterns are either 93 or 31 bits long. There are 351 distinct 93 bit patterns and a single 31 bit pattern. The sequence controls allow you to pick these patterns. If set at "long" then you choose the longest pattern. If set at short, then either you have the 31 long pattern or one of the 93 patterns. Which of the 93 patterns you pick is chosen by the "which 93 seq" knob. This is a lot of information. If you just play with it you'll get the idea. Here's a simple patch.

### ChipYourWaves ChipYourWaves is a chip-like oscillator which doesn't actually exist in the old NES hardware. The way the NES triangle wave generator works is it oscillates across a 32-sample-wide waveform of values between 0 and 15, with 7/8 being the "zero point". This is set up as a ramp 0 1 2 ... 15 15 14 ... 0 and then tuned and oscillated. If you want this waveform, just use the ChipWaves module up above. But I got to thinking. That waveform is something we could change and make even buzzier grunky chip-like sounds. Perhaps. So I wrote a module which is the same internal implementation as the NES triangle wave generator in ChipWaves but which has an editor which lets you pick each of the 32 values. Then you can hear it. And see if you like it. To set the values just click or drag on the LED vertical. It's pretty intuitive when you use it, I think. But so you get an idea, here's the sample patch which sets a fixed frequency and hooks it up to the scope so you can see the generated waveform is, indeed, the bits you draw in the LED-like controls. ![Example ChipYourWaves Patch](docs/ChipYourWaves.png) Oh if you have any idea what to put in all that blank space at the top of the module, by the way, please do just raise a github issue and let me know! ### KarplusStrongPoly The [Karplus-Strong algorithm](https://en.m.wikipedia.org/wiki/Karplus–Strong_string_synthesis) is one of the earlier methods to simulate plucked string instruments. The KarplusStrongPoly module implements a polyphonic voides implementation of this. The module maps to the algorithm fairly cleanly. It's probably easier that you just play with it, using the sample patch shown below.

There's one really important thing to know about this module. Unlike more traditional voltage controlled oscillators which always produce output and are then fed into envelopes and stuff, the KarplusStrongPoly module needs to be triggered with a gate signal to produce any sound. When it is triggered it will snap all the parameters set on the front panel and play that voice until it fades. The system is configured to play upto 32 voices and will voice steal beyond that. But since Rack adds a 1 sample delay to all its signals as they go through each module, if you trigger from SEQ-3 and use a frequency you have modified, the trigger will "beat" the modified signal. So adding a few sample delay to your trigger may be approrpriate. There's a really simple SampleDelay module which ships with this plugin set if you want to do that. I've only implemented one filter so far, so the only control which does anything in the filter space is the "A" knob and CV input. If/as I add more that will get way more rich, kind of like initial packet is now. Finally I think the algorithm is stable under all possible front panel configurations. There's certainly regimes of parameters in the C++ which can break the synthesis, though. So if you get an odd or growing sound, let me know the configuration which did it in a github issue and I'll put a check in the widget to synth snap appropriately. ## Distortions and Modulations and so on ### ALingADing ALingADing is a simulation of a Ring Modulator based on [this paper by Julian Parker](http://recherche.ircam.fr/pub/dafx11/Papers/66_e.pdf) and then taking some shortcuts. Rather than following Parker's use of a few polynomials to simulate his diode, I basically use an implementation of a softmax, eye-balling the parameters to roughly meet the figure in his paper. The only control is a wet/dry mix (where wet is the signal modulated by carrier and dry is just the signal). Sloppy, sure, but it sounds kinda cool. Here's a sample patch.

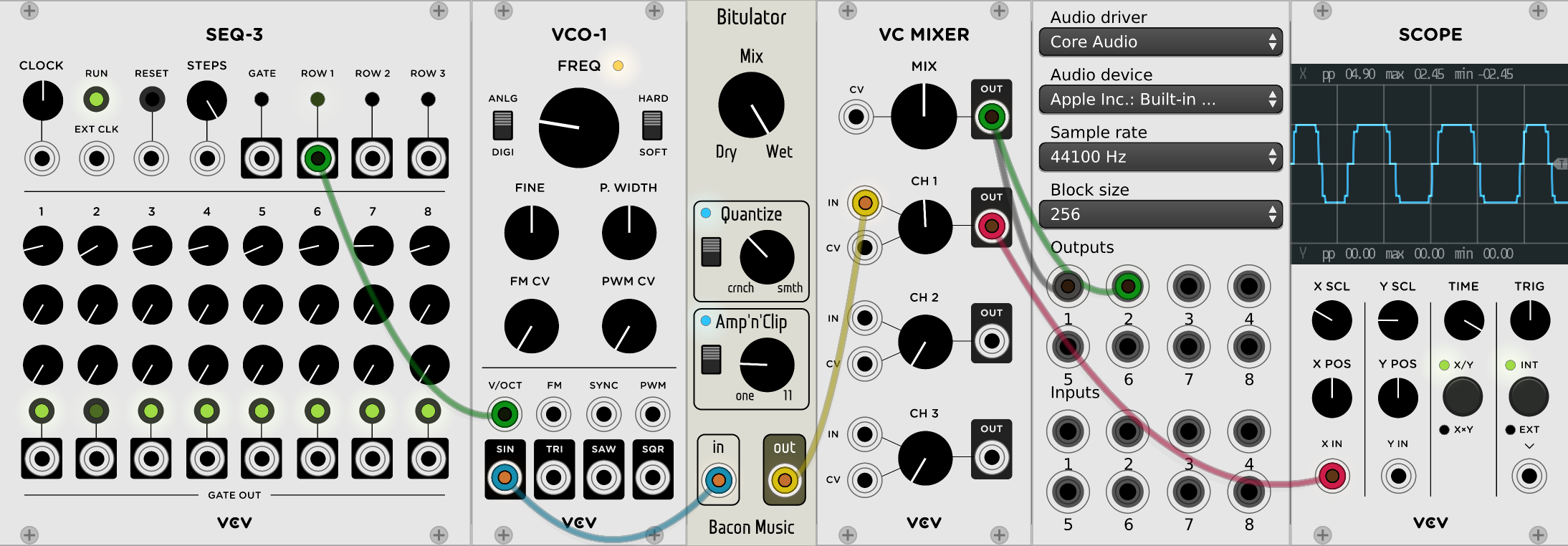

### Bitulator Bitulator is really just me screwing around with some math on the input. It has two functions. Firstly, it "quantizes" to a smaller number of "bits", but does it in a weird and sloppy way of basically making sure there are only N values possible in the output. Apply this to a sine wave with a low value of N and you get sort of stacked squares. Secondly it has a gross digital clipping amplifier. Basically signal is the clamp of input times param. Apply this to a sine wave and turn it up and you get pretty much a perfect square. Combine them for grunky grunk noise. Dumb, but fun. Here's a sample patch. ![Example Bitulator Patch](docs/Bitulator.png) ### SampleDelay This is an incredibly simple module. All it does is add an n-sample digital delay at the engine clock speed. Radically non-analog, I know. But it's useful since Rack adds a 1 sample delay in each module hop to do things like triggering the Karplus Strong poly. ![Example SampleDelay](docs/SampleDelay.png) ## Credits and Comments The Keypunch font used in the textual display LED widget comes from [Stewart C. Russell's blog](http://scruss.com/blog/2017/03/21/keypunch029-for-all-your-punched-card-font-needs/). The font is Copyright 2017 Stewart C. Russell and is released under the [SIL Open Font License 1.1](http://scripts.sil.org/cms/scripts/page.php?site_id=nrsi&id=OFL). The slug name ('BaconMusic') is different than the repo name ('BaconPlugs'), somewhat confusingly. When I made my git repo I had no idea really how anything worked or if I'd write anything. I was thinking "Hey I'm writing a collection of plugins for this software right". When I went with my first release, Andrew Rust pointed out that "BaconPlugs" wasn't a very good name for my plugin and it's collected modules. He did it very politely, of course, and so I changed it to "Bacon Music" for the slug name. The repo is still called BaconPlugs though, because that's more trouble to change than I can handle. ## License Copyright © 2017-2018 Paul Walker Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0 Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
