update SubmarineFree modules to v0.6.8

plugins/community/repos/SubmarineFree/Makefile

@@ -2,7 +2,7 @@
 SLUG = SubmarineFree

 # Must follow the format in the Versioning section of https://vcvrack.com/manual/PluginDevelopmentTutorial.html
-VERSION = 0.6.4
+VERSION = 0.6.8

 # FLAGS will be passed to both the C and C++ compiler
 FLAGS +=

plugins/community/repos/SubmarineFree/README.md

@@ -1,9 +1,16 @@
 # SubmarineFree
 Free plugins for VCV Rack

+[.plan (what I'm working on)](https://github.com/david-c14/SubmarineFree/issues/23)
+
 # [Manual](https://github.com/david-c14/SubmarineFree/blob/master/manual/index.md)

-# [Builds](https://github.com/david-c14/SubmarineFree/issues/9)
+# [Builds](https://github.com/david-c14/SubmarineFree/releases/tag/v0.6.8)
+###### [0.6.8](https://github.com/david-c14/SubmarineFree/releases/tag/v0.6.8)
+###### [0.6.7](https://github.com/david-c14/SubmarineFree/releases/tag/v0.6.7)
+###### [0.6.6](https://github.com/david-c14/SubmarineFree/issues/20)
+###### [0.6.5](https://github.com/david-c14/SubmarineFree/issues/19)
+###### [0.6.4](https://github.com/david-c14/SubmarineFree/issues/14)
 ###### [0.6.3](https://github.com/david-c14/SubmarineFree/issues/9)
 ###### [0.6.2](https://github.com/david-c14/SubmarineFree/issues/4)

@@ -11,3 +18,5 @@ Free plugins for VCV Rack
 Source code licensed under BSD-3-Clause by carbon14 (David O'Rourke)

 All graphics in res/ and src/res are © 2018 by carbon14 (David O'Rourke)
+
+Some portions of this source code are based on code © 2016 by Andrew Belt

plugins/community/repos/SubmarineFree/make.objects

@@ -1,25 +1,32 @@
 ALL_OBJ= \
-	src/AG-106.o \
-	src/BB-120.o \
-	src/BP.o \
+	src/AG1.o \
+	src/AO1.o \
+	src/BB1.o \
+	src/BP1.o \
 	src/DS.o \
-	src/FF-110.o \
-	src/FF-120.o \
-	src/FF-212.o \
-	src/LA-108.o \
-	src/LD-106.o \
-	src/NG-112.o \
-	src/OG-106.o \
-	src/PG-112.o \
-	src/PO.o \
+	src/EO1.o \
+	src/FF1.o \
+	src/FF2.o \
+	src/LA1.o \
+	src/LD1.o \
+	src/NG1.o \
+	src/OG1.o \
+	src/PG1.o \
+	src/PO12.o \
+	src/SS1.o \
 	src/SubmarineFree.o \
-	src/WK-101.o \
+	src/TD1.o \
+	src/TD2.o \
+	src/TF1.o \
+	src/TM1.o \
+	src/WK12.o \
 	src/XF-101.o \
 	src/XF-102.o \
 	src/XF-104.o \
 	src/XF-201.o \
 	src/XF-202.o \
 	src/XF.o \
-	src/XG-106.o \
+	src/XG1.o \
 	src/torpedo.o \
-	src/ComponentLibrary/LightKnob.o
+	src/ComponentLibrary/LightKnob.o \
+	src/ComponentLibrary/Port.o

plugins/community/repos/SubmarineFree/manual/AG.md

@@ -1,5 +1,6 @@
 # Logical AND Gates
 ### [Part of the Digital Suite](DS.md)
+#### AG-104 AND Gates
 #### AG-106 AND Gates


@@ -18,3 +19,7 @@ The voltage range of the digital gates can be configured from the context menu.
 Any output not connected will be normalled into a third input on the gate below. In this way multi-input gates can be created up to a maximum of 12 inputs.

 An input not connected will be ignored.
+
+## AG-104
+
+The AG-104 provides four two-input AND gates in a small form factor. Otherwise functionality is as for the AG-106 above.

plugins/community/repos/SubmarineFree/manual/AO-example-osc.md

@@ -0,0 +1,64 @@
+# A sine wave oscillator using AO-106
+
+![Example Patch](./AO-example-osc.png "AO-example-osc.png")
+
+In the example above we have an AO-106 6-algorithm device functioning as a voltage controlled sine wave oscillator.
+An SS-221 on the left is providing a reference 1v/oct CV to both the AO-106 and a Frank Buss Formula for comparison.
+
+The first block in the AO-106 is providing a small delta value.
+
+The second block takes that delta value and adds it to the X-input which is fed from...
+
+...the third block which takes the accumulated value and reduces it modulo 1.
+
+The result is that we have a signal in a feedback loop from the third block back to the second block, which gradually grows over time,
+and cycles around every time it reaches 1. Effectively a sawtooth wave with a frequency that depends on the input voltage, and a range from
+0V to 1V.
+
+The fourth block multiplies this sawtooth amplitude by tau (2 pi) to give an amplitude that ranges from 0V to tauV.
+
+The fifth block takes the sine of this sawtooth. Since a range of 0 to tau in radians represents one complete cycle, the resulting signal
+is a sine wave with a range of -1V to +1V
+
+The sixth block multiplies the signal by 5 to give the final -5V to +5V sine wave.
+
+The complicated part of this patch is in the first block where the algorithm is 2<sup>x+c</sup>. Where does this value of C = -7.52 come from?
+
+To acheive our basic requirement of 1v/oct, we need to raise 2 to the power of the CV input. For each increase 1V increase in the CV,
+the resulting value doubles, just like the frequency doubling as we move up an octave. But we have some further requirements.
+
+We want our signal frequency to be middle C (261.6Hz) when the CV is at 0V, so we should multiply our power of 2 by 261.6.
+That gives us a value in cycles per second. But then we need to divide this value by our sample rate, in this case I'm running at 48,000Hz
+sample rate. We divide by this number so that our delta accumulates to the right number of cycles every second.
+
+Our algorithm for the delta value then is
+
+2<sup>x</sup> &times; 261.6 &divide; 48000
+
+or
+
+2<sup>x</sup> &times; 0.00545
+
+But we could represent 0.00545 as a 2 raised to some power...   2<sup>n</sup>
+
+n would be the base-2 logarithm of 0.00545 which is -7.51953
+
+Now we can say that our delta value is
+
+2<sup>x</sup> &times; 2<sup>-7.51953</sup>
+
+or
+
+2<sup>x - 7.51953</sup>
+
+This is where the figures in the first block come from.
+
+The AO-1xx series of devices offer only two decimal places of precision in the constant setting, as a result this example oscillator is ever so slightly flat.
+However this discrepancy is less that the drift in the Fundamental VCO1.
+
+Note also that changing the engine sample rate would change the frequency of the oscillator. Doubling the engine sample rate to 96,000 Hz
+would require adjusting the constant from -7.52 to -8.52.
+
+The Frank Buss Formula has a built in sawtooth oscillator which automatically compensates for changes in the engine sample rate.
+
+

plugins/community/repos/SubmarineFree/manual/AO-list.md

@@ -0,0 +1,230 @@

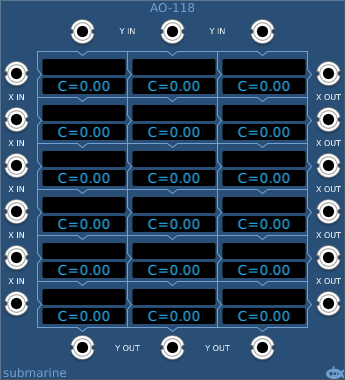

+# AO-1xx Algorithms
+
+## Arithmetical
+| Display                  | Code               | Description          |
+| ------------------------ | ------------------ | -------------------- |
+| | | Pass-through. X passes across unchanged, Y passes down unchanged |
+| C | c | The value of the selected constant C |
+| X+C | x + c | X added to C |
+| Y+C | y + c | Y added to C|
+| X+Y+C | x + y + c | X and Y added to C |
+| C-X | c - x | X subtracted from C |
+| C-Y | c - y | Y subtracted from C |
+| X-(Y+C) | x - ( y + c ) | Y added to C then all subtracted from X |
+| (X+C)-Y | ( x + c ) - y | Y subtracted from X and C |
+| Y-(X+C) | y - ( x + c ) | X added to C then all subtracted from Y |
+| (Y+C)-X | ( y + c ) - x | X subtracted from Y and C |
+| (X⨯Y)+C | ( x * y ) + c | X times Y added to C |
+| (X+C)⨯Y | ( x + c ) * y | X and C multiplied by Y |
+| X⨯(Y+C) | x * ( y + c ) | Y and C multiplied by X |
+| X⨯C | x * c | X times C |
+| Y⨯C | y * c | Y times C |
+| X⨯Y⨯C | x * y * c | X times Y times C|
+| π⨯(X+C) | M_PI * ( x + c ) | X and C multiplied by pi |
+| π⨯(Y+C) | M_PI * ( y + c ) | Y and C multiplied by pi |
+| τ⨯(X+C) | 2 * M_PI * ( x + c ) | X and C multiplied by tau |
+| τ⨯(Y+C) | 2 * M_PI * ( y + c ) | Y and C multiplied by tau |
+| X÷C | x / c | X divided by C |
+| C÷X | c / x | C divided by X |
+| Y÷C | y / c | Y divided by C |
+| C÷Y | c / y | C divided by Y |
+| C+(X÷Y) | c + ( x / y ) | C added to X divided by Y |
+| C+(Y÷X) | c + ( y / x ) | C added to Y divided by X |
+| X+(Y÷C) | x + ( y / c ) | X added to Y divided by C |
+| X+(C÷Y) | x + ( c / y ) | X added to C divided by Y |
+| Y+(X÷C) | y + ( x / c ) | Y added to X divided by C |
+| Y+(C÷X) | y + ( c / x ) | Y added to C divided by X |
+| (X+C)÷Y | ( x + c ) / y | X and C divided by Y |
+| X÷(Y+C) | x / ( y + c ) | X divided by Y and C |
+| (Y+C)÷X | ( y + c ) / x | Y and C divided by X |
+| Y÷(X+C) | y / ( x + c ) | Y divided by X and C |
+## Modular
+| Display                  | Code               | Description          |
+| ------------------------ | ------------------ | -------------------- |
+| (X+C)%Y | fmodf( x + c , y ) | The remainder of X and C divided by Y |
+| (Y+C)%X | fmodf( y + c , x ) | The remainder of Y and C divided by X |
+| X%(Y+C) | fmodf( x , y + c ) | The remainder of X divided by Y and C |
+| Y%(X+C) | fmodf( y , x + c) | The remainder of Y divided by X and C |
+| X%C | fmodf( x , c ) | The remainder of X divided by C |
+| Y%C | fmodf( y , c ) | The remainder of Y divided by C |
+## Quadratic
+| Display                  | Code               | Description          |
+| ------------------------ | ------------------ | -------------------- |
+| X²+C | x * x + c | X squared added to C |
+| Y²+C | y * y + c | Y squared added to C |
+| (X+C)² | ( x + c ) * ( x + c ) | X and C squared |
+| (Y+C)² | ( y + c ) * ( y + c ) | Y and C squared |
+| X²+Y+C | x * x + y + c | X squared added to Y and C |
+| Y²+X+C | y * y + x + c | Y squared added to X and C |
+| X²+CY | x * x + c * y | X squared added to Y multiplied by C |
+| Y²+CX | y * y + c * x | Y squared added to X multiplied by C |
+## Powers
+| Display                  | Code               | Description          |
+| ------------------------ | ------------------ | -------------------- |
+| √(X+C) | sqrt( x + c ) | The square root of X and C |
+| √(Y+C) | sqrt( y + c ) | The square root of Y and C |
+| Cˣ | powf( c , x ) | C raised to the power of X |
+| Cʸ | powf( c , y ) | C raised to the power of Y |
+| Cˣ⁺ʸ | powf( c , x + y ) | C raised to the power of X and Y |
+| Cˣʸ | powf( c , x * y ) | C raised to the power of X multiplied by Y |
+| Xᶜ | powf( x , c ) | X raised to the power of C |
+| Yᶜ | powf( y , c ) | Y raised to the power of C |
+| Xʸ⁺ᶜ | powf( x , y + c ) | X raised to the power of Y and C |
+| Yˣ⁺ᶜ | powf( y , x + c ) | Y raised to the power of X and C |
+| Xᶜʸ | powf( x , c * y ) | X raised to the power of Y multiplied by C |
+| Yᶜˣ | powf( y , c * x ) | Y raised to the power of X multiplied by C |
+## Positive values only
+| Display                  | Code               | Description          |
+| ------------------------ | ------------------ | -------------------- |
+| |X+C| | abs( x + c ) | X Added to C with any minus sign removed |
+| |Y+C| | abs( y + c ) | Y added to C with any minus sign removed |
+## Maximum and Minimum
+| Display                  | Code               | Description          |
+| ------------------------ | ------------------ | -------------------- |
+| min(X+C,Y) | min( x + c, y ) | The smaller of X Added to C, or Y |
+| min(X,C) | min( x, c ) | The smaller of X or C |
+| min(Y,C) | min( y, c ) | The smaller of Y or C |
+| max(X+C,Y) | max( x + c, y ) | The larger of X added to C, or Y |
+| max(X,C) | max( x, c ) | The larger of X or C |
+| max(Y,C) | max( y, c ) | The larger of Y or C |
+## Trigonometric
+| Display                  | Code               | Description          |
+| ------------------------ | ------------------ | -------------------- |
+| sin(X+C) | sin( x + c ) | The sine of X and C |
+| sin(Y+C) | sin( y + c ) | The sine of Y and C |
+| sin(X+Y) | sin( x + y ) | The sine of X and Y |
+| sin(CX) | sin( c * x ) | The sine of X mulitplied by C |
+| sin(CY) | sin( c * y ) | The sine of Y multiplied by C |
+| sin(XY) | sin( x * y ) | The sine of X multiplied by Y |
+| cos(X+C) | cos( x + c ) | The cosine of X and C |
+| cos(Y+C) | cos( y + c ) ||
+| cos(X+Y) | cos( x + y ) ||
+| cos(CX) | cos( c * x ) ||
+| cos(CY) | cos( c * y ) ||
+| cos(XY) | cos( x * y ) ||
+| tan(X+C) | tan( x + c ) | The tangent of X and C |
+| tan(Y+C) | tan( y + c ) ||
+| tan(X+Y) | tan( x + y ) ||
+| tan(CX) | tan( c * x ) ||
+| tan(CY) | tan( c * y ) ||
+| tan(XY) | tan( x * y ) ||
+| asin(X+C) | asin( x + c ) | The arcsine of X and C |
+| asin(Y+C) | asin( y + c ) ||
+| asin(X+Y) | asin( x + y ) ||
+| asin(CX) | asin( c * x ) ||
+| asin(CY) | asin( c * y ) ||
+| asin(XY) | asin( x * y ) ||
+| acos(X+C) | acos( x + c ) | The arcosine of X and C |
+| acos(Y+C) | acos( y + c ) ||
+| acos(X+Y) | acos( x + y ) ||
+| acos(CX) | acos( c * x ) ||
+| acos(CY) | acos( c * y ) ||
+| acos(XY) | acos( x * y ) ||
+| atan(X+C) | atan( x + c ) | The arctangent of X and C |
+| atan(Y+C) | atan( y + c ) ||
+| atan(X+Y) | atan( x + y ) ||
+| atan(CX) | atan( c * x ) ||
+| atan(CY) | atan( c * y ) ||
+| atan(XY) | atan( x * y ) ||
+## Logarithmic
+| Display                  | Code               | Description          |
+| ------------------------ | ------------------ | -------------------- |
+| log(X+C) | log( x + c ) | The natural logarithm of X and C |
+| log(Y+C) | log( y + c ) | The natural logarithm of Y and C |
+| log₂(X+C) | log2( x + c ) | The base-2 logarithm of X and C |
+| log₂(Y+C) | log2( y + c ) | The base-2 logarithm of Y and C |
+| log₁₀(X+C) | log10( x + c ) | The base-10 logarithm of X and C |
+| log₁₀(Y+C) | log10( y + c ) | The base-10 logarithm of Y and C |
+## Exponential
+| Display                  | Code               | Description          |
+| ------------------------ | ------------------ | -------------------- |
+| ℯˣ⁺ᶜ | exp( x + c ) | e raised to the power of X and C |
+| ℯʸ⁺ᶜ | exp( y + c ) | e raised to the power of Y and C |
+| ℯᶜˣ | exp( c * x ) | e raised to the power of X multiplied by C |
+| ℯᶜʸ | exp( c * y ) | e raised to the power of Y multiplied by C |
+| 2ˣ⁺ᶜ | powf( 2, x + c ) | 2 raised to the power of X and C |
+| 2ʸ⁺ᶜ | powf( 2, y + c ) | 2 raised to the power of Y and C |
+| 2ᶜˣ | powf( 2, c * x ) | 2 raised to the power of X multiplied by C |
+| 2ᶜʸ | powf( 2, c * y ) | 2 raised to the power of Y multiplied by C |
+| 10ˣ⁺ᶜ | powf( 10, x + c ) | 10 raised to the power of X and C |
+| 10ʸ⁺ᶜ | powf( 10, y + c ) | 10 raised to the power of Y and C |
+| 10ᶜˣ | powf( 10, c * x ) | 10 raised to the power of X multiplied by C |
+| 10ᶜʸ | powf( 10, c * y ) | 10 raised to the power of Y multiplied by C |
+## Conditional
+| Display                  | Code               | Description          |
+| ------------------------ | ------------------ | -------------------- |
+| if X>0↣Y/C | (x > 0) ? y : c | Y if X is greater than 0 otherwise C |
+| if X<0&#x21a3;Y/C | (x < 0) ? y : c | Y if X is less than 0 otherwise C |
+| if X=0&#x21a3;Y/C | (x == 0) ? y : c | Y if X is 0 otherwise C |
+| if X>0&#x21a3;C/Y | (x > 0) ? c : y | C if X is greater than 0 otherwise Y |
+| if X<0&#x21a3;C/Y | (x < 0) ? c : y | C if X is less that 0 otherwise Y |
+| if X=0&#x21a3;C/Y | (x == 0) ? c : y | C if X is 0 otherwise Y |
+| if X>0&#x21a3;1/0 | (x > 0) ? 1 : 0 | 1 if X is greater than 0 otherwise 0 |
+| if X<0&#x21a3;1/0 | (x < 0) ? 1 : 0 ||
+| if X=0&#x21a3;1/0 | (x == 0) ? 1 : 0 ||
+| if X>0&#x21a3;X/C | (x > 0) ? x : c | X if X is greater than 0 otherwise C |
+| if X<0&#x21a3;X/C | (x < 0) ? x : c ||
+| if X=0&#x21a3;X/C | (x == 0) ? x : c ||
+| if X>0&#x21a3;C/X | (x > 0) ? c : x | C if X is greater than 0 otherwise X |
+| if X<0&#x21a3;C/X | (x < 0) ? c : x ||
+| if X=0&#x21a3;C/X | (x == 0) ? c : x ||
+| if Y>0&#x21a3;X/C | (y > 0) ? x : c | X if Y is greater than 0 otherwise C |
+| if Y<0&#x21a3;X/C | (y < 0) ? x : c ||
+| if Y=0&#x21a3;X/C | (y == 0) ? x : c ||
+| if Y>0&#x21a3;C/X | (y > 0) ? c : x | C if Y is greater than 0 otherwise X |
+| if Y<0&#x21a3;C/X | (y < 0) ? c : x ||
+| if Y=0&#x21a3;C/X | (y == 0) ? c : x ||
+| if Y>0&#x21a3;1/0 | (y > 0) ? 1 : 0 ||
+| if Y<0&#x21a3;1/0 | (y < 0) ? 1 : 0 ||
+| if Y=0&#x21a3;1/0 | (y == 0) ? 1 : 0 ||
+| if Y>0&#x21a3;Y/C | (y > 0) ? y : c ||
+| if Y<0&#x21a3;Y/C | (y < 0) ? y : c ||
+| if Y=0&#x21a3;Y/C | (y == 0) ? y : c ||
+| if Y>0&#x21a3;C/Y | (y > 0) ? c : y ||
+| if Y<0&#x21a3;C/Y | (y < 0) ? c : y ||
+| if Y=0&#x21a3;C/Y | (y == 0) ? c : y ||
+| if X>Y&#x21a3;C/0 | (x > y) ? c : 0 | C if X is greater than Y otherwise 0 |
+| if X<Y&#x21a3;C/0 | (x < y) ? c : 0 ||
+| if X=Y&#x21a3;C/0 | (x == y) ? c : 0 ||
+| if Y>X&#x21a3;C/0 | (y > x) ? c : 0 ||
+| if Y<X&#x21a3;C/0 | (y < x) ? c : 0 ||
+| if X>Y&#x21a3;X/0 | (x > y) ? x : 0 | X if X is greater than Y otherwise 0 |
+| if X<Y&#x21a3;X/0 | (x < y) ? x : 0 ||
+| if X=Y&#x21a3;X/0 | (x == y) ? x : 0 ||
+| if Y>X&#x21a3;X/0 | (y > x) ? x : 0 ||
+| if Y<X&#x21a3;X/0 | (y < x) ? x : 0 ||
+| if X>Y&#x21a3;Y/0 | (x > y) ? y : 0 ||
+| if X<Y&#x21a3;Y/0 | (x < y) ? y : 0 ||
+| if X=Y&#x21a3;Y/0 | (x == y) ? y : 0 ||
+| if Y>X&#x21a3;Y/0 | (y > x) ? y : 0 ||
+| if Y<X&#x21a3;Y/0 | (y < x) ? y : 0 ||
+| if X>C&#x21a3;Y/0 | (x > c) ? y : 0 ||
+| if X<C&#x21a3;Y/0 | (x < c) ? y : 0 ||
+| if X=C&#x21a3;Y/0 | (x == c) ? y : 0 ||
+| if C>X&#x21a3;Y/0 | (c > x) ? y : 0 ||
+| if C<X&#x21a3;Y/0 | (c < x) ? y : 0 ||
+| if X>C&#x21a3;X/0 | (x > c) ? x : 0 ||
+| if X<C&#x21a3;X/0 | (x < c) ? x : 0 ||
+| if X=C&#x21a3;X/0 | (x == c) ? x : 0 ||
+| if C>X&#x21a3;X/0 | (c > x) ? x : 0 ||
+| if C<X&#x21a3;X/0 | (c < x) ? x : 0 ||
+| if X>C&#x21a3;X/Y | (x > c) ? x : y ||
+| if X<C&#x21a3;X/Y | (x < c) ? x : y ||
+| if X=C&#x21a3;X/Y | (x == c) ? x : y ||
+| if C>X&#x21a3;X/Y | (c > x) ? x : y ||
+| if C<X&#x21a3;X/Y | (c < x) ? x : y ||
+| if Y>C&#x21a3;X/0 | (y > c) ? x : 0 ||
+| if Y<C&#x21a3;X/0 | (y < c) ? x : 0 ||
+| if Y=C&#x21a3;X/0 | (y == c) ? x : 0 ||
+| if C>Y&#x21a3;X/0 | (c > y) ? x : 0 ||
+| if C<Y&#x21a3;X/0 | (c < y) ? x : 0 ||
+| if Y>C&#x21a3;Y/0 | (y > c) ? y : 0 ||
+| if Y<C&#x21a3;Y/0 | (y < c) ? y : 0 ||
+| if Y=C&#x21a3;Y/0 | (y == c) ? y : 0 ||
+| if C>Y&#x21a3;Y/0 | (c > y) ? y : 0 ||
+| if C<Y&#x21a3;Y/0 | (c < y) ? y : 0 ||
+| if Y>C&#x21a3;Y/X | (y > c) ? y : x | Y if Y is greater than C otherwise X |
+| if Y<C&#x21a3;Y/X | (y < c) ? y : x | Y if Y is less than C otherwise X |
+| if Y=C&#x21a3;Y/X | (y == c) ? y : x | Y if Y is C otherwise X |
+| if C>Y&#x21a3;Y/X | (c > y) ? y : x | Y if C is greater than Y otherwise X |
+| if C<Y&#x21a3;Y/X | (c < y) ? y : x | Y if C is less than Y otherwise X |

plugins/community/repos/SubmarineFree/manual/AO.md

@@ -0,0 +1,19 @@
+# Arithmetic Operators
+#### AO-106 6 Algorithm Arithmetic Operators
+#### AO-112 12 Algorithm Arithmetic Operators
+#### AO-118 18 Algorithm Arithmetic Operators
+#### AO-124 24 Algorithm Arithmetic Operators
+#### AO-136 36 Algorithm Arithmetic Operators
+
+![View of the AO-118 - Arithmetic Operators](AO-118.png "Arithmetic Operators")
+
+## Basic Operation
+
+The AO-1xx series of modules take a number of inputs down the left (X-inputs) and a series of inputs across the top (Y-inputs). These inputs pass through blocks which apply simple mathematical algorithms and the results of the algorithms pass out of the block down and to the right, becoming the X and Y inputs of blocks to the right and below. Each block has two touch sensitive displays; the upper display allows you to select from around 200 pre-defined algorithms; the lower display allows you to set a third value (C) on which the algorithm operates.
+
+If no algorithm is selected, the X-input to the block passes directly through to the block (or output) on the right, and the Y-input passes directly through to the block (or output) below.
+
+#### [All Algorithms](AO-list.md)
+
+#### [Oscillator Example](AO-example-osc.md)
+

plugins/community/repos/SubmarineFree/manual/BB.md

@@ -16,3 +16,7 @@ The voltage range of the digital gates can be configured from the context menu.
 ## Normalling

 If the clock input is not connected, the BB-120 will sample and shift outputs once per engine sample. This is useful for delaying signals by just a few samples to compensate for propagation delays in other parts of your patch, for example to ensure that the start of a signal passes through a gate, you can delay the signal by one or two samples while the gate cv gets to where it needs to be. Note that with no clock input connected, the BB-120 will operate faster at faster engine sample rates; this is by design.
+
+The Initialize context menu option will empty all the buckets in the BB-120. Each bucket will revert to 0v.
+
+The Randomize context menu option will randomly set the value of every bucket in the BB-120. The value will lie within the range of the expected voltage range set on the context menu.

plugins/community/repos/SubmarineFree/manual/EO.md

@@ -0,0 +1,46 @@

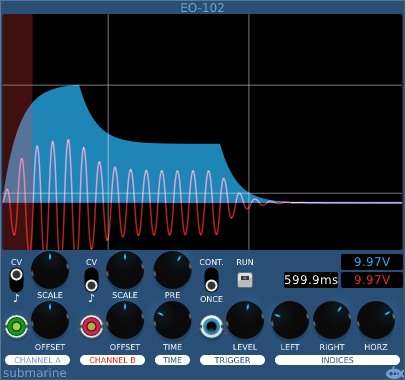

+# Envelope Oscilloscope
+#### EO-102 2-Channel Envelope Oscilloscope
+
+![View of the Envelope Oscilloscope](EO.png "Envelope Oscilloscope")
+
+## Basic Operation
+
+The envelope oscilloscope takes up to 2 input signals which it will trace out on the scope screen. It is optimised for displaying envelopes.
+Each of the two channels has a control for the scaling of the trace on the screen, and the vertical offset. Each channel also has
+a switch to indicate whether the input is an envelope CV or an audio signal.
+
+CV inputs are displayed using a single line. Audio inputs are rectified and displayed using a solid shape. In addition, the rectified audio signal displayed is the maximum signal value across a small window of samples, showing the peak signal at each point.
+
+## Trigger
+
+By default the first input channel (Channel A) is used as a trigger to synchronise the scope display. An external trigger input is also provided and this signal (which is not displayed on the screen) will be used to synchronise the display if anything is connected to it.
+
+The trigger operates on a rising edge, and the trigger point can be adjusted using the LEVEL knob.
+
+A small blue led between the external trigger input and the LEVEL knob will flash every time the scope is triggered. If it is not flashing, this is either because the signal is not rising past the appropriate LEVEL, or the RUN button is turned off.
+
+## One-shot Tracing
+
+In normal operation, the analyser traces continuously. If you wish to stop the trace and leave the last traced signal displayed on the screen, press the RUN button so that the light is extinguished. In addition, the CONT/ONCE switch allows it to be put into a one-shot mode, which will make one sweep and then hold the display. To use one-shot mode, set the CONT/ONCE switch to 'ONCE'.
+and press the RUN button. The RUN button will illuminate and the analyser will wait until the next trigger event. When it receives an appropriate edge on the selected trigger input, it will record one trace, the RUN button led will extinguish
+and the display will not change again.
+
+To make another trace, press the RUN button again and wait for the next trigger edge.
+
+To return to continuous operation set the CONT/ONCE switch to 'CONT'
+
+## Time
+
+The TIME knob will adjust the time resolution of the scope, showing a longer or shorter period of time in a single sweep.
+
+## Indices
+
+There are two vertical indices provided, these are displayed as vertical white lines on the scope display. They can be adjusted using the L and R INDEX knobs. The time span between the two indices is displayed above the INDEX knobs in the white display.
+
+There is a single horizontal index provided. This is displayed as a horizontal white line on the scope display. It can be adjusted using the HORZ INDEX knob. The voltage at the index level is displayed in the blue and red displays above the HORZ INDEX knob.
+
+Alternatively using both indices and the time span display will allow you to measure the length of a pulse or event in a trace,  Or by setting the indices to a known time span, you can adjust other devices in your rack until a signal is of the desired duration.
+
+## Pre-trigger Buffer
+
+The PRE. knob controls the display of the content of the pre-trigger buffer. This 100-sample buffer is constantly filled by the scope and is available to display the up to 100 samples prior to the trigger point. By adjusting the PRE. knob you can adjust how much of this buffer is displayed. The trigger point is indicated by a vertical red line on the display.

plugins/community/repos/SubmarineFree/manual/FF.md

@@ -2,6 +2,7 @@
 ### [Part of the Digital Suite](DS.md)
 #### FF-110 10-Stage Flip-Flop Cascade
 #### FF-120 20-Stage Flip-Flop Cascade
+#### FF-206 6 Edge Triggered Flip-Flops
 #### FF-212 12 Edge Triggered Flip-Flops

 ![View of the Flip-Flop modules](FF.png "Flip-Flop Range")
@@ -17,3 +18,11 @@ The FF-110 and FF-120 Flip-Flop cascade devices contain a chain of linked Flip-F
 ## Normalling

 The FF-212 module contains 12 independant Flip-Flops each triggered on the rising edge. However, if nothing is connected to the input, the device is normally connected through an inverter to the output of the previous device. The module can be used as independant Flip-Flops, or as one or more multi-stage cascades.
+
+The FF-206 provides 6 independant Flip-Flops in a small form factor. Otherwise functionality is as for the FF-212 above.
+
+## Initialize and Randomize
+
+All the FF-1xx and FF-2xx devices can be reset using the Initialize context menu. All the Flip-Flop gates will turn off.
+
+All the FF-1xx and FF-2xx devices can be randomized using the Randomize context menu. Each Flip-Flop gate will be randomly turned on or off.

plugins/community/repos/SubmarineFree/manual/LD.md

@@ -1,5 +1,6 @@
 # Schmitt Trigger Line Drivers
 ### [Part of the Digital Suite](DS.md)
+#### LD-103 Line Drivers
 #### LD-106 Line Drivers

 ![View of the Line Drivers](LD.png "Line Drivers")
@@ -17,3 +18,7 @@ The voltage range of the digital gates can be configured from the context menu.
 The two control knobs are CUTOFF which is the midpoint of the input signal range. Inputs above the CUTOFF are logical high signals, and those below the CUTOFF are logical low signals. The WIDTH controls the hysteresis of the Schmitt Trigger.

 The range of the CUTOFF is -10V to +10V. The range of the WIDTH is 0V to 5V and this width is applied BOTH above and below the CUTOFF. If the WIDTH is set to 0V, no hysteresis is applied.
+
+## LD-103
+
+The LD-103 provides three line drivers in a small form factor. The CUTOFF and WIDTH controls are labelled C and W respectively. Otherwise the functionality is as for the LD-106 above

plugins/community/repos/SubmarineFree/manual/NG.md

@@ -1,12 +1,13 @@
 # Logical NOT Gates
 ### [Part of the Digital Suite](DS.md)
+#### NG-106 NOT Gates
 #### NG-112 NOT Gates

 ![View of the NOT Gates](NG.png "NOT Gates")

 ## Basic Operation

-The NG-112 provides 12 gates. It is designed to take digital signals, but it will happily accept analog signals.
+The NG-112 provides 12 NOT gates. It is designed to take digital signals, but it will happily accept analog signals.

 ## Signal Range

@@ -17,3 +18,7 @@ The voltage range of the digital gates can be configured from the context menu.
 Any input not connected will cause a high signal at the corresponding output. The NG-112 can be used with inputs disconnected to provide stable 1V, 5V or 10V signals.

 By connected a single output to the input of another gate, it is possible to generate stable 0V, -5V and -10V signals.
+
+## NG-106
+
+The NG-106 provides six two-input NOT gates in a small form factor. Otherwise functionality is as for the NG-112 above.

plugins/community/repos/SubmarineFree/manual/OG.md

@@ -1,5 +1,6 @@
 # Logical OR Gates
 ### [Part of the Digital Suite](DS.md)
+#### OG-104 OR Gates
 #### OG-106 OR Gates

 ![View of the OR Gates](OG.png "OR Gates")
@@ -17,3 +18,7 @@ The voltage range of the digital gates can be configured from the context menu.
 Any output not connected will be normalled into a third input on the gate below. In this way multi-input gates can be created up to a maximum of 12 inputs.

 An input not connected will be ignored.
+
+## OG-104
+
+The OG-104 provides four two-input OR gates in a small form factor. Otherwise functionality is as for the OG-106 above.

plugins/community/repos/SubmarineFree/manual/PG.md

@@ -1,5 +1,6 @@
 # Pulse Generators
 ### [Part of the Digital Suite](DS.md)
+#### PG-104 Pulse Generators
 #### PG-112 Pulse Generators


@@ -13,3 +14,6 @@ The PG-112 provides 12 Pulse Generators. It is designed to take digital signals,

 The voltage range of the digital gates can be configured from the context menu. The device will output at the full range of the configured settings. The inputs will measure a logical high signal anywhere above the midpoint of the configured range.

+## PG-104
+
+The PG-104 provides 4 Pulse generators in a small form factor. Otherwise functionality is as for the PG-112 above.

plugins/community/repos/SubmarineFree/manual/PO.md

@@ -28,4 +28,4 @@ The waveform of the output can be adjusted using the WAVE control knob and assoc

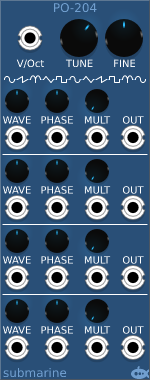

 ## Frequency multiplier

-The output frequency can be multiplied by an integer value from 1 to 16 using the MULT control knob.
+The output frequency can be multiplied by an integer value from 1 to 16 using the MULT control knob and associated CV.

plugins/community/repos/SubmarineFree/manual/SS.md

@@ -0,0 +1,24 @@
+# Sources and Sinks - Lightweight voltage sources
+#### SS-112 - 12 Voltage Sinks
+#### SS-208 - 8 Irrational Voltage Sources
+#### SS-212 - 12 Chromatic Voltage Sources
+#### SS-220 - 120 Chromatic Voltage Sources
+#### SS-221 - 21 Voltage Sources
+
+![View of the Sources and Sinks Range](SS.png "Sources and Sinks")
+
+## Basic Operation
+
+The SS-xxx range of modules provide lightweight voltage sources and sinks. In each case designed to use as little processing power as possible to do the job.
+
+The SS-112 provides 12 input sockets which do absolutely nothing. The device is designed to use a minimum of processing power to provide you with somewhere to connect any device which requires an output to be connected for it to behave as you wish.
+
+The SS-208 provides 8 fixed voltage outputs; each with a different commonly occuring irrational value. The values provided are PI, TAU, e, Square Root of One Half, Square Root of Two, Square Root of Three, Square Root of Five and Square Root of Seven.
+
+The SS-212 provides 12 fixed voltages in 1/12 volt increments, suitable for use as a chromatic scale input to devices which respect the 1V/oct standard. The context menu allows you to select the octave which is output.
+
+The SS-220 provides 120 fixed voltages in 1/12 volt increments. The voltages range from -5V to +4.92V suitable for use as 10 octaves of chromatic scale input to devices which respect the 1V/oct standard.
+
+The SS-221 provides 21 fixed voltages in 1 volt increments, ranging from -10V to +10V.
+
+These outputs are useful not only as Pitch CV for oscillators, but also to select specific voltage values for any CV input.

plugins/community/repos/SubmarineFree/manual/TD.md

@@ -0,0 +1,25 @@
+# Formattable Text Display
+#### TD-116 Formattable Text Display
+

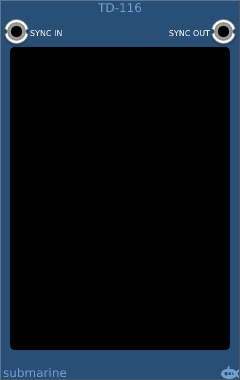

+![View of the Formattable Text Display](TD.png "Formattable Text Display")
+
+## Basic Operation
+
+The TD-116 is a text display on which you can make notes or put text into the visuals of your rack. Similar to the Fundamental Notes module, the TD-116 also allows you to control the text and background colors, and also the text size. The standard text size is not easy to read in a You-Tube video, so a larger size is sometimes useful for demonstrations.
+
+The TD-116 features [Torpedo](https://github.com/david-c14/Torpedo) input and ouput ports. Changes to the text are sent through the output port, which allows you to capture the text in any suitable Torpedo device.
+
+Text or formatting information can be sent into the TD-116 through the Torpedo input port, allowing you to change the text or formatting programmatically.
+
+The [TF-101](TF.md) is a suitable device to control the formatting.
+
+#### TD-202 Vertical Text Display
+
+![View of the Vertical Text Display](TD-202.png "Vertical Text Display")
+
+## Basic Operation
+
+The TD-202 is a small 2-HP text display which can show a single line of text running down the rack. It is useful for labelling or separating
+sections of a patch.
+
+The colors of the TD-202 can be adjusted using the context menu.

plugins/community/repos/SubmarineFree/manual/TF.md

@@ -0,0 +1,12 @@
+# Text Display Formatter
+#### TF-101 Text Display Formatter
+
+![View of the Text Display Formatter](TF.png "Text Display Formatter")
+
+## Basic Operation
+
+The TF-101 is a format controller for the [TD-116](TD.md) Text Display. It has controls for the text color, background color and text size.
+
+Format information is passed from the TF-101 to the TD-116 using a [Torpedo](https://github.com/david-c14/Torpedo) protocol.
+
+Each color is controlled using three CV/Knob combinations, controlling the Red, Green and Blue components separately. A full-color LED on the TF-101 indicates the color mix selected.

plugins/community/repos/SubmarineFree/manual/TM.md

@@ -0,0 +1,10 @@
+# Torpedo Message Merge
+#### TM-105 - 5 port Torpedo Message Merge
+
+![View of the Torpedo Message Merge](TM.png "Torpedo Message Merge")
+
+## Basic Operation
+
+Because [Torpedo](https://github.com/david-c14/Torpedo) signals are data streams, they cannot be mixed without corrupting the data in the stream.
+
+The TM-105 is a message buffer with 5 separate inputs and a single Torpedo output. As messages array at the input ports, they are buffered until the output port is free to send them on. Up to 5 messages may be buffered at once, if the buffer fills, messages will be dropped. A set of leds indicate how full the buffer is at any one time.

plugins/community/repos/SubmarineFree/manual/XG.md

@@ -1,5 +1,6 @@
 # Logical XOR Gates
 ### [Part of the Digital Suite](DS.md)
+#### XG-104 XOR Gates
 #### XG-106 XOR Gates

 ![View of the XOR Gates](XG.png "XOR Gates")
@@ -17,3 +18,7 @@ The voltage range of the digital gates can be configured from the context menu.
 Any output not connected will be normalled into a third input on the gate below. In this way multi-input gates can be created up to a maximum of 12 inputs.

 An input not connected will be ignored.
+
+## XG-104
+
+The XG-104 provides four two-input XOR gates in a small form factor. Otherwise functionality is as for the XG-106 above.

plugins/community/repos/SubmarineFree/manual/index.md

@@ -1,6 +1,11 @@
+## [Get Latest Builds](https://github.com/david-c14/SubmarineFree/releases/tag/v0.6.7)
+
 # [AG](AG.md)
 Logical AND gates

+# [AO](AO.md)
+Arithmetic Operators
+
 # [BB](BB.md)
 Bucket Brigade Sample and Hold

@@ -10,6 +15,9 @@ Blanking plates
 # [DS](DS.md)
 Digital Suite

+# [EO](EO.md)
+Envelope Oscilloscope
+
 # [FF](FF.md)
 Flip-Flops

@@ -31,6 +39,18 @@ Pulse Generators
 # [PO](PO.md)
 Phased Oscillators

+# [SS](SS.md)
+Voltage Sources and Sinks
+
+# [TD](TD.md)
+Formattable Text Display
+
+# [TF](TF.md)
+Text Format Controller
+
+# [TM](TM.md)
+Torpedo Message Merge
+
 # [WK](WK.md)
 Das Wohltemperierte Klavier - Unequal Temperament Quantizer


plugins/community/repos/SubmarineFree/res/AG-104.svg

@@ -0,0 +1,100 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata26">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs24" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path30"
+         style="font-size:8px;text-anchor:middle"
+         d="M 2.8828125,4.9453125 1.8125,7.8476562 l 2.1445313,0 L 2.8828125,4.9453125 Z M 2.4375,4.1679687 l 0.8945313,0 L 5.5546875,10 4.734375,10 4.203125,8.5039063 l -2.6289063,0 L 1.0429687,10 0.2109375,10 2.4375,4.1679687 Z" />
+      <path
+         id="path32"
+         style="font-size:8px;text-anchor:middle"
+         d="m 10.238281,9.1679688 0,-1.5664063 -1.2890622,0 0,-0.6484375 2.0703122,0 0,2.5039063 Q 10.5625,9.78125 10.011719,9.9492188 9.4609375,10.113281 8.8359375,10.113281 7.46875,10.113281 6.6953125,9.3164063 5.9257812,8.515625 5.9257812,7.0898437 q 0,-1.4296875 0.7695313,-2.2265625 Q 7.46875,4.0625 8.8359375,4.0625 q 0.5703125,0 1.0820313,0.140625 0.5156252,0.140625 0.9492192,0.4140625 l 0,0.8398437 Q 10.429688,5.0859375 9.9375,4.8984375 q -0.4921875,-0.1875 -1.0351562,-0.1875 -1.0703126,0 -1.6093751,0.5976562 -0.5351562,0.5976563 -0.5351562,1.78125 0,1.1796876 0.5351562,1.7773438 0.5390625,0.5976563 1.6093751,0.5976563 0.4179687,0 0.7460937,-0.070312 0.328125,-0.074219 0.5898435,-0.2265625 z" />
+      <path
+         id="path34"
+         style="font-size:8px;text-anchor:middle"
+         d="m 12.070313,7.4882812 2.105468,0 0,0.6406251 -2.105468,0 0,-0.6406251 z" />
+      <path
+         id="path36"
+         style="font-size:8px;text-anchor:middle"
+         d="m 15.5625,9.3359375 1.289062,0 0,-4.4492188 -1.402343,0.28125 0,-0.71875 1.394531,-0.28125 0.789062,0 0,5.1679688 1.289063,0 0,0.6640625 -3.359375,0 0,-0.6640625 z" />
+      <path
+         id="path38"
+         style="font-size:8px;text-anchor:middle"
+         d="m 22.207031,4.6875 q -0.609375,0 -0.917969,0.6015625 -0.304687,0.5976562 -0.304687,1.8007812 0,1.1992188 0.304687,1.8007813 0.308594,0.5976563 0.917969,0.5976563 0.613281,0 0.917969,-0.5976563 0.308594,-0.6015625 0.308594,-1.8007813 0,-1.203125 -0.308594,-1.8007812 Q 22.820312,4.6875 22.207031,4.6875 Z m 0,-0.625 q 0.980469,0 1.496094,0.7773437 0.519531,0.7734375 0.519531,2.25 0,1.4726563 -0.519531,2.2500001 -0.515625,0.7734372 -1.496094,0.7734372 -0.980469,0 -1.5,-0.7734372 Q 20.191406,8.5625 20.191406,7.0898437 q 0,-1.4765625 0.515625,-2.25 0.519531,-0.7773437 1.5,-0.7773437 z" />
+      <path
+         id="path40"
+         style="font-size:8px;text-anchor:middle"
+         d="m 27.78125,4.8554687 -1.992188,3.1132813 1.992188,0 0,-3.1132813 z m -0.207031,-0.6875 0.992187,0 0,3.8007813 0.832031,0 0,0.65625 -0.832031,0 0,1.375 -0.785156,0 0,-1.375 -2.632813,0 0,-0.7617188 2.425782,-3.6953125 z" />
+    </g>
+  </g>
+  <g
+     style="fill:none;stroke:#ffffff;stroke-width:2;stroke-linecap:round"
+     id="screen">
+    <path
+       id="line12"
+       d="m 15,31.5 0,317"
+       style="stroke:#719fcf" />
+    <path
+       id="line14"
+       d="m 15,31.5 0,56"
+       style="" />
+    <path
+       id="line16"
+       d="m 15,118.5 0,56"
+       style="" />
+    <path
+       id="line18"
+       d="m 15,205.5 0,56"
+       style="" />
+    <path
+       id="line20"
+       d="m 15,292.5 0,56"
+       style="" />
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/AO-106.svg

@@ -0,0 +1,424 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4226"
+   version="1.1"
+   height="380px"
+   width="165px">
+  <metadata
+     id="metadata89">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs87" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 165,0 0,380 -165,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4230"
+       d="M 0,380 0,0 165,0 164,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4232"
+       d="m 0,380 165,0 0,-380 -1,1 0,378 -163,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 154.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 146,373.83071 8.1692063,5.1693144 0 0 0 154.16915,379 8.1692063,5.1693144 0 0 0 161.48278,376.11985 3.0461447,4.2480502 0 0 0 164,377.97641 l 0,-2.35772 a 1.3384576,1.9448905 0 0 1 -1.2923,-1.94151 1.3384576,1.9448905 0 0 1 1.2923,-1.94263 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 154.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text4236"
+       style="">
+      <path
+         id="path93"
+         style=""
+         d="m 8.3144531,370.63086 0,1.01953 q -0.4570312,-0.23437 -0.9492187,-0.35156 -0.4921875,-0.11719 -1.0195313,-0.11719 -0.8027344,0 -1.2070312,0.24609 -0.3984375,0.2461 -0.3984375,0.73829 0,0.375 0.2871093,0.59179 0.2871094,0.21094 1.1542969,0.4043 l 0.3691406,0.082 q 1.1484375,0.24609 1.6289063,0.69727 0.4863281,0.44531 0.4863281,1.24804 0,0.91407 -0.7265625,1.44727 -0.7207031,0.5332 -1.9863281,0.5332 -0.5273438,0 -1.1015625,-0.10547 -0.5683594,-0.0996 -1.2011719,-0.30468 l 0,-1.11329 q 0.5976563,0.31055 1.1777344,0.46875 0.5800781,0.15235 1.1484375,0.15235 0.7617187,0 1.171875,-0.25781 0.4101562,-0.26368 0.4101562,-0.73829 0,-0.43945 -0.2988281,-0.67382 -0.2929687,-0.23438 -1.2949219,-0.45118 l -0.375,-0.0879 q -1.0019531,-0.21093 -1.4472656,-0.64453 -0.4453125,-0.43945 -0.4453125,-1.20117 0,-0.92578 0.65625,-1.42969 0.65625,-0.5039 1.8632813,-0.5039 0.5976562,0 1.125,0.0879 0.5273437,0.0879 0.9726562,0.26367 z" />
+      <path
+         id="path95"
+         style=""
+         d="m 10.277344,374.41016 0,-3.97266 1.078125,0 0,3.93164 q 0,0.93164 0.363281,1.40039 0.363281,0.46289 1.089844,0.46289 0.873047,0 1.376953,-0.55664 0.509766,-0.55664 0.509766,-1.51758 l 0,-3.7207 1.078125,0 0,6.5625 -1.078125,0 0,-1.00781 q -0.392579,0.59765 -0.914063,0.89062 -0.515625,0.28711 -1.201172,0.28711 -1.130859,0 -1.716797,-0.70312 -0.585937,-0.70313 -0.585937,-2.05664 z m 2.71289,-4.13086 0,0 z" />
+      <path
+         id="path97"
+         style=""
+         d="m 22.716797,373.72461 q 0,-1.18945 -0.492188,-1.86328 -0.486328,-0.67969 -1.341797,-0.67969 -0.855468,0 -1.347656,0.67969 -0.486328,0.67383 -0.486328,1.86328 0,1.18945 0.486328,1.86914 0.492188,0.67383 1.347656,0.67383 0.855469,0 1.341797,-0.67383 0.492188,-0.67969 0.492188,-1.86914 z m -3.667969,-2.29102 q 0.339844,-0.58593 0.855469,-0.86718 0.521484,-0.28711 1.242187,-0.28711 1.195313,0 1.939453,0.94922 0.75,0.94921 0.75,2.49609 0,1.54687 -0.75,2.49609 -0.74414,0.94922 -1.939453,0.94922 -0.720703,0 -1.242187,-0.28125 -0.515625,-0.28711 -0.855469,-0.87305 l 0,0.98438 -1.083984,0 0,-9.11719 1.083984,0 0,3.55078 z" />
+      <path
+         id="path99"
+         style=""
+         d="m 30.732422,371.69727 q 0.404297,-0.72657 0.966797,-1.07227 0.5625,-0.3457 1.324218,-0.3457 1.025391,0 1.582032,0.7207 0.55664,0.71484 0.55664,2.03906 l 0,3.96094 -1.083984,0 0,-3.92578 q 0,-0.94336 -0.333984,-1.40039 -0.333985,-0.45703 -1.019532,-0.45703 -0.83789,0 -1.324218,0.55664 -0.486329,0.55664 -0.486329,1.51758 l 0,3.70898 -1.083984,0 0,-3.92578 q 0,-0.94922 -0.333984,-1.40039 -0.333985,-0.45703 -1.03125,-0.45703 -0.826172,0 -1.3125,0.5625 -0.486328,0.55664 -0.486328,1.51172 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.36914,-0.60351 0.884765,-0.89062 0.515625,-0.28711 1.22461,-0.28711 0.714843,0 1.21289,0.36328 0.503906,0.36328 0.744141,1.05469 z" />
+      <path
+         id="path101"
+         style=""
+         d="m 40.300781,373.70117 q -1.30664,0 -1.810547,0.29883 -0.503906,0.29883 -0.503906,1.01953 0,0.57422 0.375,0.91406 0.380859,0.33399 1.03125,0.33399 0.896484,0 1.435547,-0.63281 0.544922,-0.63868 0.544922,-1.69336 l 0,-0.24024 -1.072266,0 z m 2.150391,-0.44531 0,3.74414 -1.078125,0 0,-0.99609 q -0.369141,0.59765 -0.919922,0.88476 -0.550781,0.28125 -1.347656,0.28125 -1.007813,0 -1.605469,-0.5625 -0.591797,-0.56836 -0.591797,-1.51758 0,-1.10742 0.738281,-1.66992 0.744141,-0.5625 2.214844,-0.5625 l 1.511719,0 0,-0.10547 q 0,-0.74414 -0.492188,-1.14843 -0.486328,-0.41016 -1.371093,-0.41016 -0.5625,0 -1.095704,0.13476 -0.533203,0.13477 -1.02539,0.4043 l 0,-0.99609 q 0.591797,-0.22852 1.148437,-0.33985 0.556641,-0.11718 1.083985,-0.11718 1.423828,0 2.126953,0.73828 0.703125,0.73828 0.703125,2.23828 z" />
+      <path
+         id="path103"
+         style=""
+         d="m 48.480469,371.44531 q -0.181641,-0.10547 -0.398438,-0.15234 -0.210937,-0.0527 -0.46875,-0.0527 -0.914062,0 -1.40625,0.59766 -0.486328,0.5918 -0.486328,1.70508 l 0,3.45703 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.339844,-0.59766 0.884766,-0.88476 0.544922,-0.29297 1.324218,-0.29297 0.111329,0 0.246094,0.0176 0.134766,0.0117 0.298828,0.041 l 0.0059,1.10742 z" />
+      <path
+         id="path105"
+         style=""
+         d="m 49.623047,370.4375 1.078125,0 0,6.5625 -1.078125,0 0,-6.5625 z m 0,-2.55469 1.078125,0 0,1.36524 -1.078125,0 0,-1.36524 z" />
+      <path
+         id="path107"
+         style=""
+         d="m 58.40625,373.03906 0,3.96094 -1.078125,0 0,-3.92578 q 0,-0.93164 -0.363281,-1.39453 -0.363282,-0.46289 -1.089844,-0.46289 -0.873047,0 -1.376953,0.55664 -0.503906,0.55664 -0.503906,1.51758 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.386718,-0.5918 0.908203,-0.88476 0.527343,-0.29297 1.21289,-0.29297 1.13086,0 1.710938,0.70312 0.580078,0.69727 0.580078,2.05664 z" />
+      <path
+         id="path109"
+         style=""
+         d="m 66.181641,373.44922 0,0.52734 -4.957032,0 q 0.07031,1.11328 0.667969,1.69922 0.603516,0.58008 1.675781,0.58008 0.621094,0 1.201172,-0.15234 0.585938,-0.15235 1.160156,-0.45704 l 0,1.01954 q -0.580078,0.24609 -1.189453,0.375 -0.609375,0.1289 -1.236328,0.1289 -1.570312,0 -2.490234,-0.91406 -0.914063,-0.91406 -0.914063,-2.47266 0,-1.61133 0.867188,-2.55468 0.873047,-0.94922 2.349609,-0.94922 1.324219,0 2.091797,0.85547 0.773438,0.8496 0.773438,2.31445 z m -1.078125,-0.31641 q -0.01172,-0.88476 -0.498047,-1.41211 -0.480469,-0.52734 -1.277344,-0.52734 -0.902344,0 -1.447266,0.50976 -0.539062,0.50977 -0.621093,1.43555 l 3.84375,-0.006 z" />
+    </g>
+    <g
+       id="text10"
+       style="text-anchor:middle">
+      <path
+         id="path112"
+         style="text-anchor:middle"
+         d="m 64.089844,4.4179687 -1.605469,4.3535157 3.216797,0 -1.611328,-4.3535157 z m -0.667969,-1.1660156 1.341797,0 L 68.097656,12 l -1.230469,0 -0.796875,-2.2441406 -3.943359,0 L 61.330078,12 60.082031,12 63.421875,3.2519531 Z" />
+      <path
+         id="path114"
+         style="text-anchor:middle"
+         d="m 72.708984,4.0546875 q -1.289062,0 -2.050781,0.9609375 -0.755859,0.9609375 -0.755859,2.6191406 0,1.6523438 0.755859,2.6132814 0.761719,0.960937 2.050781,0.960937 1.289063,0 2.039063,-0.960937 0.755859,-0.9609376 0.755859,-2.6132814 0,-1.6582031 -0.755859,-2.6191406 -0.75,-0.9609375 -2.039063,-0.9609375 z m 0,-0.9609375 q 1.839844,0 2.941407,1.2363281 1.101562,1.2304688 1.101562,3.3046875 0,2.0683594 -1.101562,3.3046874 -1.101563,1.230469 -2.941407,1.230469 -1.845703,0 -2.953125,-1.230469 -1.101562,-1.2304686 -1.101562,-3.3046874 0,-2.0742187 1.101562,-3.3046875 Q 70.863281,3.09375 72.708984,3.09375 Z" />
+      <path
+         id="path116"
+         style="text-anchor:middle"
+         d="m 78.339844,8.2324219 3.158203,0 0,0.9609375 -3.158203,0 0,-0.9609375 z" />
+      <path
+         id="path118"
+         style="text-anchor:middle"
+         d="m 83.578125,11.003906 1.933594,0 0,-6.6738279 -2.103516,0.421875 0,-1.078125 2.091797,-0.421875 1.183594,0 0,7.7519529 1.933593,0 0,0.996094 -5.039062,0 0,-0.996094 z" />
+      <path
+         id="path120"
+         style="text-anchor:middle"
+         d="m 93.544922,4.03125 q -0.914063,0 -1.376953,0.9023437 -0.457032,0.8964844 -0.457032,2.7011719 0,1.7988282 0.457032,2.7011724 0.46289,0.896484 1.376953,0.896484 0.919922,0 1.376953,-0.896484 0.462891,-0.9023442 0.462891,-2.7011724 0,-1.8046875 -0.462891,-2.7011719 Q 94.464844,4.03125 93.544922,4.03125 Z m 0,-0.9375 q 1.470703,0 2.24414,1.1660156 0.779297,1.1601563 0.779297,3.375 0,2.2089844 -0.779297,3.3750004 -0.773437,1.160156 -2.24414,1.160156 -1.470703,0 -2.25,-1.160156 -0.773438,-1.166016 -0.773438,-3.3750004 0,-2.2148437 0.773438,-3.375 0.779297,-1.1660156 2.25,-1.1660156 z" />
+      <path
+         id="path122"
+         style="text-anchor:middle"
+         d="m 101.33203,7.1542969 q -0.79687,0 -1.26562,0.5449218 -0.462894,0.5449219 -0.462894,1.4941407 0,0.9433596 0.462894,1.4941406 0.46875,0.544922 1.26562,0.544922 0.79688,0 1.25977,-0.544922 0.46875,-0.550781 0.46875,-1.4941406 0,-0.9492188 -0.46875,-1.4941407 -0.46289,-0.5449218 -1.25977,-0.5449218 z m 2.34961,-3.7089844 0,1.078125 Q 103.23633,4.3125 102.7793,4.2011719 q -0.45117,-0.1113282 -0.89649,-0.1113282 -1.17187,0 -1.79297,0.7910157 -0.615231,0.7910156 -0.703121,2.390625 0.345703,-0.5097657 0.867191,-0.7792969 0.52148,-0.2753906 1.14843,-0.2753906 1.31836,0 2.08008,0.8027343 0.76758,0.796875 0.76758,2.1738282 0,1.3476566 -0.79687,2.1621096 -0.79688,0.814453 -2.1211,0.814453 -1.517577,0 -2.320311,-1.160156 -0.802735,-1.166016 -0.802735,-3.3750004 0,-2.0742187 0.984375,-3.3046875 0.984371,-1.2363281 2.642581,-1.2363281 0.44531,0 0.89648,0.087891 0.45703,0.087891 0.94922,0.2636719 z" />
+    </g>
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:none;stroke:#ffffff;stroke-width:1;stroke-linecap:round;stroke-linejoin:round"
+     font-size="8"
+     id="group1">
+    <g
+       style="stroke:#719fcf"
+       id="g13">
+      <path
+         id="path15"
+         d="m 37.5,51.5 40,0 5,4 5,-4 40,0" />
+      <path
+         id="path17"
+         d="m 37.5,97.5 40,0 5,4 5,-4 40,0" />
+      <path
+         id="path19"
+         d="m 37.5,143.5 40,0 5,4 5,-4 40,0" />
+      <path
+         id="path21"
+         d="m 37.5,189.5 40,0 5,4 5,-4 40,0" />
+      <path
+         id="path23"
+         d="m 37.5,235.5 40,0 5,4 5,-4 40,0" />
+      <path
+         id="path25"
+         d="m 37.5,281.5 40,0 5,4 5,-4 40,0" />
+      <path
+         id="path27"
+         d="m 37.5,327.5 40,0 5,4 5,-4 40,0" />
+      <path
+         id="path29"
+         d="m 37.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path31"
+         d="m 127.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+    </g>
+    <g
+       style="fill:#000000;stroke:none"
+       id="g33">
+      <path
+         id="rect35"
+         d="m 44.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect37"
+         d="m 44.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect39"
+         d="m 44.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect41"
+         d="m 44.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect43"
+         d="m 44.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect45"
+         d="m 44.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect47"
+         d="m 44.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect49"
+         d="m 44.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect51"
+         d="m 44.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect53"
+         d="m 44.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect55"
+         d="m 44.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect57"
+         d="m 44.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+    </g>
+    <g
+       style="fill:#ffffff;stroke:none"
+       id="g59">
+      <g
+         id="text61"
+         style="text-anchor:middle">
+        <path
+           id="path137"
+           style="text-anchor:middle"
+           d="m 8.8164063,94.167969 0.8476562,0 1.4492185,2.167968 1.457032,-2.167968 0.847656,0 -1.875,2.800781 2,3.03125 -0.847656,0 L 11.054688,97.519531 9.4023438,100 8.5507813,100 10.632813,96.886719 8.8164063,94.167969 Z" />
+        <path
+           id="path139"
+           style="text-anchor:middle"
+           d="m 17.128906,94.167969 0.789063,0 0,5.832031 -0.789063,0 0,-5.832031 z" />
+        <path
+           id="path141"
+           style="text-anchor:middle"
+           d="m 19.488281,94.167969 1.0625,0 2.585938,4.878906 0,-4.878906 0.765625,0 0,5.832031 -1.0625,0 -2.585938,-4.878906 0,4.878906 -0.765625,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text63"
+         style="text-anchor:middle">
+        <path
+           id="path144"
+           style="text-anchor:middle"
+           d="m 8.8164063,140.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,146 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path146"
+           style="text-anchor:middle"
+           d="m 17.128906,140.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path148"
+           style="text-anchor:middle"
+           d="m 19.488281,140.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text65"
+         style="text-anchor:middle">
+        <path
+           id="path151"
+           style="text-anchor:middle"
+           d="m 8.8164063,186.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,192 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path153"
+           style="text-anchor:middle"
+           d="m 17.128906,186.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path155"
+           style="text-anchor:middle"
+           d="m 19.488281,186.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text67"
+         style="text-anchor:middle">
+        <path
+           id="path158"
+           style="text-anchor:middle"
+           d="m 8.8164063,232.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,238 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path160"
+           style="text-anchor:middle"
+           d="m 17.128906,232.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path162"
+           style="text-anchor:middle"
+           d="m 19.488281,232.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text69"
+         style="text-anchor:middle">
+        <path
+           id="path165"
+           style="text-anchor:middle"
+           d="m 8.8164063,278.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,284 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path167"
+           style="text-anchor:middle"
+           d="m 17.128906,278.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path169"
+           style="text-anchor:middle"
+           d="m 19.488281,278.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text71"
+         style="text-anchor:middle">
+        <path
+           id="path172"
+           style="text-anchor:middle"
+           d="m 136.46484,94.167969 0.84766,0 1.44922,2.167968 1.45703,-2.167968 0.84766,0 -1.875,2.800781 2,3.03125 -0.84766,0 -1.64063,-2.480469 -1.65234,2.480469 -0.85156,0 2.08203,-3.113281 -1.81641,-2.71875 z" />
+        <path
+           id="path174"
+           style="text-anchor:middle"
+           d="m 147.14453,94.703125 q -0.85937,0 -1.36719,0.640625 -0.5039,0.640625 -0.5039,1.746094 0,1.101562 0.5039,1.742187 0.50782,0.640625 1.36719,0.640625 0.85938,0 1.35938,-0.640625 0.5039,-0.640625 0.5039,-1.742187 0,-1.105469 -0.5039,-1.746094 -0.5,-0.640625 -1.35938,-0.640625 z m 0,-0.640625 q 1.22656,0 1.96094,0.824219 0.73437,0.820312 0.73437,2.203125 0,1.378906 -0.73437,2.203125 -0.73438,0.820311 -1.96094,0.820311 -1.23047,0 -1.96875,-0.820311 -0.73437,-0.820313 -0.73437,-2.203125 0,-1.382813 0.73437,-2.203125 0.73828,-0.824219 1.96875,-0.824219 z" />
+        <path
+           id="path176"
+           style="text-anchor:middle"
+           d="m 150.98437,94.167969 0.79297,0 0,3.542968 q 0,0.9375 0.33985,1.351563 0.33984,0.410156 1.10156,0.410156 0.75781,0 1.09766,-0.410156 0.33984,-0.414063 0.33984,-1.351563 l 0,-3.542968 0.79297,0 0,3.640625 q 0,1.140625 -0.56641,1.722656 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.582031 -0.5625,-1.722656 l 0,-3.640625 z" />
+        <path
+           id="path178"
+           style="text-anchor:middle"
+           d="m 156.125,94.167969 4.93359,0 0,0.664062 -2.07031,0 0,5.167969 -0.79297,0 0,-5.167969 -2.07031,0 0,-0.664062 z" />
+      </g>
+      <g
+         id="text73"
+         style="text-anchor:middle">
+        <path
+           id="path181"
+           style="text-anchor:middle"
+           d="m 136.46484,140.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path183"
+           style="text-anchor:middle"
+           d="m 147.14453,140.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path185"
+           style="text-anchor:middle"
+           d="m 150.98437,140.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path187"
+           style="text-anchor:middle"
+           d="m 156.125,140.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text75"
+         style="text-anchor:middle">
+        <path
+           id="path190"
+           style="text-anchor:middle"
+           d="m 136.46484,186.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path192"
+           style="text-anchor:middle"
+           d="m 147.14453,186.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path194"
+           style="text-anchor:middle"
+           d="m 150.98437,186.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path196"
+           style="text-anchor:middle"
+           d="m 156.125,186.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text77"
+         style="text-anchor:middle">
+        <path
+           id="path199"
+           style="text-anchor:middle"
+           d="m 136.46484,232.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path201"
+           style="text-anchor:middle"
+           d="m 147.14453,232.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path203"
+           style="text-anchor:middle"
+           d="m 150.98437,232.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path205"
+           style="text-anchor:middle"
+           d="m 156.125,232.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text79"
+         style="text-anchor:middle">
+        <path
+           id="path208"
+           style="text-anchor:middle"
+           d="m 136.46484,278.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path210"
+           style="text-anchor:middle"
+           d="m 147.14453,278.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path212"
+           style="text-anchor:middle"
+           d="m 150.98437,278.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path214"
+           style="text-anchor:middle"
+           d="m 156.125,278.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text81"
+         style="text-anchor:start">
+        <path
+           id="path217"
+           style="text-anchor:start"
+           d="m 96.984375,28.167969 0.847656,0 1.617188,2.398437 1.605471,-2.398437 0.84765,0 -2.062496,3.054687 0,2.777344 -0.792969,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path219"
+           style="text-anchor:start"
+           d="m 105.22266,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path221"
+           style="text-anchor:start"
+           d="m 107.58203,28.167969 1.0625,0 2.58594,4.878906 0,-4.878906 0.76562,0 0,5.832031 -1.0625,0 -2.58593,-4.878906 0,4.878906 -0.76563,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text83"
+         style="text-anchor:start">
+        <path
+           id="path224"
+           style="text-anchor:start"
+           d="m 96.984375,345.16797 0.847656,0 1.617188,2.39844 1.605471,-2.39844 0.84765,0 -2.062496,3.05469 0,2.77734 -0.792969,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path226"
+           style="text-anchor:start"
+           d="m 107.58984,345.70312 q -0.85937,0 -1.36718,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36718,0.64063 0.85938,0 1.35938,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22657,0 1.96094,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96094,0.82031 -1.23046,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73829,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path228"
+           style="text-anchor:start"
+           d="m 111.42969,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33984,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10547,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path230"
+           style="text-anchor:start"
+           d="m 116.57031,345.16797 4.9336,0 0,0.66406 -2.07032,0 0,5.16797 -0.79296,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/AO-112.svg

@@ -0,0 +1,475 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4226"
+   version="1.1"
+   height="380px"
+   width="255px">
+  <metadata
+     id="metadata115">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs113" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 255,0 0,380 -255,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4230"
+       d="M 0,380 0,0 255,0 254,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4232"
+       d="m 0,380 255,0 0,-380 -1,1 0,378 -253,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 244.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 236,373.83071 8.1692063,5.1693144 0 0 0 244.16915,379 8.1692063,5.1693144 0 0 0 251.48278,376.11985 3.0461447,4.2480502 0 0 0 254,377.97641 l 0,-2.35772 a 1.3384576,1.9448905 0 0 1 -1.2923,-1.94151 1.3384576,1.9448905 0 0 1 1.2923,-1.94263 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 244.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text4236"
+       style="">
+      <path
+         id="path119"
+         style=""
+         d="m 8.3144531,370.63086 0,1.01953 q -0.4570312,-0.23437 -0.9492187,-0.35156 -0.4921875,-0.11719 -1.0195313,-0.11719 -0.8027344,0 -1.2070312,0.24609 -0.3984375,0.2461 -0.3984375,0.73829 0,0.375 0.2871093,0.59179 0.2871094,0.21094 1.1542969,0.4043 l 0.3691406,0.082 q 1.1484375,0.24609 1.6289063,0.69727 0.4863281,0.44531 0.4863281,1.24804 0,0.91407 -0.7265625,1.44727 -0.7207031,0.5332 -1.9863281,0.5332 -0.5273438,0 -1.1015625,-0.10547 -0.5683594,-0.0996 -1.2011719,-0.30468 l 0,-1.11329 q 0.5976563,0.31055 1.1777344,0.46875 0.5800781,0.15235 1.1484375,0.15235 0.7617187,0 1.171875,-0.25781 0.4101562,-0.26368 0.4101562,-0.73829 0,-0.43945 -0.2988281,-0.67382 -0.2929687,-0.23438 -1.2949219,-0.45118 l -0.375,-0.0879 q -1.0019531,-0.21093 -1.4472656,-0.64453 -0.4453125,-0.43945 -0.4453125,-1.20117 0,-0.92578 0.65625,-1.42969 0.65625,-0.5039 1.8632813,-0.5039 0.5976562,0 1.125,0.0879 0.5273437,0.0879 0.9726562,0.26367 z" />
+      <path
+         id="path121"
+         style=""
+         d="m 10.277344,374.41016 0,-3.97266 1.078125,0 0,3.93164 q 0,0.93164 0.363281,1.40039 0.363281,0.46289 1.089844,0.46289 0.873047,0 1.376953,-0.55664 0.509766,-0.55664 0.509766,-1.51758 l 0,-3.7207 1.078125,0 0,6.5625 -1.078125,0 0,-1.00781 q -0.392579,0.59765 -0.914063,0.89062 -0.515625,0.28711 -1.201172,0.28711 -1.130859,0 -1.716797,-0.70312 -0.585937,-0.70313 -0.585937,-2.05664 z m 2.71289,-4.13086 0,0 z" />
+      <path
+         id="path123"
+         style=""
+         d="m 22.716797,373.72461 q 0,-1.18945 -0.492188,-1.86328 -0.486328,-0.67969 -1.341797,-0.67969 -0.855468,0 -1.347656,0.67969 -0.486328,0.67383 -0.486328,1.86328 0,1.18945 0.486328,1.86914 0.492188,0.67383 1.347656,0.67383 0.855469,0 1.341797,-0.67383 0.492188,-0.67969 0.492188,-1.86914 z m -3.667969,-2.29102 q 0.339844,-0.58593 0.855469,-0.86718 0.521484,-0.28711 1.242187,-0.28711 1.195313,0 1.939453,0.94922 0.75,0.94921 0.75,2.49609 0,1.54687 -0.75,2.49609 -0.74414,0.94922 -1.939453,0.94922 -0.720703,0 -1.242187,-0.28125 -0.515625,-0.28711 -0.855469,-0.87305 l 0,0.98438 -1.083984,0 0,-9.11719 1.083984,0 0,3.55078 z" />
+      <path
+         id="path125"
+         style=""
+         d="m 30.732422,371.69727 q 0.404297,-0.72657 0.966797,-1.07227 0.5625,-0.3457 1.324218,-0.3457 1.025391,0 1.582032,0.7207 0.55664,0.71484 0.55664,2.03906 l 0,3.96094 -1.083984,0 0,-3.92578 q 0,-0.94336 -0.333984,-1.40039 -0.333985,-0.45703 -1.019532,-0.45703 -0.83789,0 -1.324218,0.55664 -0.486329,0.55664 -0.486329,1.51758 l 0,3.70898 -1.083984,0 0,-3.92578 q 0,-0.94922 -0.333984,-1.40039 -0.333985,-0.45703 -1.03125,-0.45703 -0.826172,0 -1.3125,0.5625 -0.486328,0.55664 -0.486328,1.51172 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.36914,-0.60351 0.884765,-0.89062 0.515625,-0.28711 1.22461,-0.28711 0.714843,0 1.21289,0.36328 0.503906,0.36328 0.744141,1.05469 z" />
+      <path
+         id="path127"
+         style=""
+         d="m 40.300781,373.70117 q -1.30664,0 -1.810547,0.29883 -0.503906,0.29883 -0.503906,1.01953 0,0.57422 0.375,0.91406 0.380859,0.33399 1.03125,0.33399 0.896484,0 1.435547,-0.63281 0.544922,-0.63868 0.544922,-1.69336 l 0,-0.24024 -1.072266,0 z m 2.150391,-0.44531 0,3.74414 -1.078125,0 0,-0.99609 q -0.369141,0.59765 -0.919922,0.88476 -0.550781,0.28125 -1.347656,0.28125 -1.007813,0 -1.605469,-0.5625 -0.591797,-0.56836 -0.591797,-1.51758 0,-1.10742 0.738281,-1.66992 0.744141,-0.5625 2.214844,-0.5625 l 1.511719,0 0,-0.10547 q 0,-0.74414 -0.492188,-1.14843 -0.486328,-0.41016 -1.371093,-0.41016 -0.5625,0 -1.095704,0.13476 -0.533203,0.13477 -1.02539,0.4043 l 0,-0.99609 q 0.591797,-0.22852 1.148437,-0.33985 0.556641,-0.11718 1.083985,-0.11718 1.423828,0 2.126953,0.73828 0.703125,0.73828 0.703125,2.23828 z" />
+      <path
+         id="path129"
+         style=""
+         d="m 48.480469,371.44531 q -0.181641,-0.10547 -0.398438,-0.15234 -0.210937,-0.0527 -0.46875,-0.0527 -0.914062,0 -1.40625,0.59766 -0.486328,0.5918 -0.486328,1.70508 l 0,3.45703 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.339844,-0.59766 0.884766,-0.88476 0.544922,-0.29297 1.324218,-0.29297 0.111329,0 0.246094,0.0176 0.134766,0.0117 0.298828,0.041 l 0.0059,1.10742 z" />
+      <path
+         id="path131"
+         style=""
+         d="m 49.623047,370.4375 1.078125,0 0,6.5625 -1.078125,0 0,-6.5625 z m 0,-2.55469 1.078125,0 0,1.36524 -1.078125,0 0,-1.36524 z" />
+      <path
+         id="path133"
+         style=""
+         d="m 58.40625,373.03906 0,3.96094 -1.078125,0 0,-3.92578 q 0,-0.93164 -0.363281,-1.39453 -0.363282,-0.46289 -1.089844,-0.46289 -0.873047,0 -1.376953,0.55664 -0.503906,0.55664 -0.503906,1.51758 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.386718,-0.5918 0.908203,-0.88476 0.527343,-0.29297 1.21289,-0.29297 1.13086,0 1.710938,0.70312 0.580078,0.69727 0.580078,2.05664 z" />
+      <path
+         id="path135"
+         style=""
+         d="m 66.181641,373.44922 0,0.52734 -4.957032,0 q 0.07031,1.11328 0.667969,1.69922 0.603516,0.58008 1.675781,0.58008 0.621094,0 1.201172,-0.15234 0.585938,-0.15235 1.160156,-0.45704 l 0,1.01954 q -0.580078,0.24609 -1.189453,0.375 -0.609375,0.1289 -1.236328,0.1289 -1.570312,0 -2.490234,-0.91406 -0.914063,-0.91406 -0.914063,-2.47266 0,-1.61133 0.867188,-2.55468 0.873047,-0.94922 2.349609,-0.94922 1.324219,0 2.091797,0.85547 0.773438,0.8496 0.773438,2.31445 z m -1.078125,-0.31641 q -0.01172,-0.88476 -0.498047,-1.41211 -0.480469,-0.52734 -1.277344,-0.52734 -0.902344,0 -1.447266,0.50976 -0.539062,0.50977 -0.621093,1.43555 l 3.84375,-0.006 z" />
+    </g>
+    <g
+       id="text10"
+       style="text-anchor:middle">
+      <path
+         id="path138"
+         style="text-anchor:middle"
+         d="m 109.08984,4.4179687 -1.60546,4.3535157 3.21679,0 -1.61133,-4.3535157 z m -0.66796,-1.1660156 1.34179,0 L 113.09766,12 l -1.23047,0 -0.79688,-2.2441406 -3.94336,0 L 106.33008,12 l -1.24805,0 3.33985,-8.7480469 z" />
+      <path
+         id="path140"
+         style="text-anchor:middle"
+         d="m 117.70898,4.0546875 q -1.28906,0 -2.05078,0.9609375 -0.75586,0.9609375 -0.75586,2.6191406 0,1.6523438 0.75586,2.6132814 0.76172,0.960937 2.05078,0.960937 1.28907,0 2.03907,-0.960937 0.75586,-0.9609376 0.75586,-2.6132814 0,-1.6582031 -0.75586,-2.6191406 -0.75,-0.9609375 -2.03907,-0.9609375 z m 0,-0.9609375 q 1.83985,0 2.94141,1.2363281 1.10156,1.2304688 1.10156,3.3046875 0,2.0683594 -1.10156,3.3046874 -1.10156,1.230469 -2.94141,1.230469 -1.8457,0 -2.95312,-1.230469 -1.10156,-1.2304686 -1.10156,-3.3046874 0,-2.0742187 1.10156,-3.3046875 1.10742,-1.2363281 2.95312,-1.2363281 z" />
+      <path
+         id="path142"
+         style="text-anchor:middle"
+         d="m 123.33984,8.2324219 3.15821,0 0,0.9609375 -3.15821,0 0,-0.9609375 z" />
+      <path
+         id="path144"
+         style="text-anchor:middle"
+         d="m 128.57812,11.003906 1.9336,0 0,-6.6738279 -2.10352,0.421875 0,-1.078125 2.0918,-0.421875 1.18359,0 0,7.7519529 1.9336,0 0,0.996094 -5.03907,0 0,-0.996094 z" />
+      <path
+         id="path146"
+         style="text-anchor:middle"
+         d="m 136.21875,11.003906 1.93359,0 0,-6.6738279 -2.10351,0.421875 0,-1.078125 2.09179,-0.421875 1.1836,0 0,7.7519529 1.93359,0 0,0.996094 -5.03906,0 0,-0.996094 z" />
+      <path
+         id="path148"
+         style="text-anchor:middle"
+         d="m 144.67383,11.003906 4.13086,0 0,0.996094 -5.55469,0 0,-0.996094 q 0.67383,-0.697265 1.83398,-1.8691404 1.16602,-1.1777344 1.46485,-1.5175781 0.56836,-0.6386719 0.79101,-1.078125 0.22852,-0.4453125 0.22852,-0.8730469 0,-0.6972656 -0.49219,-1.1367187 -0.48633,-0.4394532 -1.27148,-0.4394532 -0.55664,0 -1.17774,0.1933594 -0.61523,0.1933594 -1.31836,0.5859375 l 0,-1.1953125 q 0.71485,-0.2871093 1.33594,-0.4335937 0.62109,-0.1464844 1.13672,-0.1464844 1.35937,0 2.16797,0.6796875 0.80859,0.6796875 0.80859,1.8164062 0,0.5390625 -0.20508,1.0253907 -0.19921,0.4804687 -0.73242,1.1367187 -0.14648,0.1699219 -0.93164,0.984375 -0.78515,0.8085938 -2.21484,2.2675779 z" />
+    </g>
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:none;stroke:#ffffff;stroke-width:1;stroke-linecap:round;stroke-linejoin:round"
+     font-size="8"
+     id="group1">
+    <g
+       style="stroke:#719fcf"
+       id="g13">
+      <path
+         id="path15"
+         d="m 37.5,51.5 40,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path17"
+         d="m 37.5,97.5 40,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path19"
+         d="m 37.5,143.5 40,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path21"
+         d="m 37.5,189.5 40,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path23"
+         d="m 37.5,235.5 40,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path25"
+         d="m 37.5,281.5 40,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path27"
+         d="m 37.5,327.5 40,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path29"
+         d="m 37.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path31"
+         d="m 127.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path33"
+         d="m 217.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+    </g>
+    <g
+       style="fill:#000000;stroke:none"
+       id="g35">
+      <path
+         id="rect37"
+         d="m 44.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect39"
+         d="m 44.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect41"
+         d="m 44.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect43"
+         d="m 44.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect45"
+         d="m 44.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect47"
+         d="m 44.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect49"
+         d="m 44.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect51"
+         d="m 44.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect53"
+         d="m 44.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect55"
+         d="m 44.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect57"
+         d="m 44.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect59"
+         d="m 44.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect61"
+         d="m 134.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect63"
+         d="m 134.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect65"
+         d="m 134.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect67"
+         d="m 134.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect69"
+         d="m 134.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect71"
+         d="m 134.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect73"
+         d="m 134.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect75"
+         d="m 134.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect77"
+         d="m 134.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect79"
+         d="m 134.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect81"
+         d="m 134.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect83"
+         d="m 134.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+    </g>
+    <g
+       style="fill:#ffffff;stroke:none"
+       id="g85">
+      <g
+         id="text87"
+         style="text-anchor:middle">
+        <path
+           id="path175"
+           style="text-anchor:middle"
+           d="m 8.8164063,94.167969 0.8476562,0 1.4492185,2.167968 1.457032,-2.167968 0.847656,0 -1.875,2.800781 2,3.03125 -0.847656,0 L 11.054688,97.519531 9.4023438,100 8.5507813,100 10.632813,96.886719 8.8164063,94.167969 Z" />
+        <path
+           id="path177"
+           style="text-anchor:middle"
+           d="m 17.128906,94.167969 0.789063,0 0,5.832031 -0.789063,0 0,-5.832031 z" />
+        <path
+           id="path179"
+           style="text-anchor:middle"
+           d="m 19.488281,94.167969 1.0625,0 2.585938,4.878906 0,-4.878906 0.765625,0 0,5.832031 -1.0625,0 -2.585938,-4.878906 0,4.878906 -0.765625,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text89"
+         style="text-anchor:middle">
+        <path
+           id="path182"
+           style="text-anchor:middle"
+           d="m 8.8164063,140.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,146 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path184"
+           style="text-anchor:middle"
+           d="m 17.128906,140.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path186"
+           style="text-anchor:middle"
+           d="m 19.488281,140.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text91"
+         style="text-anchor:middle">
+        <path
+           id="path189"
+           style="text-anchor:middle"
+           d="m 8.8164063,186.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,192 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path191"
+           style="text-anchor:middle"
+           d="m 17.128906,186.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path193"
+           style="text-anchor:middle"
+           d="m 19.488281,186.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text93"
+         style="text-anchor:middle">
+        <path
+           id="path196"
+           style="text-anchor:middle"
+           d="m 8.8164063,232.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,238 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path198"
+           style="text-anchor:middle"
+           d="m 17.128906,232.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path200"
+           style="text-anchor:middle"
+           d="m 19.488281,232.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text95"
+         style="text-anchor:middle">
+        <path
+           id="path203"
+           style="text-anchor:middle"
+           d="m 8.8164063,278.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,284 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path205"
+           style="text-anchor:middle"
+           d="m 17.128906,278.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path207"
+           style="text-anchor:middle"
+           d="m 19.488281,278.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text97"
+         style="text-anchor:middle">
+        <path
+           id="path210"
+           style="text-anchor:middle"
+           d="m 226.46484,94.167969 0.84766,0 1.44922,2.167968 1.45703,-2.167968 0.84766,0 -1.875,2.800781 2,3.03125 -0.84766,0 -1.64063,-2.480469 -1.65234,2.480469 -0.85156,0 2.08203,-3.113281 -1.81641,-2.71875 z" />
+        <path
+           id="path212"
+           style="text-anchor:middle"
+           d="m 237.14453,94.703125 q -0.85937,0 -1.36719,0.640625 -0.5039,0.640625 -0.5039,1.746094 0,1.101562 0.5039,1.742187 0.50782,0.640625 1.36719,0.640625 0.85938,0 1.35938,-0.640625 0.5039,-0.640625 0.5039,-1.742187 0,-1.105469 -0.5039,-1.746094 -0.5,-0.640625 -1.35938,-0.640625 z m 0,-0.640625 q 1.22656,0 1.96094,0.824219 0.73437,0.820312 0.73437,2.203125 0,1.378906 -0.73437,2.203125 -0.73438,0.820311 -1.96094,0.820311 -1.23047,0 -1.96875,-0.820311 -0.73437,-0.820313 -0.73437,-2.203125 0,-1.382813 0.73437,-2.203125 0.73828,-0.824219 1.96875,-0.824219 z" />
+        <path
+           id="path214"
+           style="text-anchor:middle"
+           d="m 240.98437,94.167969 0.79297,0 0,3.542968 q 0,0.9375 0.33985,1.351563 0.33984,0.410156 1.10156,0.410156 0.75781,0 1.09766,-0.410156 0.33984,-0.414063 0.33984,-1.351563 l 0,-3.542968 0.79297,0 0,3.640625 q 0,1.140625 -0.56641,1.722656 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.582031 -0.5625,-1.722656 l 0,-3.640625 z" />
+        <path
+           id="path216"
+           style="text-anchor:middle"
+           d="m 246.125,94.167969 4.93359,0 0,0.664062 -2.07031,0 0,5.167969 -0.79297,0 0,-5.167969 -2.07031,0 0,-0.664062 z" />
+      </g>
+      <g
+         id="text99"
+         style="text-anchor:middle">
+        <path
+           id="path219"
+           style="text-anchor:middle"
+           d="m 226.46484,140.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path221"
+           style="text-anchor:middle"
+           d="m 237.14453,140.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path223"
+           style="text-anchor:middle"
+           d="m 240.98437,140.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path225"
+           style="text-anchor:middle"
+           d="m 246.125,140.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text101"
+         style="text-anchor:middle">
+        <path
+           id="path228"
+           style="text-anchor:middle"
+           d="m 226.46484,186.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path230"
+           style="text-anchor:middle"
+           d="m 237.14453,186.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path232"
+           style="text-anchor:middle"
+           d="m 240.98437,186.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path234"
+           style="text-anchor:middle"
+           d="m 246.125,186.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text103"
+         style="text-anchor:middle">
+        <path
+           id="path237"
+           style="text-anchor:middle"
+           d="m 226.46484,232.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path239"
+           style="text-anchor:middle"
+           d="m 237.14453,232.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path241"
+           style="text-anchor:middle"
+           d="m 240.98437,232.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path243"
+           style="text-anchor:middle"
+           d="m 246.125,232.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text105"
+         style="text-anchor:middle">
+        <path
+           id="path246"
+           style="text-anchor:middle"
+           d="m 226.46484,278.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path248"
+           style="text-anchor:middle"
+           d="m 237.14453,278.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path250"
+           style="text-anchor:middle"
+           d="m 240.98437,278.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path252"
+           style="text-anchor:middle"
+           d="m 246.125,278.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text107"
+         style="text-anchor:middle">
+        <path
+           id="path255"
+           style="text-anchor:middle"
+           d="m 119.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path257"
+           style="text-anchor:middle"
+           d="m 127.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path259"
+           style="text-anchor:middle"
+           d="m 130.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text109"
+         style="text-anchor:middle">
+        <path
+           id="path262"
+           style="text-anchor:middle"
+           d="m 115.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path264"
+           style="text-anchor:middle"
+           d="m 125.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path266"
+           style="text-anchor:middle"
+           d="m 129.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path268"
+           style="text-anchor:middle"
+           d="m 134.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/AO-118.svg

@@ -0,0 +1,562 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4226"
+   version="1.1"
+   height="380px"
+   width="345px">
+  <metadata
+     id="metadata145">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs143" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 345,0 0,380 -345,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4230"
+       d="M 0,380 0,0 345,0 344,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4232"
+       d="m 0,380 345,0 0,-380 -1,1 0,378 -343,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 334.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 326,373.83071 8.1692063,5.1693144 0 0 0 334.16915,379 8.1692063,5.1693144 0 0 0 341.48278,376.11985 3.0461447,4.2480502 0 0 0 344,377.97641 l 0,-2.35772 a 1.3384576,1.9448905 0 0 1 -1.2923,-1.94151 1.3384576,1.9448905 0 0 1 1.2923,-1.94263 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 334.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text4236"
+       style="">
+      <path
+         id="path149"
+         style=""
+         d="m 8.3144531,370.63086 0,1.01953 q -0.4570312,-0.23437 -0.9492187,-0.35156 -0.4921875,-0.11719 -1.0195313,-0.11719 -0.8027344,0 -1.2070312,0.24609 -0.3984375,0.2461 -0.3984375,0.73829 0,0.375 0.2871093,0.59179 0.2871094,0.21094 1.1542969,0.4043 l 0.3691406,0.082 q 1.1484375,0.24609 1.6289063,0.69727 0.4863281,0.44531 0.4863281,1.24804 0,0.91407 -0.7265625,1.44727 -0.7207031,0.5332 -1.9863281,0.5332 -0.5273438,0 -1.1015625,-0.10547 -0.5683594,-0.0996 -1.2011719,-0.30468 l 0,-1.11329 q 0.5976563,0.31055 1.1777344,0.46875 0.5800781,0.15235 1.1484375,0.15235 0.7617187,0 1.171875,-0.25781 0.4101562,-0.26368 0.4101562,-0.73829 0,-0.43945 -0.2988281,-0.67382 -0.2929687,-0.23438 -1.2949219,-0.45118 l -0.375,-0.0879 q -1.0019531,-0.21093 -1.4472656,-0.64453 -0.4453125,-0.43945 -0.4453125,-1.20117 0,-0.92578 0.65625,-1.42969 0.65625,-0.5039 1.8632813,-0.5039 0.5976562,0 1.125,0.0879 0.5273437,0.0879 0.9726562,0.26367 z" />
+      <path
+         id="path151"
+         style=""
+         d="m 10.277344,374.41016 0,-3.97266 1.078125,0 0,3.93164 q 0,0.93164 0.363281,1.40039 0.363281,0.46289 1.089844,0.46289 0.873047,0 1.376953,-0.55664 0.509766,-0.55664 0.509766,-1.51758 l 0,-3.7207 1.078125,0 0,6.5625 -1.078125,0 0,-1.00781 q -0.392579,0.59765 -0.914063,0.89062 -0.515625,0.28711 -1.201172,0.28711 -1.130859,0 -1.716797,-0.70312 -0.585937,-0.70313 -0.585937,-2.05664 z m 2.71289,-4.13086 0,0 z" />
+      <path
+         id="path153"
+         style=""
+         d="m 22.716797,373.72461 q 0,-1.18945 -0.492188,-1.86328 -0.486328,-0.67969 -1.341797,-0.67969 -0.855468,0 -1.347656,0.67969 -0.486328,0.67383 -0.486328,1.86328 0,1.18945 0.486328,1.86914 0.492188,0.67383 1.347656,0.67383 0.855469,0 1.341797,-0.67383 0.492188,-0.67969 0.492188,-1.86914 z m -3.667969,-2.29102 q 0.339844,-0.58593 0.855469,-0.86718 0.521484,-0.28711 1.242187,-0.28711 1.195313,0 1.939453,0.94922 0.75,0.94921 0.75,2.49609 0,1.54687 -0.75,2.49609 -0.74414,0.94922 -1.939453,0.94922 -0.720703,0 -1.242187,-0.28125 -0.515625,-0.28711 -0.855469,-0.87305 l 0,0.98438 -1.083984,0 0,-9.11719 1.083984,0 0,3.55078 z" />
+      <path
+         id="path155"
+         style=""
+         d="m 30.732422,371.69727 q 0.404297,-0.72657 0.966797,-1.07227 0.5625,-0.3457 1.324218,-0.3457 1.025391,0 1.582032,0.7207 0.55664,0.71484 0.55664,2.03906 l 0,3.96094 -1.083984,0 0,-3.92578 q 0,-0.94336 -0.333984,-1.40039 -0.333985,-0.45703 -1.019532,-0.45703 -0.83789,0 -1.324218,0.55664 -0.486329,0.55664 -0.486329,1.51758 l 0,3.70898 -1.083984,0 0,-3.92578 q 0,-0.94922 -0.333984,-1.40039 -0.333985,-0.45703 -1.03125,-0.45703 -0.826172,0 -1.3125,0.5625 -0.486328,0.55664 -0.486328,1.51172 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.36914,-0.60351 0.884765,-0.89062 0.515625,-0.28711 1.22461,-0.28711 0.714843,0 1.21289,0.36328 0.503906,0.36328 0.744141,1.05469 z" />
+      <path
+         id="path157"
+         style=""
+         d="m 40.300781,373.70117 q -1.30664,0 -1.810547,0.29883 -0.503906,0.29883 -0.503906,1.01953 0,0.57422 0.375,0.91406 0.380859,0.33399 1.03125,0.33399 0.896484,0 1.435547,-0.63281 0.544922,-0.63868 0.544922,-1.69336 l 0,-0.24024 -1.072266,0 z m 2.150391,-0.44531 0,3.74414 -1.078125,0 0,-0.99609 q -0.369141,0.59765 -0.919922,0.88476 -0.550781,0.28125 -1.347656,0.28125 -1.007813,0 -1.605469,-0.5625 -0.591797,-0.56836 -0.591797,-1.51758 0,-1.10742 0.738281,-1.66992 0.744141,-0.5625 2.214844,-0.5625 l 1.511719,0 0,-0.10547 q 0,-0.74414 -0.492188,-1.14843 -0.486328,-0.41016 -1.371093,-0.41016 -0.5625,0 -1.095704,0.13476 -0.533203,0.13477 -1.02539,0.4043 l 0,-0.99609 q 0.591797,-0.22852 1.148437,-0.33985 0.556641,-0.11718 1.083985,-0.11718 1.423828,0 2.126953,0.73828 0.703125,0.73828 0.703125,2.23828 z" />
+      <path
+         id="path159"
+         style=""
+         d="m 48.480469,371.44531 q -0.181641,-0.10547 -0.398438,-0.15234 -0.210937,-0.0527 -0.46875,-0.0527 -0.914062,0 -1.40625,0.59766 -0.486328,0.5918 -0.486328,1.70508 l 0,3.45703 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.339844,-0.59766 0.884766,-0.88476 0.544922,-0.29297 1.324218,-0.29297 0.111329,0 0.246094,0.0176 0.134766,0.0117 0.298828,0.041 l 0.0059,1.10742 z" />
+      <path
+         id="path161"
+         style=""
+         d="m 49.623047,370.4375 1.078125,0 0,6.5625 -1.078125,0 0,-6.5625 z m 0,-2.55469 1.078125,0 0,1.36524 -1.078125,0 0,-1.36524 z" />
+      <path
+         id="path163"
+         style=""
+         d="m 58.40625,373.03906 0,3.96094 -1.078125,0 0,-3.92578 q 0,-0.93164 -0.363281,-1.39453 -0.363282,-0.46289 -1.089844,-0.46289 -0.873047,0 -1.376953,0.55664 -0.503906,0.55664 -0.503906,1.51758 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.386718,-0.5918 0.908203,-0.88476 0.527343,-0.29297 1.21289,-0.29297 1.13086,0 1.710938,0.70312 0.580078,0.69727 0.580078,2.05664 z" />
+      <path
+         id="path165"
+         style=""
+         d="m 66.181641,373.44922 0,0.52734 -4.957032,0 q 0.07031,1.11328 0.667969,1.69922 0.603516,0.58008 1.675781,0.58008 0.621094,0 1.201172,-0.15234 0.585938,-0.15235 1.160156,-0.45704 l 0,1.01954 q -0.580078,0.24609 -1.189453,0.375 -0.609375,0.1289 -1.236328,0.1289 -1.570312,0 -2.490234,-0.91406 -0.914063,-0.91406 -0.914063,-2.47266 0,-1.61133 0.867188,-2.55468 0.873047,-0.94922 2.349609,-0.94922 1.324219,0 2.091797,0.85547 0.773438,0.8496 0.773438,2.31445 z m -1.078125,-0.31641 q -0.01172,-0.88476 -0.498047,-1.41211 -0.480469,-0.52734 -1.277344,-0.52734 -0.902344,0 -1.447266,0.50976 -0.539062,0.50977 -0.621093,1.43555 l 3.84375,-0.006 z" />
+    </g>
+    <g
+       id="text10"
+       style="text-anchor:middle">
+      <path
+         id="path168"
+         style="text-anchor:middle"
+         d="m 154.08984,4.4179687 -1.60547,4.3535157 3.2168,0 -1.61133,-4.3535157 z m -0.66797,-1.1660156 1.3418,0 L 158.09766,12 l -1.23047,0 -0.79688,-2.2441406 -3.94336,0 L 151.33008,12 l -1.24805,0 3.33984,-8.7480469 z" />
+      <path
+         id="path170"
+         style="text-anchor:middle"
+         d="m 162.70898,4.0546875 q -1.28906,0 -2.05078,0.9609375 -0.75586,0.9609375 -0.75586,2.6191406 0,1.6523438 0.75586,2.6132814 0.76172,0.960937 2.05078,0.960937 1.28907,0 2.03907,-0.960937 0.75586,-0.9609376 0.75586,-2.6132814 0,-1.6582031 -0.75586,-2.6191406 -0.75,-0.9609375 -2.03907,-0.9609375 z m 0,-0.9609375 q 1.83985,0 2.94141,1.2363281 1.10156,1.2304688 1.10156,3.3046875 0,2.0683594 -1.10156,3.3046874 -1.10156,1.230469 -2.94141,1.230469 -1.8457,0 -2.95312,-1.230469 -1.10156,-1.2304686 -1.10156,-3.3046874 0,-2.0742187 1.10156,-3.3046875 1.10742,-1.2363281 2.95312,-1.2363281 z" />
+      <path
+         id="path172"
+         style="text-anchor:middle"
+         d="m 168.33984,8.2324219 3.15821,0 0,0.9609375 -3.15821,0 0,-0.9609375 z" />
+      <path
+         id="path174"
+         style="text-anchor:middle"
+         d="m 173.57812,11.003906 1.9336,0 0,-6.6738279 -2.10352,0.421875 0,-1.078125 2.0918,-0.421875 1.18359,0 0,7.7519529 1.9336,0 0,0.996094 -5.03907,0 0,-0.996094 z" />
+      <path
+         id="path176"
+         style="text-anchor:middle"
+         d="m 181.21875,11.003906 1.93359,0 0,-6.6738279 -2.10351,0.421875 0,-1.078125 2.09179,-0.421875 1.1836,0 0,7.7519529 1.93359,0 0,0.996094 -5.03906,0 0,-0.996094 z" />
+      <path
+         id="path178"
+         style="text-anchor:middle"
+         d="m 191.18555,7.8457031 q -0.84375,0 -1.33008,0.4511719 -0.48047,0.4511719 -0.48047,1.2421875 0,0.7910155 0.48047,1.2421875 0.48633,0.451172 1.33008,0.451172 0.84375,0 1.33007,-0.451172 0.48633,-0.457031 0.48633,-1.2421875 0,-0.7910156 -0.48633,-1.2421875 -0.48046,-0.4511719 -1.33007,-0.4511719 z m -1.1836,-0.5039062 q -0.76172,-0.1875 -1.18945,-0.7089844 -0.42188,-0.5214844 -0.42188,-1.2714844 0,-1.0488281 0.74415,-1.6582031 0.75,-0.609375 2.05078,-0.609375 1.30664,0 2.05078,0.609375 0.74414,0.609375 0.74414,1.6582031 0,0.75 -0.42774,1.2714844 -0.42187,0.5214844 -1.17773,0.7089844 0.85547,0.1992187 1.33008,0.7792969 0.48047,0.5800781 0.48047,1.4179687 0,1.2714845 -0.7793,1.9511715 -0.77344,0.679688 -2.2207,0.679688 -1.44727,0 -2.22657,-0.679688 -0.77343,-0.679687 -0.77343,-1.9511715 0,-0.8378906 0.48047,-1.4179687 0.48046,-0.5800782 1.33593,-0.7792969 z m -0.43359,-1.8691407 q 0,0.6796875 0.42187,1.0605469 0.42774,0.3808594 1.19532,0.3808594 0.76172,0 1.18945,-0.3808594 0.43359,-0.3808594 0.43359,-1.0605469 0,-0.6796875 -0.43359,-1.0605468 -0.42773,-0.3808594 -1.18945,-0.3808594 -0.76758,0 -1.19532,0.3808594 -0.42187,0.3808593 -0.42187,1.0605468 z" />
+    </g>
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:none;stroke:#ffffff;stroke-width:1;stroke-linecap:round;stroke-linejoin:round"
+     font-size="8"
+     id="group1">
+    <g
+       style="stroke:#719fcf"
+       id="g13">
+      <path
+         id="path15"
+         d="m 37.5,51.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path17"
+         d="m 37.5,97.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path19"
+         d="m 37.5,143.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path21"
+         d="m 37.5,189.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path23"
+         d="m 37.5,235.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path25"
+         d="m 37.5,281.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path27"
+         d="m 37.5,327.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path29"
+         d="m 37.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path31"
+         d="m 127.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path33"
+         d="m 217.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path35"
+         d="m 307.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+    </g>
+    <g
+       style="fill:#000000;stroke:none"
+       id="g37">
+      <path
+         id="rect39"
+         d="m 44.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect41"
+         d="m 44.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect43"
+         d="m 44.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect45"
+         d="m 44.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect47"
+         d="m 44.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect49"
+         d="m 44.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect51"
+         d="m 44.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect53"
+         d="m 44.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect55"
+         d="m 44.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect57"
+         d="m 44.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect59"
+         d="m 44.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect61"
+         d="m 44.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect63"
+         d="m 134.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect65"
+         d="m 134.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect67"
+         d="m 134.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect69"
+         d="m 134.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect71"
+         d="m 134.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect73"
+         d="m 134.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect75"
+         d="m 134.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect77"
+         d="m 134.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect79"
+         d="m 134.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect81"
+         d="m 134.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect83"
+         d="m 134.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect85"
+         d="m 134.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect87"
+         d="m 224.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect89"
+         d="m 224.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect91"
+         d="m 224.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect93"
+         d="m 224.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect95"
+         d="m 224.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect97"
+         d="m 224.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect99"
+         d="m 224.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect101"
+         d="m 224.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect103"
+         d="m 224.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect105"
+         d="m 224.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect107"
+         d="m 224.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect109"
+         d="m 224.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+    </g>
+    <g
+       style="fill:#ffffff;stroke:none"
+       id="g111">
+      <g
+         id="text113"
+         style="text-anchor:middle">
+        <path
+           id="path217"
+           style="text-anchor:middle"
+           d="m 8.8164063,94.167969 0.8476562,0 1.4492185,2.167968 1.457032,-2.167968 0.847656,0 -1.875,2.800781 2,3.03125 -0.847656,0 L 11.054688,97.519531 9.4023438,100 8.5507813,100 10.632813,96.886719 8.8164063,94.167969 Z" />
+        <path
+           id="path219"
+           style="text-anchor:middle"
+           d="m 17.128906,94.167969 0.789063,0 0,5.832031 -0.789063,0 0,-5.832031 z" />
+        <path
+           id="path221"
+           style="text-anchor:middle"
+           d="m 19.488281,94.167969 1.0625,0 2.585938,4.878906 0,-4.878906 0.765625,0 0,5.832031 -1.0625,0 -2.585938,-4.878906 0,4.878906 -0.765625,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text115"
+         style="text-anchor:middle">
+        <path
+           id="path224"
+           style="text-anchor:middle"
+           d="m 8.8164063,140.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,146 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path226"
+           style="text-anchor:middle"
+           d="m 17.128906,140.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path228"
+           style="text-anchor:middle"
+           d="m 19.488281,140.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text117"
+         style="text-anchor:middle">
+        <path
+           id="path231"
+           style="text-anchor:middle"
+           d="m 8.8164063,186.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,192 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path233"
+           style="text-anchor:middle"
+           d="m 17.128906,186.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path235"
+           style="text-anchor:middle"
+           d="m 19.488281,186.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text119"
+         style="text-anchor:middle">
+        <path
+           id="path238"
+           style="text-anchor:middle"
+           d="m 8.8164063,232.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,238 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path240"
+           style="text-anchor:middle"
+           d="m 17.128906,232.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path242"
+           style="text-anchor:middle"
+           d="m 19.488281,232.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text121"
+         style="text-anchor:middle">
+        <path
+           id="path245"
+           style="text-anchor:middle"
+           d="m 8.8164063,278.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,284 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path247"
+           style="text-anchor:middle"
+           d="m 17.128906,278.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path249"
+           style="text-anchor:middle"
+           d="m 19.488281,278.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text123"
+         style="text-anchor:middle">
+        <path
+           id="path252"
+           style="text-anchor:middle"
+           d="m 316.46484,94.167969 0.84766,0 1.44922,2.167968 1.45703,-2.167968 0.84766,0 -1.875,2.800781 2,3.03125 -0.84766,0 -1.64063,-2.480469 -1.65234,2.480469 -0.85156,0 2.08203,-3.113281 -1.81641,-2.71875 z" />
+        <path
+           id="path254"
+           style="text-anchor:middle"
+           d="m 327.14453,94.703125 q -0.85937,0 -1.36719,0.640625 -0.5039,0.640625 -0.5039,1.746094 0,1.101562 0.5039,1.742187 0.50782,0.640625 1.36719,0.640625 0.85938,0 1.35938,-0.640625 0.5039,-0.640625 0.5039,-1.742187 0,-1.105469 -0.5039,-1.746094 -0.5,-0.640625 -1.35938,-0.640625 z m 0,-0.640625 q 1.22656,0 1.96094,0.824219 0.73437,0.820312 0.73437,2.203125 0,1.378906 -0.73437,2.203125 -0.73438,0.820311 -1.96094,0.820311 -1.23047,0 -1.96875,-0.820311 -0.73437,-0.820313 -0.73437,-2.203125 0,-1.382813 0.73437,-2.203125 0.73828,-0.824219 1.96875,-0.824219 z" />
+        <path
+           id="path256"
+           style="text-anchor:middle"
+           d="m 330.98437,94.167969 0.79297,0 0,3.542968 q 0,0.9375 0.33985,1.351563 0.33984,0.410156 1.10156,0.410156 0.75781,0 1.09766,-0.410156 0.33984,-0.414063 0.33984,-1.351563 l 0,-3.542968 0.79297,0 0,3.640625 q 0,1.140625 -0.56641,1.722656 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.582031 -0.5625,-1.722656 l 0,-3.640625 z" />
+        <path
+           id="path258"
+           style="text-anchor:middle"
+           d="m 336.125,94.167969 4.93359,0 0,0.664062 -2.07031,0 0,5.167969 -0.79297,0 0,-5.167969 -2.07031,0 0,-0.664062 z" />
+      </g>
+      <g
+         id="text125"
+         style="text-anchor:middle">
+        <path
+           id="path261"
+           style="text-anchor:middle"
+           d="m 316.46484,140.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path263"
+           style="text-anchor:middle"
+           d="m 327.14453,140.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path265"
+           style="text-anchor:middle"
+           d="m 330.98437,140.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path267"
+           style="text-anchor:middle"
+           d="m 336.125,140.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text127"
+         style="text-anchor:middle">
+        <path
+           id="path270"
+           style="text-anchor:middle"
+           d="m 316.46484,186.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path272"
+           style="text-anchor:middle"
+           d="m 327.14453,186.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path274"
+           style="text-anchor:middle"
+           d="m 330.98437,186.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path276"
+           style="text-anchor:middle"
+           d="m 336.125,186.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text129"
+         style="text-anchor:middle">
+        <path
+           id="path279"
+           style="text-anchor:middle"
+           d="m 316.46484,232.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path281"
+           style="text-anchor:middle"
+           d="m 327.14453,232.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path283"
+           style="text-anchor:middle"
+           d="m 330.98437,232.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path285"
+           style="text-anchor:middle"
+           d="m 336.125,232.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text131"
+         style="text-anchor:middle">
+        <path
+           id="path288"
+           style="text-anchor:middle"
+           d="m 316.46484,278.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path290"
+           style="text-anchor:middle"
+           d="m 327.14453,278.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path292"
+           style="text-anchor:middle"
+           d="m 330.98437,278.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path294"
+           style="text-anchor:middle"
+           d="m 336.125,278.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text133"
+         style="text-anchor:middle">
+        <path
+           id="path297"
+           style="text-anchor:middle"
+           d="m 119.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path299"
+           style="text-anchor:middle"
+           d="m 127.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path301"
+           style="text-anchor:middle"
+           d="m 130.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text135"
+         style="text-anchor:middle">
+        <path
+           id="path304"
+           style="text-anchor:middle"
+           d="m 115.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path306"
+           style="text-anchor:middle"
+           d="m 125.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path308"
+           style="text-anchor:middle"
+           d="m 129.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path310"
+           style="text-anchor:middle"
+           d="m 134.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text137"
+         style="text-anchor:middle">
+        <path
+           id="path313"
+           style="text-anchor:middle"
+           d="m 209.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path315"
+           style="text-anchor:middle"
+           d="m 217.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path317"
+           style="text-anchor:middle"
+           d="m 220.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text139"
+         style="text-anchor:middle">
+        <path
+           id="path320"
+           style="text-anchor:middle"
+           d="m 205.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path322"
+           style="text-anchor:middle"
+           d="m 215.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path324"
+           style="text-anchor:middle"
+           d="m 219.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path326"
+           style="text-anchor:middle"
+           d="m 224.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/AO-124.svg

@@ -0,0 +1,649 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4226"
+   version="1.1"
+   height="380px"
+   width="435px">
+  <metadata
+     id="metadata175">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs173" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 435,0 0,380 -435,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4230"
+       d="M 0,380 0,0 435,0 434,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4232"
+       d="m 0,380 435,0 0,-380 -1,1 0,378 -433,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 424.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 416,373.83071 8.1692063,5.1693144 0 0 0 424.16915,379 8.1692063,5.1693144 0 0 0 431.48278,376.11985 3.0461447,4.2480502 0 0 0 434,377.97641 l 0,-2.35772 a 1.3384576,1.9448905 0 0 1 -1.2923,-1.94151 1.3384576,1.9448905 0 0 1 1.2923,-1.94263 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 424.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text4236"
+       style="">
+      <path
+         id="path179"
+         style=""
+         d="m 8.3144531,370.63086 0,1.01953 q -0.4570312,-0.23437 -0.9492187,-0.35156 -0.4921875,-0.11719 -1.0195313,-0.11719 -0.8027344,0 -1.2070312,0.24609 -0.3984375,0.2461 -0.3984375,0.73829 0,0.375 0.2871093,0.59179 0.2871094,0.21094 1.1542969,0.4043 l 0.3691406,0.082 q 1.1484375,0.24609 1.6289063,0.69727 0.4863281,0.44531 0.4863281,1.24804 0,0.91407 -0.7265625,1.44727 -0.7207031,0.5332 -1.9863281,0.5332 -0.5273438,0 -1.1015625,-0.10547 -0.5683594,-0.0996 -1.2011719,-0.30468 l 0,-1.11329 q 0.5976563,0.31055 1.1777344,0.46875 0.5800781,0.15235 1.1484375,0.15235 0.7617187,0 1.171875,-0.25781 0.4101562,-0.26368 0.4101562,-0.73829 0,-0.43945 -0.2988281,-0.67382 -0.2929687,-0.23438 -1.2949219,-0.45118 l -0.375,-0.0879 q -1.0019531,-0.21093 -1.4472656,-0.64453 -0.4453125,-0.43945 -0.4453125,-1.20117 0,-0.92578 0.65625,-1.42969 0.65625,-0.5039 1.8632813,-0.5039 0.5976562,0 1.125,0.0879 0.5273437,0.0879 0.9726562,0.26367 z" />
+      <path
+         id="path181"
+         style=""
+         d="m 10.277344,374.41016 0,-3.97266 1.078125,0 0,3.93164 q 0,0.93164 0.363281,1.40039 0.363281,0.46289 1.089844,0.46289 0.873047,0 1.376953,-0.55664 0.509766,-0.55664 0.509766,-1.51758 l 0,-3.7207 1.078125,0 0,6.5625 -1.078125,0 0,-1.00781 q -0.392579,0.59765 -0.914063,0.89062 -0.515625,0.28711 -1.201172,0.28711 -1.130859,0 -1.716797,-0.70312 -0.585937,-0.70313 -0.585937,-2.05664 z m 2.71289,-4.13086 0,0 z" />
+      <path
+         id="path183"
+         style=""
+         d="m 22.716797,373.72461 q 0,-1.18945 -0.492188,-1.86328 -0.486328,-0.67969 -1.341797,-0.67969 -0.855468,0 -1.347656,0.67969 -0.486328,0.67383 -0.486328,1.86328 0,1.18945 0.486328,1.86914 0.492188,0.67383 1.347656,0.67383 0.855469,0 1.341797,-0.67383 0.492188,-0.67969 0.492188,-1.86914 z m -3.667969,-2.29102 q 0.339844,-0.58593 0.855469,-0.86718 0.521484,-0.28711 1.242187,-0.28711 1.195313,0 1.939453,0.94922 0.75,0.94921 0.75,2.49609 0,1.54687 -0.75,2.49609 -0.74414,0.94922 -1.939453,0.94922 -0.720703,0 -1.242187,-0.28125 -0.515625,-0.28711 -0.855469,-0.87305 l 0,0.98438 -1.083984,0 0,-9.11719 1.083984,0 0,3.55078 z" />
+      <path
+         id="path185"
+         style=""
+         d="m 30.732422,371.69727 q 0.404297,-0.72657 0.966797,-1.07227 0.5625,-0.3457 1.324218,-0.3457 1.025391,0 1.582032,0.7207 0.55664,0.71484 0.55664,2.03906 l 0,3.96094 -1.083984,0 0,-3.92578 q 0,-0.94336 -0.333984,-1.40039 -0.333985,-0.45703 -1.019532,-0.45703 -0.83789,0 -1.324218,0.55664 -0.486329,0.55664 -0.486329,1.51758 l 0,3.70898 -1.083984,0 0,-3.92578 q 0,-0.94922 -0.333984,-1.40039 -0.333985,-0.45703 -1.03125,-0.45703 -0.826172,0 -1.3125,0.5625 -0.486328,0.55664 -0.486328,1.51172 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.36914,-0.60351 0.884765,-0.89062 0.515625,-0.28711 1.22461,-0.28711 0.714843,0 1.21289,0.36328 0.503906,0.36328 0.744141,1.05469 z" />
+      <path
+         id="path187"
+         style=""
+         d="m 40.300781,373.70117 q -1.30664,0 -1.810547,0.29883 -0.503906,0.29883 -0.503906,1.01953 0,0.57422 0.375,0.91406 0.380859,0.33399 1.03125,0.33399 0.896484,0 1.435547,-0.63281 0.544922,-0.63868 0.544922,-1.69336 l 0,-0.24024 -1.072266,0 z m 2.150391,-0.44531 0,3.74414 -1.078125,0 0,-0.99609 q -0.369141,0.59765 -0.919922,0.88476 -0.550781,0.28125 -1.347656,0.28125 -1.007813,0 -1.605469,-0.5625 -0.591797,-0.56836 -0.591797,-1.51758 0,-1.10742 0.738281,-1.66992 0.744141,-0.5625 2.214844,-0.5625 l 1.511719,0 0,-0.10547 q 0,-0.74414 -0.492188,-1.14843 -0.486328,-0.41016 -1.371093,-0.41016 -0.5625,0 -1.095704,0.13476 -0.533203,0.13477 -1.02539,0.4043 l 0,-0.99609 q 0.591797,-0.22852 1.148437,-0.33985 0.556641,-0.11718 1.083985,-0.11718 1.423828,0 2.126953,0.73828 0.703125,0.73828 0.703125,2.23828 z" />
+      <path
+         id="path189"
+         style=""
+         d="m 48.480469,371.44531 q -0.181641,-0.10547 -0.398438,-0.15234 -0.210937,-0.0527 -0.46875,-0.0527 -0.914062,0 -1.40625,0.59766 -0.486328,0.5918 -0.486328,1.70508 l 0,3.45703 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.339844,-0.59766 0.884766,-0.88476 0.544922,-0.29297 1.324218,-0.29297 0.111329,0 0.246094,0.0176 0.134766,0.0117 0.298828,0.041 l 0.0059,1.10742 z" />
+      <path
+         id="path191"
+         style=""
+         d="m 49.623047,370.4375 1.078125,0 0,6.5625 -1.078125,0 0,-6.5625 z m 0,-2.55469 1.078125,0 0,1.36524 -1.078125,0 0,-1.36524 z" />
+      <path
+         id="path193"
+         style=""
+         d="m 58.40625,373.03906 0,3.96094 -1.078125,0 0,-3.92578 q 0,-0.93164 -0.363281,-1.39453 -0.363282,-0.46289 -1.089844,-0.46289 -0.873047,0 -1.376953,0.55664 -0.503906,0.55664 -0.503906,1.51758 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.386718,-0.5918 0.908203,-0.88476 0.527343,-0.29297 1.21289,-0.29297 1.13086,0 1.710938,0.70312 0.580078,0.69727 0.580078,2.05664 z" />
+      <path
+         id="path195"
+         style=""
+         d="m 66.181641,373.44922 0,0.52734 -4.957032,0 q 0.07031,1.11328 0.667969,1.69922 0.603516,0.58008 1.675781,0.58008 0.621094,0 1.201172,-0.15234 0.585938,-0.15235 1.160156,-0.45704 l 0,1.01954 q -0.580078,0.24609 -1.189453,0.375 -0.609375,0.1289 -1.236328,0.1289 -1.570312,0 -2.490234,-0.91406 -0.914063,-0.91406 -0.914063,-2.47266 0,-1.61133 0.867188,-2.55468 0.873047,-0.94922 2.349609,-0.94922 1.324219,0 2.091797,0.85547 0.773438,0.8496 0.773438,2.31445 z m -1.078125,-0.31641 q -0.01172,-0.88476 -0.498047,-1.41211 -0.480469,-0.52734 -1.277344,-0.52734 -0.902344,0 -1.447266,0.50976 -0.539062,0.50977 -0.621093,1.43555 l 3.84375,-0.006 z" />
+    </g>
+    <g
+       id="text10"
+       style="text-anchor:middle">
+      <path
+         id="path198"
+         style="text-anchor:middle"
+         d="m 199.08984,4.4179687 -1.60547,4.3535157 3.2168,0 -1.61133,-4.3535157 z m -0.66797,-1.1660156 1.3418,0 L 203.09766,12 l -1.23047,0 -0.79688,-2.2441406 -3.94336,0 L 196.33008,12 l -1.24805,0 3.33984,-8.7480469 z" />
+      <path
+         id="path200"
+         style="text-anchor:middle"
+         d="m 207.70898,4.0546875 q -1.28906,0 -2.05078,0.9609375 -0.75586,0.9609375 -0.75586,2.6191406 0,1.6523438 0.75586,2.6132814 0.76172,0.960937 2.05078,0.960937 1.28907,0 2.03907,-0.960937 0.75586,-0.9609376 0.75586,-2.6132814 0,-1.6582031 -0.75586,-2.6191406 -0.75,-0.9609375 -2.03907,-0.9609375 z m 0,-0.9609375 q 1.83985,0 2.94141,1.2363281 1.10156,1.2304688 1.10156,3.3046875 0,2.0683594 -1.10156,3.3046874 -1.10156,1.230469 -2.94141,1.230469 -1.8457,0 -2.95312,-1.230469 -1.10156,-1.2304686 -1.10156,-3.3046874 0,-2.0742187 1.10156,-3.3046875 1.10742,-1.2363281 2.95312,-1.2363281 z" />
+      <path
+         id="path202"
+         style="text-anchor:middle"
+         d="m 213.33984,8.2324219 3.15821,0 0,0.9609375 -3.15821,0 0,-0.9609375 z" />
+      <path
+         id="path204"
+         style="text-anchor:middle"
+         d="m 218.57812,11.003906 1.9336,0 0,-6.6738279 -2.10352,0.421875 0,-1.078125 2.0918,-0.421875 1.18359,0 0,7.7519529 1.9336,0 0,0.996094 -5.03907,0 0,-0.996094 z" />
+      <path
+         id="path206"
+         style="text-anchor:middle"
+         d="m 227.0332,11.003906 4.13086,0 0,0.996094 -5.55469,0 0,-0.996094 q 0.67383,-0.697265 1.83399,-1.8691404 1.16601,-1.1777344 1.46484,-1.5175781 0.56836,-0.6386719 0.79102,-1.078125 0.22851,-0.4453125 0.22851,-0.8730469 0,-0.6972656 -0.49218,-1.1367187 -0.48633,-0.4394532 -1.27149,-0.4394532 -0.55664,0 -1.17773,0.1933594 -0.61524,0.1933594 -1.31836,0.5859375 l 0,-1.1953125 q 0.71484,-0.2871093 1.33594,-0.4335937 0.62109,-0.1464844 1.13671,-0.1464844 1.35938,0 2.16797,0.6796875 0.8086,0.6796875 0.8086,1.8164062 0,0.5390625 -0.20508,1.0253907 -0.19922,0.4804687 -0.73242,1.1367187 -0.14649,0.1699219 -0.93164,0.984375 -0.78516,0.8085938 -2.21485,2.2675779 z" />
+      <path
+         id="path208"
+         style="text-anchor:middle"
+         d="m 236.90625,4.2832031 -2.98828,4.6699219 2.98828,0 0,-4.6699219 z m -0.31055,-1.03125 1.48828,0 0,5.7011719 1.24805,0 0,0.984375 -1.24805,0 0,2.0625 -1.17773,0 0,-2.0625 -3.94922,0 0,-1.1425781 3.63867,-5.5429688 z" />
+    </g>
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:none;stroke:#ffffff;stroke-width:1;stroke-linecap:round;stroke-linejoin:round"
+     font-size="8"
+     id="group1">
+    <g
+       style="stroke:#719fcf"
+       id="g13">
+      <path
+         id="path15"
+         d="m 37.5,51.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path17"
+         d="m 37.5,97.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path19"
+         d="m 37.5,143.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path21"
+         d="m 37.5,189.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path23"
+         d="m 37.5,235.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path25"
+         d="m 37.5,281.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path27"
+         d="m 37.5,327.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path29"
+         d="m 37.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path31"
+         d="m 127.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path33"
+         d="m 217.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path35"
+         d="m 307.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path37"
+         d="m 397.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+    </g>
+    <g
+       style="fill:#000000;stroke:none"
+       id="g39">
+      <path
+         id="rect41"
+         d="m 44.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect43"
+         d="m 44.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect45"
+         d="m 44.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect47"
+         d="m 44.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect49"
+         d="m 44.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect51"
+         d="m 44.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect53"
+         d="m 44.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect55"
+         d="m 44.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect57"
+         d="m 44.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect59"
+         d="m 44.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect61"
+         d="m 44.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect63"
+         d="m 44.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect65"
+         d="m 134.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect67"
+         d="m 134.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect69"
+         d="m 134.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect71"
+         d="m 134.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect73"
+         d="m 134.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect75"
+         d="m 134.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect77"
+         d="m 134.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect79"
+         d="m 134.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect81"
+         d="m 134.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect83"
+         d="m 134.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect85"
+         d="m 134.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect87"
+         d="m 134.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect89"
+         d="m 224.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect91"
+         d="m 224.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect93"
+         d="m 224.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect95"
+         d="m 224.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect97"
+         d="m 224.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect99"
+         d="m 224.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect101"
+         d="m 224.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect103"
+         d="m 224.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect105"
+         d="m 224.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect107"
+         d="m 224.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect109"
+         d="m 224.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect111"
+         d="m 224.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect113"
+         d="m 314.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect115"
+         d="m 314.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect117"
+         d="m 314.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect119"
+         d="m 314.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect121"
+         d="m 314.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect123"
+         d="m 314.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect125"
+         d="m 314.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect127"
+         d="m 314.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect129"
+         d="m 314.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect131"
+         d="m 314.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect133"
+         d="m 314.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect135"
+         d="m 314.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+    </g>
+    <g
+       style="fill:#ffffff;stroke:none"
+       id="g137">
+      <g
+         id="text139"
+         style="text-anchor:middle">
+        <path
+           id="path259"
+           style="text-anchor:middle"
+           d="m 8.8164063,94.167969 0.8476562,0 1.4492185,2.167968 1.457032,-2.167968 0.847656,0 -1.875,2.800781 2,3.03125 -0.847656,0 L 11.054688,97.519531 9.4023438,100 8.5507813,100 10.632813,96.886719 8.8164063,94.167969 Z" />
+        <path
+           id="path261"
+           style="text-anchor:middle"
+           d="m 17.128906,94.167969 0.789063,0 0,5.832031 -0.789063,0 0,-5.832031 z" />
+        <path
+           id="path263"
+           style="text-anchor:middle"
+           d="m 19.488281,94.167969 1.0625,0 2.585938,4.878906 0,-4.878906 0.765625,0 0,5.832031 -1.0625,0 -2.585938,-4.878906 0,4.878906 -0.765625,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text141"
+         style="text-anchor:middle">
+        <path
+           id="path266"
+           style="text-anchor:middle"
+           d="m 8.8164063,140.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,146 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path268"
+           style="text-anchor:middle"
+           d="m 17.128906,140.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path270"
+           style="text-anchor:middle"
+           d="m 19.488281,140.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text143"
+         style="text-anchor:middle">
+        <path
+           id="path273"
+           style="text-anchor:middle"
+           d="m 8.8164063,186.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,192 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path275"
+           style="text-anchor:middle"
+           d="m 17.128906,186.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path277"
+           style="text-anchor:middle"
+           d="m 19.488281,186.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text145"
+         style="text-anchor:middle">
+        <path
+           id="path280"
+           style="text-anchor:middle"
+           d="m 8.8164063,232.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,238 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path282"
+           style="text-anchor:middle"
+           d="m 17.128906,232.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path284"
+           style="text-anchor:middle"
+           d="m 19.488281,232.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text147"
+         style="text-anchor:middle">
+        <path
+           id="path287"
+           style="text-anchor:middle"
+           d="m 8.8164063,278.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,284 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path289"
+           style="text-anchor:middle"
+           d="m 17.128906,278.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path291"
+           style="text-anchor:middle"
+           d="m 19.488281,278.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text149"
+         style="text-anchor:middle">
+        <path
+           id="path294"
+           style="text-anchor:middle"
+           d="m 406.46484,94.167969 0.84766,0 1.44922,2.167968 1.45703,-2.167968 0.84766,0 -1.875,2.800781 2,3.03125 -0.84766,0 -1.64063,-2.480469 -1.65234,2.480469 -0.85156,0 2.08203,-3.113281 -1.81641,-2.71875 z" />
+        <path
+           id="path296"
+           style="text-anchor:middle"
+           d="m 417.14453,94.703125 q -0.85937,0 -1.36719,0.640625 -0.5039,0.640625 -0.5039,1.746094 0,1.101562 0.5039,1.742187 0.50782,0.640625 1.36719,0.640625 0.85938,0 1.35938,-0.640625 0.5039,-0.640625 0.5039,-1.742187 0,-1.105469 -0.5039,-1.746094 -0.5,-0.640625 -1.35938,-0.640625 z m 0,-0.640625 q 1.22656,0 1.96094,0.824219 0.73437,0.820312 0.73437,2.203125 0,1.378906 -0.73437,2.203125 -0.73438,0.820311 -1.96094,0.820311 -1.23047,0 -1.96875,-0.820311 -0.73437,-0.820313 -0.73437,-2.203125 0,-1.382813 0.73437,-2.203125 0.73828,-0.824219 1.96875,-0.824219 z" />
+        <path
+           id="path298"
+           style="text-anchor:middle"
+           d="m 420.98437,94.167969 0.79297,0 0,3.542968 q 0,0.9375 0.33985,1.351563 0.33984,0.410156 1.10156,0.410156 0.75781,0 1.09766,-0.410156 0.33984,-0.414063 0.33984,-1.351563 l 0,-3.542968 0.79297,0 0,3.640625 q 0,1.140625 -0.56641,1.722656 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.582031 -0.5625,-1.722656 l 0,-3.640625 z" />
+        <path
+           id="path300"
+           style="text-anchor:middle"
+           d="m 426.125,94.167969 4.93359,0 0,0.664062 -2.07031,0 0,5.167969 -0.79297,0 0,-5.167969 -2.07031,0 0,-0.664062 z" />
+      </g>
+      <g
+         id="text151"
+         style="text-anchor:middle">
+        <path
+           id="path303"
+           style="text-anchor:middle"
+           d="m 406.46484,140.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path305"
+           style="text-anchor:middle"
+           d="m 417.14453,140.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path307"
+           style="text-anchor:middle"
+           d="m 420.98437,140.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path309"
+           style="text-anchor:middle"
+           d="m 426.125,140.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text153"
+         style="text-anchor:middle">
+        <path
+           id="path312"
+           style="text-anchor:middle"
+           d="m 406.46484,186.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path314"
+           style="text-anchor:middle"
+           d="m 417.14453,186.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path316"
+           style="text-anchor:middle"
+           d="m 420.98437,186.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path318"
+           style="text-anchor:middle"
+           d="m 426.125,186.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text155"
+         style="text-anchor:middle">
+        <path
+           id="path321"
+           style="text-anchor:middle"
+           d="m 406.46484,232.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path323"
+           style="text-anchor:middle"
+           d="m 417.14453,232.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path325"
+           style="text-anchor:middle"
+           d="m 420.98437,232.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path327"
+           style="text-anchor:middle"
+           d="m 426.125,232.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text157"
+         style="text-anchor:middle">
+        <path
+           id="path330"
+           style="text-anchor:middle"
+           d="m 406.46484,278.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path332"
+           style="text-anchor:middle"
+           d="m 417.14453,278.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path334"
+           style="text-anchor:middle"
+           d="m 420.98437,278.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path336"
+           style="text-anchor:middle"
+           d="m 426.125,278.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text159"
+         style="text-anchor:middle">
+        <path
+           id="path339"
+           style="text-anchor:middle"
+           d="m 119.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path341"
+           style="text-anchor:middle"
+           d="m 127.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path343"
+           style="text-anchor:middle"
+           d="m 130.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text161"
+         style="text-anchor:middle">
+        <path
+           id="path346"
+           style="text-anchor:middle"
+           d="m 115.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path348"
+           style="text-anchor:middle"
+           d="m 125.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path350"
+           style="text-anchor:middle"
+           d="m 129.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path352"
+           style="text-anchor:middle"
+           d="m 134.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text163"
+         style="text-anchor:middle">
+        <path
+           id="path355"
+           style="text-anchor:middle"
+           d="m 209.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path357"
+           style="text-anchor:middle"
+           d="m 217.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path359"
+           style="text-anchor:middle"
+           d="m 220.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text165"
+         style="text-anchor:middle">
+        <path
+           id="path362"
+           style="text-anchor:middle"
+           d="m 205.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path364"
+           style="text-anchor:middle"
+           d="m 215.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path366"
+           style="text-anchor:middle"
+           d="m 219.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path368"
+           style="text-anchor:middle"
+           d="m 224.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text167"
+         style="text-anchor:middle">
+        <path
+           id="path371"
+           style="text-anchor:middle"
+           d="m 299.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path373"
+           style="text-anchor:middle"
+           d="m 307.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path375"
+           style="text-anchor:middle"
+           d="m 310.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text169"
+         style="text-anchor:middle">
+        <path
+           id="path378"
+           style="text-anchor:middle"
+           d="m 295.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path380"
+           style="text-anchor:middle"
+           d="m 305.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path382"
+           style="text-anchor:middle"
+           d="m 309.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path384"
+           style="text-anchor:middle"
+           d="m 314.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/AO-136.svg

@@ -0,0 +1,823 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4226"
+   version="1.1"
+   height="380px"
+   width="615px">
+  <metadata
+     id="metadata235">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs233" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 615,0 0,380 -615,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4230"
+       d="M 0,380 0,0 615,0 614,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4232"
+       d="m 0,380 615,0 0,-380 -1,1 0,378 -613,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 604.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 596,373.83071 8.1692063,5.1693144 0 0 0 604.16915,379 8.1692063,5.1693144 0 0 0 611.48278,376.11985 3.0461447,4.2480502 0 0 0 614,377.97641 l 0,-2.35772 a 1.3384576,1.9448905 0 0 1 -1.2923,-1.94151 1.3384576,1.9448905 0 0 1 1.2923,-1.94263 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 604.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text4236"
+       style="">
+      <path
+         id="path239"
+         style=""
+         d="m 8.3144531,370.63086 0,1.01953 q -0.4570312,-0.23437 -0.9492187,-0.35156 -0.4921875,-0.11719 -1.0195313,-0.11719 -0.8027344,0 -1.2070312,0.24609 -0.3984375,0.2461 -0.3984375,0.73829 0,0.375 0.2871093,0.59179 0.2871094,0.21094 1.1542969,0.4043 l 0.3691406,0.082 q 1.1484375,0.24609 1.6289063,0.69727 0.4863281,0.44531 0.4863281,1.24804 0,0.91407 -0.7265625,1.44727 -0.7207031,0.5332 -1.9863281,0.5332 -0.5273438,0 -1.1015625,-0.10547 -0.5683594,-0.0996 -1.2011719,-0.30468 l 0,-1.11329 q 0.5976563,0.31055 1.1777344,0.46875 0.5800781,0.15235 1.1484375,0.15235 0.7617187,0 1.171875,-0.25781 0.4101562,-0.26368 0.4101562,-0.73829 0,-0.43945 -0.2988281,-0.67382 -0.2929687,-0.23438 -1.2949219,-0.45118 l -0.375,-0.0879 q -1.0019531,-0.21093 -1.4472656,-0.64453 -0.4453125,-0.43945 -0.4453125,-1.20117 0,-0.92578 0.65625,-1.42969 0.65625,-0.5039 1.8632813,-0.5039 0.5976562,0 1.125,0.0879 0.5273437,0.0879 0.9726562,0.26367 z" />
+      <path
+         id="path241"
+         style=""
+         d="m 10.277344,374.41016 0,-3.97266 1.078125,0 0,3.93164 q 0,0.93164 0.363281,1.40039 0.363281,0.46289 1.089844,0.46289 0.873047,0 1.376953,-0.55664 0.509766,-0.55664 0.509766,-1.51758 l 0,-3.7207 1.078125,0 0,6.5625 -1.078125,0 0,-1.00781 q -0.392579,0.59765 -0.914063,0.89062 -0.515625,0.28711 -1.201172,0.28711 -1.130859,0 -1.716797,-0.70312 -0.585937,-0.70313 -0.585937,-2.05664 z m 2.71289,-4.13086 0,0 z" />
+      <path
+         id="path243"
+         style=""
+         d="m 22.716797,373.72461 q 0,-1.18945 -0.492188,-1.86328 -0.486328,-0.67969 -1.341797,-0.67969 -0.855468,0 -1.347656,0.67969 -0.486328,0.67383 -0.486328,1.86328 0,1.18945 0.486328,1.86914 0.492188,0.67383 1.347656,0.67383 0.855469,0 1.341797,-0.67383 0.492188,-0.67969 0.492188,-1.86914 z m -3.667969,-2.29102 q 0.339844,-0.58593 0.855469,-0.86718 0.521484,-0.28711 1.242187,-0.28711 1.195313,0 1.939453,0.94922 0.75,0.94921 0.75,2.49609 0,1.54687 -0.75,2.49609 -0.74414,0.94922 -1.939453,0.94922 -0.720703,0 -1.242187,-0.28125 -0.515625,-0.28711 -0.855469,-0.87305 l 0,0.98438 -1.083984,0 0,-9.11719 1.083984,0 0,3.55078 z" />
+      <path
+         id="path245"
+         style=""
+         d="m 30.732422,371.69727 q 0.404297,-0.72657 0.966797,-1.07227 0.5625,-0.3457 1.324218,-0.3457 1.025391,0 1.582032,0.7207 0.55664,0.71484 0.55664,2.03906 l 0,3.96094 -1.083984,0 0,-3.92578 q 0,-0.94336 -0.333984,-1.40039 -0.333985,-0.45703 -1.019532,-0.45703 -0.83789,0 -1.324218,0.55664 -0.486329,0.55664 -0.486329,1.51758 l 0,3.70898 -1.083984,0 0,-3.92578 q 0,-0.94922 -0.333984,-1.40039 -0.333985,-0.45703 -1.03125,-0.45703 -0.826172,0 -1.3125,0.5625 -0.486328,0.55664 -0.486328,1.51172 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.36914,-0.60351 0.884765,-0.89062 0.515625,-0.28711 1.22461,-0.28711 0.714843,0 1.21289,0.36328 0.503906,0.36328 0.744141,1.05469 z" />
+      <path
+         id="path247"
+         style=""
+         d="m 40.300781,373.70117 q -1.30664,0 -1.810547,0.29883 -0.503906,0.29883 -0.503906,1.01953 0,0.57422 0.375,0.91406 0.380859,0.33399 1.03125,0.33399 0.896484,0 1.435547,-0.63281 0.544922,-0.63868 0.544922,-1.69336 l 0,-0.24024 -1.072266,0 z m 2.150391,-0.44531 0,3.74414 -1.078125,0 0,-0.99609 q -0.369141,0.59765 -0.919922,0.88476 -0.550781,0.28125 -1.347656,0.28125 -1.007813,0 -1.605469,-0.5625 -0.591797,-0.56836 -0.591797,-1.51758 0,-1.10742 0.738281,-1.66992 0.744141,-0.5625 2.214844,-0.5625 l 1.511719,0 0,-0.10547 q 0,-0.74414 -0.492188,-1.14843 -0.486328,-0.41016 -1.371093,-0.41016 -0.5625,0 -1.095704,0.13476 -0.533203,0.13477 -1.02539,0.4043 l 0,-0.99609 q 0.591797,-0.22852 1.148437,-0.33985 0.556641,-0.11718 1.083985,-0.11718 1.423828,0 2.126953,0.73828 0.703125,0.73828 0.703125,2.23828 z" />
+      <path
+         id="path249"
+         style=""
+         d="m 48.480469,371.44531 q -0.181641,-0.10547 -0.398438,-0.15234 -0.210937,-0.0527 -0.46875,-0.0527 -0.914062,0 -1.40625,0.59766 -0.486328,0.5918 -0.486328,1.70508 l 0,3.45703 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.339844,-0.59766 0.884766,-0.88476 0.544922,-0.29297 1.324218,-0.29297 0.111329,0 0.246094,0.0176 0.134766,0.0117 0.298828,0.041 l 0.0059,1.10742 z" />
+      <path
+         id="path251"
+         style=""
+         d="m 49.623047,370.4375 1.078125,0 0,6.5625 -1.078125,0 0,-6.5625 z m 0,-2.55469 1.078125,0 0,1.36524 -1.078125,0 0,-1.36524 z" />
+      <path
+         id="path253"
+         style=""
+         d="m 58.40625,373.03906 0,3.96094 -1.078125,0 0,-3.92578 q 0,-0.93164 -0.363281,-1.39453 -0.363282,-0.46289 -1.089844,-0.46289 -0.873047,0 -1.376953,0.55664 -0.503906,0.55664 -0.503906,1.51758 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.386718,-0.5918 0.908203,-0.88476 0.527343,-0.29297 1.21289,-0.29297 1.13086,0 1.710938,0.70312 0.580078,0.69727 0.580078,2.05664 z" />
+      <path
+         id="path255"
+         style=""
+         d="m 66.181641,373.44922 0,0.52734 -4.957032,0 q 0.07031,1.11328 0.667969,1.69922 0.603516,0.58008 1.675781,0.58008 0.621094,0 1.201172,-0.15234 0.585938,-0.15235 1.160156,-0.45704 l 0,1.01954 q -0.580078,0.24609 -1.189453,0.375 -0.609375,0.1289 -1.236328,0.1289 -1.570312,0 -2.490234,-0.91406 -0.914063,-0.91406 -0.914063,-2.47266 0,-1.61133 0.867188,-2.55468 0.873047,-0.94922 2.349609,-0.94922 1.324219,0 2.091797,0.85547 0.773438,0.8496 0.773438,2.31445 z m -1.078125,-0.31641 q -0.01172,-0.88476 -0.498047,-1.41211 -0.480469,-0.52734 -1.277344,-0.52734 -0.902344,0 -1.447266,0.50976 -0.539062,0.50977 -0.621093,1.43555 l 3.84375,-0.006 z" />
+    </g>
+    <g
+       id="text10"
+       style="text-anchor:middle">
+      <path
+         id="path258"
+         style="text-anchor:middle"
+         d="m 289.08984,4.4179687 -1.60547,4.3535157 3.2168,0 -1.61133,-4.3535157 z m -0.66797,-1.1660156 1.3418,0 L 293.09766,12 l -1.23047,0 -0.79688,-2.2441406 -3.94336,0 L 286.33008,12 l -1.24805,0 3.33984,-8.7480469 z" />
+      <path
+         id="path260"
+         style="text-anchor:middle"
+         d="m 297.70898,4.0546875 q -1.28906,0 -2.05078,0.9609375 -0.75586,0.9609375 -0.75586,2.6191406 0,1.6523438 0.75586,2.6132814 0.76172,0.960937 2.05078,0.960937 1.28907,0 2.03907,-0.960937 0.75586,-0.9609376 0.75586,-2.6132814 0,-1.6582031 -0.75586,-2.6191406 -0.75,-0.9609375 -2.03907,-0.9609375 z m 0,-0.9609375 q 1.83985,0 2.94141,1.2363281 1.10156,1.2304688 1.10156,3.3046875 0,2.0683594 -1.10156,3.3046874 -1.10156,1.230469 -2.94141,1.230469 -1.8457,0 -2.95312,-1.230469 -1.10156,-1.2304686 -1.10156,-3.3046874 0,-2.0742187 1.10156,-3.3046875 1.10742,-1.2363281 2.95312,-1.2363281 z" />
+      <path
+         id="path262"
+         style="text-anchor:middle"
+         d="m 303.33984,8.2324219 3.15821,0 0,0.9609375 -3.15821,0 0,-0.9609375 z" />
+      <path
+         id="path264"
+         style="text-anchor:middle"
+         d="m 308.57812,11.003906 1.9336,0 0,-6.6738279 -2.10352,0.421875 0,-1.078125 2.0918,-0.421875 1.18359,0 0,7.7519529 1.9336,0 0,0.996094 -5.03907,0 0,-0.996094 z" />
+      <path
+         id="path266"
+         style="text-anchor:middle"
+         d="m 319.59961,7.2832031 q 0.84961,0.1816406 1.32422,0.7558594 0.48047,0.5742188 0.48047,1.4179688 0,1.2949217 -0.89063,2.0039067 -0.89062,0.708984 -2.53125,0.708984 -0.55078,0 -1.13672,-0.111328 -0.58008,-0.105469 -1.20117,-0.322266 l 0,-1.142578 q 0.49219,0.287109 1.07813,0.433594 0.58593,0.146484 1.22461,0.146484 1.11328,0 1.69335,-0.439453 0.58594,-0.439453 0.58594,-1.2773437 0,-0.7734375 -0.54492,-1.2070313 -0.53906,-0.4394531 -1.50586,-0.4394531 l -1.01953,0 0,-0.9726563 1.06641,0 q 0.87304,0 1.33593,-0.3457031 0.46289,-0.3515625 0.46289,-1.0078125 0,-0.6738281 -0.48046,-1.03125 -0.47461,-0.3632813 -1.36524,-0.3632813 -0.48633,0 -1.04297,0.1054688 -0.55664,0.1054687 -1.22461,0.328125 l 0,-1.0546875 q 0.67383,-0.1875 1.25977,-0.28125 0.5918,-0.09375 1.11328,-0.09375 1.34766,0 2.13281,0.6152344 0.78516,0.609375 0.78516,1.6523437 0,0.7265625 -0.41602,1.2304688 -0.41601,0.4980468 -1.18359,0.6914062 z" />
+      <path
+         id="path268"
+         style="text-anchor:middle"
+         d="m 326.33203,7.1542969 q -0.79687,0 -1.26562,0.5449218 -0.46289,0.5449219 -0.46289,1.4941407 0,0.9433596 0.46289,1.4941406 0.46875,0.544922 1.26562,0.544922 0.79688,0 1.25977,-0.544922 0.46875,-0.550781 0.46875,-1.4941406 0,-0.9492188 -0.46875,-1.4941407 -0.46289,-0.5449218 -1.25977,-0.5449218 z m 2.34961,-3.7089844 0,1.078125 Q 328.23633,4.3125 327.7793,4.2011719 q -0.45118,-0.1113282 -0.89649,-0.1113282 -1.17187,0 -1.79297,0.7910157 -0.61523,0.7910156 -0.70312,2.390625 0.3457,-0.5097657 0.86719,-0.7792969 0.52148,-0.2753906 1.14843,-0.2753906 1.31836,0 2.08008,0.8027343 0.76758,0.796875 0.76758,2.1738282 0,1.3476566 -0.79688,2.1621096 -0.79687,0.814453 -2.12109,0.814453 -1.51758,0 -2.32031,-1.160156 -0.80274,-1.166016 -0.80274,-3.3750004 0,-2.0742187 0.98438,-3.3046875 0.98437,-1.2363281 2.64258,-1.2363281 0.44531,0 0.89648,0.087891 0.45703,0.087891 0.94922,0.2636719 z" />
+    </g>
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:none;stroke:#ffffff;stroke-width:1;stroke-linecap:round;stroke-linejoin:round"
+     font-size="8"
+     id="group1">
+    <g
+       style="stroke:#719fcf"
+       id="g13">
+      <path
+         id="path15"
+         d="m 37.5,51.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path17"
+         d="m 37.5,97.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path19"
+         d="m 37.5,143.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path21"
+         d="m 37.5,189.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path23"
+         d="m 37.5,235.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path25"
+         d="m 37.5,281.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path27"
+         d="m 37.5,327.5 40,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 80,0 5,4 5,-4 40,0" />
+      <path
+         id="path29"
+         d="m 37.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path31"
+         d="m 127.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path33"
+         d="m 217.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path35"
+         d="m 307.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path37"
+         d="m 397.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path39"
+         d="m 487.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+      <path
+         id="path41"
+         d="m 577.5,51.5 0,18 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,36 4,5 -4,5 0,18" />
+    </g>
+    <g
+       style="fill:#000000;stroke:none"
+       id="g43">
+      <path
+         id="rect45"
+         d="m 44.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect47"
+         d="m 44.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect49"
+         d="m 44.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect51"
+         d="m 44.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect53"
+         d="m 44.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect55"
+         d="m 44.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect57"
+         d="m 44.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect59"
+         d="m 44.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect61"
+         d="m 44.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect63"
+         d="m 44.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect65"
+         d="m 44.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect67"
+         d="m 44.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect69"
+         d="m 134.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect71"
+         d="m 134.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect73"
+         d="m 134.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect75"
+         d="m 134.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect77"
+         d="m 134.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect79"
+         d="m 134.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect81"
+         d="m 134.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect83"
+         d="m 134.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect85"
+         d="m 134.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect87"
+         d="m 134.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect89"
+         d="m 134.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect91"
+         d="m 134.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect93"
+         d="m 224.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect95"
+         d="m 224.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect97"
+         d="m 224.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect99"
+         d="m 224.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect101"
+         d="m 224.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect103"
+         d="m 224.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect105"
+         d="m 224.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect107"
+         d="m 224.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect109"
+         d="m 224.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect111"
+         d="m 224.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect113"
+         d="m 224.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect115"
+         d="m 224.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect117"
+         d="m 314.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect119"
+         d="m 314.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect121"
+         d="m 314.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect123"
+         d="m 314.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect125"
+         d="m 314.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect127"
+         d="m 314.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect129"
+         d="m 314.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect131"
+         d="m 314.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect133"
+         d="m 314.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect135"
+         d="m 314.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect137"
+         d="m 314.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect139"
+         d="m 314.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect141"
+         d="m 404.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect143"
+         d="m 404.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect145"
+         d="m 404.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect147"
+         d="m 404.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect149"
+         d="m 404.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect151"
+         d="m 404.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect153"
+         d="m 404.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect155"
+         d="m 404.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect157"
+         d="m 404.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect159"
+         d="m 404.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect161"
+         d="m 404.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect163"
+         d="m 404.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect165"
+         d="m 494.5,59 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect167"
+         d="m 494.5,78 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect169"
+         d="m 494.5,105 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect171"
+         d="m 494.5,124 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect173"
+         d="m 494.5,151 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect175"
+         d="m 494.5,170 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect177"
+         d="m 494.5,197 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect179"
+         d="m 494.5,216 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect181"
+         d="m 494.5,243 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect183"
+         d="m 494.5,262 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect185"
+         d="m 494.5,289 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+      <path
+         id="rect187"
+         d="m 494.5,308 79,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -79,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+         style="" />
+    </g>
+    <g
+       style="fill:#ffffff;stroke:none"
+       id="g189">
+      <g
+         id="text191"
+         style="text-anchor:middle">
+        <path
+           id="path343"
+           style="text-anchor:middle"
+           d="m 8.8164063,94.167969 0.8476562,0 1.4492185,2.167968 1.457032,-2.167968 0.847656,0 -1.875,2.800781 2,3.03125 -0.847656,0 L 11.054688,97.519531 9.4023438,100 8.5507813,100 10.632813,96.886719 8.8164063,94.167969 Z" />
+        <path
+           id="path345"
+           style="text-anchor:middle"
+           d="m 17.128906,94.167969 0.789063,0 0,5.832031 -0.789063,0 0,-5.832031 z" />
+        <path
+           id="path347"
+           style="text-anchor:middle"
+           d="m 19.488281,94.167969 1.0625,0 2.585938,4.878906 0,-4.878906 0.765625,0 0,5.832031 -1.0625,0 -2.585938,-4.878906 0,4.878906 -0.765625,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text193"
+         style="text-anchor:middle">
+        <path
+           id="path350"
+           style="text-anchor:middle"
+           d="m 8.8164063,140.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,146 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path352"
+           style="text-anchor:middle"
+           d="m 17.128906,140.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path354"
+           style="text-anchor:middle"
+           d="m 19.488281,140.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text195"
+         style="text-anchor:middle">
+        <path
+           id="path357"
+           style="text-anchor:middle"
+           d="m 8.8164063,186.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,192 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path359"
+           style="text-anchor:middle"
+           d="m 17.128906,186.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path361"
+           style="text-anchor:middle"
+           d="m 19.488281,186.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text197"
+         style="text-anchor:middle">
+        <path
+           id="path364"
+           style="text-anchor:middle"
+           d="m 8.8164063,232.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,238 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path366"
+           style="text-anchor:middle"
+           d="m 17.128906,232.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path368"
+           style="text-anchor:middle"
+           d="m 19.488281,232.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text199"
+         style="text-anchor:middle">
+        <path
+           id="path371"
+           style="text-anchor:middle"
+           d="m 8.8164063,278.16797 0.8476562,0 1.4492185,2.16797 1.457032,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 L 9.4023438,284 l -0.8515625,0 2.0820317,-3.11328 -1.8164067,-2.71875 z" />
+        <path
+           id="path373"
+           style="text-anchor:middle"
+           d="m 17.128906,278.16797 0.789063,0 0,5.83203 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path375"
+           style="text-anchor:middle"
+           d="m 19.488281,278.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text201"
+         style="text-anchor:middle">
+        <path
+           id="path378"
+           style="text-anchor:middle"
+           d="m 586.46484,94.167969 0.84766,0 1.44922,2.167968 1.45703,-2.167968 0.84766,0 -1.875,2.800781 2,3.03125 -0.84766,0 -1.64063,-2.480469 -1.65234,2.480469 -0.85156,0 2.08203,-3.113281 -1.81641,-2.71875 z" />
+        <path
+           id="path380"
+           style="text-anchor:middle"
+           d="m 597.14453,94.703125 q -0.85937,0 -1.36719,0.640625 -0.5039,0.640625 -0.5039,1.746094 0,1.101562 0.5039,1.742187 0.50782,0.640625 1.36719,0.640625 0.85938,0 1.35938,-0.640625 0.5039,-0.640625 0.5039,-1.742187 0,-1.105469 -0.5039,-1.746094 -0.5,-0.640625 -1.35938,-0.640625 z m 0,-0.640625 q 1.22656,0 1.96094,0.824219 0.73437,0.820312 0.73437,2.203125 0,1.378906 -0.73437,2.203125 -0.73438,0.820311 -1.96094,0.820311 -1.23047,0 -1.96875,-0.820311 -0.73437,-0.820313 -0.73437,-2.203125 0,-1.382813 0.73437,-2.203125 0.73828,-0.824219 1.96875,-0.824219 z" />
+        <path
+           id="path382"
+           style="text-anchor:middle"
+           d="m 600.98437,94.167969 0.79297,0 0,3.542968 q 0,0.9375 0.33985,1.351563 0.33984,0.410156 1.10156,0.410156 0.75781,0 1.09766,-0.410156 0.33984,-0.414063 0.33984,-1.351563 l 0,-3.542968 0.79297,0 0,3.640625 q 0,1.140625 -0.56641,1.722656 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.582031 -0.5625,-1.722656 l 0,-3.640625 z" />
+        <path
+           id="path384"
+           style="text-anchor:middle"
+           d="m 606.125,94.167969 4.93359,0 0,0.664062 -2.07031,0 0,5.167969 -0.79297,0 0,-5.167969 -2.07031,0 0,-0.664062 z" />
+      </g>
+      <g
+         id="text203"
+         style="text-anchor:middle">
+        <path
+           id="path387"
+           style="text-anchor:middle"
+           d="m 586.46484,140.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path389"
+           style="text-anchor:middle"
+           d="m 597.14453,140.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path391"
+           style="text-anchor:middle"
+           d="m 600.98437,140.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path393"
+           style="text-anchor:middle"
+           d="m 606.125,140.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text205"
+         style="text-anchor:middle">
+        <path
+           id="path396"
+           style="text-anchor:middle"
+           d="m 586.46484,186.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path398"
+           style="text-anchor:middle"
+           d="m 597.14453,186.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path400"
+           style="text-anchor:middle"
+           d="m 600.98437,186.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path402"
+           style="text-anchor:middle"
+           d="m 606.125,186.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text207"
+         style="text-anchor:middle">
+        <path
+           id="path405"
+           style="text-anchor:middle"
+           d="m 586.46484,232.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path407"
+           style="text-anchor:middle"
+           d="m 597.14453,232.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path409"
+           style="text-anchor:middle"
+           d="m 600.98437,232.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path411"
+           style="text-anchor:middle"
+           d="m 606.125,232.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text209"
+         style="text-anchor:middle">
+        <path
+           id="path414"
+           style="text-anchor:middle"
+           d="m 586.46484,278.16797 0.84766,0 1.44922,2.16797 1.45703,-2.16797 0.84766,0 -1.875,2.80078 2,3.03125 -0.84766,0 -1.64063,-2.48047 -1.65234,2.48047 -0.85156,0 2.08203,-3.11328 -1.81641,-2.71875 z" />
+        <path
+           id="path416"
+           style="text-anchor:middle"
+           d="m 597.14453,278.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path418"
+           style="text-anchor:middle"
+           d="m 600.98437,278.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33985,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67188,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path420"
+           style="text-anchor:middle"
+           d="m 606.125,278.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text211"
+         style="text-anchor:middle">
+        <path
+           id="path423"
+           style="text-anchor:middle"
+           d="m 119.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path425"
+           style="text-anchor:middle"
+           d="m 127.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path427"
+           style="text-anchor:middle"
+           d="m 130.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text213"
+         style="text-anchor:middle">
+        <path
+           id="path430"
+           style="text-anchor:middle"
+           d="m 115.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path432"
+           style="text-anchor:middle"
+           d="m 125.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path434"
+           style="text-anchor:middle"
+           d="m 129.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path436"
+           style="text-anchor:middle"
+           d="m 134.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text215"
+         style="text-anchor:middle">
+        <path
+           id="path439"
+           style="text-anchor:middle"
+           d="m 209.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path441"
+           style="text-anchor:middle"
+           d="m 217.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path443"
+           style="text-anchor:middle"
+           d="m 220.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text217"
+         style="text-anchor:middle">
+        <path
+           id="path446"
+           style="text-anchor:middle"
+           d="m 205.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path448"
+           style="text-anchor:middle"
+           d="m 215.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path450"
+           style="text-anchor:middle"
+           d="m 219.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path452"
+           style="text-anchor:middle"
+           d="m 224.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text219"
+         style="text-anchor:middle">
+        <path
+           id="path455"
+           style="text-anchor:middle"
+           d="m 299.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path457"
+           style="text-anchor:middle"
+           d="m 307.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path459"
+           style="text-anchor:middle"
+           d="m 310.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text221"
+         style="text-anchor:middle">
+        <path
+           id="path462"
+           style="text-anchor:middle"
+           d="m 295.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path464"
+           style="text-anchor:middle"
+           d="m 305.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path466"
+           style="text-anchor:middle"
+           d="m 309.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path468"
+           style="text-anchor:middle"
+           d="m 314.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text223"
+         style="text-anchor:middle">
+        <path
+           id="path471"
+           style="text-anchor:middle"
+           d="m 389.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path473"
+           style="text-anchor:middle"
+           d="m 397.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path475"
+           style="text-anchor:middle"
+           d="m 400.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text225"
+         style="text-anchor:middle">
+        <path
+           id="path478"
+           style="text-anchor:middle"
+           d="m 385.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path480"
+           style="text-anchor:middle"
+           d="m 395.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path482"
+           style="text-anchor:middle"
+           d="m 399.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path484"
+           style="text-anchor:middle"
+           d="m 404.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+      <g
+         id="text227"
+         style="text-anchor:middle">
+        <path
+           id="path487"
+           style="text-anchor:middle"
+           d="m 479.59375,28.167969 0.84766,0 1.61718,2.398437 1.60547,-2.398437 0.84766,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+        <path
+           id="path489"
+           style="text-anchor:middle"
+           d="m 487.83203,28.167969 0.78906,0 0,5.832031 -0.78906,0 0,-5.832031 z" />
+        <path
+           id="path491"
+           style="text-anchor:middle"
+           d="m 490.19141,28.167969 1.0625,0 2.58593,4.878906 0,-4.878906 0.76563,0 0,5.832031 -1.0625,0 -2.58594,-4.878906 0,4.878906 -0.76562,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text229"
+         style="text-anchor:middle">
+        <path
+           id="path494"
+           style="text-anchor:middle"
+           d="m 475.24219,345.16797 0.84765,0 1.61719,2.39844 1.60547,-2.39844 0.84766,0 -2.0625,3.05469 0,2.77734 -0.79297,0 0,-2.77734 -2.0625,-3.05469 z" />
+        <path
+           id="path496"
+           style="text-anchor:middle"
+           d="m 485.84766,345.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path498"
+           style="text-anchor:middle"
+           d="m 489.6875,345.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33985,0.41016 1.10156,0.41016 0.75782,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.5664,1.72266 -0.5625,0.58203 -1.66407,0.58203 -1.10546,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path500"
+           style="text-anchor:middle"
+           d="m 494.82812,345.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      </g>
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/Components/sub_knob_large.svg

@@ -1,30 +0,0 @@
-<?xml version="1.0" encoding="UTF-8" standalone="no"?>
-<svg
-   xmlns="http://www.w3.org/2000/svg"
-   xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape"
-   width="54px"
-   height="54px"
-   version="1.1"
-   inkscape:version="0.91 r13725"
-   id="svg4226">
-  <g
-     inkscape:label="Background"
-     inkscape:groupmode="layer"
-     id="background">
-    <circle
-       cx="27"
-       cy="27"
-       r="27"
-       fill="#000000"
-       stroke="none"/>
-    <rect x="25" y="4" width="4" height="12"
-       fill="#111111"
-       stroke="none"/>
-    <path d="M 27 6 l 2 4 l -2 4 l -2 -4 z"
-       fill="#222222"
-       stroke="none"/>
-    <path d="M 27 8 l 2 2 l -2 2 l -2 -2 z"
-       fill="#333333"
-       stroke="none"/>
-  </g>
-</svg>

plugins/community/repos/SubmarineFree/res/Components/sub_knob_large_a.svg

@@ -1,33 +0,0 @@
-<?xml version="1.0" encoding="UTF-8" standalone="no"?>
-<svg
-   xmlns="http://www.w3.org/2000/svg"
-   xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape"
-   width="54px"
-   height="54px"
-   version="1.1"
-   inkscape:version="0.91 r13725"
-   id="svg4226">
-  <g
-     inkscape:label="Background"
-     inkscape:groupmode="layer"
-     id="background">
-    <circle
-       cx="27"
-       cy="27"
-       r="27"
-       fill="#000000"
-       stroke="none"/>
-    <rect x="25" y="4" width="4" height="12"
-       fill="#003399"
-       stroke="none"/>
-    <path d="M 27 5 l 2 5 l -2 5 l -2 -5 z"
-       fill="#0099cc"
-       stroke="none"/>
-    <circle
-       cx="27"
-       cy="10"
-       r="2"
-       fill="#00ccff"
-       stroke="none"/>
-  </g>
-</svg>

plugins/community/repos/SubmarineFree/res/Components/sub_knob_med.svg

@@ -1,33 +0,0 @@
-<?xml version="1.0" encoding="UTF-8" standalone="no"?>
-<svg
-   xmlns="http://www.w3.org/2000/svg"
-   xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape"
-   width="38px"
-   height="38px"
-   version="1.1"
-   inkscape:version="0.91 r13725"
-   id="svg4226">
-  <g
-     inkscape:label="Background"
-     inkscape:groupmode="layer"
-     id="background">
-    <circle
-       cx="19"
-       cy="19"
-       r="19"
-       fill="#000000"
-       stroke="none"/>
-    <rect x="17.5" y="2.5" width="3" height="8"
-       fill="#111111"
-       stroke="none"/>
-    <path d="M 19 3 l 1.5 3.5 l -1.5 3.5 l -1.5 -3.5 z"
-       fill="#222222"
-       stroke="none"/>
-    <circle
-       cx="19"
-       cy="6.5"
-       r="1.5"
-       fill="#333333"
-       stroke="none"/>
-  </g>
-</svg>

plugins/community/repos/SubmarineFree/res/Components/sub_knob_med_a.svg

@@ -1,33 +0,0 @@
-<?xml version="1.0" encoding="UTF-8" standalone="no"?>
-<svg
-   xmlns="http://www.w3.org/2000/svg"
-   xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape"
-   width="38px"
-   height="38px"
-   version="1.1"
-   inkscape:version="0.91 r13725"
-   id="svg4226">
-  <g
-     inkscape:label="Background"
-     inkscape:groupmode="layer"
-     id="background">
-    <circle
-       cx="19"
-       cy="19"
-       r="19"
-       fill="#000000"
-       stroke="none"/>
-    <rect x="17.5" y="2.5" width="3" height="8"
-       fill="#003399"
-       stroke="none"/>
-    <path d="M 19 3 l 1.5 3.5 l -1.5 3.5 l -1.5 -3.5 z"
-       fill="#0099cc"
-       stroke="none"/>
-    <circle
-       cx="19"
-       cy="6.5"
-       r="1.5"
-       fill="#00ccff"
-       stroke="none"/>
-  </g>
-</svg>

plugins/community/repos/SubmarineFree/res/Components/sub_knob_small.svg

@@ -1,30 +0,0 @@
-<?xml version="1.0" encoding="UTF-8" standalone="no"?>
-<svg
-   xmlns="http://www.w3.org/2000/svg"
-   xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape"
-   width="24px"
-   height="24px"
-   version="1.1"
-   inkscape:version="0.91 r13725"
-   id="svg4226">
-  <g
-     inkscape:label="Background"
-     inkscape:groupmode="layer"
-     id="background">
-    <circle
-       cx="12"
-       cy="12"
-       r="12"
-       fill="#000000"
-       stroke="none"/>
-    <rect x="11" y="1.5" width="2" height="5"
-       fill="#111111"
-       stroke="none"/>
-    <path d="M 12 2 l 1 2 l -1 2 l -1 -2 z"
-       fill="#222222"
-       stroke="none"/>
-    <path d="M 12 3 l 1 1 l -1 1 l -1 -1 z"
-       fill="#333333"
-       stroke="none"/>
-  </g>
-</svg>

plugins/community/repos/SubmarineFree/res/Components/sub_knob_small_a.svg

@@ -1,30 +0,0 @@
-<?xml version="1.0" encoding="UTF-8" standalone="no"?>
-<svg
-   xmlns="http://www.w3.org/2000/svg"
-   xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape"
-   width="24px"
-   height="24px"
-   version="1.1"
-   inkscape:version="0.91 r13725"
-   id="svg4226">
-  <g
-     inkscape:label="Background"
-     inkscape:groupmode="layer"
-     id="background">
-    <circle
-       cx="12"
-       cy="12"
-       r="12"
-       fill="#000000"
-       stroke="none"/>
-    <rect x="11" y="1.5" width="2" height="5"
-       fill="#003399"
-       stroke="none"/>
-    <path d="M 12 2 l 1 2 l -1 2 l -1 -2 z"
-       fill="#0099cc"
-       stroke="none"/>
-    <path d="M 12 3 l 1 1 l -1 1 l -1 -1 z"
-       fill="#00ccff"
-       stroke="none"/>
-  </g>
-</svg>

plugins/community/repos/SubmarineFree/res/EO-102.svg

@@ -0,0 +1,649 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   version="1.1"
+   id="svg2"
+   height="380px"
+   width="405px">
+  <metadata
+     id="metadata79">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs77" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 405,0 0,380 -405,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4230"
+       d="M 0,380 0,0 405,0 404,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4232"
+       d="m 0,380 405,0 0,-380 -1,1 0,378 -403,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 394.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 386,373.83071 8.1692063,5.1693144 0 0 0 394.16915,379 8.1692063,5.1693144 0 0 0 401.48278,376.11985 3.0461447,4.2480502 0 0 0 404,377.97641 l 0,-2.35772 a 1.3384576,1.9448905 0 0 1 -1.2923,-1.94151 1.3384576,1.9448905 0 0 1 1.2923,-1.94263 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 394.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text4236"
+       style="">
+      <path
+         id="path83"
+         style=""
+         d="m 8.3144531,370.63086 0,1.01953 q -0.4570312,-0.23437 -0.9492187,-0.35156 -0.4921875,-0.11719 -1.0195313,-0.11719 -0.8027344,0 -1.2070312,0.24609 -0.3984375,0.2461 -0.3984375,0.73829 0,0.375 0.2871093,0.59179 0.2871094,0.21094 1.1542969,0.4043 l 0.3691406,0.082 q 1.1484375,0.24609 1.6289063,0.69727 0.4863281,0.44531 0.4863281,1.24804 0,0.91407 -0.7265625,1.44727 -0.7207031,0.5332 -1.9863281,0.5332 -0.5273438,0 -1.1015625,-0.10547 -0.5683594,-0.0996 -1.2011719,-0.30468 l 0,-1.11329 q 0.5976563,0.31055 1.1777344,0.46875 0.5800781,0.15235 1.1484375,0.15235 0.7617187,0 1.171875,-0.25781 0.4101562,-0.26368 0.4101562,-0.73829 0,-0.43945 -0.2988281,-0.67382 -0.2929687,-0.23438 -1.2949219,-0.45118 l -0.375,-0.0879 q -1.0019531,-0.21093 -1.4472656,-0.64453 -0.4453125,-0.43945 -0.4453125,-1.20117 0,-0.92578 0.65625,-1.42969 0.65625,-0.5039 1.8632813,-0.5039 0.5976562,0 1.125,0.0879 0.5273437,0.0879 0.9726562,0.26367 z" />
+      <path
+         id="path85"
+         style=""
+         d="m 10.277344,374.41016 0,-3.97266 1.078125,0 0,3.93164 q 0,0.93164 0.363281,1.40039 0.363281,0.46289 1.089844,0.46289 0.873047,0 1.376953,-0.55664 0.509766,-0.55664 0.509766,-1.51758 l 0,-3.7207 1.078125,0 0,6.5625 -1.078125,0 0,-1.00781 q -0.392579,0.59765 -0.914063,0.89062 -0.515625,0.28711 -1.201172,0.28711 -1.130859,0 -1.716797,-0.70312 -0.585937,-0.70313 -0.585937,-2.05664 z m 2.71289,-4.13086 0,0 z" />
+      <path
+         id="path87"
+         style=""
+         d="m 22.716797,373.72461 q 0,-1.18945 -0.492188,-1.86328 -0.486328,-0.67969 -1.341797,-0.67969 -0.855468,0 -1.347656,0.67969 -0.486328,0.67383 -0.486328,1.86328 0,1.18945 0.486328,1.86914 0.492188,0.67383 1.347656,0.67383 0.855469,0 1.341797,-0.67383 0.492188,-0.67969 0.492188,-1.86914 z m -3.667969,-2.29102 q 0.339844,-0.58593 0.855469,-0.86718 0.521484,-0.28711 1.242187,-0.28711 1.195313,0 1.939453,0.94922 0.75,0.94921 0.75,2.49609 0,1.54687 -0.75,2.49609 -0.74414,0.94922 -1.939453,0.94922 -0.720703,0 -1.242187,-0.28125 -0.515625,-0.28711 -0.855469,-0.87305 l 0,0.98438 -1.083984,0 0,-9.11719 1.083984,0 0,3.55078 z" />
+      <path
+         id="path89"
+         style=""
+         d="m 30.732422,371.69727 q 0.404297,-0.72657 0.966797,-1.07227 0.5625,-0.3457 1.324218,-0.3457 1.025391,0 1.582032,0.7207 0.55664,0.71484 0.55664,2.03906 l 0,3.96094 -1.083984,0 0,-3.92578 q 0,-0.94336 -0.333984,-1.40039 -0.333985,-0.45703 -1.019532,-0.45703 -0.83789,0 -1.324218,0.55664 -0.486329,0.55664 -0.486329,1.51758 l 0,3.70898 -1.083984,0 0,-3.92578 q 0,-0.94922 -0.333984,-1.40039 -0.333985,-0.45703 -1.03125,-0.45703 -0.826172,0 -1.3125,0.5625 -0.486328,0.55664 -0.486328,1.51172 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.36914,-0.60351 0.884765,-0.89062 0.515625,-0.28711 1.22461,-0.28711 0.714843,0 1.21289,0.36328 0.503906,0.36328 0.744141,1.05469 z" />
+      <path
+         id="path91"
+         style=""
+         d="m 40.300781,373.70117 q -1.30664,0 -1.810547,0.29883 -0.503906,0.29883 -0.503906,1.01953 0,0.57422 0.375,0.91406 0.380859,0.33399 1.03125,0.33399 0.896484,0 1.435547,-0.63281 0.544922,-0.63868 0.544922,-1.69336 l 0,-0.24024 -1.072266,0 z m 2.150391,-0.44531 0,3.74414 -1.078125,0 0,-0.99609 q -0.369141,0.59765 -0.919922,0.88476 -0.550781,0.28125 -1.347656,0.28125 -1.007813,0 -1.605469,-0.5625 -0.591797,-0.56836 -0.591797,-1.51758 0,-1.10742 0.738281,-1.66992 0.744141,-0.5625 2.214844,-0.5625 l 1.511719,0 0,-0.10547 q 0,-0.74414 -0.492188,-1.14843 -0.486328,-0.41016 -1.371093,-0.41016 -0.5625,0 -1.095704,0.13476 -0.533203,0.13477 -1.02539,0.4043 l 0,-0.99609 q 0.591797,-0.22852 1.148437,-0.33985 0.556641,-0.11718 1.083985,-0.11718 1.423828,0 2.126953,0.73828 0.703125,0.73828 0.703125,2.23828 z" />
+      <path
+         id="path93"
+         style=""
+         d="m 48.480469,371.44531 q -0.181641,-0.10547 -0.398438,-0.15234 -0.210937,-0.0527 -0.46875,-0.0527 -0.914062,0 -1.40625,0.59766 -0.486328,0.5918 -0.486328,1.70508 l 0,3.45703 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.339844,-0.59766 0.884766,-0.88476 0.544922,-0.29297 1.324218,-0.29297 0.111329,0 0.246094,0.0176 0.134766,0.0117 0.298828,0.041 l 0.0059,1.10742 z" />
+      <path
+         id="path95"
+         style=""
+         d="m 49.623047,370.4375 1.078125,0 0,6.5625 -1.078125,0 0,-6.5625 z m 0,-2.55469 1.078125,0 0,1.36524 -1.078125,0 0,-1.36524 z" />
+      <path
+         id="path97"
+         style=""
+         d="m 58.40625,373.03906 0,3.96094 -1.078125,0 0,-3.92578 q 0,-0.93164 -0.363281,-1.39453 -0.363282,-0.46289 -1.089844,-0.46289 -0.873047,0 -1.376953,0.55664 -0.503906,0.55664 -0.503906,1.51758 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.386718,-0.5918 0.908203,-0.88476 0.527343,-0.29297 1.21289,-0.29297 1.13086,0 1.710938,0.70312 0.580078,0.69727 0.580078,2.05664 z" />
+      <path
+         id="path99"
+         style=""
+         d="m 66.181641,373.44922 0,0.52734 -4.957032,0 q 0.07031,1.11328 0.667969,1.69922 0.603516,0.58008 1.675781,0.58008 0.621094,0 1.201172,-0.15234 0.585938,-0.15235 1.160156,-0.45704 l 0,1.01954 q -0.580078,0.24609 -1.189453,0.375 -0.609375,0.1289 -1.236328,0.1289 -1.570312,0 -2.490234,-0.91406 -0.914063,-0.91406 -0.914063,-2.47266 0,-1.61133 0.867188,-2.55468 0.873047,-0.94922 2.349609,-0.94922 1.324219,0 2.091797,0.85547 0.773438,0.8496 0.773438,2.31445 z m -1.078125,-0.31641 q -0.01172,-0.88476 -0.498047,-1.41211 -0.480469,-0.52734 -1.277344,-0.52734 -0.902344,0 -1.447266,0.50976 -0.539062,0.50977 -0.621093,1.43555 l 3.84375,-0.006 z" />
+    </g>
+    <g
+       id="text4241"
+       style="text-anchor:middle">
+      <path
+         id="path102"
+         style="text-anchor:middle"
+         d="m 181.36523,3.2519531 5.53125,0 0,0.9960938 -4.34765,0 0,2.5898437 4.16601,0 0,0.9960938 -4.16601,0 0,3.1699216 4.45312,0 0,0.996094 -5.63672,0 0,-8.7480469 z" />
+      <path
+         id="path104"
+         style="text-anchor:middle"
+         d="m 192.50977,4.0546875 q -1.28907,0 -2.05079,0.9609375 -0.75586,0.9609375 -0.75586,2.6191406 0,1.6523438 0.75586,2.6132814 0.76172,0.960937 2.05079,0.960937 1.28906,0 2.03906,-0.960937 0.75586,-0.9609376 0.75586,-2.6132814 0,-1.6582031 -0.75586,-2.6191406 -0.75,-0.9609375 -2.03906,-0.9609375 z m 0,-0.9609375 q 1.83984,0 2.9414,1.2363281 1.10156,1.2304688 1.10156,3.3046875 0,2.0683594 -1.10156,3.3046874 -1.10156,1.230469 -2.9414,1.230469 -1.84571,0 -2.95313,-1.230469 -1.10156,-1.2304686 -1.10156,-3.3046874 0,-2.0742187 1.10156,-3.3046875 1.10742,-1.2363281 2.95313,-1.2363281 z" />
+      <path
+         id="path106"
+         style="text-anchor:middle"
+         d="m 198.14062,8.2324219 3.15821,0 0,0.9609375 -3.15821,0 0,-0.9609375 z" />
+      <path
+         id="path108"
+         style="text-anchor:middle"
+         d="m 203.37891,11.003906 1.93359,0 0,-6.6738279 -2.10352,0.421875 0,-1.078125 2.0918,-0.421875 1.18359,0 0,7.7519529 1.9336,0 0,0.996094 -5.03906,0 0,-0.996094 z" />
+      <path
+         id="path110"
+         style="text-anchor:middle"
+         d="m 213.3457,4.03125 q -0.91406,0 -1.37695,0.9023437 -0.45703,0.8964844 -0.45703,2.7011719 0,1.7988282 0.45703,2.7011724 0.46289,0.896484 1.37695,0.896484 0.91992,0 1.37696,-0.896484 0.46289,-0.9023442 0.46289,-2.7011724 0,-1.8046875 -0.46289,-2.7011719 Q 214.26562,4.03125 213.3457,4.03125 Z m 0,-0.9375 q 1.47071,0 2.24414,1.1660156 0.7793,1.1601563 0.7793,3.375 0,2.2089844 -0.7793,3.3750004 -0.77343,1.160156 -2.24414,1.160156 -1.4707,0 -2.25,-1.160156 -0.77343,-1.166016 -0.77343,-3.3750004 0,-2.2148437 0.77343,-3.375 0.7793,-1.1660156 2.25,-1.1660156 z" />
+      <path
+         id="path112"
+         style="text-anchor:middle"
+         d="m 219.47461,11.003906 4.13086,0 0,0.996094 -5.55469,0 0,-0.996094 q 0.67383,-0.697265 1.83399,-1.8691404 1.16601,-1.1777344 1.46484,-1.5175781 0.56836,-0.6386719 0.79101,-1.078125 0.22852,-0.4453125 0.22852,-0.8730469 0,-0.6972656 -0.49219,-1.1367187 -0.48633,-0.4394532 -1.27148,-0.4394532 -0.55664,0 -1.17774,0.1933594 -0.61523,0.1933594 -1.31836,0.5859375 l 0,-1.1953125 q 0.71485,-0.2871093 1.33594,-0.4335937 0.6211,-0.1464844 1.13672,-0.1464844 1.35938,0 2.16797,0.6796875 0.80859,0.6796875 0.80859,1.8164062 0,0.5390625 -0.20507,1.0253907 -0.19922,0.4804687 -0.73243,1.1367187 -0.14648,0.1699219 -0.93164,0.984375 -0.78515,0.8085938 -2.21484,2.2675779 z" />
+    </g>
+  </g>
+  <g
+     style="fill:#000000;stroke:none"
+     id="scope">
+    <path
+       id="rect4244"
+       d="m 4.5,14 396,0 c 1.108,0 2,0.892 2,2 l 0,232 c 0,1.108 -0.892,2 -2,2 l -396,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-232 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect4247"
+       d="m 286,272 50,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -50,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect15"
+       d="m 343,254 58,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -58,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect17"
+       d="m 343,272 58,0 c 1.108,0 2,0.892 2,2 l 0,12 c 0,1.108 -0.892,2 -2,2 l -58,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-12 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+  </g>
+  <g
+     style="fill:#ffffff;stroke:none"
+     id="labels">
+    <path
+       id="rect20"
+       d="m 10,355 55,0 c 2.77,0 5,2.23 5,5 0,2.77 -2.23,5 -5,5 l -55,0 c -2.77,0 -5,-2.23 -5,-5 0,-2.77 2.23,-5 5,-5 z"
+       style="" />
+    <path
+       id="rect22"
+       d="m 85,355 55,0 c 2.77,0 5,2.23 5,5 0,2.77 -2.23,5 -5,5 l -55,0 c -2.77,0 -5,-2.23 -5,-5 0,-2.77 2.23,-5 5,-5 z"
+       style="" />
+    <path
+       id="rect24"
+       d="m 160,355 25,0 c 2.77,0 5,2.23 5,5 0,2.77 -2.23,5 -5,5 l -25,0 c -2.77,0 -5,-2.23 -5,-5 0,-2.77 2.23,-5 5,-5 z"
+       style="" />
+    <path
+       id="rect26"
+       d="m 205,355 55,0 c 2.77,0 5,2.23 5,5 0,2.77 -2.23,5 -5,5 l -55,0 c -2.77,0 -5,-2.23 -5,-5 0,-2.77 2.23,-5 5,-5 z"
+       style="" />
+    <path
+       id="rect28"
+       d="m 280,355 115,0 c 2.77,0 5,2.23 5,5 0,2.77 -2.23,5 -5,5 l -115,0 c -2.77,0 -5,-2.23 -5,-5 0,-2.77 2.23,-5 5,-5 z"
+       style="" />
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:#ffffff;stroke:none"
+     font-size="8"
+     id="screen">
+    <g
+       id="text31"
+       style="text-anchor:middle;fill:#719fcf">
+      <path
+         id="path124"
+         style="text-anchor:middle;fill:#719fcf"
+         d="m 19.363281,357.61719 0,0.83203 q -0.398437,-0.3711 -0.851562,-0.55469 -0.449219,-0.18359 -0.957032,-0.18359 -1,0 -1.53125,0.61328 -0.531249,0.60937 -0.531249,1.76562 0,1.15235 0.531249,1.76563 0.53125,0.60937 1.53125,0.60937 0.507813,0 0.957032,-0.18359 0.453125,-0.18359 0.851562,-0.55469 l 0,0.82422 q -0.414062,0.28125 -0.878906,0.42188 -0.460938,0.14062 -0.976563,0.14062 -1.324218,0 -2.085937,-0.80859 -0.761719,-0.8125 -0.761719,-2.21485 0,-1.40625 0.761719,-2.21484 0.761719,-0.8125 2.085937,-0.8125 0.523438,0 0.984375,0.14062 0.464844,0.13672 0.871094,0.41407 z" />
+      <path
+         id="path126"
+         style="text-anchor:middle;fill:#719fcf"
+         d="m 20.589844,357.16797 0.789062,0 0,2.39062 2.867188,0 0,-2.39062 0.789062,0 0,5.83203 -0.789062,0 0,-2.77734 -2.867188,0 0,2.77734 -0.789062,0 0,-5.83203 z" />
+      <path
+         id="path128"
+         style="text-anchor:middle;fill:#719fcf"
+         d="m 28.554687,357.94531 -1.070312,2.90235 2.144531,0 -1.074219,-2.90235 z m -0.445312,-0.77734 0.894531,0 2.222656,5.83203 -0.820312,0 -0.53125,-1.49609 -2.628906,0 -0.53125,1.49609 -0.832032,0 2.226563,-5.83203 z" />
+      <path
+         id="path130"
+         style="text-anchor:middle;fill:#719fcf"
+         d="m 32.074219,357.16797 1.0625,0 2.585937,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585937,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      <path
+         id="path132"
+         style="text-anchor:middle;fill:#719fcf"
+         d="m 38.058594,357.16797 1.0625,0 2.585937,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585937,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+      <path
+         id="path134"
+         style="text-anchor:middle;fill:#719fcf"
+         d="m 44.042969,357.16797 3.6875,0 0,0.66406 -2.898438,0 0,1.72656 2.777344,0 0,0.66407 -2.777344,0 0,2.11328 2.96875,0 0,0.66406 -3.757812,0 0,-5.83203 z" />
+      <path
+         id="path136"
+         style="text-anchor:middle;fill:#719fcf"
+         d="m 49.105469,357.16797 0.789062,0 0,5.16797 2.839844,0 0,0.66406 -3.628906,0 0,-5.83203 z" />
+      <path
+         id="path138"
+         style="text-anchor:middle;fill:#719fcf"
+         d="m 58.054687,357.94531 -1.070312,2.90235 2.144531,0 -1.074219,-2.90235 z m -0.445312,-0.77734 0.894531,0 2.222656,5.83203 -0.820312,0 -0.53125,-1.49609 -2.628906,0 -0.53125,1.49609 -0.832032,0 2.226563,-5.83203 z" />
+    </g>
+    <g
+       id="text33"
+       style="text-anchor:middle;fill:#ed2c24">
+      <path
+         id="path141"
+         style="text-anchor:middle;fill:#ed2c24"
+         d="m 94.355469,357.61719 0,0.83203 q -0.398438,-0.3711 -0.851563,-0.55469 -0.449219,-0.18359 -0.957031,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.507812,0 0.957031,-0.18359 0.453125,-0.18359 0.851563,-0.55469 l 0,0.82422 q -0.414063,0.28125 -0.878907,0.42188 -0.460937,0.14062 -0.976562,0.14062 -1.324219,0 -2.085938,-0.80859 -0.761718,-0.8125 -0.761718,-2.21485 0,-1.40625 0.761718,-2.21484 0.761719,-0.8125 2.085938,-0.8125 0.523437,0 0.984375,0.14062 0.464844,0.13672 0.871094,0.41407 z" />
+      <path
+         id="path143"
+         style="text-anchor:middle;fill:#ed2c24"
+         d="m 95.582031,357.16797 0.789063,0 0,2.39062 2.867187,0 0,-2.39062 0.789059,0 0,5.83203 -0.789059,0 0,-2.77734 -2.867187,0 0,2.77734 -0.789063,0 0,-5.83203 z" />
+      <path
+         id="path145"
+         style="text-anchor:middle;fill:#ed2c24"
+         d="m 103.54688,357.94531 -1.07032,2.90235 2.14453,0 -1.07421,-2.90235 z m -0.44532,-0.77734 0.89453,0 2.22266,5.83203 -0.82031,0 -0.53125,-1.49609 -2.62891,0 -0.53125,1.49609 -0.83203,0 2.22656,-5.83203 z" />
+      <path
+         id="path147"
+         style="text-anchor:middle;fill:#ed2c24"
+         d="m 107.06641,357.16797 1.0625,0 2.58593,4.8789 0,-4.8789 0.76563,0 0,5.83203 -1.0625,0 -2.58594,-4.87891 0,4.87891 -0.76562,0 0,-5.83203 z" />
+      <path
+         id="path149"
+         style="text-anchor:middle;fill:#ed2c24"
+         d="m 113.05078,357.16797 1.0625,0 2.58594,4.8789 0,-4.8789 0.76562,0 0,5.83203 -1.0625,0 -2.58593,-4.87891 0,4.87891 -0.76563,0 0,-5.83203 z" />
+      <path
+         id="path151"
+         style="text-anchor:middle;fill:#ed2c24"
+         d="m 119.03516,357.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77734,0 0,0.66407 -2.77734,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+      <path
+         id="path153"
+         style="text-anchor:middle;fill:#ed2c24"
+         d="m 124.09766,357.16797 0.78906,0 0,5.16797 2.83984,0 0,0.66406 -3.6289,0 0,-5.83203 z" />
+      <path
+         id="path155"
+         style="text-anchor:middle;fill:#ed2c24"
+         d="m 131.88672,360.21484 0,2.13672 1.26562,0 q 0.63672,0 0.94141,-0.26172 0.30859,-0.26562 0.30859,-0.80859 0,-0.54688 -0.30859,-0.80469 -0.30469,-0.26172 -0.94141,-0.26172 l -1.26562,0 z m 0,-2.39843 0,1.75781 1.16797,0 q 0.57812,0 0.85937,-0.21485 0.28516,-0.21875 0.28516,-0.66406 0,-0.4414 -0.28516,-0.66015 -0.28125,-0.21875 -0.85937,-0.21875 l -1.16797,0 z m -0.78906,-0.64844 2.01562,0 q 0.90234,0 1.39063,0.375 0.48828,0.375 0.48828,1.0664 0,0.53516 -0.25,0.85157 -0.25,0.3164 -0.73438,0.39453 0.58203,0.125 0.90235,0.52344 0.32421,0.39453 0.32421,0.98828 0,0.78125 -0.53125,1.20703 Q 134.17187,363 133.19141,363 l -2.09375,0 0,-5.83203 z" />
+    </g>
+    <g
+       id="text35"
+       style="text-anchor:middle;fill:#294f77">
+      <path
+         id="path158"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 162.86719,357.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      <path
+         id="path160"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 168.56641,357.16797 0.78906,0 0,5.83203 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path162"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 170.92578,357.16797 1.17578,0 1.48828,3.96875 1.4961,-3.96875 1.17578,0 0,5.83203 -0.76953,0 0,-5.12109 -1.50391,4 -0.79297,0 -1.5039,-4 0,5.12109 -0.76563,0 0,-5.83203 z" />
+      <path
+         id="path164"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 177.83203,357.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77735,0 0,0.66407 -2.77735,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+    </g>
+    <g
+       id="text37"
+       style="text-anchor:middle;fill:#294f77">
+      <path
+         id="path167"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 214.55469,357.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      <path
+         id="path169"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 223.01953,360.26562 q 0.25391,0.0859 0.49219,0.36719 0.24219,0.28125 0.48437,0.77344 l 0.80078,1.59375 -0.84765,0 -0.7461,-1.49609 q -0.28906,-0.58594 -0.5625,-0.77735 -0.26953,-0.1914 -0.73828,-0.1914 l -0.85937,0 0,2.46484 -0.78906,0 0,-5.83203 1.78125,0 q 1,0 1.49218,0.41797 0.49219,0.41797 0.49219,1.26172 0,0.55078 -0.25781,0.91406 -0.25391,0.36328 -0.74219,0.5039 z m -1.97656,-2.44921 0,2.07031 0.99219,0 q 0.57031,0 0.85937,-0.26172 0.29297,-0.26563 0.29297,-0.77734 0,-0.51172 -0.29297,-0.76954 -0.28906,-0.26171 -0.85937,-0.26171 l -0.99219,0 z" />
+      <path
+         id="path171"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 225.81641,357.16797 0.78906,0 0,5.83203 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path173"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 232.15234,362.16797 0,-1.56641 -1.28906,0 0,-0.64844 2.07031,0 0,2.50391 q -0.45703,0.32422 -1.00781,0.49219 -0.55078,0.16406 -1.17578,0.16406 -1.36719,0 -2.14063,-0.79687 -0.76953,-0.80079 -0.76953,-2.22657 0,-1.42968 0.76953,-2.22656 0.77344,-0.80078 2.14063,-0.80078 0.57031,0 1.08203,0.14062 0.51563,0.14063 0.94922,0.41407 l 0,0.83984 q -0.4375,-0.37109 -0.92969,-0.55859 -0.49219,-0.1875 -1.03515,-0.1875 -1.07032,0 -1.60938,0.59765 -0.53516,0.59766 -0.53516,1.78125 0,1.17969 0.53516,1.77735 0.53906,0.59765 1.60938,0.59765 0.41796,0 0.74609,-0.0703 0.32812,-0.0742 0.58984,-0.22656 z" />
+      <path
+         id="path175"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 238.35547,362.16797 0,-1.56641 -1.28906,0 0,-0.64844 2.07031,0 0,2.50391 q -0.45703,0.32422 -1.00781,0.49219 -0.55079,0.16406 -1.17579,0.16406 -1.36718,0 -2.14062,-0.79687 -0.76953,-0.80079 -0.76953,-2.22657 0,-1.42968 0.76953,-2.22656 0.77344,-0.80078 2.14062,-0.80078 0.57032,0 1.08204,0.14062 0.51562,0.14063 0.94921,0.41407 l 0,0.83984 q -0.4375,-0.37109 -0.92968,-0.55859 -0.49219,-0.1875 -1.03516,-0.1875 -1.07031,0 -1.60937,0.59765 -0.53516,0.59766 -0.53516,1.78125 0,1.17969 0.53516,1.77735 0.53906,0.59765 1.60937,0.59765 0.41797,0 0.74609,-0.0703 0.32813,-0.0742 0.58985,-0.22656 z" />
+      <path
+         id="path177"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 240.58203,357.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77735,0 0,0.66407 -2.77735,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+      <path
+         id="path179"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 248.41016,360.26562 q 0.2539,0.0859 0.49218,0.36719 0.24219,0.28125 0.48438,0.77344 L 250.1875,363 l -0.84766,0 -0.74609,-1.49609 q -0.28906,-0.58594 -0.5625,-0.77735 -0.26953,-0.1914 -0.73828,-0.1914 l -0.85938,0 0,2.46484 -0.78906,0 0,-5.83203 1.78125,0 q 1,0 1.49219,0.41797 0.49219,0.41797 0.49219,1.26172 0,0.55078 -0.25782,0.91406 -0.2539,0.36328 -0.74218,0.5039 z m -1.97657,-2.44921 0,2.07031 0.99219,0 q 0.57031,0 0.85938,-0.26172 0.29296,-0.26563 0.29296,-0.77734 0,-0.51172 -0.29296,-0.76954 -0.28907,-0.26171 -0.85938,-0.26171 l -0.99219,0 z" />
+    </g>
+    <g
+       id="text39"
+       style="text-anchor:middle;fill:#294f77">
+      <path
+         id="path182"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 321.98828,357.16797 0.78906,0 0,5.83203 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path184"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 324.34766,357.16797 1.0625,0 2.58593,4.8789 0,-4.8789 0.76563,0 0,5.83203 -1.0625,0 -2.58594,-4.87891 0,4.87891 -0.76562,0 0,-5.83203 z" />
+      <path
+         id="path186"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 331.12109,357.81641 0,4.53515 0.95313,0 q 1.20703,0 1.76562,-0.54687 0.5625,-0.54688 0.5625,-1.72657 0,-1.17187 -0.5625,-1.71484 -0.55859,-0.54687 -1.76562,-0.54687 l -0.95313,0 z m -0.78906,-0.64844 1.62109,0 q 1.69532,0 2.48829,0.70703 0.79296,0.70312 0.79296,2.20312 0,1.50782 -0.79687,2.21485 Q 333.64062,363 331.95312,363 l -1.62109,0 0,-5.83203 z" />
+      <path
+         id="path188"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 336.48828,357.16797 0.78906,0 0,5.83203 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path190"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 343.21484,357.61719 0,0.83203 q -0.39843,-0.3711 -0.85156,-0.55469 -0.44922,-0.18359 -0.95703,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.50781,0 0.95703,-0.18359 0.45313,-0.18359 0.85156,-0.55469 l 0,0.82422 q -0.41406,0.28125 -0.8789,0.42188 -0.46094,0.14062 -0.97657,0.14062 -1.32421,0 -2.08593,-0.80859 -0.76172,-0.8125 -0.76172,-2.21485 0,-1.40625 0.76172,-2.21484 0.76172,-0.8125 2.08593,-0.8125 0.52344,0 0.98438,0.14062 0.46484,0.13672 0.87109,0.41407 z" />
+      <path
+         id="path192"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 344.44141,357.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77734,0 0,0.66407 -2.77734,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+      <path
+         id="path194"
+         style="text-anchor:middle;fill:#294f77"
+         d="m 353,357.35937 0,0.76954 q -0.44922,-0.21485 -0.84766,-0.32032 -0.39843,-0.10547 -0.76953,-0.10547 -0.64453,0 -0.99609,0.25 -0.34766,0.25 -0.34766,0.71094 0,0.38672 0.23047,0.58594 0.23438,0.19531 0.88281,0.31641 l 0.47657,0.0976 q 0.88281,0.16797 1.30078,0.59375 0.42187,0.42188 0.42187,1.13281 0,0.84766 -0.57031,1.28516 -0.56641,0.4375 -1.66406,0.4375 -0.41407,0 -0.88282,-0.0937 -0.46484,-0.0937 -0.96484,-0.27734 l 0,-0.8125 q 0.48047,0.26953 0.94141,0.40625 0.46093,0.13672 0.90625,0.13672 0.67578,0 1.04297,-0.26563 0.36718,-0.26562 0.36718,-0.75781 0,-0.42969 -0.26562,-0.67188 -0.26172,-0.24218 -0.86328,-0.36328 l -0.48047,-0.0937 q -0.88281,-0.17578 -1.27735,-0.55078 -0.39453,-0.375 -0.39453,-1.04297 0,-0.77344 0.54297,-1.21875 0.54688,-0.44531 1.50391,-0.44531 0.41015,0 0.83594,0.0742 0.42578,0.0742 0.87109,0.22265 z" />
+    </g>
+    <g
+       id="text41"
+       style="text-anchor:middle">
+      <path
+         id="path197"
+         style="text-anchor:middle"
+         d="m 16.121094,259.61719 0,0.83203 q -0.398438,-0.3711 -0.851563,-0.55469 -0.449218,-0.18359 -0.957031,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.507813,0 0.957031,-0.18359 0.453125,-0.18359 0.851563,-0.55469 l 0,0.82422 q -0.414063,0.28125 -0.878906,0.42188 -0.460938,0.14062 -0.976563,0.14062 -1.324219,0 -2.085937,-0.80859 -0.761719,-0.8125 -0.761719,-2.21485 0,-1.40625 0.761719,-2.21484 0.761718,-0.8125 2.085937,-0.8125 0.523438,0 0.984375,0.14062 0.464844,0.13672 0.871094,0.41407 z" />
+      <path
+         id="path199"
+         style="text-anchor:middle"
+         d="m 18.851562,265 -2.226562,-5.83203 0.824219,0 1.847656,4.91015 1.851562,-4.91015 0.820313,0 -2.222656,5.83203 -0.894532,0 z" />
+    </g>
+    <g
+       id="text43"
+       style="font-size:11px;text-anchor:middle">
+      <path
+         id="path202"
+         style="font-size:11px;text-anchor:middle"
+         d="m 16.209961,293.98096 0.467285,0 0.04297,0.0376 0,0.20948 q 0.145019,0.29004 1.074219,0.62842 1.289062,0.37597 1.289062,1.11718 0,0.78418 -0.655273,1.29981 l -0.02148,0 -0.161133,-0.17188 q 0.327637,-0.26318 0.327637,-0.71435 0,-0.37598 -1.224609,-0.75733 -0.494141,-0.22558 -0.628418,-0.36523 l 0,5.72558 q 0,0.82178 -1.203125,1.06348 l -0.306152,0 q -1.299805,0 -1.299805,-0.90234 0,-0.70362 1.138672,-0.82715 l 0.123535,0 q 0.515625,0 0.993652,0.34375 l 0,-6.64942 0.04297,-0.0376 z" />
+    </g>
+    <g
+       id="text45"
+       style="text-anchor:middle">
+      <path
+         id="path205"
+         style="text-anchor:middle"
+         d="m 41.453125,292.35937 0,0.76954 q -0.449219,-0.21485 -0.847656,-0.32032 -0.398438,-0.10547 -0.769532,-0.10547 -0.644531,0 -0.996093,0.25 -0.347657,0.25 -0.347657,0.71094 0,0.38672 0.230469,0.58594 0.234375,0.19531 0.882813,0.31641 l 0.476562,0.0976 q 0.882813,0.16797 1.300781,0.59375 0.421875,0.42188 0.421875,1.13281 0,0.84766 -0.570312,1.28516 -0.566406,0.4375 -1.664063,0.4375 -0.414062,0 -0.882812,-0.0937 -0.464844,-0.0937 -0.964844,-0.27734 l 0,-0.8125 q 0.480469,0.26953 0.941406,0.40625 0.460938,0.13672 0.90625,0.13672 0.675782,0 1.042969,-0.26563 0.367188,-0.26562 0.367188,-0.75781 0,-0.42969 -0.265625,-0.67188 -0.261719,-0.24218 -0.863282,-0.36328 l -0.480468,-0.0937 q -0.882813,-0.17578 -1.277344,-0.55078 -0.394531,-0.375 -0.394531,-1.04297 0,-0.77344 0.542968,-1.21875 0.546875,-0.44531 1.503907,-0.44531 0.410156,0 0.835937,0.0742 0.425781,0.0742 0.871094,0.22265 z" />
+      <path
+         id="path207"
+         style="text-anchor:middle"
+         d="m 47.402344,292.61719 0,0.83203 q -0.398438,-0.3711 -0.851563,-0.55469 -0.449219,-0.18359 -0.957031,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.507812,0 0.957031,-0.18359 0.453125,-0.18359 0.851563,-0.55469 l 0,0.82422 q -0.414063,0.28125 -0.878907,0.42188 -0.460937,0.14062 -0.976562,0.14062 -1.324219,0 -2.085938,-0.80859 -0.761718,-0.8125 -0.761718,-2.21485 0,-1.40625 0.761718,-2.21484 0.761719,-0.8125 2.085938,-0.8125 0.523437,0 0.984375,0.14062 0.464844,0.13672 0.871094,0.41407 z" />
+      <path
+         id="path209"
+         style="text-anchor:middle"
+         d="m 50.578125,292.94531 -1.070313,2.90235 2.144532,0 -1.074219,-2.90235 z m -0.445313,-0.77734 0.894532,0 L 53.25,298 l -0.820313,0 -0.53125,-1.49609 -2.628906,0 -0.53125,1.49609 -0.832031,0 2.226562,-5.83203 z" />
+      <path
+         id="path211"
+         style="text-anchor:middle"
+         d="m 54.097656,292.16797 0.789063,0 0,5.16797 2.839843,0 0,0.66406 -3.628906,0 0,-5.83203 z" />
+      <path
+         id="path213"
+         style="text-anchor:middle"
+         d="m 58.550781,292.16797 3.6875,0 0,0.66406 -2.898437,0 0,1.72656 2.777343,0 0,0.66407 -2.777343,0 0,2.11328 2.96875,0 0,0.66406 -3.757813,0 0,-5.83203 z" />
+    </g>
+    <g
+       id="text47"
+       style="text-anchor:middle">
+      <path
+         id="path216"
+         style="text-anchor:middle"
+         d="m 37.949219,344.70312 q -0.859375,0 -1.367188,0.64063 -0.503906,0.64062 -0.503906,1.74609 0,1.10157 0.503906,1.74219 0.507813,0.64063 1.367188,0.64063 0.859375,0 1.359375,-0.64063 0.503906,-0.64062 0.503906,-1.74219 0,-1.10547 -0.503906,-1.74609 -0.5,-0.64063 -1.359375,-0.64063 z m 0,-0.64062 q 1.226562,0 1.960937,0.82422 0.734375,0.82031 0.734375,2.20312 0,1.37891 -0.734375,2.20313 -0.734375,0.82031 -1.960937,0.82031 -1.230469,0 -1.96875,-0.82031 -0.734375,-0.82031 -0.734375,-2.20313 0,-1.38281 0.734375,-2.20312 0.738281,-0.82422 1.96875,-0.82422 z" />
+      <path
+         id="path218"
+         style="text-anchor:middle"
+         d="m 41.878906,344.16797 3.351563,0 0,0.66406 -2.5625,0 0,1.71875 2.3125,0 0,0.66406 -2.3125,0 0,2.78516 -0.789063,0 0,-5.83203 z" />
+      <path
+         id="path220"
+         style="text-anchor:middle"
+         d="m 46.488281,344.16797 3.351563,0 0,0.66406 -2.5625,0 0,1.71875 2.3125,0 0,0.66406 -2.3125,0 0,2.78516 -0.789063,0 0,-5.83203 z" />
+      <path
+         id="path222"
+         style="text-anchor:middle"
+         d="m 54.453125,344.35937 0,0.76954 q -0.449219,-0.21485 -0.847656,-0.32032 -0.398438,-0.10547 -0.769532,-0.10547 -0.644531,0 -0.996093,0.25 -0.347657,0.25 -0.347657,0.71094 0,0.38672 0.230469,0.58594 0.234375,0.19531 0.882813,0.31641 l 0.476562,0.0976 q 0.882813,0.16797 1.300781,0.59375 0.421875,0.42188 0.421875,1.13281 0,0.84766 -0.570312,1.28516 -0.566406,0.4375 -1.664063,0.4375 -0.414062,0 -0.882812,-0.0937 -0.464844,-0.0937 -0.964844,-0.27734 l 0,-0.8125 q 0.480469,0.26953 0.941406,0.40625 0.460938,0.13672 0.90625,0.13672 0.675782,0 1.042969,-0.26563 0.367188,-0.26562 0.367188,-0.75781 0,-0.42969 -0.265625,-0.67188 -0.261719,-0.24218 -0.863282,-0.36328 l -0.480468,-0.0937 q -0.882813,-0.17578 -1.277344,-0.55078 -0.394531,-0.375 -0.394531,-1.04297 0,-0.77344 0.542968,-1.21875 0.546875,-0.44531 1.503907,-0.44531 0.410156,0 0.835937,0.0742 0.425781,0.0742 0.871094,0.22265 z" />
+      <path
+         id="path224"
+         style="text-anchor:middle"
+         d="m 56.035156,344.16797 3.6875,0 0,0.66406 -2.898437,0 0,1.72656 2.777343,0 0,0.66407 -2.777343,0 0,2.11328 2.96875,0 0,0.66406 -3.757813,0 0,-5.83203 z" />
+      <path
+         id="path226"
+         style="text-anchor:middle"
+         d="m 60.289062,344.16797 4.933594,0 0,0.66406 -2.070312,0 0,5.16797 -0.792969,0 0,-5.16797 -2.070313,0 0,-0.66406 z" />
+    </g>
+    <g
+       id="text49"
+       style="text-anchor:middle">
+      <path
+         id="path229"
+         style="text-anchor:middle"
+         d="m 91.121094,259.61719 0,0.83203 q -0.398438,-0.3711 -0.851563,-0.55469 -0.449219,-0.18359 -0.957031,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.507812,0 0.957031,-0.18359 0.453125,-0.18359 0.851563,-0.55469 l 0,0.82422 q -0.414063,0.28125 -0.878907,0.42188 -0.460937,0.14062 -0.976562,0.14062 -1.324219,0 -2.085938,-0.80859 -0.761718,-0.8125 -0.761718,-2.21485 0,-1.40625 0.761718,-2.21484 0.761719,-0.8125 2.085938,-0.8125 0.523437,0 0.984375,0.14062 0.464844,0.13672 0.871094,0.41407 z" />
+      <path
+         id="path231"
+         style="text-anchor:middle"
+         d="m 93.851562,265 -2.226562,-5.83203 0.824219,0 1.847656,4.91015 1.851562,-4.91015 0.820313,0 -2.222656,5.83203 -0.894532,0 z" />
+    </g>
+    <g
+       id="text51"
+       style="font-size:11px;text-anchor:middle">
+      <path
+         id="path234"
+         style="font-size:11px;text-anchor:middle"
+         d="m 91.209961,293.98096 0.467285,0 0.04297,0.0376 0,0.20948 q 0.145019,0.29004 1.074219,0.62842 1.289062,0.37597 1.289062,1.11718 0,0.78418 -0.655273,1.29981 l -0.02148,0 -0.161133,-0.17188 q 0.327637,-0.26318 0.327637,-0.71435 0,-0.37598 -1.224609,-0.75733 -0.494141,-0.22558 -0.628418,-0.36523 l 0,5.72558 q 0,0.82178 -1.203125,1.06348 l -0.306153,0 q -1.299804,0 -1.299804,-0.90234 0,-0.70362 1.138672,-0.82715 l 0.123535,0 q 0.515625,0 0.993652,0.34375 l 0,-6.64942 0.04297,-0.0376 z" />
+    </g>
+    <g
+       id="text53"
+       style="text-anchor:middle">
+      <path
+         id="path237"
+         style="text-anchor:middle"
+         d="m 116.45313,292.35937 0,0.76954 q -0.44922,-0.21485 -0.84766,-0.32032 -0.39844,-0.10547 -0.76953,-0.10547 -0.64453,0 -0.9961,0.25 -0.34765,0.25 -0.34765,0.71094 0,0.38672 0.23047,0.58594 0.23437,0.19531 0.88281,0.31641 l 0.47656,0.0976 q 0.88281,0.16797 1.30078,0.59375 0.42188,0.42188 0.42188,1.13281 0,0.84766 -0.57031,1.28516 -0.56641,0.4375 -1.66407,0.4375 -0.41406,0 -0.88281,-0.0937 -0.46484,-0.0937 -0.96484,-0.27734 l 0,-0.8125 q 0.48047,0.26953 0.9414,0.40625 0.46094,0.13672 0.90625,0.13672 0.67578,0 1.04297,-0.26563 0.36719,-0.26562 0.36719,-0.75781 0,-0.42969 -0.26563,-0.67188 -0.26171,-0.24218 -0.86328,-0.36328 l -0.48047,-0.0937 q -0.88281,-0.17578 -1.27734,-0.55078 -0.39453,-0.375 -0.39453,-1.04297 0,-0.77344 0.54297,-1.21875 0.54687,-0.44531 1.5039,-0.44531 0.41016,0 0.83594,0.0742 0.42578,0.0742 0.8711,0.22265 z" />
+      <path
+         id="path239"
+         style="text-anchor:middle"
+         d="m 122.40234,292.61719 0,0.83203 q -0.39843,-0.3711 -0.85156,-0.55469 -0.44922,-0.18359 -0.95703,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.50781,0 0.95703,-0.18359 0.45313,-0.18359 0.85156,-0.55469 l 0,0.82422 q -0.41406,0.28125 -0.8789,0.42188 -0.46094,0.14062 -0.97656,0.14062 -1.32422,0 -2.08594,-0.80859 -0.76172,-0.8125 -0.76172,-2.21485 0,-1.40625 0.76172,-2.21484 0.76172,-0.8125 2.08594,-0.8125 0.52343,0 0.98437,0.14062 0.46484,0.13672 0.87109,0.41407 z" />
+      <path
+         id="path241"
+         style="text-anchor:middle"
+         d="m 125.57813,292.94531 -1.07032,2.90235 2.14453,0 -1.07421,-2.90235 z m -0.44532,-0.77734 0.89453,0 L 128.25,298 l -0.82031,0 -0.53125,-1.49609 -2.62891,0 -0.53125,1.49609 -0.83203,0 2.22656,-5.83203 z" />
+      <path
+         id="path243"
+         style="text-anchor:middle"
+         d="m 129.09766,292.16797 0.78906,0 0,5.16797 2.83984,0 0,0.66406 -3.6289,0 0,-5.83203 z" />
+      <path
+         id="path245"
+         style="text-anchor:middle"
+         d="m 133.55078,292.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77735,0 0,0.66407 -2.77735,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+    </g>
+    <g
+       id="text55"
+       style="text-anchor:middle">
+      <path
+         id="path248"
+         style="text-anchor:middle"
+         d="m 112.94922,344.70312 q -0.85938,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+      <path
+         id="path250"
+         style="text-anchor:middle"
+         d="m 116.87891,344.16797 3.35156,0 0,0.66406 -2.5625,0 0,1.71875 2.3125,0 0,0.66406 -2.3125,0 0,2.78516 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path252"
+         style="text-anchor:middle"
+         d="m 121.48828,344.16797 3.35156,0 0,0.66406 -2.5625,0 0,1.71875 2.3125,0 0,0.66406 -2.3125,0 0,2.78516 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path254"
+         style="text-anchor:middle"
+         d="m 129.45312,344.35937 0,0.76954 q -0.44921,-0.21485 -0.84765,-0.32032 -0.39844,-0.10547 -0.76953,-0.10547 -0.64453,0 -0.9961,0.25 -0.34765,0.25 -0.34765,0.71094 0,0.38672 0.23047,0.58594 0.23437,0.19531 0.88281,0.31641 l 0.47656,0.0976 q 0.88281,0.16797 1.30078,0.59375 0.42188,0.42188 0.42188,1.13281 0,0.84766 -0.57032,1.28516 -0.5664,0.4375 -1.66406,0.4375 -0.41406,0 -0.88281,-0.0937 -0.46484,-0.0937 -0.96484,-0.27734 l 0,-0.8125 q 0.48047,0.26953 0.9414,0.40625 0.46094,0.13672 0.90625,0.13672 0.67578,0 1.04297,-0.26563 0.36719,-0.26562 0.36719,-0.75781 0,-0.42969 -0.26563,-0.67188 -0.26172,-0.24218 -0.86328,-0.36328 l -0.48047,-0.0937 q -0.88281,-0.17578 -1.27734,-0.55078 -0.39453,-0.375 -0.39453,-1.04297 0,-0.77344 0.54297,-1.21875 0.54687,-0.44531 1.5039,-0.44531 0.41016,0 0.83594,0.0742 0.42578,0.0742 0.87109,0.22265 z" />
+      <path
+         id="path256"
+         style="text-anchor:middle"
+         d="m 131.03516,344.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77734,0 0,0.66407 -2.77734,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+      <path
+         id="path258"
+         style="text-anchor:middle"
+         d="m 135.28906,344.16797 4.9336,0 0,0.66406 -2.07032,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+    </g>
+    <g
+       id="text57"
+       style="text-anchor:middle">
+      <path
+         id="path261"
+         style="text-anchor:middle"
+         d="m 166.34766,292.81641 0,2.1914 0.99218,0 q 0.55078,0 0.85157,-0.28515 0.30078,-0.28516 0.30078,-0.8125 0,-0.52344 -0.30078,-0.8086 -0.30079,-0.28515 -0.85157,-0.28515 l -0.99218,0 z m -0.78907,-0.64844 1.78125,0 q 0.98047,0 1.48047,0.44531 0.50391,0.44141 0.50391,1.29688 0,0.86328 -0.50391,1.30468 -0.5,0.44141 -1.48047,0.44141 l -0.99218,0 0,2.34375 -0.78907,0 0,-5.83203 z" />
+      <path
+         id="path263"
+         style="text-anchor:middle"
+         d="m 173.15234,295.26562 q 0.25391,0.0859 0.49219,0.36719 0.24219,0.28125 0.48438,0.77344 l 0.80078,1.59375 -0.84766,0 -0.74609,-1.49609 q -0.28907,-0.58594 -0.5625,-0.77735 -0.26953,-0.1914 -0.73828,-0.1914 l -0.85938,0 0,2.46484 -0.78906,0 0,-5.83203 1.78125,0 q 1,0 1.49219,0.41797 0.49218,0.41797 0.49218,1.26172 0,0.55078 -0.25781,0.91406 -0.25391,0.36328 -0.74219,0.5039 z m -1.97656,-2.44921 0,2.07031 0.99219,0 q 0.57031,0 0.85937,-0.26172 0.29297,-0.26563 0.29297,-0.77734 0,-0.51172 -0.29297,-0.76954 -0.28906,-0.26171 -0.85937,-0.26171 l -0.99219,0 z" />
+      <path
+         id="path265"
+         style="text-anchor:middle"
+         d="m 175.94922,292.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77734,0 0,0.66407 -2.77734,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+    </g>
+    <g
+       id="text59"
+       style="text-anchor:middle">
+      <path
+         id="path268"
+         style="text-anchor:middle"
+         d="m 162.86719,344.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+      <path
+         id="path270"
+         style="text-anchor:middle"
+         d="m 168.56641,344.16797 0.78906,0 0,5.83203 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path272"
+         style="text-anchor:middle"
+         d="m 170.92578,344.16797 1.17578,0 1.48828,3.96875 1.4961,-3.96875 1.17578,0 0,5.83203 -0.76953,0 0,-5.12109 -1.50391,4 -0.79297,0 -1.5039,-4 0,5.12109 -0.76563,0 0,-5.83203 z" />
+      <path
+         id="path274"
+         style="text-anchor:middle"
+         d="m 177.83203,344.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77735,0 0,0.66407 -2.77735,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+    </g>
+    <g
+       id="text61"
+       style="text-anchor:middle">
+      <path
+         id="path277"
+         style="text-anchor:middle"
+         d="m 204.47266,259.61719 0,0.83203 q -0.39844,-0.3711 -0.85157,-0.55469 -0.44922,-0.18359 -0.95703,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.50781,0 0.95703,-0.18359 0.45313,-0.18359 0.85157,-0.55469 l 0,0.82422 q -0.41407,0.28125 -0.87891,0.42188 -0.46094,0.14062 -0.97656,0.14062 -1.32422,0 -2.08594,-0.80859 -0.76172,-0.8125 -0.76172,-2.21485 0,-1.40625 0.76172,-2.21484 0.76172,-0.8125 2.08594,-0.8125 0.52343,0 0.98437,0.14062 0.46485,0.13672 0.8711,0.41407 z" />
+      <path
+         id="path279"
+         style="text-anchor:middle"
+         d="m 208.06641,259.70312 q -0.85938,0 -1.36719,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36719,0.64063 0.85937,0 1.35937,-0.64063 0.50391,-0.64062 0.50391,-1.74219 0,-1.10547 -0.50391,-1.74609 -0.5,-0.64063 -1.35937,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96093,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96093,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73438,-0.82031 -0.73438,-2.20313 0,-1.38281 0.73438,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+      <path
+         id="path281"
+         style="text-anchor:middle"
+         d="m 211.99609,259.16797 1.0625,0 2.58594,4.8789 0,-4.8789 0.76563,0 0,5.83203 -1.0625,0 -2.58594,-4.87891 0,4.87891 -0.76563,0 0,-5.83203 z" />
+      <path
+         id="path283"
+         style="text-anchor:middle"
+         d="m 217.17187,259.16797 4.9336,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07032,0 0,-0.66406 z" />
+      <path
+         id="path285"
+         style="text-anchor:middle"
+         d="m 221.98828,264.00781 0.82422,0 0,0.99219 -0.82422,0 0,-0.99219 z" />
+    </g>
+    <g
+       id="text63"
+       style="text-anchor:middle">
+      <path
+         id="path288"
+         style="text-anchor:middle"
+         d="m 203.18359,296.70312 q -0.85937,0 -1.36718,0.64063 -0.50391,0.64062 -0.50391,1.74609 0,1.10157 0.50391,1.74219 0.50781,0.64063 1.36718,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22657,0 1.96094,0.82422 0.73438,0.82031 0.73438,2.20312 0,1.37891 -0.73438,2.20313 -0.73437,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+      <path
+         id="path290"
+         style="text-anchor:middle"
+         d="m 207.11328,296.16797 1.0625,0 2.58594,4.8789 0,-4.8789 0.76562,0 0,5.83203 -1.0625,0 -2.58593,-4.87891 0,4.87891 -0.76563,0 0,-5.83203 z" />
+      <path
+         id="path292"
+         style="text-anchor:middle"
+         d="m 217.46484,296.61719 0,0.83203 q -0.39843,-0.3711 -0.85156,-0.55469 -0.44922,-0.18359 -0.95703,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.50781,0 0.95703,-0.18359 0.45313,-0.18359 0.85156,-0.55469 l 0,0.82422 q -0.41406,0.28125 -0.8789,0.42188 -0.46094,0.14062 -0.97657,0.14062 -1.32421,0 -2.08593,-0.80859 -0.76172,-0.8125 -0.76172,-2.21485 0,-1.40625 0.76172,-2.21484 0.76172,-0.8125 2.08593,-0.8125 0.52344,0 0.98438,0.14062 0.46484,0.13672 0.87109,0.41407 z" />
+      <path
+         id="path294"
+         style="text-anchor:middle"
+         d="m 218.69141,296.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77734,0 0,0.66407 -2.77734,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+    </g>
+    <g
+       id="text65"
+       style="text-anchor:middle">
+      <path
+         id="path297"
+         style="text-anchor:middle"
+         d="m 239.84766,262.26562 q 0.2539,0.0859 0.49218,0.36719 0.24219,0.28125 0.48438,0.77344 L 241.625,265 l -0.84766,0 -0.74609,-1.49609 q -0.28906,-0.58594 -0.5625,-0.77735 -0.26953,-0.1914 -0.73828,-0.1914 l -0.85938,0 0,2.46484 -0.78906,0 0,-5.83203 1.78125,0 q 1,0 1.49219,0.41797 0.49219,0.41797 0.49219,1.26172 0,0.55078 -0.25782,0.91406 -0.2539,0.36328 -0.74218,0.5039 z m -1.97657,-2.44921 0,2.07031 0.99219,0 q 0.57031,0 0.85938,-0.26172 0.29296,-0.26563 0.29296,-0.77734 0,-0.51172 -0.29296,-0.76954 -0.28907,-0.26171 -0.85938,-0.26171 l -0.99219,0 z" />
+      <path
+         id="path299"
+         style="text-anchor:middle"
+         d="m 242.55469,259.16797 0.79297,0 0,3.54297 q 0,0.9375 0.33984,1.35156 0.33984,0.41016 1.10156,0.41016 0.75781,0 1.09766,-0.41016 0.33984,-0.41406 0.33984,-1.35156 l 0,-3.54297 0.79297,0 0,3.64062 q 0,1.14063 -0.56641,1.72266 -0.5625,0.58203 -1.66406,0.58203 -1.10547,0 -1.67187,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+      <path
+         id="path301"
+         style="text-anchor:middle"
+         d="m 248.50391,259.16797 1.0625,0 2.58593,4.8789 0,-4.8789 0.76563,0 0,5.83203 -1.0625,0 -2.58594,-4.87891 0,4.87891 -0.76562,0 0,-5.83203 z" />
+    </g>
+    <g
+       id="text67"
+       style="text-anchor:middle">
+      <path
+         id="path304"
+         style="text-anchor:middle"
+         d="m 233.53516,344.16797 0.78906,0 0,5.16797 2.83984,0 0,0.66406 -3.6289,0 0,-5.83203 z" />
+      <path
+         id="path306"
+         style="text-anchor:middle"
+         d="m 237.98828,344.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77735,0 0,0.66407 -2.77735,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+      <path
+         id="path308"
+         style="text-anchor:middle"
+         d="m 244.55469,350 -2.22657,-5.83203 0.82422,0 1.84766,4.91015 1.85156,-4.91015 0.82031,0 -2.22265,5.83203 -0.89453,0 z" />
+      <path
+         id="path310"
+         style="text-anchor:middle"
+         d="m 248.51953,344.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77735,0 0,0.66407 -2.77735,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+      <path
+         id="path312"
+         style="text-anchor:middle"
+         d="m 253.58203,344.16797 0.78906,0 0,5.16797 2.83985,0 0,0.66406 -3.62891,0 0,-5.83203 z" />
+    </g>
+    <g
+       id="text69"
+       style="text-anchor:middle">
+      <path
+         id="path315"
+         style="text-anchor:middle"
+         d="m 281.34766,344.16797 0.78906,0 0,5.16797 2.83984,0 0,0.66406 -3.6289,0 0,-5.83203 z" />
+      <path
+         id="path317"
+         style="text-anchor:middle"
+         d="m 285.80078,344.16797 3.6875,0 0,0.66406 -2.89844,0 0,1.72656 2.77735,0 0,0.66407 -2.77735,0 0,2.11328 2.96875,0 0,0.66406 -3.75781,0 0,-5.83203 z" />
+      <path
+         id="path319"
+         style="text-anchor:middle"
+         d="m 290.86328,344.16797 3.35156,0 0,0.66406 -2.5625,0 0,1.71875 2.3125,0 0,0.66406 -2.3125,0 0,2.78516 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path321"
+         style="text-anchor:middle"
+         d="m 294.52344,344.16797 4.93359,0 0,0.66406 -2.07031,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+    </g>
+    <g
+       id="text71"
+       style="text-anchor:middle">
+      <path
+         id="path324"
+         style="text-anchor:middle"
+         d="m 323.03516,347.26562 q 0.2539,0.0859 0.49218,0.36719 0.24219,0.28125 0.48438,0.77344 L 324.8125,350 l -0.84766,0 -0.74609,-1.49609 q -0.28906,-0.58594 -0.5625,-0.77735 -0.26953,-0.1914 -0.73828,-0.1914 l -0.85938,0 0,2.46484 -0.78906,0 0,-5.83203 1.78125,0 q 1,0 1.49219,0.41797 0.49219,0.41797 0.49219,1.26172 0,0.55078 -0.25782,0.91406 -0.2539,0.36328 -0.74218,0.5039 z m -1.97657,-2.44921 0,2.07031 0.99219,0 q 0.57031,0 0.85938,-0.26172 0.29296,-0.26563 0.29296,-0.77734 0,-0.51172 -0.29296,-0.76954 -0.28907,-0.26171 -0.85938,-0.26171 l -0.99219,0 z" />
+      <path
+         id="path326"
+         style="text-anchor:middle"
+         d="m 325.83203,344.16797 0.78906,0 0,5.83203 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path328"
+         style="text-anchor:middle"
+         d="m 332.16797,349.16797 0,-1.56641 -1.28906,0 0,-0.64844 2.07031,0 0,2.50391 q -0.45703,0.32422 -1.00781,0.49219 -0.55079,0.16406 -1.17579,0.16406 -1.36718,0 -2.14062,-0.79687 -0.76953,-0.80079 -0.76953,-2.22657 0,-1.42968 0.76953,-2.22656 0.77344,-0.80078 2.14062,-0.80078 0.57032,0 1.08204,0.14062 0.51562,0.14063 0.94921,0.41407 l 0,0.83984 q -0.4375,-0.37109 -0.92968,-0.55859 -0.49219,-0.1875 -1.03516,-0.1875 -1.07031,0 -1.60937,0.59765 -0.53516,0.59766 -0.53516,1.78125 0,1.17969 0.53516,1.77735 0.53906,0.59765 1.60937,0.59765 0.41797,0 0.74609,-0.0703 0.32813,-0.0742 0.58985,-0.22656 z" />
+      <path
+         id="path330"
+         style="text-anchor:middle"
+         d="m 334.39453,344.16797 0.78906,0 0,2.39062 2.86719,0 0,-2.39062 0.78906,0 0,5.83203 -0.78906,0 0,-2.77734 -2.86719,0 0,2.77734 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path332"
+         style="text-anchor:middle"
+         d="m 339.60156,344.16797 4.9336,0 0,0.66406 -2.07032,0 0,5.16797 -0.79297,0 0,-5.16797 -2.07031,0 0,-0.66406 z" />
+    </g>
+    <g
+       id="text73"
+       style="text-anchor:middle">
+      <path
+         id="path335"
+         style="text-anchor:middle"
+         d="m 365.10547,344.16797 0.78906,0 0,2.39062 2.86719,0 0,-2.39062 0.78906,0 0,5.83203 -0.78906,0 0,-2.77734 -2.86719,0 0,2.77734 -0.78906,0 0,-5.83203 z" />
+      <path
+         id="path337"
+         style="text-anchor:middle"
+         d="m 373.48828,344.70312 q -0.85937,0 -1.36719,0.64063 -0.5039,0.64062 -0.5039,1.74609 0,1.10157 0.5039,1.74219 0.50782,0.64063 1.36719,0.64063 0.85938,0 1.35938,-0.64063 0.5039,-0.64062 0.5039,-1.74219 0,-1.10547 -0.5039,-1.74609 -0.5,-0.64063 -1.35938,-0.64063 z m 0,-0.64062 q 1.22656,0 1.96094,0.82422 0.73437,0.82031 0.73437,2.20312 0,1.37891 -0.73437,2.20313 -0.73438,0.82031 -1.96094,0.82031 -1.23047,0 -1.96875,-0.82031 -0.73437,-0.82031 -0.73437,-2.20313 0,-1.38281 0.73437,-2.20312 0.73828,-0.82422 1.96875,-0.82422 z" />
+      <path
+         id="path339"
+         style="text-anchor:middle"
+         d="m 380.18359,347.26562 q 0.25391,0.0859 0.49219,0.36719 0.24219,0.28125 0.48438,0.77344 l 0.80078,1.59375 -0.84766,0 -0.74609,-1.49609 q -0.28907,-0.58594 -0.5625,-0.77735 -0.26953,-0.1914 -0.73828,-0.1914 l -0.85938,0 0,2.46484 -0.78906,0 0,-5.83203 1.78125,0 q 1,0 1.49219,0.41797 0.49218,0.41797 0.49218,1.26172 0,0.55078 -0.25781,0.91406 -0.25391,0.36328 -0.74219,0.5039 z m -1.97656,-2.44921 0,2.07031 0.99219,0 q 0.57031,0 0.85937,-0.26172 0.29297,-0.26563 0.29297,-0.77734 0,-0.51172 -0.29297,-0.76954 -0.28906,-0.26171 -0.85937,-0.26171 l -0.99219,0 z" />
+      <path
+         id="path341"
+         style="text-anchor:middle"
+         d="m 382.64453,344.16797 4.58203,0 0,0.60156 -3.6875,4.56641 3.77735,0 0,0.66406 -4.76172,0 0,-0.60156 3.6875,-4.56641 -3.59766,0 0,-0.66406 z" />
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/FF-206.svg

@@ -0,0 +1,108 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata30">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs28" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path34"
+         style="font-size:8px;text-anchor:middle"
+         d="m 2.0898438,4.1679687 3.3515624,0 0,0.6640625 -2.5624999,0 0,1.71875 2.3124999,0 0,0.6640625 -2.3124999,0 0,2.7851563 -0.7890625,0 0,-5.8320313 z" />
+      <path
+         id="path36"
+         style="font-size:8px;text-anchor:middle"
+         d="m 6.6992187,4.1679687 3.3515623,0 0,0.6640625 -2.5624998,0 0,1.71875 2.3125001,0 0,0.6640625 -2.3125001,0 0,2.7851563 -0.7890625,0 0,-5.8320313 z" />
+      <path
+         id="path38"
+         style="font-size:8px;text-anchor:middle"
+         d="m 10.914063,7.4882812 2.105468,0 0,0.6406251 -2.105468,0 0,-0.6406251 z" />
+      <path
+         id="path40"
+         style="font-size:8px;text-anchor:middle"
+         d="m 14.949219,9.3359375 2.753906,0 0,0.6640625 L 14,10 14,9.3359375 Q 14.449219,8.8710938 15.222656,8.0898438 16,7.3046875 16.199219,7.078125 16.578125,6.6523437 16.726562,6.359375 16.878906,6.0625 16.878906,5.7773437 q 0,-0.4648437 -0.328125,-0.7578125 -0.324219,-0.2929687 -0.847656,-0.2929687 -0.371094,0 -0.785156,0.1289062 -0.410156,0.1289063 -0.878906,0.390625 l 0,-0.796875 Q 14.515625,4.2578125 14.929688,4.1601562 15.34375,4.0625 15.6875,4.0625 q 0.90625,0 1.445312,0.453125 0.539063,0.453125 0.539063,1.2109375 0,0.359375 -0.136719,0.6835937 -0.132812,0.3203125 -0.488281,0.7578125 -0.09766,0.1132813 -0.621094,0.65625 -0.523437,0.5390626 -1.476562,1.5117188 z" />
+      <path
+         id="path42"
+         style="font-size:8px;text-anchor:middle"
+         d="m 21.050781,4.6875 q -0.609375,0 -0.917969,0.6015625 -0.304687,0.5976562 -0.304687,1.8007812 0,1.1992188 0.304687,1.8007813 0.308594,0.5976563 0.917969,0.5976563 0.613281,0 0.917969,-0.5976563 0.308594,-0.6015625 0.308594,-1.8007813 0,-1.203125 -0.308594,-1.8007812 Q 21.664062,4.6875 21.050781,4.6875 Z m 0,-0.625 q 0.980469,0 1.496094,0.7773437 0.519531,0.7734375 0.519531,2.25 0,1.4726563 -0.519531,2.2500001 -0.515625,0.7734372 -1.496094,0.7734372 -0.980469,0 -1.5,-0.7734372 Q 19.035156,8.5625 19.035156,7.0898437 q 0,-1.4765625 0.515625,-2.25 0.519531,-0.7773437 1.5,-0.7773437 z" />
+      <path
+         id="path44"
+         style="font-size:8px;text-anchor:middle"
+         d="m 26.242187,6.7695312 q -0.53125,0 -0.84375,0.3632813 -0.308593,0.3632812 -0.308593,0.9960938 0,0.6289062 0.308593,0.9960937 0.3125,0.3632813 0.84375,0.3632813 0.53125,0 0.839844,-0.3632813 0.3125,-0.3671875 0.3125,-0.9960937 0,-0.6328126 -0.3125,-0.9960938 -0.308594,-0.3632813 -0.839844,-0.3632813 z m 1.566407,-2.4726562 0,0.71875 Q 27.511719,4.875 27.207031,4.8007812 26.90625,4.7265625 26.609375,4.7265625 q -0.78125,0 -1.195313,0.5273437 -0.410156,0.5273438 -0.46875,1.59375 0.230469,-0.3398437 0.578125,-0.5195312 0.347657,-0.1835938 0.765625,-0.1835938 0.878907,0 1.386719,0.5351563 0.511719,0.53125 0.511719,1.4492188 0,0.8984375 -0.53125,1.4414062 -0.53125,0.5429685 -1.414063,0.5429685 -1.011718,0 -1.546875,-0.7734372 Q 24.160156,8.5625 24.160156,7.0898437 q 0,-1.3828125 0.65625,-2.203125 Q 25.472656,4.0625 26.578125,4.0625 q 0.296875,0 0.597656,0.058594 0.304688,0.058594 0.632813,0.1757813 z" />
+    </g>
+  </g>
+  <g
+     style="fill:none;stroke:#ffffff;stroke-width:2;stroke-linecap:round"
+     id="screen">
+    <path
+       id="line12"
+       d="m 15,31.5 0,318"
+       style="stroke:#719fcf" />
+    <path
+       id="line14"
+       d="m 15,31.5 0,28"
+       style="" />
+    <path
+       id="line16"
+       d="m 15,89.5 0,28"
+       style="" />
+    <path
+       id="line18"
+       d="m 15,147.5 0,28"
+       style="" />
+    <path
+       id="line20"
+       d="m 15,205.5 0,28"
+       style="" />
+    <path
+       id="line22"
+       d="m 15,263.5 0,28"
+       style="" />
+    <path
+       id="line24"
+       d="m 15,321.5 0,28"
+       style="" />
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/LD-103.svg

@@ -0,0 +1,145 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata36">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs34" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path40"
+         style="font-size:8px;text-anchor:middle"
+         d="m 1.3945312,4.1679687 0.7890626,0 0,5.1679688 2.8398437,0 0,0.6640625 -3.6289063,0 0,-5.8320313 z" />
+      <path
+         id="path42"
+         style="font-size:8px;text-anchor:middle"
+         d="m 6.6367187,4.8164062 0,4.5351563 0.953125,0 q 1.2070313,0 1.7656251,-0.546875 0.5625,-0.546875 0.5625,-1.7265625 0,-1.171875 -0.5625,-1.7148438 Q 8.796875,4.8164062 7.5898437,4.8164062 l -0.953125,0 z m -0.7890625,-0.6484375 1.6210938,0 q 1.6953125,0 2.4882813,0.7070313 Q 10.75,5.578125 10.75,7.078125 10.75,8.5859375 9.953125,9.2929688 9.15625,10 7.46875,10 l -1.6210938,0 0,-5.8320313 z" />
+      <path
+         id="path44"
+         style="font-size:8px;text-anchor:middle"
+         d="m 11.609375,7.4882812 2.105469,0 0,0.6406251 -2.105469,0 0,-0.6406251 z" />
+      <path
+         id="path46"
+         style="font-size:8px;text-anchor:middle"
+         d="m 15.101563,9.3359375 1.289062,0 0,-4.4492188 -1.402344,0.28125 0,-0.71875 1.394531,-0.28125 0.789063,0 0,5.1679688 1.289062,0 0,0.6640625 -3.359374,0 0,-0.6640625 z" />
+      <path
+         id="path48"
+         style="font-size:8px;text-anchor:middle"
+         d="m 21.746094,4.6875 q -0.609375,0 -0.917969,0.6015625 -0.304688,0.5976562 -0.304688,1.8007812 0,1.1992188 0.304688,1.8007813 0.308594,0.5976563 0.917969,0.5976563 0.613281,0 0.917968,-0.5976563 0.308594,-0.6015625 0.308594,-1.8007813 0,-1.203125 -0.308594,-1.8007812 Q 22.359375,4.6875 21.746094,4.6875 Z m 0,-0.625 q 0.980468,0 1.496093,0.7773437 0.519532,0.7734375 0.519532,2.25 0,1.4726563 -0.519532,2.2500001 -0.515625,0.7734372 -1.496093,0.7734372 -0.980469,0 -1.5,-0.7734372 Q 19.730469,8.5625 19.730469,7.0898437 q 0,-1.4765625 0.515625,-2.25 0.519531,-0.7773437 1.5,-0.7773437 z" />
+      <path
+         id="path50"
+         style="font-size:8px;text-anchor:middle"
+         d="m 27.542969,6.8554687 q 0.566406,0.1210938 0.882812,0.5039063 0.320313,0.3828125 0.320313,0.9453125 0,0.8632813 -0.59375,1.3359375 -0.59375,0.472656 -1.6875,0.472656 -0.367188,0 -0.757813,-0.07422 Q 25.320312,9.96875 24.90625,9.8242188 l 0,-0.7617188 q 0.328125,0.1914063 0.71875,0.2890625 0.390625,0.097656 0.816406,0.097656 0.742188,0 1.128906,-0.2929688 0.390625,-0.2929687 0.390625,-0.8515625 0,-0.515625 -0.363281,-0.8046875 Q 27.238281,7.2070312 26.59375,7.2070312 l -0.679688,0 0,-0.6484375 0.710938,0 q 0.582031,0 0.890625,-0.2304687 0.308594,-0.234375 0.308594,-0.671875 0,-0.4492188 -0.320313,-0.6875 Q 27.1875,4.7265625 26.59375,4.7265625 q -0.324219,0 -0.695313,0.070312 -0.371093,0.070312 -0.816406,0.21875 l 0,-0.703125 q 0.449219,-0.125 0.839844,-0.1875 0.394531,-0.0625 0.742187,-0.0625 0.898438,0 1.421875,0.4101562 0.523438,0.40625 0.523438,1.1015625 0,0.484375 -0.277344,0.8203125 -0.277344,0.3320313 -0.789062,0.4609375 z" />
+    </g>
+    <g
+       style="font-size:8px;fill:#ffffff;stroke:none"
+       id="g11"
+       font-size="8">
+      <g
+         id="text13"
+         style="">
+        <path
+           id="path53"
+           style=""
+           d="m 27.152344,66.617187 0,0.832032 q -0.398438,-0.371094 -0.851563,-0.554688 -0.449219,-0.183594 -0.957031,-0.183594 -1,0 -1.53125,0.613282 -0.53125,0.609375 -0.53125,1.765625 0,1.152343 0.53125,1.765625 0.53125,0.609375 1.53125,0.609375 0.507812,0 0.957031,-0.183594 0.453125,-0.183594 0.851563,-0.554688 l 0,0.824219 q -0.414063,0.28125 -0.878907,0.421875 -0.460937,0.140625 -0.976562,0.140625 -1.324219,0 -2.085938,-0.808594 -0.761718,-0.8125 -0.761718,-2.214843 0,-1.40625 0.761718,-2.214844 0.761719,-0.8125 2.085938,-0.8125 0.523437,0 0.984375,0.140625 0.464844,0.136719 0.871094,0.414062 z" />
+      </g>
+      <g
+         id="text15"
+         style="">
+        <path
+           id="path56"
+           style=""
+           d="m 3.265625,74.167969 0.796875,0 1.2265625,4.929687 1.2226562,-4.929687 0.8867188,0 1.2265625,4.929687 1.2226563,-4.929687 0.8007817,0 L 9.1835938,80 8.1914063,80 6.9609375,74.9375 5.71875,80 4.7265625,80 3.265625,74.167969 Z" />
+      </g>
+      <g
+         id="text17"
+         style="">
+        <path
+           id="path59"
+           style=""
+           d="m 27.152344,182.61719 0,0.83203 q -0.398438,-0.3711 -0.851563,-0.55469 -0.449219,-0.18359 -0.957031,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.507812,0 0.957031,-0.18359 0.453125,-0.18359 0.851563,-0.55469 l 0,0.82422 q -0.414063,0.28125 -0.878907,0.42188 -0.460937,0.14062 -0.976562,0.14062 -1.324219,0 -2.085938,-0.80859 -0.761718,-0.8125 -0.761718,-2.21485 0,-1.40625 0.761718,-2.21484 0.761719,-0.8125 2.085938,-0.8125 0.523437,0 0.984375,0.14062 0.464844,0.13672 0.871094,0.41407 z" />
+      </g>
+      <g
+         id="text19"
+         style="">
+        <path
+           id="path62"
+           style=""
+           d="m 3.265625,190.16797 0.796875,0 1.2265625,4.92969 1.2226562,-4.92969 0.8867188,0 1.2265625,4.92969 1.2226563,-4.92969 0.8007817,0 L 9.1835938,196 8.1914063,196 6.9609375,190.9375 5.71875,196 4.7265625,196 3.265625,190.16797 Z" />
+      </g>
+      <g
+         id="text21"
+         style="">
+        <path
+           id="path65"
+           style=""
+           d="m 27.152344,298.61719 0,0.83203 q -0.398438,-0.3711 -0.851563,-0.55469 -0.449219,-0.18359 -0.957031,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.507812,0 0.957031,-0.18359 0.453125,-0.18359 0.851563,-0.55469 l 0,0.82422 q -0.414063,0.28125 -0.878907,0.42188 -0.460937,0.14062 -0.976562,0.14062 -1.324219,0 -2.085938,-0.80859 -0.761718,-0.8125 -0.761718,-2.21485 0,-1.40625 0.761718,-2.21484 0.761719,-0.8125 2.085938,-0.8125 0.523437,0 0.984375,0.14062 0.464844,0.13672 0.871094,0.41407 z" />
+      </g>
+      <g
+         id="text23"
+         style="">
+        <path
+           id="path68"
+           style=""
+           d="m 3.265625,306.16797 0.796875,0 1.2265625,4.92969 1.2226562,-4.92969 0.8867188,0 1.2265625,4.92969 1.2226563,-4.92969 0.8007817,0 L 9.1835938,312 8.1914063,312 6.9609375,306.9375 5.71875,312 4.7265625,312 3.265625,306.16797 Z" />
+      </g>
+    </g>
+  </g>
+  <g
+     style="fill:none;stroke:#ffffff;stroke-width:2;stroke-linecap:round"
+     id="screen">
+    <path
+       id="line26"
+       d="m 15,31.5 0,84"
+       style="" />
+    <path
+       id="line28"
+       d="m 15,147.5 0,84"
+       style="" />
+    <path
+       id="line30"
+       d="m 15,263.5 0,84"
+       style="" />
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/NG-106.svg

@@ -0,0 +1,104 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata28">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs26" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path32"
+         style="font-size:8px;text-anchor:middle"
+         d="m 0.60546875,4.1679687 1.06249995,0 2.5859375,4.8789063 0,-4.8789063 0.765625,0 0,5.8320313 -1.0624999,0 -2.5859376,-4.8789063 0,4.8789063 -0.76562495,0 0,-5.8320313 z" />
+      <path
+         id="path34"
+         style="font-size:8px;text-anchor:middle"
+         d="m 10.566406,9.1679688 0,-1.5664063 -1.2890622,0 0,-0.6484375 2.0703122,0 0,2.5039063 Q 10.890625,9.78125 10.339844,9.9492188 9.7890625,10.113281 9.1640625,10.113281 q -1.3671875,0 -2.140625,-0.7968747 Q 6.2539062,8.515625 6.2539062,7.0898437 q 0,-1.4296875 0.7695313,-2.2265625 Q 7.796875,4.0625 9.1640625,4.0625 q 0.5703125,0 1.0820315,0.140625 0.515625,0.140625 0.949219,0.4140625 l 0,0.8398437 q -0.4375,-0.3710937 -0.929688,-0.5585937 -0.4921875,-0.1875 -1.0351562,-0.1875 -1.0703125,0 -1.6093751,0.5976562 -0.5351562,0.5976563 -0.5351562,1.78125 0,1.1796876 0.5351562,1.7773438 0.5390626,0.5976563 1.6093751,0.5976563 0.4179687,0 0.7460937,-0.070312 0.3281255,-0.074219 0.5898435,-0.2265625 z" />
+      <path
+         id="path36"
+         style="font-size:8px;text-anchor:middle"
+         d="m 12.398438,7.4882812 2.105468,0 0,0.6406251 -2.105468,0 0,-0.6406251 z" />
+      <path
+         id="path38"
+         style="font-size:8px;text-anchor:middle"
+         d="m 15.890625,9.3359375 1.289062,0 0,-4.4492188 -1.402343,0.28125 0,-0.71875 1.394531,-0.28125 0.789062,0 0,5.1679688 1.289063,0 0,0.6640625 -3.359375,0 0,-0.6640625 z" />
+      <path
+         id="path40"
+         style="font-size:8px;text-anchor:middle"
+         d="m 22.535156,4.6875 q -0.609375,0 -0.917969,0.6015625 -0.304687,0.5976562 -0.304687,1.8007812 0,1.1992188 0.304687,1.8007813 0.308594,0.5976563 0.917969,0.5976563 0.613281,0 0.917969,-0.5976563 0.308594,-0.6015625 0.308594,-1.8007813 0,-1.203125 -0.308594,-1.8007812 Q 23.148437,4.6875 22.535156,4.6875 Z m 0,-0.625 q 0.980469,0 1.496094,0.7773437 0.519531,0.7734375 0.519531,2.25 0,1.4726563 -0.519531,2.2500001 -0.515625,0.7734372 -1.496094,0.7734372 -0.980469,0 -1.5,-0.7734372 Q 20.519531,8.5625 20.519531,7.0898437 q 0,-1.4765625 0.515625,-2.25 0.519531,-0.7773437 1.5,-0.7773437 z" />
+      <path
+         id="path42"
+         style="font-size:8px;text-anchor:middle"
+         d="m 27.726562,6.7695312 q -0.53125,0 -0.84375,0.3632813 -0.308593,0.3632812 -0.308593,0.9960938 0,0.6289062 0.308593,0.9960937 0.3125,0.3632813 0.84375,0.3632813 0.53125,0 0.839844,-0.3632813 0.3125,-0.3671875 0.3125,-0.9960937 0,-0.6328126 -0.3125,-0.9960938 -0.308594,-0.3632813 -0.839844,-0.3632813 z m 1.566407,-2.4726562 0,0.71875 Q 28.996094,4.875 28.691406,4.8007812 28.390625,4.7265625 28.09375,4.7265625 q -0.78125,0 -1.195313,0.5273437 -0.410156,0.5273438 -0.46875,1.59375 0.230469,-0.3398437 0.578125,-0.5195312 0.347657,-0.1835938 0.765625,-0.1835938 0.878907,0 1.386719,0.5351563 0.511719,0.53125 0.511719,1.4492188 0,0.8984375 -0.53125,1.4414062 -0.53125,0.5429685 -1.414063,0.5429685 -1.011718,0 -1.546875,-0.7734372 Q 25.644531,8.5625 25.644531,7.0898437 q 0,-1.3828125 0.65625,-2.203125 Q 26.957031,4.0625 28.0625,4.0625 q 0.296875,0 0.597656,0.058594 0.304688,0.058594 0.632813,0.1757813 z" />
+    </g>
+  </g>
+  <g
+     style="fill:none;stroke:#ffffff;stroke-width:2;stroke-linecap:round"
+     id="screen">
+    <path
+       id="line12"
+       d="m 15,31.5 0,28"
+       style="" />
+    <path
+       id="line14"
+       d="m 15,89.5 0,28"
+       style="" />
+    <path
+       id="line16"
+       d="m 15,147.5 0,28"
+       style="" />
+    <path
+       id="line18"
+       d="m 15,205.5 0,28"
+       style="" />
+    <path
+       id="line20"
+       d="m 15,263.5 0,28"
+       style="" />
+    <path
+       id="line22"
+       d="m 15,321.5 0,28"
+       style="" />
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/OG-104.svg

@@ -0,0 +1,100 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata26">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs24" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path30"
+         style="font-size:8px;text-anchor:middle"
+         d="m 2.8164063,4.703125 q -0.8593751,0 -1.3671876,0.640625 -0.5039062,0.640625 -0.5039062,1.7460937 0,1.1015626 0.5039062,1.7421876 0.5078125,0.640625 1.3671876,0.640625 0.859375,0 1.3593749,-0.640625 0.5039063,-0.640625 0.5039063,-1.7421876 0,-1.1054687 -0.5039063,-1.7460937 Q 3.6757813,4.703125 2.8164063,4.703125 Z m 0,-0.640625 q 1.2265624,0 1.9609374,0.8242187 0.734375,0.8203125 0.734375,2.203125 0,1.3789063 -0.734375,2.2031251 -0.734375,0.8203122 -1.9609374,0.8203122 -1.2304688,0 -1.96875005,-0.8203122 -0.734375,-0.8203125 -0.734375,-2.2031251 0,-1.3828125 0.734375,-2.203125 Q 1.5859375,4.0625 2.8164063,4.0625 Z" />
+      <path
+         id="path32"
+         style="font-size:8px;text-anchor:middle"
+         d="m 10.722656,9.1679688 0,-1.5664063 -1.2890622,0 0,-0.6484375 2.0703122,0 0,2.5039063 Q 11.046875,9.78125 10.496094,9.9492188 9.9453125,10.113281 9.3203125,10.113281 q -1.3671875,0 -2.140625,-0.7968747 Q 6.4101562,8.515625 6.4101562,7.0898437 q 0,-1.4296875 0.7695313,-2.2265625 Q 7.953125,4.0625 9.3203125,4.0625 q 0.5703125,0 1.0820315,0.140625 0.515625,0.140625 0.949219,0.4140625 l 0,0.8398437 q -0.4375,-0.3710937 -0.929688,-0.5585937 -0.4921875,-0.1875 -1.0351562,-0.1875 -1.0703125,0 -1.6093751,0.5976562 -0.5351562,0.5976563 -0.5351562,1.78125 0,1.1796876 0.5351562,1.7773438 0.5390626,0.5976563 1.6093751,0.5976563 0.4179687,0 0.7460942,-0.070312 0.328125,-0.074219 0.589843,-0.2265625 z" />
+      <path
+         id="path34"
+         style="font-size:8px;text-anchor:middle"
+         d="m 12.554688,7.4882812 2.105468,0 0,0.6406251 -2.105468,0 0,-0.6406251 z" />
+      <path
+         id="path36"
+         style="font-size:8px;text-anchor:middle"
+         d="m 16.046875,9.3359375 1.289062,0 0,-4.4492188 -1.402343,0.28125 0,-0.71875 1.394531,-0.28125 0.789062,0 0,5.1679688 1.289063,0 0,0.6640625 -3.359375,0 0,-0.6640625 z" />
+      <path
+         id="path38"
+         style="font-size:8px;text-anchor:middle"
+         d="m 22.691406,4.6875 q -0.609375,0 -0.917969,0.6015625 -0.304687,0.5976562 -0.304687,1.8007812 0,1.1992188 0.304687,1.8007813 0.308594,0.5976563 0.917969,0.5976563 0.613281,0 0.917969,-0.5976563 0.308594,-0.6015625 0.308594,-1.8007813 0,-1.203125 -0.308594,-1.8007812 Q 23.304687,4.6875 22.691406,4.6875 Z m 0,-0.625 q 0.980469,0 1.496094,0.7773437 0.519531,0.7734375 0.519531,2.25 0,1.4726563 -0.519531,2.2500001 -0.515625,0.7734372 -1.496094,0.7734372 -0.980469,0 -1.5,-0.7734372 Q 20.675781,8.5625 20.675781,7.0898437 q 0,-1.4765625 0.515625,-2.25 0.519531,-0.7773437 1.5,-0.7773437 z" />
+      <path
+         id="path40"
+         style="font-size:8px;text-anchor:middle"
+         d="m 28.265625,4.8554687 -1.992188,3.1132813 1.992188,0 0,-3.1132813 z m -0.207031,-0.6875 0.992187,0 0,3.8007813 0.832031,0 0,0.65625 -0.832031,0 0,1.375 -0.785156,0 0,-1.375 -2.632813,0 0,-0.7617188 2.425782,-3.6953125 z" />
+    </g>
+  </g>
+  <g
+     style="fill:none;stroke:#ffffff;stroke-width:2;stroke-linecap:round"
+     id="screen">
+    <path
+       id="line12"
+       d="m 15,31.5 0,317"
+       style="stroke:#719fcf" />
+    <path
+       id="line14"
+       d="m 15,31.5 0,56"
+       style="" />
+    <path
+       id="line16"
+       d="m 15,118.5 0,56"
+       style="" />
+    <path
+       id="line18"
+       d="m 15,205.5 0,56"
+       style="" />
+    <path
+       id="line20"
+       d="m 15,292.5 0,56"
+       style="" />
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/PG-104.svg

@@ -0,0 +1,96 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata24">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs22" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path28"
+         style="font-size:8px;text-anchor:middle"
+         d="m 1.9726562,4.8164062 0,2.1914063 0.9921876,0 q 0.5507812,0 0.8515625,-0.2851563 0.3007812,-0.2851562 0.3007812,-0.8125 0,-0.5234375 -0.3007812,-0.8085937 Q 3.515625,4.8164062 2.9648438,4.8164062 l -0.9921876,0 z m -0.7890625,-0.6484375 1.7812501,0 q 0.9804687,0 1.4804687,0.4453125 0.5039062,0.4414063 0.5039062,1.296875 0,0.8632813 -0.5039062,1.3046875 -0.5,0.4414063 -1.4804687,0.4414063 l -0.9921876,0 0,2.34375 -0.7890625,0 0,-5.8320313 z" />
+      <path
+         id="path30"
+         style="font-size:8px;text-anchor:middle"
+         d="m 9.9882813,9.1679688 0,-1.5664063 -1.2890625,0 0,-0.6484375 2.0703122,0 0,2.5039063 Q 10.3125,9.78125 9.7617188,9.9492188 9.2109375,10.113281 8.5859375,10.113281 7.21875,10.113281 6.4453125,9.3164063 5.6757812,8.515625 5.6757812,7.0898437 q 0,-1.4296875 0.7695313,-2.2265625 Q 7.21875,4.0625 8.5859375,4.0625 q 0.5703125,0 1.0820313,0.140625 0.5156252,0.140625 0.9492192,0.4140625 l 0,0.8398437 Q 10.179688,5.0859375 9.6875,4.8984375 q -0.4921875,-0.1875 -1.0351562,-0.1875 -1.0703126,0 -1.6093751,0.5976562 -0.5351562,0.5976563 -0.5351562,1.78125 0,1.1796876 0.5351562,1.7773438 0.5390625,0.5976563 1.6093751,0.5976563 0.4179687,0 0.7460937,-0.070312 0.328125,-0.074219 0.5898438,-0.2265625 z" />
+      <path
+         id="path32"
+         style="font-size:8px;text-anchor:middle"
+         d="m 11.820313,7.4882812 2.105468,0 0,0.6406251 -2.105468,0 0,-0.6406251 z" />
+      <path
+         id="path34"
+         style="font-size:8px;text-anchor:middle"
+         d="m 15.3125,9.3359375 1.289062,0 0,-4.4492188 -1.402343,0.28125 0,-0.71875 1.394531,-0.28125 0.789062,0 0,5.1679688 1.289063,0 0,0.6640625 -3.359375,0 0,-0.6640625 z" />
+      <path
+         id="path36"
+         style="font-size:8px;text-anchor:middle"
+         d="m 21.957031,4.6875 q -0.609375,0 -0.917969,0.6015625 -0.304687,0.5976562 -0.304687,1.8007812 0,1.1992188 0.304687,1.8007813 0.308594,0.5976563 0.917969,0.5976563 0.613281,0 0.917969,-0.5976563 0.308594,-0.6015625 0.308594,-1.8007813 0,-1.203125 -0.308594,-1.8007812 Q 22.570312,4.6875 21.957031,4.6875 Z m 0,-0.625 q 0.980469,0 1.496094,0.7773437 0.519531,0.7734375 0.519531,2.25 0,1.4726563 -0.519531,2.2500001 -0.515625,0.7734372 -1.496094,0.7734372 -0.980469,0 -1.5,-0.7734372 Q 19.941406,8.5625 19.941406,7.0898437 q 0,-1.4765625 0.515625,-2.25 0.519531,-0.7773437 1.5,-0.7773437 z" />
+      <path
+         id="path38"
+         style="font-size:8px;text-anchor:middle"
+         d="m 27.53125,4.8554687 -1.992188,3.1132813 1.992188,0 0,-3.1132813 z m -0.207031,-0.6875 0.992187,0 0,3.8007813 0.832031,0 0,0.65625 -0.832031,0 0,1.375 -0.785156,0 0,-1.375 -2.632813,0 0,-0.7617188 2.425782,-3.6953125 z" />
+    </g>
+  </g>
+  <g
+     style="fill:none;stroke:#ffffff;stroke-width:2;stroke-linecap:round"
+     id="screen">
+    <path
+       id="line12"
+       d="m 15,31.5 0,56"
+       style="" />
+    <path
+       id="line14"
+       d="m 15,118.5 0,56"
+       style="" />
+    <path
+       id="line16"
+       d="m 15,205.5 0,56"
+       style="" />
+    <path
+       id="line18"
+       d="m 15,292.5 0,56"
+       style="" />
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/SS-112.svg

@@ -0,0 +1,76 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata15">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs13" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path19"
+         style="font-size:8px;text-anchor:middle"
+         d="m 5.1171875,4.359375 0,0.7695312 Q 4.6679687,4.9140625 4.2695312,4.8085937 3.8710938,4.703125 3.5,4.703125 q -0.6445312,0 -0.9960937,0.25 -0.3476563,0.25 -0.3476563,0.7109375 0,0.3867187 0.2304688,0.5859375 0.234375,0.1953125 0.8828125,0.3164062 l 0.4765625,0.097656 q 0.8828124,0.1679687 1.3007812,0.59375 0.421875,0.421875 0.421875,1.1328125 0,0.8476563 -0.5703125,1.2851563 -0.5664063,0.4374997 -1.6640625,0.4374997 -0.4140625,0 -0.8828125,-0.09375 -0.4648438,-0.09375 -0.9648438,-0.2773435 l 0,-0.8125 q 0.4804688,0.2695313 0.9414063,0.40625 0.4609375,0.1367188 0.90625,0.1367188 0.6757813,0 1.0429687,-0.265625 0.3671875,-0.265625 0.3671875,-0.7578125 0,-0.4296875 -0.265625,-0.6718751 Q 4.1171875,7.5351562 3.515625,7.4140625 L 3.0351563,7.3203125 Q 2.1523438,7.1445312 1.7578125,6.7695312 q -0.3945313,-0.375 -0.3945313,-1.0429687 0,-0.7734375 0.5429688,-1.21875 Q 2.453125,4.0625 3.4101563,4.0625 q 0.4101562,0 0.8359374,0.074219 0.4257813,0.074219 0.8710938,0.2226563 z" />
+      <path
+         id="path21"
+         style="font-size:8px;text-anchor:middle"
+         d="m 10.195313,4.359375 0,0.7695312 Q 9.7460938,4.9140625 9.3476563,4.8085937 8.9492188,4.703125 8.578125,4.703125 q -0.6445313,0 -0.9960938,0.25 -0.3476562,0.25 -0.3476562,0.7109375 0,0.3867187 0.2304687,0.5859375 0.234375,0.1953125 0.8828126,0.3164062 l 0.4765625,0.097656 q 0.8828125,0.1679687 1.3007812,0.59375 0.421875,0.421875 0.421875,1.1328125 0,0.8476563 -0.5703125,1.2851563 Q 9.4101563,10.113281 8.3125,10.113281 q -0.4140625,0 -0.8828125,-0.09375 -0.4648438,-0.09375 -0.9648438,-0.2773435 l 0,-0.8125 q 0.4804688,0.2695313 0.9414063,0.40625 0.4609375,0.1367188 0.90625,0.1367188 0.6757813,0 1.0429688,-0.265625 0.3671875,-0.265625 0.3671875,-0.7578125 0,-0.4296875 -0.265625,-0.6718751 Q 9.1953125,7.5351562 8.59375,7.4140625 L 8.1132813,7.3203125 Q 7.2304687,7.1445312 6.8359375,6.7695312 q -0.3945313,-0.375 -0.3945313,-1.0429687 0,-0.7734375 0.5429688,-1.21875 Q 7.53125,4.0625 8.4882813,4.0625 q 0.4101562,0 0.8359375,0.074219 Q 9.75,4.2109375 10.195313,4.359375 Z" />
+      <path
+         id="path23"
+         style="font-size:8px;text-anchor:middle"
+         d="m 11.382813,7.4882812 2.105468,0 0,0.6406251 -2.105468,0 0,-0.6406251 z" />
+      <path
+         id="path25"
+         style="font-size:8px;text-anchor:middle"
+         d="m 14.875,9.3359375 1.289062,0 0,-4.4492188 -1.402343,0.28125 0,-0.71875 1.394531,-0.28125 0.789062,0 0,5.1679688 1.289063,0 0,0.6640625 -3.359375,0 0,-0.6640625 z" />
+      <path
+         id="path27"
+         style="font-size:8px;text-anchor:middle"
+         d="m 19.96875,9.3359375 1.289062,0 0,-4.4492188 -1.402343,0.28125 0,-0.71875 1.394531,-0.28125 0.789062,0 0,5.1679688 1.289063,0 0,0.6640625 -3.359375,0 0,-0.6640625 z" />
+      <path
+         id="path29"
+         style="font-size:8px;text-anchor:middle"
+         d="m 25.605469,9.3359375 2.753906,0 0,0.6640625 -3.703125,0 0,-0.6640625 Q 25.105469,8.8710938 25.878906,8.0898438 26.65625,7.3046875 26.855469,7.078125 27.234375,6.6523437 27.382812,6.359375 27.535156,6.0625 27.535156,5.7773437 q 0,-0.4648437 -0.328125,-0.7578125 -0.324219,-0.2929687 -0.847656,-0.2929687 -0.371094,0 -0.785156,0.1289062 -0.410157,0.1289063 -0.878907,0.390625 l 0,-0.796875 Q 25.171875,4.2578125 25.585937,4.1601562 26,4.0625 26.34375,4.0625 q 0.90625,0 1.445312,0.453125 0.539063,0.453125 0.539063,1.2109375 0,0.359375 -0.136719,0.6835937 -0.132812,0.3203125 -0.488281,0.7578125 -0.09766,0.1132813 -0.621094,0.65625 -0.523437,0.5390626 -1.476562,1.5117188 z" />
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/SS-208.svg

@@ -0,0 +1,165 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata33">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs31" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path37"
+         style="font-size:8px;text-anchor:middle"
+         d="m 5.1171875,4.359375 0,0.7695312 Q 4.6679687,4.9140625 4.2695312,4.8085937 3.8710938,4.703125 3.5,4.703125 q -0.6445312,0 -0.9960937,0.25 -0.3476563,0.25 -0.3476563,0.7109375 0,0.3867187 0.2304688,0.5859375 0.234375,0.1953125 0.8828125,0.3164062 l 0.4765625,0.097656 q 0.8828124,0.1679687 1.3007812,0.59375 0.421875,0.421875 0.421875,1.1328125 0,0.8476563 -0.5703125,1.2851563 -0.5664063,0.4374997 -1.6640625,0.4374997 -0.4140625,0 -0.8828125,-0.09375 -0.4648438,-0.09375 -0.9648438,-0.2773435 l 0,-0.8125 q 0.4804688,0.2695313 0.9414063,0.40625 0.4609375,0.1367188 0.90625,0.1367188 0.6757813,0 1.0429687,-0.265625 0.3671875,-0.265625 0.3671875,-0.7578125 0,-0.4296875 -0.265625,-0.6718751 Q 4.1171875,7.5351562 3.515625,7.4140625 L 3.0351563,7.3203125 Q 2.1523438,7.1445312 1.7578125,6.7695312 q -0.3945313,-0.375 -0.3945313,-1.0429687 0,-0.7734375 0.5429688,-1.21875 Q 2.453125,4.0625 3.4101563,4.0625 q 0.4101562,0 0.8359374,0.074219 0.4257813,0.074219 0.8710938,0.2226563 z" />
+      <path
+         id="path39"
+         style="font-size:8px;text-anchor:middle"
+         d="m 10.195313,4.359375 0,0.7695312 Q 9.7460938,4.9140625 9.3476563,4.8085937 8.9492188,4.703125 8.578125,4.703125 q -0.6445313,0 -0.9960938,0.25 -0.3476562,0.25 -0.3476562,0.7109375 0,0.3867187 0.2304687,0.5859375 0.234375,0.1953125 0.8828126,0.3164062 l 0.4765625,0.097656 q 0.8828125,0.1679687 1.3007812,0.59375 0.421875,0.421875 0.421875,1.1328125 0,0.8476563 -0.5703125,1.2851563 Q 9.4101563,10.113281 8.3125,10.113281 q -0.4140625,0 -0.8828125,-0.09375 -0.4648438,-0.09375 -0.9648438,-0.2773435 l 0,-0.8125 q 0.4804688,0.2695313 0.9414063,0.40625 0.4609375,0.1367188 0.90625,0.1367188 0.6757813,0 1.0429688,-0.265625 0.3671875,-0.265625 0.3671875,-0.7578125 0,-0.4296875 -0.265625,-0.6718751 Q 9.1953125,7.5351562 8.59375,7.4140625 L 8.1132813,7.3203125 Q 7.2304687,7.1445312 6.8359375,6.7695312 q -0.3945313,-0.375 -0.3945313,-1.0429687 0,-0.7734375 0.5429688,-1.21875 Q 7.53125,4.0625 8.4882813,4.0625 q 0.4101562,0 0.8359375,0.074219 Q 9.75,4.2109375 10.195313,4.359375 Z" />
+      <path
+         id="path41"
+         style="font-size:8px;text-anchor:middle"
+         d="m 11.382813,7.4882812 2.105468,0 0,0.6406251 -2.105468,0 0,-0.6406251 z" />
+      <path
+         id="path43"
+         style="font-size:8px;text-anchor:middle"
+         d="m 15.417969,9.3359375 2.753906,0 0,0.6640625 -3.703125,0 0,-0.6640625 Q 14.917969,8.8710938 15.691406,8.0898438 16.46875,7.3046875 16.667969,7.078125 17.046875,6.6523437 17.195312,6.359375 17.347656,6.0625 17.347656,5.7773437 q 0,-0.4648437 -0.328125,-0.7578125 -0.324219,-0.2929687 -0.847656,-0.2929687 -0.371094,0 -0.785156,0.1289062 -0.410156,0.1289063 -0.878906,0.390625 l 0,-0.796875 Q 14.984375,4.2578125 15.398438,4.1601562 15.8125,4.0625 16.15625,4.0625 q 0.90625,0 1.445312,0.453125 0.539063,0.453125 0.539063,1.2109375 0,0.359375 -0.136719,0.6835937 -0.132812,0.3203125 -0.488281,0.7578125 -0.09766,0.1132813 -0.621094,0.65625 -0.523437,0.5390626 -1.476562,1.5117188 z" />
+      <path
+         id="path45"
+         style="font-size:8px;text-anchor:middle"
+         d="m 21.519531,4.6875 q -0.609375,0 -0.917969,0.6015625 -0.304687,0.5976562 -0.304687,1.8007812 0,1.1992188 0.304687,1.8007813 0.308594,0.5976563 0.917969,0.5976563 0.613281,0 0.917969,-0.5976563 0.308594,-0.6015625 0.308594,-1.8007813 0,-1.203125 -0.308594,-1.8007812 Q 22.132812,4.6875 21.519531,4.6875 Z m 0,-0.625 q 0.980469,0 1.496094,0.7773437 0.519531,0.7734375 0.519531,2.25 0,1.4726563 -0.519531,2.2500001 Q 22.5,10.113281 21.519531,10.113281 q -0.980469,0 -1.5,-0.7734372 Q 19.503906,8.5625 19.503906,7.0898437 q 0,-1.4765625 0.515625,-2.25 0.519531,-0.7773437 1.5,-0.7773437 z" />
+      <path
+         id="path47"
+         style="font-size:8px;text-anchor:middle"
+         d="m 26.613281,7.2304687 q -0.5625,0 -0.886719,0.3007813 -0.320312,0.3007812 -0.320312,0.828125 0,0.5273438 0.320312,0.828125 0.324219,0.3007813 0.886719,0.3007813 0.5625,0 0.886719,-0.3007813 Q 27.824219,8.8828125 27.824219,8.359375 27.824219,7.8320312 27.5,7.53125 27.179687,7.2304687 26.613281,7.2304687 Z M 25.824219,6.8945312 Q 25.316406,6.7695312 25.03125,6.421875 24.75,6.0742187 24.75,5.5742187 24.75,4.875 25.246094,4.46875 q 0.5,-0.40625 1.367187,-0.40625 0.871094,0 1.367188,0.40625 0.496093,0.40625 0.496093,1.1054687 0,0.5 -0.285156,0.8476563 -0.28125,0.3476562 -0.785156,0.4726562 0.570312,0.1328125 0.886719,0.5195313 0.320312,0.3867187 0.320312,0.9453125 0,0.8476563 -0.519531,1.3007813 -0.515625,0.4531247 -1.480469,0.4531247 -0.964844,0 -1.484375,-0.4531247 -0.515625,-0.453125 -0.515625,-1.3007813 0,-0.5585938 0.320313,-0.9453125 0.320312,-0.3867188 0.890625,-0.5195313 z M 25.535156,5.6484375 q 0,0.453125 0.28125,0.7070312 0.285156,0.2539063 0.796875,0.2539063 0.507813,0 0.792969,-0.2539063 0.289062,-0.2539062 0.289062,-0.7070312 0,-0.453125 -0.289062,-0.7070313 Q 27.121094,4.6875 26.613281,4.6875 q -0.511719,0 -0.796875,0.2539062 -0.28125,0.2539063 -0.28125,0.7070313 z" />
+    </g>
+    <g
+       style="font-size:10px;fill:#ffffff;stroke:none"
+       id="g11"
+       font-size="10">
+      <g
+         id="text13"
+         style="text-anchor:middle">
+        <path
+           id="path50"
+           style="text-anchor:middle"
+           d="m 12.353516,48.53125 5.239257,0 0,0.898437 -0.688476,0 0,3.359375 q 0,0.351563 0.117187,0.507813 0.122071,0.151367 0.390625,0.151367 0.07324,0 0.180664,-0.0098 0.107422,-0.01465 0.141602,-0.01953 l 0,0.649414 q -0.170898,0.06348 -0.351563,0.09277 -0.180664,0.0293 -0.361328,0.0293 -0.585937,0 -0.810547,-0.317383 -0.224609,-0.322266 -0.224609,-1.181641 l 0,-3.261719 -2.016601,0 0,4.570313 -0.917969,0 0,-4.570313 -0.698242,0 0,-0.898437 z" />
+      </g>
+      <g
+         id="text15"
+         style="text-anchor:middle">
+        <path
+           id="path53"
+           style="text-anchor:middle"
+           d="m 15.615234,96.003906 q 0.175782,0.234375 0.703125,0.234375 l 0.434571,0 0,0.761719 -0.541993,0 Q 15.332031,97 14.931641,96.53125 14.53125,96.052734 14.53125,95.017578 l 0,-2.587891 -2.050781,0 0,-0.898437 5.043945,0 0,0.898437 -2.075195,0 0,2.641602 q 0,0.708008 0.166015,0.932617 z" />
+      </g>
+      <g
+         id="text17"
+         style="text-anchor:middle">
+        <path
+           id="path56"
+           style="text-anchor:middle"
+           d="m 13.505859,138.00781 q -0.01953,0.18555 -0.01953,0.35156 0,0.45899 0.166016,0.76172 0.288086,0.53711 1.05957,0.53711 0.566406,0 0.844727,-0.1709 0.498046,-0.30761 0.615234,-0.70312 l 0.65918,0 q -0.195313,0.62012 -0.922852,1.05469 -0.507812,0.30273 -1.513672,0.30273 -1.005859,0 -1.547851,-0.74707 -0.38086,-0.52246 -0.38086,-1.2793 0,-0.33203 0.07324,-0.708 0.239257,-1.23536 1.064453,-1.98731 0.825195,-0.75195 1.99707,-0.75195 1.90918,0 1.90918,1.35254 0,0.97168 -1.000977,1.47461 -1.020508,0.51269 -3.00293,0.51269 z m 2.504883,-1.09375 q 0.546875,-0.37597 0.546875,-0.92773 0,-0.83496 -1.108398,-0.83496 -0.654297,0 -1.108399,0.49804 -0.454101,0.49805 -0.732422,1.84082 1.567383,0 2.402344,-0.57617 z" />
+      </g>
+      <g
+         id="text19"
+         style="text-anchor:middle">
+        <path
+           id="path59"
+           style="text-anchor:middle"
+           d="m 12.421875,174.88965 0.922852,0 0,0.46875 -0.561524,0 -2.9003905,7.8418 -0.3222656,0 -1.5576172,-4.31153 -0.6103516,0.21973 -0.1220703,-0.39063 1.381836,-0.47851 1.25,3.46191 2.5195312,-6.81152 z" />
+        <path
+           id="path61"
+           style="text-anchor:middle"
+           d="m 14.101563,179.20117 0.996093,0 0,-2.9834 -1.088867,0.2002 0,-0.56641 1.123047,-0.19043 0.668945,0 0,3.54004 1.000977,0 0,0.53711 -2.700195,0 0,-0.53711 z m 6.225585,3.24219 2.070313,0 0,0.55664 -2.919922,0 0,-0.53711 q 0.166016,-0.15137 0.473633,-0.4248 1.679687,-1.48926 1.679687,-1.94825 0,-0.32226 -0.253906,-0.51757 -0.253906,-0.2002 -0.668945,-0.2002 -0.253906,0 -0.551758,0.0879 -0.297852,0.083 -0.649414,0.25391 l 0,-0.60059 q 0.375976,-0.13672 0.698242,-0.20508 0.327149,-0.0684 0.605469,-0.0684 0.708008,0 1.132812,0.32227 0.424805,0.32226 0.424805,0.84961 0,0.67871 -1.616211,2.06543 -0.273437,0.23437 -0.424805,0.36621 z m -0.258789,-6.86524 0.78125,0 -4.550781,7.56348 -0.78125,0 4.550781,-7.56348 z" />
+      </g>
+      <g
+         id="text21"
+         style="text-anchor:middle">
+        <path
+           id="path64"
+           style="text-anchor:middle"
+           d="m 14.082031,217.88965 0.922852,0 0,0.46875 -0.561524,0 -2.90039,7.8418 -0.322266,0 -1.5576171,-4.31153 -0.6103515,0.21973 -0.1220703,-0.39063 1.3818359,-0.47851 1.25,3.46191 2.519531,-6.81152 z" />
+        <path
+           id="path66"
+           style="text-anchor:middle"
+           d="m 16.918945,225.16992 3.442383,0 0,0.83008 -4.628906,0 0,-0.83008 q 0.561523,-0.58105 1.52832,-1.55762 0.97168,-0.98144 1.220703,-1.26464 0.473633,-0.53223 0.65918,-0.89844 0.19043,-0.3711 0.19043,-0.72754 0,-0.58106 -0.410157,-0.94727 -0.405273,-0.36621 -1.05957,-0.36621 -0.463867,0 -0.981445,0.16114 -0.512696,0.16113 -1.098633,0.48828 l 0,-0.9961 q 0.595703,-0.23925 1.113281,-0.36132 0.517578,-0.12208 0.947266,-0.12208 1.132812,0 1.80664,0.56641 0.673829,0.56641 0.673829,1.51367 0,0.44922 -0.170899,0.8545 -0.166015,0.40039 -0.610351,0.94726 -0.122071,0.1416 -0.776368,0.82031 -0.654296,0.67383 -1.845703,1.88965 z" />
+      </g>
+      <g
+         id="text23"
+         style="text-anchor:middle">
+        <path
+           id="path69"
+           style="text-anchor:middle"
+           d="m 14.082031,260.88965 0.922852,0 0,0.46875 -0.561524,0 -2.90039,7.8418 -0.322266,0 -1.5576171,-4.31153 -0.6103515,0.21973 -0.1220703,-0.39063 1.3818359,-0.47851 1.25,3.46191 2.519531,-6.81152 z" />
+        <path
+           id="path71"
+           style="text-anchor:middle"
+           d="m 19.057617,265.06934 q 0.708008,0.15136 1.103516,0.62988 0.40039,0.47851 0.40039,1.18164 0,1.0791 -0.742187,1.66992 -0.742188,0.59082 -2.109375,0.59082 -0.458984,0 -0.947266,-0.0928 -0.483398,-0.0879 -1.000976,-0.26856 l 0,-0.95215 q 0.410156,0.23926 0.898437,0.36133 0.488281,0.12207 1.020508,0.12207 0.927734,0 1.411133,-0.36621 0.488281,-0.36621 0.488281,-1.06445 0,-0.64453 -0.454101,-1.00586 -0.449219,-0.36621 -1.254883,-0.36621 l -0.84961,0 0,-0.81055 0.888672,0 q 0.727539,0 1.113281,-0.28808 0.385743,-0.29297 0.385743,-0.83985 0,-0.56152 -0.400391,-0.85937 -0.395508,-0.30274 -1.137695,-0.30274 -0.405274,0 -0.869141,0.0879 -0.463867,0.0879 -1.020508,0.27344 l 0,-0.87891 q 0.561524,-0.15625 1.049805,-0.23437 0.493164,-0.0781 0.927734,-0.0781 1.123047,0 1.777344,0.5127 0.654297,0.50781 0.654297,1.37695 0,0.60547 -0.34668,1.02539 -0.346679,0.41504 -0.986328,0.57618 z" />
+      </g>
+      <g
+         id="text25"
+         style="text-anchor:middle">
+        <path
+           id="path74"
+           style="text-anchor:middle"
+           d="m 14.082031,303.88965 0.922852,0 0,0.46875 -0.561524,0 -2.90039,7.8418 -0.322266,0 -1.5576171,-4.31153 -0.6103515,0.21973 -0.1220703,-0.39063 1.3818359,-0.47851 1.25,3.46191 2.519531,-6.81152 z" />
+        <path
+           id="path76"
+           style="text-anchor:middle"
+           d="m 16.079102,304.70996 3.87207,0 0,0.83008 -2.96875,0 0,1.78711 q 0.214844,-0.0732 0.429687,-0.10742 0.214844,-0.0391 0.429688,-0.0391 1.220703,0 1.933594,0.66895 0.71289,0.66894 0.71289,1.81152 0,1.17676 -0.732422,1.83106 -0.732422,0.64941 -2.065429,0.64941 -0.458985,0 -0.9375,-0.0781 -0.473633,-0.0781 -0.981446,-0.23438 l 0,-0.99121 q 0.439453,0.23926 0.908203,0.35645 0.46875,0.11718 0.991211,0.11718 0.844727,0 1.337891,-0.44433 0.493164,-0.44434 0.493164,-1.20606 0,-0.76172 -0.493164,-1.20605 -0.493164,-0.44434 -1.337891,-0.44434 -0.395507,0 -0.791015,0.0879 -0.390625,0.0879 -0.800781,0.27344 l 0,-3.66211 z" />
+      </g>
+      <g
+         id="text27"
+         style="text-anchor:middle">
+        <path
+           id="path79"
+           style="text-anchor:middle"
+           d="m 14.082031,346.88965 0.922852,0 0,0.46875 -0.561524,0 -2.90039,7.8418 -0.322266,0 -1.5576171,-4.31153 -0.6103515,0.21973 -0.1220703,-0.39063 1.3818359,-0.47851 1.25,3.46191 2.519531,-6.81152 z" />
+        <path
+           id="path81"
+           style="text-anchor:middle"
+           d="m 15.820313,347.70996 4.687499,0 0,0.41992 -2.646484,6.87012 -1.030273,0 2.490234,-6.45996 -3.500976,0 0,-0.83008 z" />
+      </g>
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/SS-212.svg

@@ -0,0 +1,104 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata29">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs27" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path33"
+         style="font-size:8px;text-anchor:middle"
+         d="m 5.1171875,4.359375 0,0.7695312 Q 4.6679687,4.9140625 4.2695312,4.8085937 3.8710938,4.703125 3.5,4.703125 q -0.6445312,0 -0.9960937,0.25 -0.3476563,0.25 -0.3476563,0.7109375 0,0.3867187 0.2304688,0.5859375 0.234375,0.1953125 0.8828125,0.3164062 l 0.4765625,0.097656 q 0.8828124,0.1679687 1.3007812,0.59375 0.421875,0.421875 0.421875,1.1328125 0,0.8476563 -0.5703125,1.2851563 -0.5664063,0.4374997 -1.6640625,0.4374997 -0.4140625,0 -0.8828125,-0.09375 -0.4648438,-0.09375 -0.9648438,-0.2773435 l 0,-0.8125 q 0.4804688,0.2695313 0.9414063,0.40625 0.4609375,0.1367188 0.90625,0.1367188 0.6757813,0 1.0429687,-0.265625 0.3671875,-0.265625 0.3671875,-0.7578125 0,-0.4296875 -0.265625,-0.6718751 Q 4.1171875,7.5351562 3.515625,7.4140625 L 3.0351563,7.3203125 Q 2.1523438,7.1445312 1.7578125,6.7695312 q -0.3945313,-0.375 -0.3945313,-1.0429687 0,-0.7734375 0.5429688,-1.21875 Q 2.453125,4.0625 3.4101563,4.0625 q 0.4101562,0 0.8359374,0.074219 0.4257813,0.074219 0.8710938,0.2226563 z" />
+      <path
+         id="path35"
+         style="font-size:8px;text-anchor:middle"
+         d="m 10.195313,4.359375 0,0.7695312 Q 9.7460938,4.9140625 9.3476563,4.8085937 8.9492188,4.703125 8.578125,4.703125 q -0.6445313,0 -0.9960938,0.25 -0.3476562,0.25 -0.3476562,0.7109375 0,0.3867187 0.2304687,0.5859375 0.234375,0.1953125 0.8828126,0.3164062 l 0.4765625,0.097656 q 0.8828125,0.1679687 1.3007812,0.59375 0.421875,0.421875 0.421875,1.1328125 0,0.8476563 -0.5703125,1.2851563 Q 9.4101563,10.113281 8.3125,10.113281 q -0.4140625,0 -0.8828125,-0.09375 -0.4648438,-0.09375 -0.9648438,-0.2773435 l 0,-0.8125 q 0.4804688,0.2695313 0.9414063,0.40625 0.4609375,0.1367188 0.90625,0.1367188 0.6757813,0 1.0429688,-0.265625 0.3671875,-0.265625 0.3671875,-0.7578125 0,-0.4296875 -0.265625,-0.6718751 Q 9.1953125,7.5351562 8.59375,7.4140625 L 8.1132813,7.3203125 Q 7.2304687,7.1445312 6.8359375,6.7695312 q -0.3945313,-0.375 -0.3945313,-1.0429687 0,-0.7734375 0.5429688,-1.21875 Q 7.53125,4.0625 8.4882813,4.0625 q 0.4101562,0 0.8359375,0.074219 Q 9.75,4.2109375 10.195313,4.359375 Z" />
+      <path
+         id="path37"
+         style="font-size:8px;text-anchor:middle"
+         d="m 11.382813,7.4882812 2.105468,0 0,0.6406251 -2.105468,0 0,-0.6406251 z" />
+      <path
+         id="path39"
+         style="font-size:8px;text-anchor:middle"
+         d="m 15.417969,9.3359375 2.753906,0 0,0.6640625 -3.703125,0 0,-0.6640625 Q 14.917969,8.8710938 15.691406,8.0898438 16.46875,7.3046875 16.667969,7.078125 17.046875,6.6523437 17.195312,6.359375 17.347656,6.0625 17.347656,5.7773437 q 0,-0.4648437 -0.328125,-0.7578125 -0.324219,-0.2929687 -0.847656,-0.2929687 -0.371094,0 -0.785156,0.1289062 -0.410156,0.1289063 -0.878906,0.390625 l 0,-0.796875 Q 14.984375,4.2578125 15.398438,4.1601562 15.8125,4.0625 16.15625,4.0625 q 0.90625,0 1.445312,0.453125 0.539063,0.453125 0.539063,1.2109375 0,0.359375 -0.136719,0.6835937 -0.132812,0.3203125 -0.488281,0.7578125 -0.09766,0.1132813 -0.621094,0.65625 -0.523437,0.5390626 -1.476562,1.5117188 z" />
+      <path
+         id="path41"
+         style="font-size:8px;text-anchor:middle"
+         d="m 19.96875,9.3359375 1.289062,0 0,-4.4492188 -1.402343,0.28125 0,-0.71875 1.394531,-0.28125 0.789062,0 0,5.1679688 1.289063,0 0,0.6640625 -3.359375,0 0,-0.6640625 z" />
+      <path
+         id="path43"
+         style="font-size:8px;text-anchor:middle"
+         d="m 25.605469,9.3359375 2.753906,0 0,0.6640625 -3.703125,0 0,-0.6640625 Q 25.105469,8.8710938 25.878906,8.0898438 26.65625,7.3046875 26.855469,7.078125 27.234375,6.6523437 27.382812,6.359375 27.535156,6.0625 27.535156,5.7773437 q 0,-0.4648437 -0.328125,-0.7578125 -0.324219,-0.2929687 -0.847656,-0.2929687 -0.371094,0 -0.785156,0.1289062 -0.410157,0.1289063 -0.878907,0.390625 l 0,-0.796875 Q 25.171875,4.2578125 25.585937,4.1601562 26,4.0625 26.34375,4.0625 q 0.90625,0 1.445312,0.453125 0.539063,0.453125 0.539063,1.2109375 0,0.359375 -0.136719,0.6835937 -0.132812,0.3203125 -0.488281,0.7578125 -0.09766,0.1132813 -0.621094,0.65625 -0.523437,0.5390626 -1.476562,1.5117188 z" />
+    </g>
+    <path
+       id="rect11"
+       d="m 4,17 22,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 L 4,45 C 2.892,45 2,44.108 2,43 L 2,19 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect13"
+       d="m 4,75 22,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 l -22,0 c -1.108,0 -2,-0.892 -2,-2 L 2,77 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect15"
+       d="m 4,133 22,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 l -22,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-24 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect17"
+       d="m 4,162 22,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 l -22,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-24 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect19"
+       d="m 4,220 22,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 l -22,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-24 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect21"
+       d="m 4,278 22,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 l -22,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-24 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect23"
+       d="m 4,336 22,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 l -22,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-24 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/SS-220.svg

@@ -0,0 +1,153 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg2"
+   version="1.1"
+   height="380px"
+   width="300px">
+  <metadata
+     id="metadata33">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs31" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 300,0 0,380 -300,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4230"
+       d="M 0,380 0,0 300,0 299,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4232"
+       d="m 0,380 300,0 0,-380 -1,1 0,378 -298,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 289.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 281,373.83071 8.1692063,5.1693144 0 0 0 289.16915,379 8.1692063,5.1693144 0 0 0 296.48278,376.11985 3.0461447,4.2480502 0 0 0 299,377.97641 l 0,-2.35772 a 1.3384576,1.9448905 0 0 1 -1.2923,-1.94151 1.3384576,1.9448905 0 0 1 1.2923,-1.94263 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 289.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text4236"
+       style="">
+      <path
+         id="path37"
+         style=""
+         d="m 8.3144531,370.63086 0,1.01953 q -0.4570312,-0.23437 -0.9492187,-0.35156 -0.4921875,-0.11719 -1.0195313,-0.11719 -0.8027344,0 -1.2070312,0.24609 -0.3984375,0.2461 -0.3984375,0.73829 0,0.375 0.2871093,0.59179 0.2871094,0.21094 1.1542969,0.4043 l 0.3691406,0.082 q 1.1484375,0.24609 1.6289063,0.69727 0.4863281,0.44531 0.4863281,1.24804 0,0.91407 -0.7265625,1.44727 -0.7207031,0.5332 -1.9863281,0.5332 -0.5273438,0 -1.1015625,-0.10547 -0.5683594,-0.0996 -1.2011719,-0.30468 l 0,-1.11329 q 0.5976563,0.31055 1.1777344,0.46875 0.5800781,0.15235 1.1484375,0.15235 0.7617187,0 1.171875,-0.25781 0.4101562,-0.26368 0.4101562,-0.73829 0,-0.43945 -0.2988281,-0.67382 -0.2929687,-0.23438 -1.2949219,-0.45118 l -0.375,-0.0879 q -1.0019531,-0.21093 -1.4472656,-0.64453 -0.4453125,-0.43945 -0.4453125,-1.20117 0,-0.92578 0.65625,-1.42969 0.65625,-0.5039 1.8632813,-0.5039 0.5976562,0 1.125,0.0879 0.5273437,0.0879 0.9726562,0.26367 z" />
+      <path
+         id="path39"
+         style=""
+         d="m 10.277344,374.41016 0,-3.97266 1.078125,0 0,3.93164 q 0,0.93164 0.363281,1.40039 0.363281,0.46289 1.089844,0.46289 0.873047,0 1.376953,-0.55664 0.509766,-0.55664 0.509766,-1.51758 l 0,-3.7207 1.078125,0 0,6.5625 -1.078125,0 0,-1.00781 q -0.392579,0.59765 -0.914063,0.89062 -0.515625,0.28711 -1.201172,0.28711 -1.130859,0 -1.716797,-0.70312 -0.585937,-0.70313 -0.585937,-2.05664 z m 2.71289,-4.13086 0,0 z" />
+      <path
+         id="path41"
+         style=""
+         d="m 22.716797,373.72461 q 0,-1.18945 -0.492188,-1.86328 -0.486328,-0.67969 -1.341797,-0.67969 -0.855468,0 -1.347656,0.67969 -0.486328,0.67383 -0.486328,1.86328 0,1.18945 0.486328,1.86914 0.492188,0.67383 1.347656,0.67383 0.855469,0 1.341797,-0.67383 0.492188,-0.67969 0.492188,-1.86914 z m -3.667969,-2.29102 q 0.339844,-0.58593 0.855469,-0.86718 0.521484,-0.28711 1.242187,-0.28711 1.195313,0 1.939453,0.94922 0.75,0.94921 0.75,2.49609 0,1.54687 -0.75,2.49609 -0.74414,0.94922 -1.939453,0.94922 -0.720703,0 -1.242187,-0.28125 -0.515625,-0.28711 -0.855469,-0.87305 l 0,0.98438 -1.083984,0 0,-9.11719 1.083984,0 0,3.55078 z" />
+      <path
+         id="path43"
+         style=""
+         d="m 30.732422,371.69727 q 0.404297,-0.72657 0.966797,-1.07227 0.5625,-0.3457 1.324218,-0.3457 1.025391,0 1.582032,0.7207 0.55664,0.71484 0.55664,2.03906 l 0,3.96094 -1.083984,0 0,-3.92578 q 0,-0.94336 -0.333984,-1.40039 -0.333985,-0.45703 -1.019532,-0.45703 -0.83789,0 -1.324218,0.55664 -0.486329,0.55664 -0.486329,1.51758 l 0,3.70898 -1.083984,0 0,-3.92578 q 0,-0.94922 -0.333984,-1.40039 -0.333985,-0.45703 -1.03125,-0.45703 -0.826172,0 -1.3125,0.5625 -0.486328,0.55664 -0.486328,1.51172 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.36914,-0.60351 0.884765,-0.89062 0.515625,-0.28711 1.22461,-0.28711 0.714843,0 1.21289,0.36328 0.503906,0.36328 0.744141,1.05469 z" />
+      <path
+         id="path45"
+         style=""
+         d="m 40.300781,373.70117 q -1.30664,0 -1.810547,0.29883 -0.503906,0.29883 -0.503906,1.01953 0,0.57422 0.375,0.91406 0.380859,0.33399 1.03125,0.33399 0.896484,0 1.435547,-0.63281 0.544922,-0.63868 0.544922,-1.69336 l 0,-0.24024 -1.072266,0 z m 2.150391,-0.44531 0,3.74414 -1.078125,0 0,-0.99609 q -0.369141,0.59765 -0.919922,0.88476 -0.550781,0.28125 -1.347656,0.28125 -1.007813,0 -1.605469,-0.5625 -0.591797,-0.56836 -0.591797,-1.51758 0,-1.10742 0.738281,-1.66992 0.744141,-0.5625 2.214844,-0.5625 l 1.511719,0 0,-0.10547 q 0,-0.74414 -0.492188,-1.14843 -0.486328,-0.41016 -1.371093,-0.41016 -0.5625,0 -1.095704,0.13476 -0.533203,0.13477 -1.02539,0.4043 l 0,-0.99609 q 0.591797,-0.22852 1.148437,-0.33985 0.556641,-0.11718 1.083985,-0.11718 1.423828,0 2.126953,0.73828 0.703125,0.73828 0.703125,2.23828 z" />
+      <path
+         id="path47"
+         style=""
+         d="m 48.480469,371.44531 q -0.181641,-0.10547 -0.398438,-0.15234 -0.210937,-0.0527 -0.46875,-0.0527 -0.914062,0 -1.40625,0.59766 -0.486328,0.5918 -0.486328,1.70508 l 0,3.45703 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.339844,-0.59766 0.884766,-0.88476 0.544922,-0.29297 1.324218,-0.29297 0.111329,0 0.246094,0.0176 0.134766,0.0117 0.298828,0.041 l 0.0059,1.10742 z" />
+      <path
+         id="path49"
+         style=""
+         d="m 49.623047,370.4375 1.078125,0 0,6.5625 -1.078125,0 0,-6.5625 z m 0,-2.55469 1.078125,0 0,1.36524 -1.078125,0 0,-1.36524 z" />
+      <path
+         id="path51"
+         style=""
+         d="m 58.40625,373.03906 0,3.96094 -1.078125,0 0,-3.92578 q 0,-0.93164 -0.363281,-1.39453 -0.363282,-0.46289 -1.089844,-0.46289 -0.873047,0 -1.376953,0.55664 -0.503906,0.55664 -0.503906,1.51758 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.386718,-0.5918 0.908203,-0.88476 0.527343,-0.29297 1.21289,-0.29297 1.13086,0 1.710938,0.70312 0.580078,0.69727 0.580078,2.05664 z" />
+      <path
+         id="path53"
+         style=""
+         d="m 66.181641,373.44922 0,0.52734 -4.957032,0 q 0.07031,1.11328 0.667969,1.69922 0.603516,0.58008 1.675781,0.58008 0.621094,0 1.201172,-0.15234 0.585938,-0.15235 1.160156,-0.45704 l 0,1.01954 q -0.580078,0.24609 -1.189453,0.375 -0.609375,0.1289 -1.236328,0.1289 -1.570312,0 -2.490234,-0.91406 -0.914063,-0.91406 -0.914063,-2.47266 0,-1.61133 0.867188,-2.55468 0.873047,-0.94922 2.349609,-0.94922 1.324219,0 2.091797,0.85547 0.773438,0.8496 0.773438,2.31445 z m -1.078125,-0.31641 q -0.01172,-0.88476 -0.498047,-1.41211 -0.480469,-0.52734 -1.277344,-0.52734 -0.902344,0 -1.447266,0.50976 -0.539062,0.50977 -0.621093,1.43555 l 3.84375,-0.006 z" />
+    </g>
+    <g
+       id="text4241"
+       style="text-anchor:middle">
+      <path
+         id="path56"
+         style="text-anchor:middle"
+         d="m 135.17578,3.5390625 0,1.1542969 Q 134.50195,4.3710937 133.9043,4.2128906 133.30664,4.0546875 132.75,4.0546875 q -0.9668,0 -1.49414,0.375 -0.52149,0.375 -0.52149,1.0664062 0,0.5800782 0.34571,0.8789063 0.35156,0.2929687 1.32422,0.4746094 l 0.71484,0.1464843 q 1.32422,0.2519532 1.95117,0.890625 0.63281,0.6328126 0.63281,1.6992188 0,1.2714845 -0.85546,1.9277345 -0.84961,0.65625 -2.4961,0.65625 -0.62109,0 -1.32422,-0.140625 -0.69726,-0.140625 -1.44726,-0.416016 l 0,-1.21875 q 0.7207,0.404297 1.41211,0.609375 0.6914,0.205078 1.35937,0.205078 1.01367,0 1.56446,-0.398437 0.55078,-0.398438 0.55078,-1.1367189 0,-0.6445312 -0.39844,-1.0078125 -0.39258,-0.3632812 -1.29492,-0.5449218 l -0.72071,-0.1406251 q -1.32421,-0.2636718 -1.91601,-0.8261718 -0.5918,-0.5625 -0.5918,-1.5644532 0,-1.1601562 0.81445,-1.8281249 0.82032,-0.6679688 2.25586,-0.6679688 0.61524,0 1.25391,0.1113281 0.63867,0.1113282 1.30664,0.3339844 z" />
+      <path
+         id="path58"
+         style="text-anchor:middle"
+         d="m 142.79297,3.5390625 0,1.1542969 q -0.67383,-0.3222657 -1.27149,-0.4804688 -0.59765,-0.1582031 -1.15429,-0.1582031 -0.9668,0 -1.49414,0.375 -0.52149,0.375 -0.52149,1.0664062 0,0.5800782 0.34571,0.8789063 0.35156,0.2929687 1.32421,0.4746094 l 0.71485,0.1464843 q 1.32422,0.2519532 1.95117,0.890625 0.63281,0.6328126 0.63281,1.6992188 0,1.2714845 -0.85547,1.9277345 -0.84961,0.65625 -2.49609,0.65625 -0.62109,0 -1.32422,-0.140625 -0.69726,-0.140625 -1.44726,-0.416016 l 0,-1.21875 q 0.7207,0.404297 1.4121,0.609375 0.69141,0.205078 1.35938,0.205078 1.01367,0 1.56445,-0.398437 0.55078,-0.398438 0.55078,-1.1367189 0,-0.6445312 -0.39843,-1.0078125 -0.39258,-0.3632812 -1.29493,-0.5449218 l -0.7207,-0.1406251 q -1.32422,-0.2636718 -1.91601,-0.8261718 -0.5918,-0.5625 -0.5918,-1.5644532 0,-1.1601562 0.81445,-1.8281249 0.82031,-0.6679688 2.25586,-0.6679688 0.61524,0 1.25391,0.1113281 0.63867,0.1113282 1.30664,0.3339844 z" />
+      <path
+         id="path60"
+         style="text-anchor:middle"
+         d="m 144.57422,8.2324219 3.1582,0 0,0.9609375 -3.1582,0 0,-0.9609375 z" />
+      <path
+         id="path62"
+         style="text-anchor:middle"
+         d="m 150.62695,11.003906 4.13086,0 0,0.996094 -5.55469,0 0,-0.996094 q 0.67383,-0.697265 1.83399,-1.8691404 1.16601,-1.1777344 1.46484,-1.5175781 0.56836,-0.6386719 0.79102,-1.078125 0.22851,-0.4453125 0.22851,-0.8730469 0,-0.6972656 -0.49218,-1.1367187 -0.48633,-0.4394532 -1.27149,-0.4394532 -0.55664,0 -1.17773,0.1933594 -0.61524,0.1933594 -1.31836,0.5859375 l 0,-1.1953125 q 0.71484,-0.2871093 1.33594,-0.4335937 0.62109,-0.1464844 1.13671,-0.1464844 1.35938,0 2.16797,0.6796875 0.8086,0.6796875 0.8086,1.8164062 0,0.5390625 -0.20508,1.0253907 -0.19922,0.4804687 -0.73242,1.1367187 -0.14649,0.1699219 -0.93164,0.984375 -0.78516,0.8085938 -2.21485,2.2675779 z" />
+      <path
+         id="path64"
+         style="text-anchor:middle"
+         d="m 158.26758,11.003906 4.13086,0 0,0.996094 -5.55469,0 0,-0.996094 q 0.67383,-0.697265 1.83398,-1.8691404 1.16602,-1.1777344 1.46485,-1.5175781 0.56836,-0.6386719 0.79101,-1.078125 0.22852,-0.4453125 0.22852,-0.8730469 0,-0.6972656 -0.49219,-1.1367187 -0.48633,-0.4394532 -1.27148,-0.4394532 -0.55664,0 -1.17774,0.1933594 -0.61523,0.1933594 -1.31836,0.5859375 l 0,-1.1953125 q 0.71485,-0.2871093 1.33594,-0.4335937 0.62109,-0.1464844 1.13672,-0.1464844 1.35937,0 2.16797,0.6796875 0.80859,0.6796875 0.80859,1.8164062 0,0.5390625 -0.20508,1.0253907 -0.19921,0.4804687 -0.73242,1.1367187 -0.14648,0.1699219 -0.93164,0.984375 -0.78515,0.8085938 -2.21484,2.2675779 z" />
+      <path
+         id="path66"
+         style="text-anchor:middle"
+         d="m 167.41992,4.03125 q -0.91406,0 -1.37695,0.9023437 -0.45703,0.8964844 -0.45703,2.7011719 0,1.7988282 0.45703,2.7011724 0.46289,0.896484 1.37695,0.896484 0.91992,0 1.37695,-0.896484 0.4629,-0.9023442 0.4629,-2.7011724 0,-1.8046875 -0.4629,-2.7011719 Q 168.33984,4.03125 167.41992,4.03125 Z m 0,-0.9375 q 1.4707,0 2.24414,1.1660156 0.7793,1.1601563 0.7793,3.375 0,2.2089844 -0.7793,3.3750004 -0.77344,1.160156 -2.24414,1.160156 -1.4707,0 -2.25,-1.160156 -0.77344,-1.166016 -0.77344,-3.3750004 0,-2.2148437 0.77344,-3.375 0.7793,-1.1660156 2.25,-1.1660156 z" />
+    </g>
+    <path
+       id="rect12"
+       d="m 4,17 292,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 L 4,45 C 2.892,45 2,44.108 2,43 L 2,19 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect14"
+       d="m 4,75 292,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 L 4,103 c -1.108,0 -2,-0.892 -2,-2 L 2,77 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect16"
+       d="m 4,133 292,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 L 4,161 c -1.108,0 -2,-0.892 -2,-2 l 0,-24 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect18"
+       d="m 4,162 292,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 L 4,190 c -1.108,0 -2,-0.892 -2,-2 l 0,-24 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect20"
+       d="m 4,220 292,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 L 4,248 c -1.108,0 -2,-0.892 -2,-2 l 0,-24 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect22"
+       d="m 4,278 292,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 L 4,306 c -1.108,0 -2,-0.892 -2,-2 l 0,-24 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+    <path
+       id="rect24"
+       d="m 4,336 292,0 c 1.108,0 2,0.892 2,2 l 0,24 c 0,1.108 -0.892,2 -2,2 L 4,364 c -1.108,0 -2,-0.892 -2,-2 l 0,-24 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:none;stroke:#ffffff"
+     font-size="8"
+     id="screen">
+    <path
+       id="rect27"
+       d="m 152.5,14.5 25,0 c 1.108,0 2,0.892 2,2 l 0,348 c 0,1.108 -0.892,2 -2,2 l -25,0 c -1.108,0 -2,-0.892 -2,-2 l 0,-348 c 0,-1.108 0.892,-2 2,-2 z"
+       style="" />
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/SS-221.svg

@@ -0,0 +1,414 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   version="1.1"
+   id="svg2"
+   height="380px"
+   width="75px">
+  <metadata
+     id="metadata38">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs36" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 75,0 0,380 -75,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 75,0 74,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 75,0 0,-380 -1,1 0,378 -73,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <g
+       id="text4239"
+       style="text-anchor:middle">
+      <path
+         id="path42"
+         style="text-anchor:middle"
+         d="m 22.675781,3.5390625 0,1.1542969 Q 22.001953,4.3710937 21.404297,4.2128906 20.806641,4.0546875 20.25,4.0546875 q -0.966797,0 -1.494141,0.375 -0.521484,0.375 -0.521484,1.0664062 0,0.5800782 0.345703,0.8789063 0.351563,0.2929687 1.324219,0.4746094 l 0.714844,0.1464843 q 1.324218,0.2519532 1.951171,0.890625 0.632813,0.6328126 0.632813,1.6992188 0,1.2714845 -0.855469,1.9277345 -0.849609,0.65625 -2.496094,0.65625 -0.621093,0 -1.324218,-0.140625 -0.697266,-0.140625 -1.447266,-0.416016 l 0,-1.21875 q 0.720703,0.404297 1.412109,0.609375 0.691407,0.205078 1.359375,0.205078 1.013672,0 1.564454,-0.398437 0.550781,-0.398438 0.550781,-1.1367189 0,-0.6445312 -0.398438,-1.0078125 Q 21.175781,8.3027344 20.273437,8.1210938 L 19.552734,7.9804687 q -1.324218,-0.2636718 -1.916015,-0.8261718 -0.591797,-0.5625 -0.591797,-1.5644532 0,-1.1601562 0.814453,-1.8281249 0.820312,-0.6679688 2.255859,-0.6679688 0.615235,0 1.253907,0.1113281 0.638671,0.1113282 1.30664,0.3339844 z" />
+      <path
+         id="path44"
+         style="text-anchor:middle"
+         d="m 30.292969,3.5390625 0,1.1542969 Q 29.619141,4.3710937 29.021484,4.2128906 28.423828,4.0546875 27.867187,4.0546875 q -0.966796,0 -1.49414,0.375 -0.521485,0.375 -0.521485,1.0664062 0,0.5800782 0.345704,0.8789063 0.351562,0.2929687 1.324218,0.4746094 l 0.714844,0.1464843 q 1.324219,0.2519532 1.951172,0.890625 0.632812,0.6328126 0.632812,1.6992188 0,1.2714845 -0.855468,1.9277345 -0.84961,0.65625 -2.496094,0.65625 -0.621094,0 -1.324219,-0.140625 -0.697265,-0.140625 -1.447265,-0.416016 l 0,-1.21875 q 0.720703,0.404297 1.412109,0.609375 0.691406,0.205078 1.359375,0.205078 1.013672,0 1.564453,-0.398437 0.550781,-0.398438 0.550781,-1.1367189 0,-0.6445312 -0.398437,-1.0078125 Q 28.792969,8.3027344 27.890625,8.1210938 L 27.169922,7.9804687 q -1.324219,-0.2636718 -1.916016,-0.8261718 -0.591797,-0.5625 -0.591797,-1.5644532 0,-1.1601562 0.814453,-1.8281249 0.820313,-0.6679688 2.25586,-0.6679688 0.615234,0 1.253906,0.1113281 0.638672,0.1113282 1.306641,0.3339844 z" />
+      <path
+         id="path46"
+         style="text-anchor:middle"
+         d="m 32.074219,8.2324219 3.158203,0 0,0.9609375 -3.158203,0 0,-0.9609375 z" />
+      <path
+         id="path48"
+         style="text-anchor:middle"
+         d="m 38.126953,11.003906 4.130859,0 0,0.996094 -5.554687,0 0,-0.996094 q 0.673828,-0.697265 1.833984,-1.8691404 1.166016,-1.1777344 1.464844,-1.5175781 0.568359,-0.6386719 0.791016,-1.078125 0.228515,-0.4453125 0.228515,-0.8730469 0,-0.6972656 -0.492187,-1.1367187 -0.486328,-0.4394532 -1.271485,-0.4394532 -0.55664,0 -1.177734,0.1933594 -0.615234,0.1933594 -1.318359,0.5859375 l 0,-1.1953125 Q 37.476562,3.3867188 38.097656,3.2402344 38.71875,3.09375 39.234375,3.09375 q 1.359375,0 2.167969,0.6796875 0.808593,0.6796875 0.808593,1.8164062 0,0.5390625 -0.205078,1.0253907 -0.199218,0.4804687 -0.732422,1.1367187 -0.146484,0.1699219 -0.93164,0.984375 -0.785156,0.8085938 -2.214844,2.2675779 z" />
+      <path
+         id="path50"
+         style="text-anchor:middle"
+         d="m 45.767578,11.003906 4.130859,0 0,0.996094 -5.554687,0 0,-0.996094 q 0.673828,-0.697265 1.833984,-1.8691404 1.166016,-1.1777344 1.464844,-1.5175781 0.568359,-0.6386719 0.791016,-1.078125 0.228515,-0.4453125 0.228515,-0.8730469 0,-0.6972656 -0.492187,-1.1367187 -0.486328,-0.4394532 -1.271485,-0.4394532 -0.55664,0 -1.177734,0.1933594 -0.615234,0.1933594 -1.318359,0.5859375 l 0,-1.1953125 Q 45.117187,3.3867188 45.738281,3.2402344 46.359375,3.09375 46.875,3.09375 q 1.359375,0 2.167969,0.6796875 0.808593,0.6796875 0.808593,1.8164062 0,0.5390625 -0.205078,1.0253907 -0.199218,0.4804687 -0.732422,1.1367187 -0.146484,0.1699219 -0.93164,0.984375 -0.785156,0.8085938 -2.214844,2.2675779 z" />
+      <path
+         id="path52"
+         style="text-anchor:middle"
+         d="m 52.59375,11.003906 1.933594,0 0,-6.6738279 -2.103516,0.421875 0,-1.078125 2.091797,-0.421875 1.183594,0 0,7.7519529 1.933593,0 0,0.996094 -5.039062,0 0,-0.996094 z" />
+    </g>
+    <g
+       id="text10"
+       style="text-anchor:middle">
+      <path
+         id="path55"
+         style="text-anchor:middle"
+         d="m 10.904297,370.63086 0,1.01953 q -0.457031,-0.23437 -0.9492189,-0.35156 -0.4921875,-0.11719 -1.0195312,-0.11719 -0.8027344,0 -1.2070313,0.24609 -0.3984375,0.2461 -0.3984375,0.73829 0,0.375 0.2871094,0.59179 0.2871094,0.21094 1.1542969,0.4043 l 0.3691406,0.082 q 1.148438,0.24609 1.628906,0.69727 0.486328,0.44531 0.486328,1.24804 0,0.91407 -0.726562,1.44727 -0.7207032,0.5332 -1.9863282,0.5332 -0.5273438,0 -1.1015626,-0.10547 -0.5683593,-0.0996 -1.2011718,-0.30468 l 0,-1.11329 q 0.5976562,0.31055 1.1777343,0.46875 0.5800782,0.15235 1.1484376,0.15235 0.7617187,0 1.171875,-0.25781 0.4101567,-0.26368 0.4101567,-0.73829 0,-0.43945 -0.2988286,-0.67382 -0.2929688,-0.23438 -1.2949219,-0.45118 l -0.375,-0.0879 q -1.0019531,-0.21093 -1.4472656,-0.64453 -0.4453125,-0.43945 -0.4453125,-1.20117 0,-0.92578 0.65625,-1.42969 0.65625,-0.5039 1.8632812,-0.5039 0.5976563,0 1.125,0.0879 0.5273434,0.0879 0.9726564,0.26367 z" />
+      <path
+         id="path57"
+         style="text-anchor:middle"
+         d="m 12.867188,374.41016 0,-3.97266 1.078125,0 0,3.93164 q 0,0.93164 0.363281,1.40039 0.363281,0.46289 1.089844,0.46289 0.873046,0 1.376953,-0.55664 0.509765,-0.55664 0.509765,-1.51758 l 0,-3.7207 1.078125,0 0,6.5625 -1.078125,0 0,-1.00781 q -0.392578,0.59765 -0.914062,0.89062 -0.515625,0.28711 -1.201172,0.28711 -1.130859,0 -1.716797,-0.70312 -0.585937,-0.70313 -0.585937,-2.05664 z m 2.71289,-4.13086 0,0 z" />
+      <path
+         id="path59"
+         style="text-anchor:middle"
+         d="m 25.306641,373.72461 q 0,-1.18945 -0.492188,-1.86328 -0.486328,-0.67969 -1.341797,-0.67969 -0.855469,0 -1.347656,0.67969 -0.486328,0.67383 -0.486328,1.86328 0,1.18945 0.486328,1.86914 0.492187,0.67383 1.347656,0.67383 0.855469,0 1.341797,-0.67383 0.492188,-0.67969 0.492188,-1.86914 z m -3.667969,-2.29102 q 0.339844,-0.58593 0.855469,-0.86718 0.521484,-0.28711 1.242187,-0.28711 1.195313,0 1.939453,0.94922 0.75,0.94921 0.75,2.49609 0,1.54687 -0.75,2.49609 -0.74414,0.94922 -1.939453,0.94922 -0.720703,0 -1.242187,-0.28125 -0.515625,-0.28711 -0.855469,-0.87305 l 0,0.98438 -1.083985,0 0,-9.11719 1.083985,0 0,3.55078 z" />
+      <path
+         id="path61"
+         style="text-anchor:middle"
+         d="m 33.322266,371.69727 q 0.404296,-0.72657 0.966796,-1.07227 0.5625,-0.3457 1.324219,-0.3457 1.025391,0 1.582031,0.7207 0.556641,0.71484 0.556641,2.03906 l 0,3.96094 -1.083984,0 0,-3.92578 q 0,-0.94336 -0.333985,-1.40039 Q 36,371.2168 35.314453,371.2168 q -0.837891,0 -1.324219,0.55664 -0.486328,0.55664 -0.486328,1.51758 l 0,3.70898 -1.083984,0 0,-3.92578 q 0,-0.94922 -0.333985,-1.40039 -0.333984,-0.45703 -1.03125,-0.45703 -0.826171,0 -1.3125,0.5625 -0.486328,0.55664 -0.486328,1.51172 l 0,3.70898 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.369141,-0.60351 0.884766,-0.89062 0.515625,-0.28711 1.224609,-0.28711 0.714844,0 1.212891,0.36328 0.503906,0.36328 0.744141,1.05469 z" />
+      <path
+         id="path63"
+         style="text-anchor:middle"
+         d="m 42.890625,373.70117 q -1.306641,0 -1.810547,0.29883 -0.503906,0.29883 -0.503906,1.01953 0,0.57422 0.375,0.91406 0.380859,0.33399 1.03125,0.33399 0.896484,0 1.435547,-0.63281 0.544922,-0.63868 0.544922,-1.69336 l 0,-0.24024 -1.072266,0 z m 2.150391,-0.44531 0,3.74414 -1.078125,0 0,-0.99609 q -0.369141,0.59765 -0.919922,0.88476 -0.550782,0.28125 -1.347657,0.28125 -1.007812,0 -1.605468,-0.5625 -0.591797,-0.56836 -0.591797,-1.51758 0,-1.10742 0.738281,-1.66992 0.744141,-0.5625 2.214844,-0.5625 l 1.511719,0 0,-0.10547 q 0,-0.74414 -0.492188,-1.14843 -0.486328,-0.41016 -1.371094,-0.41016 -0.5625,0 -1.095703,0.13476 -0.533203,0.13477 -1.02539,0.4043 l 0,-0.99609 q 0.591796,-0.22852 1.148437,-0.33985 0.556641,-0.11718 1.083984,-0.11718 1.423829,0 2.126954,0.73828 0.703125,0.73828 0.703125,2.23828 z" />
+      <path
+         id="path65"
+         style="text-anchor:middle"
+         d="m 51.070312,371.44531 q -0.18164,-0.10547 -0.398437,-0.15234 -0.210938,-0.0527 -0.46875,-0.0527 -0.914063,0 -1.40625,0.59766 -0.486328,0.5918 -0.486328,1.70508 l 0,3.45703 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.339844,-0.59766 0.884765,-0.88476 0.544922,-0.29297 1.324219,-0.29297 0.111328,0 0.246094,0.0176 0.134766,0.0117 0.298828,0.041 l 0.0059,1.10742 z" />
+      <path
+         id="path67"
+         style="text-anchor:middle"
+         d="m 52.212891,370.4375 1.078125,0 0,6.5625 -1.078125,0 0,-6.5625 z m 0,-2.55469 1.078125,0 0,1.36524 -1.078125,0 0,-1.36524 z" />
+      <path
+         id="path69"
+         style="text-anchor:middle"
+         d="m 60.996094,373.03906 0,3.96094 -1.078125,0 0,-3.92578 q 0,-0.93164 -0.363282,-1.39453 -0.363281,-0.46289 -1.089843,-0.46289 -0.873047,0 -1.376953,0.55664 -0.503907,0.55664 -0.503907,1.51758 l 0,3.70898 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.386719,-0.5918 0.908203,-0.88476 0.527344,-0.29297 1.212891,-0.29297 1.130859,0 1.710938,0.70312 0.580078,0.69727 0.580078,2.05664 z" />
+      <path
+         id="path71"
+         style="text-anchor:middle"
+         d="m 68.771484,373.44922 0,0.52734 -4.957031,0 q 0.07031,1.11328 0.667969,1.69922 0.603515,0.58008 1.675781,0.58008 0.621094,0 1.201172,-0.15234 0.585937,-0.15235 1.160156,-0.45704 l 0,1.01954 q -0.580078,0.24609 -1.189453,0.375 -0.609375,0.1289 -1.236328,0.1289 -1.570313,0 -2.490234,-0.91406 -0.914063,-0.91406 -0.914063,-2.47266 0,-1.61133 0.867188,-2.55468 0.873046,-0.94922 2.349609,-0.94922 1.324219,0 2.091797,0.85547 0.773437,0.8496 0.773437,2.31445 z m -1.078125,-0.31641 q -0.01172,-0.88476 -0.498047,-1.41211 -0.480468,-0.52734 -1.277343,-0.52734 -0.902344,0 -1.447266,0.50976 -0.539062,0.50977 -0.621094,1.43555 l 3.84375,-0.006 z" />
+    </g>
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:#ffffff;stroke:none"
+     font-size="8"
+     id="group1">
+    <g
+       id="text4242"
+       style="text-anchor:middle">
+      <path
+         id="path74"
+         style="text-anchor:middle"
+         d="m 30.664062,33.335937 1.289063,0 0,-4.449218 -1.402344,0.28125 0,-0.71875 1.394531,-0.28125 0.789063,0 0,5.167968 1.289062,0 0,0.664063 -3.359375,0 0,-0.664063 z" />
+      <path
+         id="path76"
+         style="text-anchor:middle"
+         d="m 37.308594,28.6875 q -0.609375,0 -0.917969,0.601562 -0.304688,0.597657 -0.304688,1.800782 0,1.199218 0.304688,1.800781 0.308594,0.597656 0.917969,0.597656 0.613281,0 0.917968,-0.597656 0.308594,-0.601563 0.308594,-1.800781 0,-1.203125 -0.308594,-1.800782 Q 37.921875,28.6875 37.308594,28.6875 Z m 0,-0.625 q 0.980468,0 1.496093,0.777344 0.519532,0.773437 0.519532,2.25 0,1.472656 -0.519532,2.25 -0.515625,0.773437 -1.496093,0.773437 -0.980469,0 -1.5,-0.773437 -0.515625,-0.777344 -0.515625,-2.25 0,-1.476563 0.515625,-2.25 0.519531,-0.777344 1.5,-0.777344 z" />
+      <path
+         id="path78"
+         style="text-anchor:middle"
+         d="m 42.148437,34 -2.226562,-5.832031 0.824219,0 1.847656,4.910156 1.851562,-4.910156 0.820313,0 L 43.042969,34 42.148437,34 Z" />
+    </g>
+    <g
+       id="text4244"
+       style="text-anchor:middle">
+      <path
+         id="path81"
+         style="text-anchor:middle"
+         d="m 33.097656,49.878906 0,-0.71875 q 0.296875,0.140625 0.601563,0.214844 0.304687,0.07422 0.597656,0.07422 0.78125,0 1.191406,-0.523438 0.414063,-0.527344 0.472656,-1.597656 -0.226562,0.335937 -0.574218,0.515625 -0.347657,0.179687 -0.769532,0.179687 -0.875,0 -1.386718,-0.527343 -0.507813,-0.53125 -0.507813,-1.449219 0,-0.898438 0.53125,-1.441406 0.53125,-0.542969 1.414063,-0.542969 1.011718,0 1.542968,0.777344 0.535157,0.773437 0.535157,2.25 0,1.378906 -0.65625,2.203125 -0.652344,0.820312 -1.757813,0.820312 -0.296875,0 -0.601562,-0.05859 -0.304688,-0.05859 -0.632813,-0.175781 z m 1.570313,-2.472656 q 0.53125,0 0.839843,-0.363281 0.3125,-0.363282 0.3125,-0.996094 0,-0.628906 -0.3125,-0.992188 -0.308593,-0.367187 -0.839843,-0.367187 -0.53125,0 -0.84375,0.367187 -0.308594,0.363282 -0.308594,0.992188 0,0.632812 0.308594,0.996094 0.3125,0.363281 0.84375,0.363281 z" />
+      <path
+         id="path83"
+         style="text-anchor:middle"
+         d="M 39.601562,50 37.375,44.167969 l 0.824219,0 1.847656,4.910156 1.851562,-4.910156 0.820313,0 L 40.496094,50 39.601562,50 Z" />
+    </g>
+    <g
+       id="text4246"
+       style="text-anchor:middle">
+      <path
+         id="path86"
+         style="text-anchor:middle"
+         d="m 34.761719,63.230469 q -0.5625,0 -0.886719,0.300781 -0.320313,0.300781 -0.320313,0.828125 0,0.527344 0.320313,0.828125 0.324219,0.300781 0.886719,0.300781 0.5625,0 0.886718,-0.300781 0.324219,-0.304688 0.324219,-0.828125 0,-0.527344 -0.324219,-0.828125 -0.320312,-0.300781 -0.886718,-0.300781 z m -0.789063,-0.335938 q -0.507812,-0.125 -0.792969,-0.472656 -0.28125,-0.347656 -0.28125,-0.847656 0,-0.699219 0.496094,-1.105469 0.5,-0.40625 1.367188,-0.40625 0.871093,0 1.367187,0.40625 0.496094,0.40625 0.496094,1.105469 0,0.5 -0.285156,0.847656 -0.28125,0.347656 -0.785157,0.472656 0.570313,0.132813 0.886719,0.519531 0.320313,0.386719 0.320313,0.945313 0,0.847656 -0.519532,1.300781 -0.515625,0.453125 -1.480468,0.453125 -0.964844,0 -1.484375,-0.453125 -0.515625,-0.453125 -0.515625,-1.300781 0,-0.558594 0.320312,-0.945313 0.320313,-0.386718 0.890625,-0.519531 z m -0.289062,-1.246094 q 0,0.453125 0.28125,0.707032 0.285156,0.253906 0.796875,0.253906 0.507812,0 0.792968,-0.253906 0.289063,-0.253907 0.289063,-0.707032 0,-0.453125 -0.289063,-0.707031 -0.285156,-0.253906 -0.792968,-0.253906 -0.511719,0 -0.796875,0.253906 -0.28125,0.253906 -0.28125,0.707031 z" />
+      <path
+         id="path88"
+         style="text-anchor:middle"
+         d="M 39.601562,66 37.375,60.167969 l 0.824219,0 1.847656,4.910156 1.851562,-4.910156 0.820313,0 L 40.496094,66 39.601562,66 Z" />
+    </g>
+    <g
+       id="text4248"
+       style="text-anchor:middle">
+      <path
+         id="path91"
+         style="text-anchor:middle"
+         d="m 32.875,76.167969 3.75,0 0,0.335937 L 34.507812,82 l -0.824218,0 1.992187,-5.167969 -2.800781,0 0,-0.664062 z" />
+      <path
+         id="path93"
+         style="text-anchor:middle"
+         d="M 39.601562,82 37.375,76.167969 l 0.824219,0 1.847656,4.910156 1.851562,-4.910156 0.820313,0 L 40.496094,82 39.601562,82 Z" />
+    </g>
+    <g
+       id="text4250"
+       style="text-anchor:middle">
+      <path
+         id="path96"
+         style="text-anchor:middle"
+         d="m 34.859375,94.769531 q -0.53125,0 -0.84375,0.363281 -0.308594,0.363282 -0.308594,0.996094 0,0.628906 0.308594,0.996094 0.3125,0.363281 0.84375,0.363281 0.53125,0 0.839844,-0.363281 0.3125,-0.367188 0.3125,-0.996094 0,-0.632812 -0.3125,-0.996094 -0.308594,-0.363281 -0.839844,-0.363281 z m 1.566406,-2.472656 0,0.71875 Q 36.128906,92.875 35.824219,92.800781 q -0.300782,-0.07422 -0.597657,-0.07422 -0.78125,0 -1.195312,0.527344 -0.410156,0.527344 -0.46875,1.59375 0.230469,-0.339844 0.578125,-0.519531 0.347656,-0.183594 0.765625,-0.183594 0.878906,0 1.386719,0.535156 0.511718,0.53125 0.511718,1.449219 0,0.898438 -0.53125,1.441406 -0.53125,0.542969 -1.414062,0.542969 -1.011719,0 -1.546875,-0.773437 -0.535156,-0.777344 -0.535156,-2.25 0,-1.382813 0.65625,-2.203125 0.65625,-0.824219 1.761718,-0.824219 0.296875,0 0.597657,0.05859 0.304687,0.05859 0.632812,0.175781 z" />
+      <path
+         id="path98"
+         style="text-anchor:middle"
+         d="M 39.601562,98 37.375,92.167969 l 0.824219,0 1.847656,4.910156 1.851562,-4.910156 0.820313,0 L 40.496094,98 39.601562,98 Z" />
+    </g>
+    <g
+       id="text4252"
+       style="text-anchor:middle">
+      <path
+         id="path101"
+         style="text-anchor:middle"
+         d="m 33.082031,108.16797 3.097656,0 0,0.66406 -2.375,0 0,1.42969 q 0.171875,-0.0586 0.34375,-0.0859 0.171875,-0.0312 0.34375,-0.0312 0.976563,0 1.546875,0.53516 0.570313,0.53515 0.570313,1.44922 0,0.9414 -0.585938,1.46484 -0.585937,0.51953 -1.652343,0.51953 -0.367188,0 -0.75,-0.0625 -0.378907,-0.0625 -0.785157,-0.1875 l 0,-0.79297 q 0.351563,0.19141 0.726563,0.28516 0.375,0.0937 0.792969,0.0937 0.675781,0 1.070312,-0.35547 0.394531,-0.35547 0.394531,-0.96484 0,-0.60938 -0.394531,-0.96485 -0.394531,-0.35547 -1.070312,-0.35547 -0.316407,0 -0.632813,0.0703 -0.3125,0.0703 -0.640625,0.21875 l 0,-2.92969 z" />
+      <path
+         id="path103"
+         style="text-anchor:middle"
+         d="m 39.601562,114 -2.226562,-5.83203 0.824219,0 1.847656,4.91016 1.851562,-4.91016 0.820313,0 -2.222656,5.83203 -0.894532,0 z" />
+    </g>
+    <g
+       id="text4254"
+       style="text-anchor:middle">
+      <path
+         id="path106"
+         style="text-anchor:middle"
+         d="m 35.242187,124.85547 -1.992187,3.11328 1.992187,0 0,-3.11328 z m -0.207031,-0.6875 0.992188,0 0,3.80078 0.832031,0 0,0.65625 -0.832031,0 0,1.375 -0.785157,0 0,-1.375 -2.632812,0 0,-0.76172 2.425781,-3.69531 z" />
+      <path
+         id="path108"
+         style="text-anchor:middle"
+         d="m 39.601562,130 -2.226562,-5.83203 0.824219,0 1.847656,4.91015 1.851562,-4.91015 0.820313,0 -2.222656,5.83203 -0.894532,0 z" />
+    </g>
+    <g
+       id="text4256"
+       style="text-anchor:middle">
+      <path
+         id="path111"
+         style="text-anchor:middle"
+         d="m 35.464844,142.85547 q 0.566406,0.12109 0.882812,0.5039 0.320313,0.38282 0.320313,0.94532 0,0.86328 -0.59375,1.33593 -0.59375,0.47266 -1.6875,0.47266 -0.367188,0 -0.757813,-0.0742 -0.386719,-0.0703 -0.800781,-0.21484 l 0,-0.76172 q 0.328125,0.19141 0.71875,0.28906 0.390625,0.0977 0.816406,0.0977 0.742188,0 1.128906,-0.29297 0.390625,-0.29297 0.390625,-0.85156 0,-0.51563 -0.363281,-0.80469 -0.359375,-0.29297 -1.003906,-0.29297 l -0.679688,0 0,-0.64844 0.710938,0 q 0.582031,0 0.890625,-0.23047 0.308594,-0.23437 0.308594,-0.67187 0,-0.44922 -0.320313,-0.6875 -0.316406,-0.24219 -0.910156,-0.24219 -0.324219,0 -0.695313,0.0703 -0.371093,0.0703 -0.816406,0.21875 l 0,-0.70312 q 0.449219,-0.125 0.839844,-0.1875 0.394531,-0.0625 0.742187,-0.0625 0.898438,0 1.421875,0.41016 0.523438,0.40625 0.523438,1.10156 0,0.48437 -0.277344,0.82031 -0.277344,0.33203 -0.789062,0.46094 z" />
+      <path
+         id="path113"
+         style="text-anchor:middle"
+         d="m 39.601562,146 -2.226562,-5.83203 0.824219,0 1.847656,4.91015 1.851562,-4.91015 0.820313,0 -2.222656,5.83203 -0.894532,0 z" />
+    </g>
+    <g
+       id="text4258"
+       style="text-anchor:middle">
+      <path
+         id="path116"
+         style="text-anchor:middle"
+         d="m 33.753906,161.33594 2.753906,0 0,0.66406 -3.703125,0 0,-0.66406 q 0.449219,-0.46485 1.222657,-1.2461 0.777343,-0.78515 0.976562,-1.01172 0.378906,-0.42578 0.527344,-0.71875 0.152344,-0.29687 0.152344,-0.58203 0,-0.46484 -0.328125,-0.75781 -0.324219,-0.29297 -0.847657,-0.29297 -0.371093,0 -0.785156,0.12891 -0.410156,0.1289 -0.878906,0.39062 l 0,-0.79687 q 0.476562,-0.19141 0.890625,-0.28906 0.414062,-0.0977 0.757812,-0.0977 0.90625,0 1.445313,0.45312 0.539062,0.45313 0.539062,1.21094 0,0.35938 -0.136718,0.6836 -0.132813,0.32031 -0.488282,0.75781 -0.09766,0.11328 -0.621093,0.65625 -0.523438,0.53906 -1.476563,1.51172 z" />
+      <path
+         id="path118"
+         style="text-anchor:middle"
+         d="m 39.601562,162 -2.226562,-5.83203 0.824219,0 1.847656,4.91015 1.851562,-4.91015 0.820313,0 -2.222656,5.83203 -0.894532,0 z" />
+    </g>
+    <g
+       id="text4260"
+       style="text-anchor:middle">
+      <path
+         id="path121"
+         style="text-anchor:middle"
+         d="m 33.210937,177.33594 1.289063,0 0,-4.44922 -1.402344,0.28125 0,-0.71875 1.394531,-0.28125 0.789063,0 0,5.16797 1.289062,0 0,0.66406 -3.359375,0 0,-0.66406 z" />
+      <path
+         id="path123"
+         style="text-anchor:middle"
+         d="m 39.601562,178 -2.226562,-5.83203 0.824219,0 1.847656,4.91015 1.851562,-4.91015 0.820313,0 -2.222656,5.83203 -0.894532,0 z" />
+    </g>
+    <g
+       id="text4262"
+       style="text-anchor:middle">
+      <path
+         id="path126"
+         style="text-anchor:middle"
+         d="m 34.761719,188.6875 q -0.609375,0 -0.917969,0.60156 -0.304688,0.59766 -0.304688,1.80078 0,1.19922 0.304688,1.80078 0.308594,0.59766 0.917969,0.59766 0.613281,0 0.917968,-0.59766 0.308594,-0.60156 0.308594,-1.80078 0,-1.20312 -0.308594,-1.80078 Q 35.375,188.6875 34.761719,188.6875 Z m 0,-0.625 q 0.980468,0 1.496093,0.77734 0.519532,0.77344 0.519532,2.25 0,1.47266 -0.519532,2.25 -0.515625,0.77344 -1.496093,0.77344 -0.980469,0 -1.5,-0.77344 -0.515625,-0.77734 -0.515625,-2.25 0,-1.47656 0.515625,-2.25 0.519531,-0.77734 1.5,-0.77734 z" />
+      <path
+         id="path128"
+         style="text-anchor:middle"
+         d="m 39.601562,194 -2.226562,-5.83203 0.824219,0 1.847656,4.91015 1.851562,-4.91015 0.820313,0 -2.222656,5.83203 -0.894532,0 z" />
+    </g>
+    <g
+       id="text4264"
+       style="text-anchor:middle">
+      <path
+         id="path131"
+         style="text-anchor:middle"
+         d="m 31.164062,207.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+      <path
+         id="path133"
+         style="text-anchor:middle"
+         d="m 34.65625,209.33594 1.289062,0 0,-4.44922 -1.402343,0.28125 0,-0.71875 1.394531,-0.28125 0.789062,0 0,5.16797 1.289063,0 0,0.66406 -3.359375,0 0,-0.66406 z" />
+      <path
+         id="path135"
+         style="text-anchor:middle"
+         d="m 41.046875,210 -2.226563,-5.83203 0.824219,0 1.847656,4.91015 1.851563,-4.91015 0.820312,0 -2.222656,5.83203 -0.894531,0 z" />
+    </g>
+    <g
+       id="text4266"
+       style="text-anchor:middle">
+      <path
+         id="path138"
+         style="text-anchor:middle"
+         d="m 31.164062,223.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+      <path
+         id="path140"
+         style="text-anchor:middle"
+         d="m 35.199219,225.33594 2.753906,0 0,0.66406 -3.703125,0 0,-0.66406 q 0.449219,-0.46485 1.222656,-1.2461 0.777344,-0.78515 0.976563,-1.01172 0.378906,-0.42578 0.527343,-0.71875 0.152344,-0.29687 0.152344,-0.58203 0,-0.46484 -0.328125,-0.75781 -0.324219,-0.29297 -0.847656,-0.29297 -0.371094,0 -0.785156,0.12891 -0.410157,0.1289 -0.878907,0.39062 l 0,-0.79687 q 0.476563,-0.19141 0.890625,-0.28906 0.414063,-0.0977 0.757813,-0.0977 0.90625,0 1.445312,0.45312 0.539063,0.45313 0.539063,1.21094 0,0.35938 -0.136719,0.6836 -0.132812,0.32031 -0.488281,0.75781 -0.09766,0.11328 -0.621094,0.65625 -0.523437,0.53906 -1.476562,1.51172 z" />
+      <path
+         id="path142"
+         style="text-anchor:middle"
+         d="m 41.046875,226 -2.226563,-5.83203 0.824219,0 1.847656,4.91015 1.851563,-4.91015 0.820312,0 -2.222656,5.83203 -0.894531,0 z" />
+    </g>
+    <g
+       id="text4268"
+       style="text-anchor:middle">
+      <path
+         id="path145"
+         style="text-anchor:middle"
+         d="m 31.164062,239.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+      <path
+         id="path147"
+         style="text-anchor:middle"
+         d="m 36.910156,238.85547 q 0.566406,0.12109 0.882813,0.5039 0.320312,0.38282 0.320312,0.94532 0,0.86328 -0.59375,1.33593 -0.59375,0.47266 -1.6875,0.47266 -0.367187,0 -0.757812,-0.0742 -0.386719,-0.0703 -0.800782,-0.21484 l 0,-0.76172 q 0.328125,0.19141 0.71875,0.28906 0.390625,0.0977 0.816407,0.0977 0.742187,0 1.128906,-0.29297 0.390625,-0.29297 0.390625,-0.85156 0,-0.51563 -0.363281,-0.80469 -0.359375,-0.29297 -1.003907,-0.29297 l -0.679687,0 0,-0.64844 0.710937,0 q 0.582032,0 0.890625,-0.23047 0.308594,-0.23437 0.308594,-0.67187 0,-0.44922 -0.320312,-0.6875 -0.316407,-0.24219 -0.910157,-0.24219 -0.324218,0 -0.695312,0.0703 -0.371094,0.0703 -0.816406,0.21875 l 0,-0.70312 q 0.449218,-0.125 0.839843,-0.1875 0.394532,-0.0625 0.742188,-0.0625 0.898437,0 1.421875,0.41016 0.523437,0.40625 0.523437,1.10156 0,0.48437 -0.277343,0.82031 -0.277344,0.33203 -0.789063,0.46094 z" />
+      <path
+         id="path149"
+         style="text-anchor:middle"
+         d="m 41.046875,242 -2.226563,-5.83203 0.824219,0 1.847656,4.91015 1.851563,-4.91015 0.820312,0 -2.222656,5.83203 -0.894531,0 z" />
+    </g>
+    <g
+       id="text4270"
+       style="text-anchor:middle">
+      <path
+         id="path152"
+         style="text-anchor:middle"
+         d="m 31.164062,255.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+      <path
+         id="path154"
+         style="text-anchor:middle"
+         d="m 36.6875,252.85547 -1.992188,3.11328 1.992188,0 0,-3.11328 z m -0.207031,-0.6875 0.992187,0 0,3.80078 0.832031,0 0,0.65625 -0.832031,0 0,1.375 -0.785156,0 0,-1.375 -2.632813,0 0,-0.76172 2.425782,-3.69531 z" />
+      <path
+         id="path156"
+         style="text-anchor:middle"
+         d="m 41.046875,258 -2.226563,-5.83203 0.824219,0 1.847656,4.91015 1.851563,-4.91015 0.820312,0 -2.222656,5.83203 -0.894531,0 z" />
+    </g>
+    <g
+       id="text4272"
+       style="text-anchor:middle">
+      <path
+         id="path159"
+         style="text-anchor:middle"
+         d="m 31.164062,271.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+      <path
+         id="path161"
+         style="text-anchor:middle"
+         d="m 34.527344,268.16797 3.097656,0 0,0.66406 -2.375,0 0,1.42969 q 0.171875,-0.0586 0.34375,-0.0859 0.171875,-0.0312 0.34375,-0.0312 0.976562,0 1.546875,0.53516 0.570312,0.53515 0.570312,1.44922 0,0.9414 -0.585937,1.46484 -0.585938,0.51953 -1.652344,0.51953 -0.367187,0 -0.75,-0.0625 -0.378906,-0.0625 -0.785156,-0.1875 l 0,-0.79297 q 0.351562,0.19141 0.726562,0.28516 0.375,0.0937 0.792969,0.0937 0.675781,0 1.070313,-0.35547 0.394531,-0.35547 0.394531,-0.96484 0,-0.60938 -0.394531,-0.96485 -0.394532,-0.35547 -1.070313,-0.35547 -0.316406,0 -0.632812,0.0703 -0.3125,0.0703 -0.640625,0.21875 l 0,-2.92969 z" />
+      <path
+         id="path163"
+         style="text-anchor:middle"
+         d="m 41.046875,274 -2.226563,-5.83203 0.824219,0 1.847656,4.91015 1.851563,-4.91015 0.820312,0 -2.222656,5.83203 -0.894531,0 z" />
+    </g>
+    <g
+       id="text4274"
+       style="text-anchor:middle">
+      <path
+         id="path166"
+         style="text-anchor:middle"
+         d="m 31.164062,287.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+      <path
+         id="path168"
+         style="text-anchor:middle"
+         d="m 36.304687,286.76953 q -0.53125,0 -0.84375,0.36328 -0.308593,0.36328 -0.308593,0.9961 0,0.6289 0.308593,0.99609 0.3125,0.36328 0.84375,0.36328 0.53125,0 0.839844,-0.36328 0.3125,-0.36719 0.3125,-0.99609 0,-0.63282 -0.3125,-0.9961 -0.308594,-0.36328 -0.839844,-0.36328 z m 1.566407,-2.47266 0,0.71875 q -0.296875,-0.14062 -0.601563,-0.21484 -0.300781,-0.0742 -0.597656,-0.0742 -0.78125,0 -1.195313,0.52735 -0.410156,0.52734 -0.46875,1.59375 0.230469,-0.33985 0.578125,-0.51954 0.347657,-0.18359 0.765625,-0.18359 0.878907,0 1.386719,0.53516 0.511719,0.53125 0.511719,1.44922 0,0.89843 -0.53125,1.4414 -0.53125,0.54297 -1.414063,0.54297 -1.011718,0 -1.546875,-0.77344 -0.535156,-0.77734 -0.535156,-2.25 0,-1.38281 0.65625,-2.20312 0.65625,-0.82422 1.761719,-0.82422 0.296875,0 0.597656,0.0586 0.304688,0.0586 0.632813,0.17578 z" />
+      <path
+         id="path170"
+         style="text-anchor:middle"
+         d="m 41.046875,290 -2.226563,-5.83203 0.824219,0 1.847656,4.91015 1.851563,-4.91015 0.820312,0 -2.222656,5.83203 -0.894531,0 z" />
+    </g>
+    <g
+       id="text4276"
+       style="text-anchor:middle">
+      <path
+         id="path173"
+         style="text-anchor:middle"
+         d="m 31.164062,303.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+      <path
+         id="path175"
+         style="text-anchor:middle"
+         d="m 34.320312,300.16797 3.75,0 0,0.33594 -2.117187,5.49609 -0.824219,0 1.992188,-5.16797 -2.800782,0 0,-0.66406 z" />
+      <path
+         id="path177"
+         style="text-anchor:middle"
+         d="m 41.046875,306 -2.226563,-5.83203 0.824219,0 1.847656,4.91015 1.851563,-4.91015 0.820312,0 -2.222656,5.83203 -0.894531,0 z" />
+    </g>
+    <g
+       id="text4278"
+       style="text-anchor:middle">
+      <path
+         id="path180"
+         style="text-anchor:middle"
+         d="m 31.164062,319.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+      <path
+         id="path182"
+         style="text-anchor:middle"
+         d="m 36.207031,319.23047 q -0.5625,0 -0.886719,0.30078 Q 35,319.83203 35,320.35937 q 0,0.52735 0.320312,0.82813 0.324219,0.30078 0.886719,0.30078 0.5625,0 0.886719,-0.30078 0.324219,-0.30469 0.324219,-0.82813 0,-0.52734 -0.324219,-0.82812 -0.320313,-0.30078 -0.886719,-0.30078 z m -0.789062,-0.33594 q -0.507813,-0.125 -0.792969,-0.47266 -0.28125,-0.34765 -0.28125,-0.84765 0,-0.69922 0.496094,-1.10547 0.5,-0.40625 1.367187,-0.40625 0.871094,0 1.367188,0.40625 0.496093,0.40625 0.496093,1.10547 0,0.5 -0.285156,0.84765 -0.28125,0.34766 -0.785156,0.47266 0.570312,0.13281 0.886719,0.51953 0.320312,0.38672 0.320312,0.94531 0,0.84766 -0.519531,1.30079 -0.515625,0.45312 -1.480469,0.45312 -0.964844,0 -1.484375,-0.45312 -0.515625,-0.45313 -0.515625,-1.30079 0,-0.55859 0.320313,-0.94531 0.320312,-0.38672 0.890625,-0.51953 z m -0.289063,-1.24609 q 0,0.45312 0.28125,0.70703 0.285156,0.2539 0.796875,0.2539 0.507813,0 0.792969,-0.2539 0.289062,-0.25391 0.289062,-0.70703 0,-0.45313 -0.289062,-0.70703 -0.285156,-0.25391 -0.792969,-0.25391 -0.511719,0 -0.796875,0.25391 -0.28125,0.2539 -0.28125,0.70703 z" />
+      <path
+         id="path184"
+         style="text-anchor:middle"
+         d="m 41.046875,322 -2.226563,-5.83203 0.824219,0 1.847656,4.91015 1.851563,-4.91015 0.820312,0 -2.222656,5.83203 -0.894531,0 z" />
+    </g>
+    <g
+       id="text4280"
+       style="text-anchor:middle">
+      <path
+         id="path187"
+         style="text-anchor:middle"
+         d="m 31.164062,335.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+      <path
+         id="path189"
+         style="text-anchor:middle"
+         d="m 34.542969,337.87891 0,-0.71875 q 0.296875,0.14062 0.601562,0.21484 0.304688,0.0742 0.597656,0.0742 0.78125,0 1.191407,-0.52344 0.414062,-0.52734 0.472656,-1.59766 -0.226563,0.33594 -0.574219,0.51563 -0.347656,0.17969 -0.769531,0.17969 -0.875,0 -1.386719,-0.52735 -0.507812,-0.53125 -0.507812,-1.44922 0,-0.89843 0.53125,-1.4414 0.53125,-0.54297 1.414062,-0.54297 1.011719,0 1.542969,0.77734 0.535156,0.77344 0.535156,2.25 0,1.37891 -0.65625,2.20313 -0.652344,0.82031 -1.757812,0.82031 -0.296875,0 -0.601563,-0.0586 -0.304687,-0.0586 -0.632812,-0.17578 z m 1.570312,-2.47266 q 0.53125,0 0.839844,-0.36328 0.3125,-0.36328 0.3125,-0.9961 0,-0.6289 -0.3125,-0.99218 -0.308594,-0.36719 -0.839844,-0.36719 -0.53125,0 -0.84375,0.36719 -0.308594,0.36328 -0.308594,0.99218 0,0.63282 0.308594,0.9961 0.3125,0.36328 0.84375,0.36328 z" />
+      <path
+         id="path191"
+         style="text-anchor:middle"
+         d="m 41.046875,338 -2.226563,-5.83203 0.824219,0 1.847656,4.91015 1.851563,-4.91015 0.820312,0 -2.222656,5.83203 -0.894531,0 z" />
+    </g>
+    <g
+       id="text4282"
+       style="text-anchor:middle">
+      <path
+         id="path194"
+         style="text-anchor:middle"
+         d="m 31.351562,351.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+      <path
+         id="path196"
+         style="text-anchor:middle"
+         d="m 34.84375,353.33594 1.289062,0 0,-4.44922 -1.402343,0.28125 0,-0.71875 1.394531,-0.28125 0.789062,0 0,5.16797 1.289063,0 0,0.66406 -3.359375,0 0,-0.66406 z" />
+      <path
+         id="path198"
+         style="text-anchor:middle"
+         d="m 41.488281,348.6875 q -0.609375,0 -0.917969,0.60156 -0.304687,0.59766 -0.304687,1.80078 0,1.19922 0.304687,1.80078 0.308594,0.59766 0.917969,0.59766 0.613281,0 0.917969,-0.59766 0.308594,-0.60156 0.308594,-1.80078 0,-1.20312 -0.308594,-1.80078 -0.304688,-0.60156 -0.917969,-0.60156 z m 0,-0.625 q 0.980469,0 1.496094,0.77734 0.519531,0.77344 0.519531,2.25 0,1.47266 -0.519531,2.25 -0.515625,0.77344 -1.496094,0.77344 -0.980469,0 -1.5,-0.77344 -0.515625,-0.77734 -0.515625,-2.25 0,-1.47656 0.515625,-2.25 0.519531,-0.77734 1.5,-0.77734 z" />
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/TD-116.svg

@@ -0,0 +1,181 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4226"
+   version="1.1"
+   height="380px"
+   width="240px">
+  <metadata
+     id="metadata20">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs18" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 240,0 0,380 -240,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4230"
+       d="M 0,380 0,0 240,0 239,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4232"
+       d="m 0,380 240,0 0,-380 -1,1 0,378 -238,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 229.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 221,373.83071 8.1692063,5.1693144 0 0 0 229.16915,379 8.1692063,5.1693144 0 0 0 236.48278,376.11985 3.0461447,4.2480502 0 0 0 239,377.97641 l 0,-2.35772 a 1.3384576,1.9448905 0 0 1 -1.2923,-1.94151 1.3384576,1.9448905 0 0 1 1.2923,-1.94263 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 229.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text4236"
+       style="">
+      <path
+         id="path24"
+         style=""
+         d="m 8.3144531,370.63086 0,1.01953 q -0.4570312,-0.23437 -0.9492187,-0.35156 -0.4921875,-0.11719 -1.0195313,-0.11719 -0.8027344,0 -1.2070312,0.24609 -0.3984375,0.2461 -0.3984375,0.73829 0,0.375 0.2871093,0.59179 0.2871094,0.21094 1.1542969,0.4043 l 0.3691406,0.082 q 1.1484375,0.24609 1.6289063,0.69727 0.4863281,0.44531 0.4863281,1.24804 0,0.91407 -0.7265625,1.44727 -0.7207031,0.5332 -1.9863281,0.5332 -0.5273438,0 -1.1015625,-0.10547 -0.5683594,-0.0996 -1.2011719,-0.30468 l 0,-1.11329 q 0.5976563,0.31055 1.1777344,0.46875 0.5800781,0.15235 1.1484375,0.15235 0.7617187,0 1.171875,-0.25781 0.4101562,-0.26368 0.4101562,-0.73829 0,-0.43945 -0.2988281,-0.67382 -0.2929687,-0.23438 -1.2949219,-0.45118 l -0.375,-0.0879 q -1.0019531,-0.21093 -1.4472656,-0.64453 -0.4453125,-0.43945 -0.4453125,-1.20117 0,-0.92578 0.65625,-1.42969 0.65625,-0.5039 1.8632813,-0.5039 0.5976562,0 1.125,0.0879 0.5273437,0.0879 0.9726562,0.26367 z" />
+      <path
+         id="path26"
+         style=""
+         d="m 10.277344,374.41016 0,-3.97266 1.078125,0 0,3.93164 q 0,0.93164 0.363281,1.40039 0.363281,0.46289 1.089844,0.46289 0.873047,0 1.376953,-0.55664 0.509766,-0.55664 0.509766,-1.51758 l 0,-3.7207 1.078125,0 0,6.5625 -1.078125,0 0,-1.00781 q -0.392579,0.59765 -0.914063,0.89062 -0.515625,0.28711 -1.201172,0.28711 -1.130859,0 -1.716797,-0.70312 -0.585937,-0.70313 -0.585937,-2.05664 z m 2.71289,-4.13086 0,0 z" />
+      <path
+         id="path28"
+         style=""
+         d="m 22.716797,373.72461 q 0,-1.18945 -0.492188,-1.86328 -0.486328,-0.67969 -1.341797,-0.67969 -0.855468,0 -1.347656,0.67969 -0.486328,0.67383 -0.486328,1.86328 0,1.18945 0.486328,1.86914 0.492188,0.67383 1.347656,0.67383 0.855469,0 1.341797,-0.67383 0.492188,-0.67969 0.492188,-1.86914 z m -3.667969,-2.29102 q 0.339844,-0.58593 0.855469,-0.86718 0.521484,-0.28711 1.242187,-0.28711 1.195313,0 1.939453,0.94922 0.75,0.94921 0.75,2.49609 0,1.54687 -0.75,2.49609 -0.74414,0.94922 -1.939453,0.94922 -0.720703,0 -1.242187,-0.28125 -0.515625,-0.28711 -0.855469,-0.87305 l 0,0.98438 -1.083984,0 0,-9.11719 1.083984,0 0,3.55078 z" />
+      <path
+         id="path30"
+         style=""
+         d="m 30.732422,371.69727 q 0.404297,-0.72657 0.966797,-1.07227 0.5625,-0.3457 1.324218,-0.3457 1.025391,0 1.582032,0.7207 0.55664,0.71484 0.55664,2.03906 l 0,3.96094 -1.083984,0 0,-3.92578 q 0,-0.94336 -0.333984,-1.40039 -0.333985,-0.45703 -1.019532,-0.45703 -0.83789,0 -1.324218,0.55664 -0.486329,0.55664 -0.486329,1.51758 l 0,3.70898 -1.083984,0 0,-3.92578 q 0,-0.94922 -0.333984,-1.40039 -0.333985,-0.45703 -1.03125,-0.45703 -0.826172,0 -1.3125,0.5625 -0.486328,0.55664 -0.486328,1.51172 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.36914,-0.60351 0.884765,-0.89062 0.515625,-0.28711 1.22461,-0.28711 0.714843,0 1.21289,0.36328 0.503906,0.36328 0.744141,1.05469 z" />
+      <path
+         id="path32"
+         style=""
+         d="m 40.300781,373.70117 q -1.30664,0 -1.810547,0.29883 -0.503906,0.29883 -0.503906,1.01953 0,0.57422 0.375,0.91406 0.380859,0.33399 1.03125,0.33399 0.896484,0 1.435547,-0.63281 0.544922,-0.63868 0.544922,-1.69336 l 0,-0.24024 -1.072266,0 z m 2.150391,-0.44531 0,3.74414 -1.078125,0 0,-0.99609 q -0.369141,0.59765 -0.919922,0.88476 -0.550781,0.28125 -1.347656,0.28125 -1.007813,0 -1.605469,-0.5625 -0.591797,-0.56836 -0.591797,-1.51758 0,-1.10742 0.738281,-1.66992 0.744141,-0.5625 2.214844,-0.5625 l 1.511719,0 0,-0.10547 q 0,-0.74414 -0.492188,-1.14843 -0.486328,-0.41016 -1.371093,-0.41016 -0.5625,0 -1.095704,0.13476 -0.533203,0.13477 -1.02539,0.4043 l 0,-0.99609 q 0.591797,-0.22852 1.148437,-0.33985 0.556641,-0.11718 1.083985,-0.11718 1.423828,0 2.126953,0.73828 0.703125,0.73828 0.703125,2.23828 z" />
+      <path
+         id="path34"
+         style=""
+         d="m 48.480469,371.44531 q -0.181641,-0.10547 -0.398438,-0.15234 -0.210937,-0.0527 -0.46875,-0.0527 -0.914062,0 -1.40625,0.59766 -0.486328,0.5918 -0.486328,1.70508 l 0,3.45703 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.339844,-0.59766 0.884766,-0.88476 0.544922,-0.29297 1.324218,-0.29297 0.111329,0 0.246094,0.0176 0.134766,0.0117 0.298828,0.041 l 0.0059,1.10742 z" />
+      <path
+         id="path36"
+         style=""
+         d="m 49.623047,370.4375 1.078125,0 0,6.5625 -1.078125,0 0,-6.5625 z m 0,-2.55469 1.078125,0 0,1.36524 -1.078125,0 0,-1.36524 z" />
+      <path
+         id="path38"
+         style=""
+         d="m 58.40625,373.03906 0,3.96094 -1.078125,0 0,-3.92578 q 0,-0.93164 -0.363281,-1.39453 -0.363282,-0.46289 -1.089844,-0.46289 -0.873047,0 -1.376953,0.55664 -0.503906,0.55664 -0.503906,1.51758 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.386718,-0.5918 0.908203,-0.88476 0.527343,-0.29297 1.21289,-0.29297 1.13086,0 1.710938,0.70312 0.580078,0.69727 0.580078,2.05664 z" />
+      <path
+         id="path40"
+         style=""
+         d="m 66.181641,373.44922 0,0.52734 -4.957032,0 q 0.07031,1.11328 0.667969,1.69922 0.603516,0.58008 1.675781,0.58008 0.621094,0 1.201172,-0.15234 0.585938,-0.15235 1.160156,-0.45704 l 0,1.01954 q -0.580078,0.24609 -1.189453,0.375 -0.609375,0.1289 -1.236328,0.1289 -1.570312,0 -2.490234,-0.91406 -0.914063,-0.91406 -0.914063,-2.47266 0,-1.61133 0.867188,-2.55468 0.873047,-0.94922 2.349609,-0.94922 1.324219,0 2.091797,0.85547 0.773438,0.8496 0.773438,2.31445 z m -1.078125,-0.31641 q -0.01172,-0.88476 -0.498047,-1.41211 -0.480469,-0.52734 -1.277344,-0.52734 -0.902344,0 -1.447266,0.50976 -0.539062,0.50977 -0.621093,1.43555 l 3.84375,-0.006 z" />
+    </g>
+    <g
+       id="text4241"
+       style="text-anchor:middle">
+      <path
+         id="path43"
+         style="text-anchor:middle"
+         d="m 98.050781,3.2519531 7.400389,0 0,0.9960938 -3.10547,0 0,7.7519531 -1.18945,0 0,-7.7519531 -3.105469,0 0,-0.9960938 z" />
+      <path
+         id="path45"
+         style="text-anchor:middle"
+         d="m 107.7832,4.2246094 0,6.8027346 1.42969,0 q 1.81055,0 2.64844,-0.820313 0.84375,-0.8203122 0.84375,-2.5898435 0,-1.7578125 -0.84375,-2.5722656 -0.83789,-0.8203125 -2.64844,-0.8203125 l -1.42969,0 z m -1.18359,-0.9726563 2.43164,0 q 2.54297,0 3.73242,1.0605469 1.18946,1.0546875 1.18946,3.3046875 0,2.2617188 -1.19532,3.3222655 Q 111.5625,12 109.03125,12 l -2.43164,0 0,-8.7480469 z" />
+      <path
+         id="path47"
+         style="text-anchor:middle"
+         d="m 115.24219,8.2324219 3.1582,0 0,0.9609375 -3.1582,0 0,-0.9609375 z" />
+      <path
+         id="path49"
+         style="text-anchor:middle"
+         d="m 120.48047,11.003906 1.93359,0 0,-6.6738279 -2.10351,0.421875 0,-1.078125 2.09179,-0.421875 1.1836,0 0,7.7519529 1.93359,0 0,0.996094 -5.03906,0 0,-0.996094 z" />
+      <path
+         id="path51"
+         style="text-anchor:middle"
+         d="m 128.12109,11.003906 1.9336,0 0,-6.6738279 -2.10352,0.421875 0,-1.078125 2.0918,-0.421875 1.18359,0 0,7.7519529 1.9336,0 0,0.996094 -5.03907,0 0,-0.996094 z" />
+      <path
+         id="path53"
+         style="text-anchor:middle"
+         d="m 138.23437,7.1542969 q -0.79687,0 -1.26562,0.5449218 -0.46289,0.5449219 -0.46289,1.4941407 0,0.9433596 0.46289,1.4941406 0.46875,0.544922 1.26562,0.544922 0.79688,0 1.25977,-0.544922 0.46875,-0.550781 0.46875,-1.4941406 0,-0.9492188 -0.46875,-1.4941407 -0.46289,-0.5449218 -1.25977,-0.5449218 z m 2.34961,-3.7089844 0,1.078125 Q 140.13867,4.3125 139.68164,4.2011719 q -0.45117,-0.1113282 -0.89648,-0.1113282 -1.17188,0 -1.79297,0.7910157 -0.61524,0.7910156 -0.70313,2.390625 0.34571,-0.5097657 0.86719,-0.7792969 0.52148,-0.2753906 1.14844,-0.2753906 1.31836,0 2.08008,0.8027343 0.76757,0.796875 0.76757,2.1738282 0,1.3476566 -0.79687,2.1621096 -0.79688,0.814453 -2.1211,0.814453 -1.51757,0 -2.32031,-1.160156 -0.80273,-1.166016 -0.80273,-3.3750004 0,-2.0742187 0.98437,-3.3046875 0.98438,-1.2363281 2.64258,-1.2363281 0.44531,0 0.89649,0.087891 0.45703,0.087891 0.94921,0.2636719 z" />
+    </g>
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:#ffffff"
+     font-size="8"
+     id="text">
+    <g
+       id="text12"
+       style="text-anchor:start">
+      <path
+         id="path56"
+         style="text-anchor:start"
+         d="m 34.28125,30.359375 0,0.769531 q -0.449219,-0.214844 -0.847656,-0.320312 -0.398438,-0.105469 -0.769532,-0.105469 -0.644531,0 -0.996093,0.25 -0.347657,0.25 -0.347657,0.710937 0,0.386719 0.230469,0.585938 0.234375,0.195312 0.882813,0.316406 l 0.476562,0.09766 q 0.882813,0.167969 1.300781,0.59375 0.421875,0.421875 0.421875,1.132813 0,0.847656 -0.570312,1.285156 -0.566406,0.4375 -1.664063,0.4375 -0.414062,0 -0.882812,-0.09375 -0.464844,-0.09375 -0.964844,-0.277344 l 0,-0.8125 q 0.480469,0.269532 0.941406,0.40625 0.460938,0.136719 0.90625,0.136719 0.675782,0 1.042969,-0.265625 0.367188,-0.265625 0.367188,-0.757812 0,-0.429688 -0.265625,-0.671875 -0.261719,-0.242188 -0.863282,-0.363282 l -0.480468,-0.09375 q -0.882813,-0.175781 -1.277344,-0.550781 -0.394531,-0.375 -0.394531,-1.042969 0,-0.773437 0.542968,-1.21875 0.546875,-0.445312 1.503907,-0.445312 0.410156,0 0.835937,0.07422 0.425781,0.07422 0.871094,0.222656 z" />
+      <path
+         id="path58"
+         style="text-anchor:start"
+         d="m 35.0625,30.167969 0.847656,0 1.617188,2.398437 1.605468,-2.398437 0.847657,0 -2.0625,3.054687 0,2.777344 -0.792969,0 0,-2.777344 -2.0625,-3.054687 z" />
+      <path
+         id="path60"
+         style="text-anchor:start"
+         d="m 40.753906,30.167969 1.0625,0 2.585938,4.878906 0,-4.878906 0.765625,0 0,5.832031 -1.0625,0 -2.585938,-4.878906 0,4.878906 -0.765625,0 0,-5.832031 z" />
+      <path
+         id="path62"
+         style="text-anchor:start"
+         d="m 51.105469,30.617187 0,0.832032 q -0.398438,-0.371094 -0.851563,-0.554688 -0.449219,-0.183594 -0.957031,-0.183594 -1,0 -1.53125,0.613282 -0.53125,0.609375 -0.53125,1.765625 0,1.152343 0.53125,1.765625 0.53125,0.609375 1.53125,0.609375 0.507812,0 0.957031,-0.183594 0.453125,-0.183594 0.851563,-0.554688 l 0,0.824219 q -0.414063,0.28125 -0.878907,0.421875 -0.460937,0.140625 -0.976562,0.140625 -1.324219,0 -2.085938,-0.808594 -0.761718,-0.8125 -0.761718,-2.214843 0,-1.40625 0.761718,-2.214844 0.761719,-0.8125 2.085938,-0.8125 0.523437,0 0.984375,0.140625 0.464844,0.136719 0.871094,0.414062 z" />
+      <path
+         id="path64"
+         style="text-anchor:start"
+         d="m 54.878906,30.167969 0.789063,0 0,5.832031 -0.789063,0 0,-5.832031 z" />
+      <path
+         id="path66"
+         style="text-anchor:start"
+         d="m 57.238281,30.167969 1.0625,0 2.585938,4.878906 0,-4.878906 0.765625,0 0,5.832031 -1.0625,0 -2.585938,-4.878906 0,4.878906 -0.765625,0 0,-5.832031 z" />
+    </g>
+    <g
+       id="text14"
+       style="text-anchor:end">
+      <path
+         id="path69"
+         style="text-anchor:end"
+         d="m 173.14062,30.359375 0,0.769531 q -0.44921,-0.214844 -0.84765,-0.320312 -0.39844,-0.105469 -0.76953,-0.105469 -0.64453,0 -0.9961,0.25 -0.34765,0.25 -0.34765,0.710937 0,0.386719 0.23047,0.585938 0.23437,0.195312 0.88281,0.316406 l 0.47656,0.09766 q 0.88281,0.167969 1.30078,0.59375 0.42188,0.421875 0.42188,1.132813 0,0.847656 -0.57032,1.285156 -0.5664,0.4375 -1.66406,0.4375 -0.41406,0 -0.88281,-0.09375 -0.46484,-0.09375 -0.96484,-0.277344 l 0,-0.8125 q 0.48046,0.269532 0.9414,0.40625 0.46094,0.136719 0.90625,0.136719 0.67578,0 1.04297,-0.265625 0.36719,-0.265625 0.36719,-0.757812 0,-0.429688 -0.26563,-0.671875 -0.26172,-0.242188 -0.86328,-0.363282 l -0.48047,-0.09375 q -0.88281,-0.175781 -1.27734,-0.550781 -0.39453,-0.375 -0.39453,-1.042969 0,-0.773437 0.54297,-1.21875 0.54687,-0.445312 1.5039,-0.445312 0.41016,0 0.83594,0.07422 0.42578,0.07422 0.87109,0.222656 z" />
+      <path
+         id="path71"
+         style="text-anchor:end"
+         d="m 173.92187,30.167969 0.84766,0 1.61719,2.398437 1.60547,-2.398437 0.84765,0 -2.0625,3.054687 0,2.777344 -0.79297,0 0,-2.777344 -2.0625,-3.054687 z" />
+      <path
+         id="path73"
+         style="text-anchor:end"
+         d="m 179.61328,30.167969 1.0625,0 2.58594,4.878906 0,-4.878906 0.76562,0 0,5.832031 -1.0625,0 -2.58593,-4.878906 0,4.878906 -0.76563,0 0,-5.832031 z" />
+      <path
+         id="path75"
+         style="text-anchor:end"
+         d="m 189.96484,30.617187 0,0.832032 q -0.39843,-0.371094 -0.85156,-0.554688 -0.44922,-0.183594 -0.95703,-0.183594 -1,0 -1.53125,0.613282 -0.53125,0.609375 -0.53125,1.765625 0,1.152343 0.53125,1.765625 0.53125,0.609375 1.53125,0.609375 0.50781,0 0.95703,-0.183594 0.45313,-0.183594 0.85156,-0.554688 l 0,0.824219 q -0.41406,0.28125 -0.8789,0.421875 -0.46094,0.140625 -0.97657,0.140625 -1.32421,0 -2.08593,-0.808594 -0.76172,-0.8125 -0.76172,-2.214843 0,-1.40625 0.76172,-2.214844 0.76172,-0.8125 2.08593,-0.8125 0.52344,0 0.98438,0.140625 0.46484,0.136719 0.87109,0.414062 z" />
+      <path
+         id="path77"
+         style="text-anchor:end"
+         d="m 196.10547,30.703125 q -0.85938,0 -1.36719,0.640625 -0.50391,0.640625 -0.50391,1.746094 0,1.101562 0.50391,1.742187 0.50781,0.640625 1.36719,0.640625 0.85937,0 1.35937,-0.640625 0.50391,-0.640625 0.50391,-1.742187 0,-1.105469 -0.50391,-1.746094 -0.5,-0.640625 -1.35937,-0.640625 z m 0,-0.640625 q 1.22656,0 1.96094,0.824219 0.73437,0.820312 0.73437,2.203125 0,1.378906 -0.73437,2.203125 -0.73438,0.820312 -1.96094,0.820312 -1.23047,0 -1.96875,-0.820312 -0.73438,-0.820313 -0.73438,-2.203125 0,-1.382813 0.73438,-2.203125 0.73828,-0.824219 1.96875,-0.824219 z" />
+      <path
+         id="path79"
+         style="text-anchor:end"
+         d="m 199.94531,30.167969 0.79297,0 0,3.542968 q 0,0.9375 0.33984,1.351563 0.33985,0.410156 1.10157,0.410156 0.75781,0 1.09765,-0.410156 0.33985,-0.414063 0.33985,-1.351563 l 0,-3.542968 0.79297,0 0,3.640625 q 0,1.140625 -0.56641,1.722656 -0.5625,0.582031 -1.66406,0.582031 -1.10547,0 -1.67188,-0.582031 -0.5625,-0.582031 -0.5625,-1.722656 l 0,-3.640625 z" />
+      <path
+         id="path81"
+         style="text-anchor:end"
+         d="m 205.08594,30.167969 4.93359,0 0,0.664062 -2.07031,0 0,5.167969 -0.79297,0 0,-5.167969 -2.07031,0 0,-0.664062 z" />
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/TD-202.svg

@@ -0,0 +1,81 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata16">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs14" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path20"
+         style="font-size:8px;text-anchor:middle"
+         d="m 0.3671875,4.1679687 4.9335937,0 0,0.6640625 -2.0703124,0 0,5.1679688 -0.7929688,0 0,-5.1679688 -2.0703125,0 0,-0.6640625 z" />
+      <path
+         id="path22"
+         style="font-size:8px;text-anchor:middle"
+         d="m 6.8554687,4.8164062 0,4.5351563 0.953125,0 q 1.2070313,0 1.7656251,-0.546875 0.5625002,-0.546875 0.5625002,-1.7265625 0,-1.171875 -0.5625002,-1.7148438 Q 9.015625,4.8164062 7.8085937,4.8164062 l -0.953125,0 z m -0.7890625,-0.6484375 1.6210938,0 q 1.6953125,0 2.488281,0.7070313 0.792969,0.703125 0.792969,2.203125 0,1.5078125 -0.796875,2.2148438 Q 9.375,10 7.6875,10 l -1.6210938,0 0,-5.8320313 z" />
+      <path
+         id="path24"
+         style="font-size:8px;text-anchor:middle"
+         d="m 11.828125,7.4882812 2.105469,0 0,0.6406251 -2.105469,0 0,-0.6406251 z" />
+      <path
+         id="path26"
+         style="font-size:8px;text-anchor:middle"
+         d="m 15.863281,9.3359375 2.753906,0 0,0.6640625 -3.703124,0 0,-0.6640625 q 0.449218,-0.4648437 1.222656,-1.2460937 0.777343,-0.7851563 0.976562,-1.0117188 0.378906,-0.4257813 0.527344,-0.71875 0.152344,-0.296875 0.152344,-0.5820313 0,-0.4648437 -0.328125,-0.7578125 -0.324219,-0.2929687 -0.847657,-0.2929687 -0.371093,0 -0.785156,0.1289062 -0.410156,0.1289063 -0.878906,0.390625 l 0,-0.796875 Q 15.429688,4.2578125 15.84375,4.1601562 16.257812,4.0625 16.601562,4.0625 q 0.90625,0 1.445313,0.453125 0.539062,0.453125 0.539062,1.2109375 0,0.359375 -0.136718,0.6835937 -0.132813,0.3203125 -0.488282,0.7578125 -0.09766,0.1132813 -0.621093,0.65625 -0.523438,0.5390626 -1.476563,1.5117188 z" />
+      <path
+         id="path28"
+         style="font-size:8px;text-anchor:middle"
+         d="m 21.964844,4.6875 q -0.609375,0 -0.917969,0.6015625 -0.304688,0.5976562 -0.304688,1.8007812 0,1.1992188 0.304688,1.8007813 0.308594,0.5976563 0.917969,0.5976563 0.613281,0 0.917968,-0.5976563 0.308594,-0.6015625 0.308594,-1.8007813 0,-1.203125 -0.308594,-1.8007812 Q 22.578125,4.6875 21.964844,4.6875 Z m 0,-0.625 q 0.980468,0 1.496093,0.7773437 0.519532,0.7734375 0.519532,2.25 0,1.4726563 -0.519532,2.2500001 -0.515625,0.7734372 -1.496093,0.7734372 -0.980469,0 -1.5,-0.7734372 Q 19.949219,8.5625 19.949219,7.0898437 q 0,-1.4765625 0.515625,-2.25 0.519531,-0.7773437 1.5,-0.7773437 z" />
+      <path
+         id="path30"
+         style="font-size:8px;text-anchor:middle"
+         d="m 26.050781,9.3359375 2.753906,0 0,0.6640625 -3.703125,0 0,-0.6640625 q 0.449219,-0.4648437 1.222657,-1.2460937 0.777343,-0.7851563 0.976562,-1.0117188 0.378906,-0.4257813 0.527344,-0.71875 0.152344,-0.296875 0.152344,-0.5820313 0,-0.4648437 -0.328125,-0.7578125 -0.324219,-0.2929687 -0.847657,-0.2929687 -0.371093,0 -0.785156,0.1289062 -0.410156,0.1289063 -0.878906,0.390625 l 0,-0.796875 Q 25.617187,4.2578125 26.03125,4.1601562 26.445312,4.0625 26.789062,4.0625 q 0.90625,0 1.445313,0.453125 0.539062,0.453125 0.539062,1.2109375 0,0.359375 -0.136718,0.6835937 -0.132813,0.3203125 -0.488282,0.7578125 -0.09766,0.1132813 -0.621093,0.65625 -0.523438,0.5390626 -1.476563,1.5117188 z" />
+    </g>
+  </g>
+  <g
+     style="fill:#000000;stroke:none"
+     id="screen">
+    <!--    <rect x="2" y="15" width="26" height="350" cx="2" cy="2" />-->
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/TF-101.svg

@@ -0,0 +1,329 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   version="1.1"
+   id="svg2"
+   height="380px"
+   width="90px">
+  <metadata
+     id="metadata46">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs44" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 90,0 0,380 -90,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4656"
+       d="M 0,380 0,0 90,0 89,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4658"
+       d="m 0,380 90,0 0,-380 -1,1 0,378 -88,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 79.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 71,373.83071 8.1692063,5.1693144 0 0 0 79.16915,379 8.1692063,5.1693144 0 0 0 86.48278,376.11985 3.0461447,4.2480502 0 0 0 89,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 87.7077,373.67718 1.3384576,1.9448905 0 0 1 89,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 79.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text4662"
+       style="">
+      <path
+         id="path50"
+         style=""
+         d="m 8.3144531,370.63086 0,1.01953 q -0.4570312,-0.23437 -0.9492187,-0.35156 -0.4921875,-0.11719 -1.0195313,-0.11719 -0.8027344,0 -1.2070312,0.24609 -0.3984375,0.2461 -0.3984375,0.73829 0,0.375 0.2871093,0.59179 0.2871094,0.21094 1.1542969,0.4043 l 0.3691406,0.082 q 1.1484375,0.24609 1.6289063,0.69727 0.4863281,0.44531 0.4863281,1.24804 0,0.91407 -0.7265625,1.44727 -0.7207031,0.5332 -1.9863281,0.5332 -0.5273438,0 -1.1015625,-0.10547 -0.5683594,-0.0996 -1.2011719,-0.30468 l 0,-1.11329 q 0.5976563,0.31055 1.1777344,0.46875 0.5800781,0.15235 1.1484375,0.15235 0.7617187,0 1.171875,-0.25781 0.4101562,-0.26368 0.4101562,-0.73829 0,-0.43945 -0.2988281,-0.67382 -0.2929687,-0.23438 -1.2949219,-0.45118 l -0.375,-0.0879 q -1.0019531,-0.21093 -1.4472656,-0.64453 -0.4453125,-0.43945 -0.4453125,-1.20117 0,-0.92578 0.65625,-1.42969 0.65625,-0.5039 1.8632813,-0.5039 0.5976562,0 1.125,0.0879 0.5273437,0.0879 0.9726562,0.26367 z" />
+      <path
+         id="path52"
+         style=""
+         d="m 10.277344,374.41016 0,-3.97266 1.078125,0 0,3.93164 q 0,0.93164 0.363281,1.40039 0.363281,0.46289 1.089844,0.46289 0.873047,0 1.376953,-0.55664 0.509766,-0.55664 0.509766,-1.51758 l 0,-3.7207 1.078125,0 0,6.5625 -1.078125,0 0,-1.00781 q -0.392579,0.59765 -0.914063,0.89062 -0.515625,0.28711 -1.201172,0.28711 -1.130859,0 -1.716797,-0.70312 -0.585937,-0.70313 -0.585937,-2.05664 z m 2.71289,-4.13086 0,0 z" />
+      <path
+         id="path54"
+         style=""
+         d="m 22.716797,373.72461 q 0,-1.18945 -0.492188,-1.86328 -0.486328,-0.67969 -1.341797,-0.67969 -0.855468,0 -1.347656,0.67969 -0.486328,0.67383 -0.486328,1.86328 0,1.18945 0.486328,1.86914 0.492188,0.67383 1.347656,0.67383 0.855469,0 1.341797,-0.67383 0.492188,-0.67969 0.492188,-1.86914 z m -3.667969,-2.29102 q 0.339844,-0.58593 0.855469,-0.86718 0.521484,-0.28711 1.242187,-0.28711 1.195313,0 1.939453,0.94922 0.75,0.94921 0.75,2.49609 0,1.54687 -0.75,2.49609 -0.74414,0.94922 -1.939453,0.94922 -0.720703,0 -1.242187,-0.28125 -0.515625,-0.28711 -0.855469,-0.87305 l 0,0.98438 -1.083984,0 0,-9.11719 1.083984,0 0,3.55078 z" />
+      <path
+         id="path56"
+         style=""
+         d="m 30.732422,371.69727 q 0.404297,-0.72657 0.966797,-1.07227 0.5625,-0.3457 1.324218,-0.3457 1.025391,0 1.582032,0.7207 0.55664,0.71484 0.55664,2.03906 l 0,3.96094 -1.083984,0 0,-3.92578 q 0,-0.94336 -0.333984,-1.40039 -0.333985,-0.45703 -1.019532,-0.45703 -0.83789,0 -1.324218,0.55664 -0.486329,0.55664 -0.486329,1.51758 l 0,3.70898 -1.083984,0 0,-3.92578 q 0,-0.94922 -0.333984,-1.40039 -0.333985,-0.45703 -1.03125,-0.45703 -0.826172,0 -1.3125,0.5625 -0.486328,0.55664 -0.486328,1.51172 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.36914,-0.60351 0.884765,-0.89062 0.515625,-0.28711 1.22461,-0.28711 0.714843,0 1.21289,0.36328 0.503906,0.36328 0.744141,1.05469 z" />
+      <path
+         id="path58"
+         style=""
+         d="m 40.300781,373.70117 q -1.30664,0 -1.810547,0.29883 -0.503906,0.29883 -0.503906,1.01953 0,0.57422 0.375,0.91406 0.380859,0.33399 1.03125,0.33399 0.896484,0 1.435547,-0.63281 0.544922,-0.63868 0.544922,-1.69336 l 0,-0.24024 -1.072266,0 z m 2.150391,-0.44531 0,3.74414 -1.078125,0 0,-0.99609 q -0.369141,0.59765 -0.919922,0.88476 -0.550781,0.28125 -1.347656,0.28125 -1.007813,0 -1.605469,-0.5625 -0.591797,-0.56836 -0.591797,-1.51758 0,-1.10742 0.738281,-1.66992 0.744141,-0.5625 2.214844,-0.5625 l 1.511719,0 0,-0.10547 q 0,-0.74414 -0.492188,-1.14843 -0.486328,-0.41016 -1.371093,-0.41016 -0.5625,0 -1.095704,0.13476 -0.533203,0.13477 -1.02539,0.4043 l 0,-0.99609 q 0.591797,-0.22852 1.148437,-0.33985 0.556641,-0.11718 1.083985,-0.11718 1.423828,0 2.126953,0.73828 0.703125,0.73828 0.703125,2.23828 z" />
+      <path
+         id="path60"
+         style=""
+         d="m 48.480469,371.44531 q -0.181641,-0.10547 -0.398438,-0.15234 -0.210937,-0.0527 -0.46875,-0.0527 -0.914062,0 -1.40625,0.59766 -0.486328,0.5918 -0.486328,1.70508 l 0,3.45703 -1.083984,0 0,-6.5625 1.083984,0 0,1.01953 q 0.339844,-0.59766 0.884766,-0.88476 0.544922,-0.29297 1.324218,-0.29297 0.111329,0 0.246094,0.0176 0.134766,0.0117 0.298828,0.041 l 0.0059,1.10742 z" />
+      <path
+         id="path62"
+         style=""
+         d="m 49.623047,370.4375 1.078125,0 0,6.5625 -1.078125,0 0,-6.5625 z m 0,-2.55469 1.078125,0 0,1.36524 -1.078125,0 0,-1.36524 z" />
+      <path
+         id="path64"
+         style=""
+         d="m 58.40625,373.03906 0,3.96094 -1.078125,0 0,-3.92578 q 0,-0.93164 -0.363281,-1.39453 -0.363282,-0.46289 -1.089844,-0.46289 -0.873047,0 -1.376953,0.55664 -0.503906,0.55664 -0.503906,1.51758 l 0,3.70898 -1.083985,0 0,-6.5625 1.083985,0 0,1.01953 q 0.386718,-0.5918 0.908203,-0.88476 0.527343,-0.29297 1.21289,-0.29297 1.13086,0 1.710938,0.70312 0.580078,0.69727 0.580078,2.05664 z" />
+      <path
+         id="path66"
+         style=""
+         d="m 66.181641,373.44922 0,0.52734 -4.957032,0 q 0.07031,1.11328 0.667969,1.69922 0.603516,0.58008 1.675781,0.58008 0.621094,0 1.201172,-0.15234 0.585938,-0.15235 1.160156,-0.45704 l 0,1.01954 q -0.580078,0.24609 -1.189453,0.375 -0.609375,0.1289 -1.236328,0.1289 -1.570312,0 -2.490234,-0.91406 -0.914063,-0.91406 -0.914063,-2.47266 0,-1.61133 0.867188,-2.55468 0.873047,-0.94922 2.349609,-0.94922 1.324219,0 2.091797,0.85547 0.773438,0.8496 0.773438,2.31445 z m -1.078125,-0.31641 q -0.01172,-0.88476 -0.498047,-1.41211 -0.480469,-0.52734 -1.277344,-0.52734 -0.902344,0 -1.447266,0.50976 -0.539062,0.50977 -0.621093,1.43555 l 3.84375,-0.006 z" />
+    </g>
+    <g
+       id="text11"
+       style="text-anchor:middle">
+      <path
+         id="path69"
+         style="text-anchor:middle"
+         d="m 24.210937,3.2519531 7.400391,0 0,0.9960938 -3.105469,0 0,7.7519531 -1.189453,0 0,-7.7519531 -3.105469,0 0,-0.9960938 z" />
+      <path
+         id="path71"
+         style="text-anchor:middle"
+         d="m 32.759766,3.2519531 5.027343,0 0,0.9960938 -3.84375,0 0,2.578125 3.46875,0 0,0.9960937 -3.46875,0 0,4.1777344 -1.183593,0 0,-8.7480469 z" />
+      <path
+         id="path73"
+         style="text-anchor:middle"
+         d="m 39.082031,8.2324219 3.158203,0 0,0.9609375 -3.158203,0 0,-0.9609375 z" />
+      <path
+         id="path75"
+         style="text-anchor:middle"
+         d="m 44.320312,11.003906 1.933594,0 0,-6.6738279 -2.103515,0.421875 0,-1.078125 2.091796,-0.421875 1.183594,0 0,7.7519529 1.933594,0 0,0.996094 -5.039063,0 0,-0.996094 z" />
+      <path
+         id="path77"
+         style="text-anchor:middle"
+         d="m 54.287109,4.03125 q -0.914062,0 -1.376953,0.9023437 -0.457031,0.8964844 -0.457031,2.7011719 0,1.7988282 0.457031,2.7011724 0.462891,0.896484 1.376953,0.896484 0.919922,0 1.376953,-0.896484 0.462891,-0.9023442 0.462891,-2.7011724 0,-1.8046875 -0.462891,-2.7011719 Q 55.207031,4.03125 54.287109,4.03125 Z m 0,-0.9375 q 1.470703,0 2.244141,1.1660156 0.779297,1.1601563 0.779297,3.375 0,2.2089844 -0.779297,3.3750004 -0.773438,1.160156 -2.244141,1.160156 -1.470703,0 -2.25,-1.160156 -0.773437,-1.166016 -0.773437,-3.3750004 0,-2.2148437 0.773437,-3.375 0.779297,-1.1660156 2.25,-1.1660156 z" />
+      <path
+         id="path79"
+         style="text-anchor:middle"
+         d="m 59.601562,11.003906 1.933594,0 0,-6.6738279 -2.103515,0.421875 0,-1.078125 2.091796,-0.421875 1.183594,0 0,7.7519529 1.933594,0 0,0.996094 -5.039063,0 0,-0.996094 z" />
+    </g>
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:none;stroke:#ffffff;stroke-width:1;stroke-linecap:round;stroke-linejoin:round"
+     font-size="8"
+     id="group1">
+    <path
+       id="line14"
+       d="m 4,47.5 82,0"
+       style="" />
+    <path
+       id="line16"
+       d="m 4,181.5 82,0"
+       style="" />
+    <path
+       id="line18"
+       d="m 4,315.5 82,0"
+       style="" />
+    <g
+       style="fill:#ffffff;stroke:none"
+       id="g20">
+      <g
+         id="text22"
+         style="text-anchor:end">
+        <path
+           id="path85"
+           style="text-anchor:end"
+           d="m 45.105469,29.703125 q -0.859375,0 -1.367188,0.640625 -0.503906,0.640625 -0.503906,1.746094 0,1.101562 0.503906,1.742187 0.507813,0.640625 1.367188,0.640625 0.859375,0 1.359375,-0.640625 0.503906,-0.640625 0.503906,-1.742187 0,-1.105469 -0.503906,-1.746094 -0.5,-0.640625 -1.359375,-0.640625 z m 0,-0.640625 q 1.226562,0 1.960937,0.824219 0.734375,0.820312 0.734375,2.203125 0,1.378906 -0.734375,2.203125 -0.734375,0.820312 -1.960937,0.820312 -1.230469,0 -1.96875,-0.820312 -0.734375,-0.820313 -0.734375,-2.203125 0,-1.382813 0.734375,-2.203125 Q 43.875,29.0625 45.105469,29.0625 Z" />
+        <path
+           id="path87"
+           style="text-anchor:end"
+           d="m 48.945312,29.167969 0.792969,0 0,3.542968 q 0,0.9375 0.339844,1.351563 0.339844,0.410156 1.101562,0.410156 0.757813,0 1.097657,-0.410156 0.339843,-0.414063 0.339843,-1.351563 l 0,-3.542968 0.792969,0 0,3.640625 q 0,1.140625 -0.566406,1.722656 -0.5625,0.582031 -1.664063,0.582031 -1.105468,0 -1.671875,-0.582031 -0.5625,-0.582031 -0.5625,-1.722656 l 0,-3.640625 z" />
+        <path
+           id="path89"
+           style="text-anchor:end"
+           d="m 54.085937,29.167969 4.933594,0 0,0.664062 -2.070312,0 0,5.167969 -0.792969,0 0,-5.167969 -2.070313,0 0,-0.664062 z" />
+      </g>
+      <g
+         id="text24"
+         style="text-anchor:middle">
+        <path
+           id="path92"
+           style="text-anchor:middle"
+           d="m 26.988281,51.167969 3.351563,0 0,0.664062 -2.5625,0 0,1.71875 2.3125,0 0,0.664063 -2.3125,0 0,2.785156 -0.789063,0 0,-5.832031 z" />
+        <path
+           id="path94"
+           style="text-anchor:middle"
+           d="m 33.964844,51.703125 q -0.859375,0 -1.367188,0.640625 -0.503906,0.640625 -0.503906,1.746094 0,1.101562 0.503906,1.742187 0.507813,0.640625 1.367188,0.640625 0.859375,0 1.359375,-0.640625 0.503906,-0.640625 0.503906,-1.742187 0,-1.105469 -0.503906,-1.746094 -0.5,-0.640625 -1.359375,-0.640625 z m 0,-0.640625 q 1.226562,0 1.960937,0.824219 0.734375,0.820312 0.734375,2.203125 0,1.378906 -0.734375,2.203125 -0.734375,0.820312 -1.960937,0.820312 -1.230469,0 -1.96875,-0.820312 -0.734375,-0.820313 -0.734375,-2.203125 0,-1.382813 0.734375,-2.203125 0.738281,-0.824219 1.96875,-0.824219 z" />
+        <path
+           id="path96"
+           style="text-anchor:middle"
+           d="m 40.660156,54.265625 q 0.253906,0.08594 0.492188,0.367187 0.242187,0.28125 0.484375,0.773438 L 42.4375,57 41.589844,57 40.84375,55.503906 q -0.289063,-0.585937 -0.5625,-0.777344 -0.269531,-0.191406 -0.738281,-0.191406 l -0.859375,0 0,2.464844 -0.789063,0 0,-5.832031 1.78125,0 q 1,0 1.492188,0.417968 0.492187,0.417969 0.492187,1.261719 0,0.550781 -0.257812,0.914063 -0.253907,0.363281 -0.742188,0.503906 z m -1.976562,-2.449219 0,2.070313 0.992187,0 q 0.570313,0 0.859375,-0.261719 0.292969,-0.265625 0.292969,-0.777344 0,-0.511719 -0.292969,-0.769531 -0.289062,-0.261719 -0.859375,-0.261719 l -0.992187,0 z" />
+        <path
+           id="path98"
+           style="text-anchor:middle"
+           d="m 43.457031,51.167969 3.6875,0 0,0.664062 -2.898437,0 0,1.726563 2.777343,0 0,0.664062 -2.777343,0 0,2.113281 2.96875,0 0,0.664063 -3.757813,0 0,-5.832031 z" />
+        <path
+           id="path100"
+           style="text-anchor:middle"
+           d="m 52.496094,56.167969 0,-1.566407 -1.289063,0 0,-0.648437 2.070313,0 0,2.503906 q -0.457032,0.324219 -1.007813,0.492188 -0.550781,0.164062 -1.175781,0.164062 -1.367188,0 -2.140625,-0.796875 -0.769531,-0.800781 -0.769531,-2.226562 0,-1.429688 0.769531,-2.226563 0.773437,-0.800781 2.140625,-0.800781 0.570312,0 1.082031,0.140625 0.515625,0.140625 0.949219,0.414062 l 0,0.839844 q -0.4375,-0.371094 -0.929688,-0.558594 -0.492187,-0.1875 -1.035156,-0.1875 -1.070312,0 -1.609375,0.597657 -0.535156,0.597656 -0.535156,1.78125 0,1.179687 0.535156,1.777343 0.539063,0.597657 1.609375,0.597657 0.417969,0 0.746094,-0.07031 0.328125,-0.07422 0.589844,-0.226562 z" />
+        <path
+           id="path102"
+           style="text-anchor:middle"
+           d="m 57.488281,54.265625 q 0.253906,0.08594 0.492188,0.367187 0.242187,0.28125 0.484375,0.773438 L 59.265625,57 58.417969,57 57.671875,55.503906 q -0.289063,-0.585937 -0.5625,-0.777344 -0.269531,-0.191406 -0.738281,-0.191406 l -0.859375,0 0,2.464844 -0.789063,0 0,-5.832031 1.78125,0 q 1,0 1.492188,0.417968 0.492187,0.417969 0.492187,1.261719 0,0.550781 -0.257812,0.914063 -0.253907,0.363281 -0.742188,0.503906 z m -1.976562,-2.449219 0,2.070313 0.992187,0 q 0.570313,0 0.859375,-0.261719 0.292969,-0.265625 0.292969,-0.777344 0,-0.511719 -0.292969,-0.769531 -0.289062,-0.261719 -0.859375,-0.261719 l -0.992187,0 z" />
+        <path
+           id="path104"
+           style="text-anchor:middle"
+           d="m 62.652344,51.703125 q -0.859375,0 -1.367188,0.640625 -0.503906,0.640625 -0.503906,1.746094 0,1.101562 0.503906,1.742187 0.507813,0.640625 1.367188,0.640625 0.859375,0 1.359375,-0.640625 0.503906,-0.640625 0.503906,-1.742187 0,-1.105469 -0.503906,-1.746094 -0.5,-0.640625 -1.359375,-0.640625 z m 0,-0.640625 q 1.226562,0 1.960937,0.824219 0.734375,0.820312 0.734375,2.203125 0,1.378906 -0.734375,2.203125 -0.734375,0.820312 -1.960937,0.820312 -1.230469,0 -1.96875,-0.820312 -0.734375,-0.820313 -0.734375,-2.203125 0,-1.382813 0.734375,-2.203125 0.738281,-0.824219 1.96875,-0.824219 z" />
+        <path
+           id="path106"
+           style="text-anchor:middle"
+           d="m 66.492187,51.167969 0.792969,0 0,3.542968 q 0,0.9375 0.339844,1.351563 0.339844,0.410156 1.101562,0.410156 0.757813,0 1.097657,-0.410156 0.339843,-0.414063 0.339843,-1.351563 l 0,-3.542968 0.792969,0 0,3.640625 q 0,1.140625 -0.566406,1.722656 -0.5625,0.582031 -1.664063,0.582031 -1.105468,0 -1.671875,-0.582031 -0.5625,-0.582031 -0.5625,-1.722656 l 0,-3.640625 z" />
+        <path
+           id="path108"
+           style="text-anchor:middle"
+           d="m 72.441406,51.167969 1.0625,0 2.585938,4.878906 0,-4.878906 0.765625,0 0,5.832031 -1.0625,0 -2.585938,-4.878906 0,4.878906 -0.765625,0 0,-5.832031 z" />
+        <path
+           id="path110"
+           style="text-anchor:middle"
+           d="m 79.214844,51.816406 0,4.535156 0.953125,0 q 1.207031,0 1.765625,-0.546875 0.5625,-0.546875 0.5625,-1.726562 0,-1.171875 -0.5625,-1.714844 Q 81.375,51.816406 80.167969,51.816406 l -0.953125,0 z m -0.789063,-0.648437 1.621094,0 q 1.695312,0 2.488281,0.707031 0.792969,0.703125 0.792969,2.203125 0,1.507812 -0.796875,2.214844 Q 81.734375,57 80.046875,57 l -1.621094,0 0,-5.832031 z" />
+      </g>
+      <g
+         id="text26"
+         style="text-anchor:middle">
+        <path
+           id="path113"
+           style="text-anchor:middle"
+           d="m 27.714844,188.21484 0,2.13672 1.265625,0 q 0.636718,0 0.941406,-0.26172 0.308594,-0.26562 0.308594,-0.80859 0,-0.54688 -0.308594,-0.80469 -0.304688,-0.26172 -0.941406,-0.26172 l -1.265625,0 z m 0,-2.39843 0,1.75781 1.167968,0 q 0.578125,0 0.859375,-0.21485 0.285157,-0.21875 0.285157,-0.66406 0,-0.4414 -0.285157,-0.66015 -0.28125,-0.21875 -0.859375,-0.21875 l -1.167968,0 z m -0.789063,-0.64844 2.015625,0 q 0.902344,0 1.390625,0.375 0.488281,0.375 0.488281,1.0664 0,0.53516 -0.25,0.85157 -0.25,0.3164 -0.734375,0.39453 0.582032,0.125 0.902344,0.52344 0.324219,0.39453 0.324219,0.98828 0,0.78125 -0.53125,1.20703 Q 30,191 29.019531,191 l -2.09375,0 0,-5.83203 z" />
+        <path
+           id="path115"
+           style="text-anchor:middle"
+           d="m 34.359375,185.94531 -1.070313,2.90235 2.144532,0 -1.074219,-2.90235 z m -0.445313,-0.77734 0.894532,0 2.222656,5.83203 -0.820313,0 -0.53125,-1.49609 -2.628906,0 -0.53125,1.49609 -0.832031,0 2.226562,-5.83203 z" />
+        <path
+           id="path117"
+           style="text-anchor:middle"
+           d="m 42.105469,185.61719 0,0.83203 q -0.398438,-0.3711 -0.851563,-0.55469 -0.449219,-0.18359 -0.957031,-0.18359 -1,0 -1.53125,0.61328 -0.53125,0.60937 -0.53125,1.76562 0,1.15235 0.53125,1.76563 0.53125,0.60937 1.53125,0.60937 0.507812,0 0.957031,-0.18359 0.453125,-0.18359 0.851563,-0.55469 l 0,0.82422 q -0.414063,0.28125 -0.878907,0.42188 -0.460937,0.14062 -0.976562,0.14062 -1.324219,0 -2.085938,-0.80859 -0.761718,-0.8125 -0.761718,-2.21485 0,-1.40625 0.761718,-2.21484 0.761719,-0.8125 2.085938,-0.8125 0.523437,0 0.984375,0.14062 0.464844,0.13672 0.871094,0.41407 z" />
+        <path
+           id="path119"
+           style="text-anchor:middle"
+           d="m 43.332031,185.16797 0.789063,0 0,2.46484 2.617187,-2.46484 1.015625,0 -2.894531,2.71875 3.101562,3.11328 -1.039062,0 -2.800781,-2.80859 0,2.80859 -0.789063,0 0,-5.83203 z" />
+        <path
+           id="path121"
+           style="text-anchor:middle"
+           d="m 52.558594,190.16797 0,-1.56641 -1.289063,0 0,-0.64844 2.070313,0 0,2.50391 q -0.457032,0.32422 -1.007813,0.49219 -0.550781,0.16406 -1.175781,0.16406 -1.367188,0 -2.140625,-0.79687 -0.769531,-0.80079 -0.769531,-2.22657 0,-1.42968 0.769531,-2.22656 0.773437,-0.80078 2.140625,-0.80078 0.570312,0 1.082031,0.14062 0.515625,0.14063 0.949219,0.41407 l 0,0.83984 q -0.4375,-0.37109 -0.929688,-0.55859 -0.492187,-0.1875 -1.035156,-0.1875 -1.070312,0 -1.609375,0.59765 -0.535156,0.59766 -0.535156,1.78125 0,1.17969 0.535156,1.77735 0.539063,0.59765 1.609375,0.59765 0.417969,0 0.746094,-0.0703 0.328125,-0.0742 0.589844,-0.22656 z" />
+        <path
+           id="path123"
+           style="text-anchor:middle"
+           d="m 57.550781,188.26562 q 0.253906,0.0859 0.492188,0.36719 0.242187,0.28125 0.484375,0.77344 L 59.328125,191 l -0.847656,0 -0.746094,-1.49609 q -0.289063,-0.58594 -0.5625,-0.77735 -0.269531,-0.1914 -0.738281,-0.1914 l -0.859375,0 0,2.46484 -0.789063,0 0,-5.83203 1.78125,0 q 1,0 1.492188,0.41797 0.492187,0.41797 0.492187,1.26172 0,0.55078 -0.257812,0.91406 -0.253907,0.36328 -0.742188,0.5039 z m -1.976562,-2.44921 0,2.07031 0.992187,0 q 0.570313,0 0.859375,-0.26172 0.292969,-0.26563 0.292969,-0.77734 0,-0.51172 -0.292969,-0.76954 -0.289062,-0.26171 -0.859375,-0.26171 l -0.992187,0 z" />
+        <path
+           id="path125"
+           style="text-anchor:middle"
+           d="m 62.714844,185.70312 q -0.859375,0 -1.367188,0.64063 -0.503906,0.64062 -0.503906,1.74609 0,1.10157 0.503906,1.74219 0.507813,0.64063 1.367188,0.64063 0.859375,0 1.359375,-0.64063 0.503906,-0.64062 0.503906,-1.74219 0,-1.10547 -0.503906,-1.74609 -0.5,-0.64063 -1.359375,-0.64063 z m 0,-0.64062 q 1.226562,0 1.960937,0.82422 0.734375,0.82031 0.734375,2.20312 0,1.37891 -0.734375,2.20313 -0.734375,0.82031 -1.960937,0.82031 -1.230469,0 -1.96875,-0.82031 -0.734375,-0.82031 -0.734375,-2.20313 0,-1.38281 0.734375,-2.20312 0.738281,-0.82422 1.96875,-0.82422 z" />
+        <path
+           id="path127"
+           style="text-anchor:middle"
+           d="m 66.554687,185.16797 0.792969,0 0,3.54297 q 0,0.9375 0.339844,1.35156 0.339844,0.41016 1.101562,0.41016 0.757813,0 1.097657,-0.41016 0.339843,-0.41406 0.339843,-1.35156 l 0,-3.54297 0.792969,0 0,3.64062 q 0,1.14063 -0.566406,1.72266 -0.5625,0.58203 -1.664063,0.58203 -1.105468,0 -1.671875,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+        <path
+           id="path129"
+           style="text-anchor:middle"
+           d="m 72.503906,185.16797 1.0625,0 2.585938,4.8789 0,-4.8789 0.765625,0 0,5.83203 -1.0625,0 -2.585938,-4.87891 0,4.87891 -0.765625,0 0,-5.83203 z" />
+        <path
+           id="path131"
+           style="text-anchor:middle"
+           d="m 79.277344,185.81641 0,4.53515 0.953125,0 q 1.207031,0 1.765625,-0.54687 0.5625,-0.54688 0.5625,-1.72657 0,-1.17187 -0.5625,-1.71484 -0.558594,-0.54687 -1.765625,-0.54687 l -0.953125,0 z m -0.789063,-0.64844 1.621094,0 q 1.695312,0 2.488281,0.70703 0.792969,0.70312 0.792969,2.20312 0,1.50782 -0.796875,2.21485 Q 81.796875,191 80.109375,191 l -1.621094,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text28"
+         style="text-anchor:middle">
+        <path
+           id="path134"
+           style="text-anchor:middle"
+           d="m 34.8125,319.16797 4.933594,0 0,0.66406 -2.070313,0 0,5.16797 -0.792969,0 0,-5.16797 -2.070312,0 0,-0.66406 z" />
+        <path
+           id="path136"
+           style="text-anchor:middle"
+           d="m 40.511719,319.16797 3.6875,0 0,0.66406 -2.898438,0 0,1.72656 2.777344,0 0,0.66407 -2.777344,0 0,2.11328 2.96875,0 0,0.66406 -3.757812,0 0,-5.83203 z" />
+        <path
+           id="path138"
+           style="text-anchor:middle"
+           d="m 45.292969,319.16797 0.847656,0 1.449219,2.16797 1.457031,-2.16797 0.847656,0 -1.875,2.80078 2,3.03125 -0.847656,0 -1.640625,-2.48047 -1.652344,2.48047 -0.851562,0 2.082031,-3.11328 -1.816406,-2.71875 z" />
+        <path
+           id="path140"
+           style="text-anchor:middle"
+           d="m 50.109375,319.16797 4.933594,0 0,0.66406 -2.070313,0 0,5.16797 -0.792969,0 0,-5.16797 -2.070312,0 0,-0.66406 z" />
+        <path
+           id="path142"
+           style="text-anchor:middle"
+           d="m 54.679687,322.48828 2.105469,0 0,0.64063 -2.105469,0 0,-0.64063 z" />
+        <path
+           id="path144"
+           style="text-anchor:middle"
+           d="m 61.460937,319.35937 0,0.76954 q -0.449218,-0.21485 -0.847656,-0.32032 -0.398437,-0.10547 -0.769531,-0.10547 -0.644531,0 -0.996094,0.25 -0.347656,0.25 -0.347656,0.71094 0,0.38672 0.230469,0.58594 0.234375,0.19531 0.882812,0.31641 l 0.476563,0.0976 q 0.882812,0.16797 1.300781,0.59375 0.421875,0.42188 0.421875,1.13281 0,0.84766 -0.570313,1.28516 -0.566406,0.4375 -1.664062,0.4375 -0.414063,0 -0.882813,-0.0937 -0.464843,-0.0937 -0.964843,-0.27734 l 0,-0.8125 q 0.480468,0.26953 0.941406,0.40625 0.460937,0.13672 0.90625,0.13672 0.675781,0 1.042969,-0.26563 0.367187,-0.26562 0.367187,-0.75781 0,-0.42969 -0.265625,-0.67188 -0.261719,-0.24218 -0.863281,-0.36328 l -0.480469,-0.0937 q -0.882812,-0.17578 -1.277344,-0.55078 -0.394531,-0.375 -0.394531,-1.04297 0,-0.77344 0.542969,-1.21875 0.546875,-0.44531 1.503906,-0.44531 0.410156,0 0.835938,0.0742 0.425781,0.0742 0.871093,0.22265 z" />
+        <path
+           id="path146"
+           style="text-anchor:middle"
+           d="m 63.042969,319.16797 0.789062,0 0,5.83203 -0.789062,0 0,-5.83203 z" />
+        <path
+           id="path148"
+           style="text-anchor:middle"
+           d="m 65.066406,319.16797 4.582031,0 0,0.60156 -3.6875,4.56641 3.777344,0 0,0.66406 -4.761719,0 0,-0.60156 3.6875,-4.56641 -3.597656,0 0,-0.66406 z" />
+        <path
+           id="path150"
+           style="text-anchor:middle"
+           d="m 70.886719,319.16797 3.6875,0 0,0.66406 -2.898438,0 0,1.72656 2.777344,0 0,0.66407 -2.777344,0 0,2.11328 2.96875,0 0,0.66406 -3.757812,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text30"
+         style="text-anchor:middle">
+        <path
+           id="path153"
+           style="text-anchor:middle"
+           d="m 38.769531,79.265625 q 0.253906,0.08594 0.492188,0.367187 0.242187,0.28125 0.484375,0.773438 L 40.546875,82 39.699219,82 38.953125,80.503906 q -0.289063,-0.585937 -0.5625,-0.777344 -0.269531,-0.191406 -0.738281,-0.191406 l -0.859375,0 0,2.464844 -0.789063,0 0,-5.832031 1.78125,0 q 1,0 1.492188,0.417968 0.492187,0.417969 0.492187,1.261719 0,0.550781 -0.257812,0.914063 -0.253907,0.363281 -0.742188,0.503906 z m -1.976562,-2.449219 0,2.070313 0.992187,0 q 0.570313,0 0.859375,-0.261719 0.292969,-0.265625 0.292969,-0.777344 0,-0.511719 -0.292969,-0.769531 -0.289062,-0.261719 -0.859375,-0.261719 l -0.992187,0 z" />
+      </g>
+      <g
+         id="text32"
+         style="text-anchor:middle">
+        <path
+           id="path156"
+           style="text-anchor:middle"
+           d="m 39.660156,121.16797 0,-1.56641 -1.289062,0 0,-0.64843 2.070312,0 0,2.5039 q -0.457031,0.32422 -1.007812,0.49219 -0.550782,0.16406 -1.175782,0.16406 -1.367187,0 -2.140625,-0.79687 -0.769531,-0.80078 -0.769531,-2.22657 0,-1.42968 0.769531,-2.22656 0.773438,-0.80078 2.140625,-0.80078 0.570313,0 1.082032,0.14063 0.515625,0.14062 0.949218,0.41406 l 0,0.83984 q -0.4375,-0.37109 -0.929687,-0.55859 -0.492188,-0.1875 -1.035156,-0.1875 -1.070313,0 -1.609375,0.59765 -0.535157,0.59766 -0.535157,1.78125 0,1.17969 0.535157,1.77735 0.539062,0.59765 1.609375,0.59765 0.417968,0 0.746093,-0.0703 0.328125,-0.0742 0.589844,-0.22656 z" />
+      </g>
+      <g
+         id="text34"
+         style="text-anchor:middle">
+        <path
+           id="path159"
+           style="text-anchor:middle"
+           d="m 36.832031,159.21484 0,2.13672 1.265625,0 q 0.636719,0 0.941406,-0.26172 0.308594,-0.26562 0.308594,-0.80859 0,-0.54688 -0.308594,-0.80469 -0.304687,-0.26172 -0.941406,-0.26172 l -1.265625,0 z m 0,-2.39843 0,1.75781 1.167969,0 q 0.578125,0 0.859375,-0.21485 0.285156,-0.21875 0.285156,-0.66406 0,-0.4414 -0.285156,-0.66015 Q 38.578125,156.81641 38,156.81641 l -1.167969,0 z m -0.789062,-0.64844 2.015625,0 q 0.902343,0 1.390625,0.375 0.488281,0.375 0.488281,1.0664 0,0.53516 -0.25,0.85157 -0.25,0.3164 -0.734375,0.39453 0.582031,0.125 0.902344,0.52344 0.324218,0.39453 0.324218,0.98828 0,0.78125 -0.53125,1.20703 Q 39.117187,162 38.136719,162 l -2.09375,0 0,-5.83203 z" />
+      </g>
+      <g
+         id="text36"
+         style="text-anchor:middle">
+        <path
+           id="path162"
+           style="text-anchor:middle"
+           d="m 38.769531,213.26562 q 0.253906,0.0859 0.492188,0.36719 0.242187,0.28125 0.484375,0.77344 L 40.546875,216 l -0.847656,0 -0.746094,-1.49609 q -0.289063,-0.58594 -0.5625,-0.77735 -0.269531,-0.1914 -0.738281,-0.1914 l -0.859375,0 0,2.46484 -0.789063,0 0,-5.83203 1.78125,0 q 1,0 1.492188,0.41797 0.492187,0.41797 0.492187,1.26172 0,0.55078 -0.257812,0.91406 -0.253907,0.36328 -0.742188,0.5039 z m -1.976562,-2.44921 0,2.07031 0.992187,0 q 0.570313,0 0.859375,-0.26172 0.292969,-0.26563 0.292969,-0.77734 0,-0.51172 -0.292969,-0.76954 -0.289062,-0.26171 -0.859375,-0.26171 l -0.992187,0 z" />
+      </g>
+      <g
+         id="text38"
+         style="text-anchor:middle">
+        <path
+           id="path165"
+           style="text-anchor:middle"
+           d="m 39.660156,255.16797 0,-1.56641 -1.289062,0 0,-0.64844 2.070312,0 0,2.50391 q -0.457031,0.32422 -1.007812,0.49219 -0.550782,0.16406 -1.175782,0.16406 -1.367187,0 -2.140625,-0.79687 -0.769531,-0.80079 -0.769531,-2.22657 0,-1.42968 0.769531,-2.22656 0.773438,-0.80078 2.140625,-0.80078 0.570313,0 1.082032,0.14062 0.515625,0.14063 0.949218,0.41407 l 0,0.83984 q -0.4375,-0.37109 -0.929687,-0.55859 -0.492188,-0.1875 -1.035156,-0.1875 -1.070313,0 -1.609375,0.59765 -0.535157,0.59766 -0.535157,1.78125 0,1.17969 0.535157,1.77735 0.539062,0.59765 1.609375,0.59765 0.417968,0 0.746093,-0.0703 0.328125,-0.0742 0.589844,-0.22656 z" />
+      </g>
+      <g
+         id="text40"
+         style="text-anchor:middle">
+        <path
+           id="path168"
+           style="text-anchor:middle"
+           d="m 36.832031,293.21484 0,2.13672 1.265625,0 q 0.636719,0 0.941406,-0.26172 0.308594,-0.26562 0.308594,-0.80859 0,-0.54688 -0.308594,-0.80469 -0.304687,-0.26172 -0.941406,-0.26172 l -1.265625,0 z m 0,-2.39843 0,1.75781 1.167969,0 q 0.578125,0 0.859375,-0.21485 0.285156,-0.21875 0.285156,-0.66406 0,-0.4414 -0.285156,-0.66015 Q 38.578125,290.81641 38,290.81641 l -1.167969,0 z m -0.789062,-0.64844 2.015625,0 q 0.902343,0 1.390625,0.375 0.488281,0.375 0.488281,1.0664 0,0.53516 -0.25,0.85157 -0.25,0.3164 -0.734375,0.39453 0.582031,0.125 0.902344,0.52344 0.324218,0.39453 0.324218,0.98828 0,0.78125 -0.53125,1.20703 Q 39.117187,296 38.136719,296 l -2.09375,0 0,-5.83203 z" />
+      </g>
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/TM-105.svg

@@ -0,0 +1,109 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata20">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs18" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path24"
+         style="font-size:8px;text-anchor:middle"
+         d="m -0.0078125,4.1679687 4.9335937,0 0,0.6640625 -2.0703124,0 0,5.1679688 -0.7929688,0 0,-5.1679688 -2.0703125,0 0,-0.6640625 z" />
+      <path
+         id="path26"
+         style="font-size:8px;text-anchor:middle"
+         d="m 5.6914062,4.1679687 1.1757813,0 1.4882813,3.9687501 1.4960937,-3.9687501 1.1757815,0 0,5.8320313 -0.769531,0 0,-5.1210938 -1.5039067,4.0000001 -0.7929688,0 -1.5039063,-4.0000001 0,5.1210938 -0.765625,0 0,-5.8320313 z" />
+      <path
+         id="path28"
+         style="font-size:8px;text-anchor:middle"
+         d="m 12.203125,7.4882812 2.105469,0 0,0.6406251 -2.105469,0 0,-0.6406251 z" />
+      <path
+         id="path30"
+         style="font-size:8px;text-anchor:middle"
+         d="m 15.695313,9.3359375 1.289062,0 0,-4.4492188 -1.402344,0.28125 0,-0.71875 1.394531,-0.28125 0.789063,0 0,5.1679688 1.289062,0 0,0.6640625 -3.359374,0 0,-0.6640625 z" />
+      <path
+         id="path32"
+         style="font-size:8px;text-anchor:middle"
+         d="m 22.339844,4.6875 q -0.609375,0 -0.917969,0.6015625 -0.304688,0.5976562 -0.304688,1.8007812 0,1.1992188 0.304688,1.8007813 0.308594,0.5976563 0.917969,0.5976563 0.613281,0 0.917968,-0.5976563 0.308594,-0.6015625 0.308594,-1.8007813 0,-1.203125 -0.308594,-1.8007812 Q 22.953125,4.6875 22.339844,4.6875 Z m 0,-0.625 q 0.980468,0 1.496093,0.7773437 0.519532,0.7734375 0.519532,2.25 0,1.4726563 -0.519532,2.2500001 -0.515625,0.7734372 -1.496093,0.7734372 -0.980469,0 -1.5,-0.7734372 Q 20.324219,8.5625 20.324219,7.0898437 q 0,-1.4765625 0.515625,-2.25 0.519531,-0.7773437 1.5,-0.7773437 z" />
+      <path
+         id="path34"
+         style="font-size:8px;text-anchor:middle"
+         d="m 25.753906,4.1679687 3.097656,0 0,0.6640625 -2.375,0 0,1.4296875 q 0.171875,-0.058594 0.34375,-0.085937 0.171875,-0.03125 0.34375,-0.03125 0.976563,0 1.546875,0.5351563 0.570313,0.5351562 0.570313,1.4492188 0,0.9414062 -0.585938,1.4648437 -0.585937,0.519531 -1.652343,0.519531 -0.367188,0 -0.75,-0.0625 -0.378907,-0.0625 -0.785157,-0.1874997 l 0,-0.7929688 q 0.351563,0.1914063 0.726563,0.2851563 0.375,0.09375 0.792969,0.09375 0.675781,0 1.070312,-0.3554688 0.394531,-0.3554687 0.394531,-0.9648437 0,-0.6093751 -0.394531,-0.9648438 -0.394531,-0.3554688 -1.070312,-0.3554688 -0.316407,0 -0.632813,0.070312 -0.3125,0.070312 -0.640625,0.21875 l 0,-2.9296875 z" />
+    </g>
+  </g>
+  <g
+     style="font-size:8px;font-family:'DejaVu Sans';fill:#ffffff;stroke:none"
+     font-size="8"
+     id="group1">
+    <g
+       id="text12"
+       style="text-anchor:middle">
+      <path
+         id="path37"
+         style="text-anchor:middle"
+         d="m 11.613281,21.167969 0.789063,0 0,5.832031 -0.789063,0 0,-5.832031 z" />
+      <path
+         id="path39"
+         style="text-anchor:middle"
+         d="m 13.972656,21.167969 1.0625,0 2.585938,4.878906 0,-4.878906 0.765625,0 0,5.832031 -1.0625,0 -2.585938,-4.878906 0,4.878906 -0.765625,0 0,-5.832031 z" />
+    </g>
+    <g
+       id="text14"
+       style="text-anchor:middle">
+      <path
+         id="path42"
+         style="text-anchor:middle"
+         d="m 9.6289063,221.70312 q -0.859375,0 -1.3671875,0.64063 -0.5039063,0.64062 -0.5039063,1.74609 0,1.10157 0.5039063,1.74219 0.5078125,0.64063 1.3671875,0.64063 0.8593747,0 1.3593747,-0.64063 0.503907,-0.64062 0.503907,-1.74219 0,-1.10547 -0.503907,-1.74609 -0.5,-0.64063 -1.3593747,-0.64063 z m 0,-0.64062 q 1.2265627,0 1.9609377,0.82422 0.734375,0.82031 0.734375,2.20312 0,1.37891 -0.734375,2.20313 -0.734375,0.82031 -1.9609377,0.82031 -1.2304688,0 -1.9687501,-0.82031 -0.734375,-0.82031 -0.734375,-2.20313 0,-1.38281 0.734375,-2.20312 0.7382813,-0.82422 1.9687501,-0.82422 z" />
+      <path
+         id="path44"
+         style="text-anchor:middle"
+         d="m 13.46875,221.16797 0.792969,0 0,3.54297 q 0,0.9375 0.339844,1.35156 0.339843,0.41016 1.101562,0.41016 0.757812,0 1.097656,-0.41016 0.339844,-0.41406 0.339844,-1.35156 l 0,-3.54297 0.792969,0 0,3.64062 q 0,1.14063 -0.566407,1.72266 -0.5625,0.58203 -1.664062,0.58203 -1.105469,0 -1.671875,-0.58203 -0.5625,-0.58203 -0.5625,-1.72266 l 0,-3.64062 z" />
+      <path
+         id="path46"
+         style="text-anchor:middle"
+         d="m 18.609375,221.16797 4.933594,0 0,0.66406 -2.070313,0 0,5.16797 -0.792969,0 0,-5.16797 -2.070312,0 0,-0.66406 z" />
+    </g>
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/res/XG-104.svg

@@ -0,0 +1,100 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<svg
+   xmlns:dc="http://purl.org/dc/elements/1.1/"
+   xmlns:cc="http://creativecommons.org/ns#"
+   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
+   xmlns:svg="http://www.w3.org/2000/svg"
+   xmlns="http://www.w3.org/2000/svg"
+   id="svg4352"
+   version="1.1"
+   height="380px"
+   width="30">
+  <metadata
+     id="metadata26">
+    <rdf:RDF>
+      <cc:Work
+         rdf:about="">
+        <dc:format>image/svg+xml</dc:format>
+        <dc:type
+           rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
+      </cc:Work>
+    </rdf:RDF>
+  </metadata>
+  <defs
+     id="defs24" />
+  <g
+     id="background">
+    <path
+       id="rect4255"
+       d="m 0,0 30,0 0,380 -30,0 z"
+       style="fill:#294f77;stroke:none" />
+    <path
+       id="path4356"
+       d="M 0,380 0,0 30,0 29,1 1,1 1,379 Z"
+       style="fill:#3a6ea5;fill-rule:nonzero;stroke:none" />
+    <path
+       id="path4358"
+       d="m 0,380 30,0 0,-380 -1,1 0,378 -28,0 z"
+       style="fill:#182d44;fill-rule:nonzero;stroke:none" />
+  </g>
+  <g
+     style="font-size:12px;font-family:'DejaVu Sans';fill:#719fcf"
+     font-size="12"
+     id="logo">
+    <path
+       id="path4136"
+       d="m 14.35391,366 a 1.9846094,2.2519786 0 0 0 -1.98465,2.25192 1.9846094,2.2519786 0 0 0 0.0588,0.53167 A 8.1692063,5.1693144 0 0 0 6,373.83071 8.1692063,5.1693144 0 0 0 14.16915,379 8.1692063,5.1693144 0 0 0 21.48278,376.11985 3.0461447,4.2480502 0 0 0 24,377.97641 l 0,-2.35772 A 1.3384576,1.9448905 0 0 1 22.7077,373.67718 1.3384576,1.9448905 0 0 1 24,371.73455 l 0,-2.25416 a 3.0461447,4.2480502 0 0 0 -2.57413,1.97944 8.1692063,5.1693144 0 0 0 -7.25672,-2.79842 8.1692063,5.1693144 0 0 0 -0.37318,0.0119 1.7538409,2.0472531 0 0 1 0.69638,-1.00162 l 0,-1.66609 A 1.9846094,2.2519786 0 0 0 14.35391,366 Z m -3.27707,5.83461 a 1.6615335,1.8425278 0 0 1 1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66156,1.84257 1.6615335,1.8425278 0 0 1 -1.66145,-1.84257 1.6615335,1.8425278 0 0 1 1.66145,-1.84257 z m 3.78465,0.40949 a 1.2923038,1.4330772 0 0 1 1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.29231,1.43308 1.2923038,1.4330772 0 0 1 -1.2923,-1.43308 1.2923038,1.4330772 0 0 1 1.2923,-1.43308 z m 3.00928,0.38892 a 0.92307415,1.0236265 0 0 1 0.92304,1.02373 0.92307415,1.0236265 0 0 1 -0.92304,1.02359 0.92307415,1.0236265 0 0 1 -0.92317,-1.02359 0.92307415,1.0236265 0 0 1 0.92317,-1.02373 z" />
+    <g
+       id="text9"
+       style="font-size:8px;text-anchor:middle">
+      <path
+         id="path30"
+         style="font-size:8px;text-anchor:middle"
+         d="m 0.57421875,4.1679687 0.84765625,0 1.4492188,2.1679688 1.4570312,-2.1679688 0.8476562,0 L 3.3007813,6.96875 5.3007812,10 4.453125,10 2.8125,7.5195312 1.1601562,10 0.30859375,10 2.390625,6.8867187 0.57421875,4.1679687 Z" />
+      <path
+         id="path32"
+         style="font-size:8px;text-anchor:middle"
+         d="m 10.316406,9.1679688 0,-1.5664063 -1.2890622,0 0,-0.6484375 2.0703122,0 0,2.5039063 Q 10.640625,9.78125 10.089844,9.9492188 9.5390625,10.113281 8.9140625,10.113281 q -1.3671875,0 -2.140625,-0.7968747 Q 6.0039062,8.515625 6.0039062,7.0898437 q 0,-1.4296875 0.7695313,-2.2265625 Q 7.546875,4.0625 8.9140625,4.0625 q 0.5703125,0 1.0820313,0.140625 0.5156252,0.140625 0.9492192,0.4140625 l 0,0.8398437 q -0.4375,-0.3710937 -0.929688,-0.5585937 -0.4921875,-0.1875 -1.0351562,-0.1875 -1.0703126,0 -1.6093751,0.5976562 -0.5351562,0.5976563 -0.5351562,1.78125 0,1.1796876 0.5351562,1.7773438 0.5390625,0.5976563 1.6093751,0.5976563 0.4179687,0 0.7460937,-0.070312 0.3281255,-0.074219 0.5898435,-0.2265625 z" />
+      <path
+         id="path34"
+         style="font-size:8px;text-anchor:middle"
+         d="m 12.148438,7.4882812 2.105468,0 0,0.6406251 -2.105468,0 0,-0.6406251 z" />
+      <path
+         id="path36"
+         style="font-size:8px;text-anchor:middle"
+         d="m 15.640625,9.3359375 1.289062,0 0,-4.4492188 -1.402343,0.28125 0,-0.71875 1.394531,-0.28125 0.789062,0 0,5.1679688 1.289063,0 L 19,10 l -3.359375,0 0,-0.6640625 z" />
+      <path
+         id="path38"
+         style="font-size:8px;text-anchor:middle"
+         d="m 22.285156,4.6875 q -0.609375,0 -0.917969,0.6015625 -0.304687,0.5976562 -0.304687,1.8007812 0,1.1992188 0.304687,1.8007813 0.308594,0.5976563 0.917969,0.5976563 0.613281,0 0.917969,-0.5976563 0.308594,-0.6015625 0.308594,-1.8007813 0,-1.203125 -0.308594,-1.8007812 Q 22.898437,4.6875 22.285156,4.6875 Z m 0,-0.625 q 0.980469,0 1.496094,0.7773437 0.519531,0.7734375 0.519531,2.25 0,1.4726563 -0.519531,2.2500001 -0.515625,0.7734372 -1.496094,0.7734372 -0.980469,0 -1.5,-0.7734372 Q 20.269531,8.5625 20.269531,7.0898437 q 0,-1.4765625 0.515625,-2.25 0.519531,-0.7773437 1.5,-0.7773437 z" />
+      <path
+         id="path40"
+         style="font-size:8px;text-anchor:middle"
+         d="m 27.859375,4.8554687 -1.992188,3.1132813 1.992188,0 0,-3.1132813 z m -0.207031,-0.6875 0.992187,0 0,3.8007813 0.832031,0 0,0.65625 -0.832031,0 0,1.375 -0.785156,0 0,-1.375 -2.632813,0 0,-0.7617188 2.425782,-3.6953125 z" />
+    </g>
+  </g>
+  <g
+     style="fill:none;stroke:#ffffff;stroke-width:2;stroke-linecap:round"
+     id="screen">
+    <path
+       id="line12"
+       d="m 15,31.5 0,317"
+       style="stroke:#719fcf" />
+    <path
+       id="line14"
+       d="m 15,31.5 0,56"
+       style="" />
+    <path
+       id="line16"
+       d="m 15,118.5 0,56"
+       style="" />
+    <path
+       id="line18"
+       d="m 15,205.5 0,56"
+       style="" />
+    <path
+       id="line20"
+       d="m 15,292.5 0,56"
+       style="" />
+  </g>
+</svg>

plugins/community/repos/SubmarineFree/src/AG-106.cpp

@@ -1,91 +0,0 @@
-#include "DS.hpp"
-
-namespace rack_plugin_SubmarineFree {
-
-struct AG_106 : DS_Module {
-	static const int deviceCount = 6;
-	enum ParamIds {
-		NUM_PARAMS
-	};
-	enum InputIds {
-		INPUT_A_1,
-		INPUT_A_2,
-		INPUT_A_3,
-		INPUT_A_4,
-		INPUT_A_5,
-		INPUT_A_6,
-		INPUT_B_1,
-		INPUT_B_2,
-		INPUT_B_3,
-		INPUT_B_4,
-		INPUT_B_5,
-		INPUT_B_6,
-		NUM_INPUTS
-	};
-	enum OutputIds {
-		OUTPUT_1,
-		OUTPUT_2,
-		OUTPUT_3,
-		OUTPUT_4,
-		OUTPUT_5,
-		OUTPUT_6,
-		NUM_OUTPUTS
-	};
-	enum LightIds {
-		NUM_LIGHTS
-	};
-
-	AG_106() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
-	void step() override;
-};
-
-void AG_106::step() {
-	int connCount = 0;
-	int setCount = 0;
-	for (int i = 0; i < deviceCount; i++) {
-		if (inputs[INPUT_A_1 + i].active) {
-			connCount++;
-			if (inputs[INPUT_A_1 + i].value > midpoint())
-				setCount++;
-		}
-		if (inputs[INPUT_B_1 + i].active) {
-			connCount++;
-			if (inputs[INPUT_B_1 + i].value > midpoint())
-				setCount++;
-		}
-		if (outputs[OUTPUT_1 + i].active) {
-			if (connCount)
-				outputs[OUTPUT_1 + i].value = (connCount == setCount)?voltage1:voltage0;
-			else
-				outputs[OUTPUT_1 + i].value = voltage0;
-			connCount = 0;
-			setCount = 0;
-		}
-	}
-}
-
-struct AG106 : ModuleWidget {
-	AG106(AG_106 *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/AG-106.svg")));
-
-		for (int i = 0; i < AG_106::deviceCount; i++) {
-			int offset = 58 * i;
-			addInput(Port::create<sub_port_blue>(Vec(4,19 + offset), Port::INPUT, module, AG_106::INPUT_A_1 + i));
-			addInput(Port::create<sub_port_blue>(Vec(4,47 + offset), Port::INPUT, module, AG_106::INPUT_B_1 + i));
-
-			addOutput(Port::create<sub_port_blue>(Vec(62,33 + offset), Port::OUTPUT, module, AG_106::OUTPUT_1 + i));
-		}
-	}
-	void appendContextMenu(Menu *menu) override {
-		((DS_Module *)module)->appendContextMenu(menu);
-	}
-};
-
-} // namespace rack_plugin_SubmarineFree
-
-using namespace rack_plugin_SubmarineFree;
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, AG106) {
-   Model *modelAG106 = Model::create<AG_106, AG106>("SubmarineFree", "AG-106", "AG-106 AND Gates", LOGIC_TAG, MULTIPLE_TAG);
-   return modelAG106;
-}

plugins/community/repos/SubmarineFree/src/AG1.cpp

@@ -0,0 +1,97 @@
+#include "DS.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+template <int x>
+struct AG_1 : DS_Module {
+	enum ParamIds {
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT_A_1,
+		INPUT_B_1 = x,
+		NUM_INPUTS = x + x
+	};
+	enum OutputIds {
+		OUTPUT_1,
+		NUM_OUTPUTS = x
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+
+	AG_1() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+
+	void step() override {
+		int connCount = 0;
+		int setCount = 0;
+		for (int i = 0; i < x; i++) {
+			if (inputs[INPUT_A_1 + i].active) {
+				connCount++;
+				if (inputs[INPUT_A_1 + i].value > midpoint())
+					setCount++;
+			}
+			if (inputs[INPUT_B_1 + i].active) {
+				connCount++;
+				if (inputs[INPUT_B_1 + i].value > midpoint())
+					setCount++;
+			}
+			if (outputs[OUTPUT_1 + i].active) {
+				if (connCount)
+					outputs[OUTPUT_1 + i].value = (connCount == setCount)?voltage1:voltage0;
+				else
+					outputs[OUTPUT_1 + i].value = voltage0;
+				connCount = 0;
+				setCount = 0;
+			}
+		}
+	}
+};
+
+struct AG104 : ModuleWidget {
+	AG104(AG_1<4> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/AG-104.svg")));
+
+		for (int i = 0; i < 4; i++) {
+			int offset = 87 * i;
+			addInput(Port::create<BluePort>(Vec(2.5,19 + offset), Port::INPUT, module, AG_1<4>::INPUT_A_1 + i));
+			addInput(Port::create<BluePort>(Vec(2.5,47 + offset), Port::INPUT, module, AG_1<4>::INPUT_B_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(2.5,75 + offset), Port::OUTPUT, module, AG_1<4>::OUTPUT_1 + i));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+struct AG106 : ModuleWidget {
+	AG106(AG_1<6> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/AG-106.svg")));
+
+		for (int i = 0; i < 6; i++) {
+			int offset = 58 * i;
+			addInput(Port::create<BluePort>(Vec(4,19 + offset), Port::INPUT, module, AG_1<6>::INPUT_A_1 + i));
+			addInput(Port::create<BluePort>(Vec(4,47 + offset), Port::INPUT, module, AG_1<6>::INPUT_B_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(62,33 + offset), Port::OUTPUT, module, AG_1<6>::OUTPUT_1 + i));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, AG104) {
+   Model *modelAG104 = Model::create<AG_1<4>, AG104>("Submarine (Free)", "AG-104", "AG-104 AND Gates", LOGIC_TAG, MULTIPLE_TAG);
+   return modelAG104;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, AG106) {
+   Model *modelAG106 = Model::create<AG_1<6>, AG106>("Submarine (Free)", "AG-106", "AG-106 AND Gates", LOGIC_TAG, MULTIPLE_TAG);
+   return modelAG106;
+}

plugins/community/repos/SubmarineFree/src/AO1.cpp

@@ -0,0 +1,449 @@
+#include "SubmarineFree.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+namespace SubmarineAO {
+
+	typedef float (*func_t)(float, float, float);
+
+	struct Functor {
+		std::string name;
+		func_t func;
+	};
+
+#define sMIN(a,b) (((a)>(b))?(b):(a))
+#define sMAX(a,b) (((a)>(b))?(a):(b))
+
+#define LAMBDA(e) [](float x, float y, float c)->float { return e ; }
+#define X "X"			// X
+#define Y "Y"			// Y
+#define C "C"			// C
+#define A "+"			// Addition symbol
+#define S "-"			// Subtraction symbol
+#define O "%"			// Modulo symbol
+#define OP "("			// Open Parenthesis
+#define CP ")"			// Close Parenthesis
+#define P "|"			// Pipe symbol
+#define M "\xe2\xa8\xaf"
+#define D "\xc3\xb7"		// Division symbol
+#define R "\xe2\x88\x9a"	// Root symbol
+#define S2 "\xc2\xb2"		// Superscript 2
+#define S3 "\xc2\xb3"		// Superscript 3
+#define s0 "\xe2\x82\x80"	// Subscript 0
+#define s1 "\xe2\x82\x81"	// Subscript 1
+#define s2 "\xe2\x82\x82"	// Subscript 2
+#define E "\xe2\x84\xaf"	// e
+#define SA "\xe2\x81\xba"	// Superscript +
+#define SX "\xcb\xa3"		// Superscript x
+#define SY "\xca\xb8"		// Superscript y
+#define SC "\xe1\xb6\x9c"	// Superscript c
+#define MIN "min"		// Minimum function
+#define MAX "max"		// Maximum function
+#define COMMA ","		// Comma symbol
+#define SIN "sin"		// sine function
+#define COS "cos"		// cosine function
+#define TAN "tan"		// tangent function
+#define ASIN "asin"		// arcsine function
+#define ACOS "acos"		// arcosine function
+#define ATAN "atan"		// arctangent function
+#define LOG "log"		// log function
+#define LOG2 LOG s2		// base-2 log function
+#define LOG10 LOG s1 s0		// base-10 log function
+#define IF "if "		// if conditional
+#define G ">"			// Greater Than symbol
+#define L "<"			// Less Than symbol
+#define Q "="			// Equality symbol
+#define Z "0"			// Zero
+#define W "1"			// One
+#define T "\xe2\x86\xa3"	// Right arrow
+#define H "/"			// Slash
+#define Pi "\xcf\x80"		// PI
+#define TAU "\xcf\x84"		// TAU
+
+	std::vector<Functor> functions {
+		{ "",                      LAMBDA(  0                      ) }, // Passthrough
+		{ C,                       LAMBDA(  c                      ) }, // Addition
+		{ X A C,                   LAMBDA(  x + c                  ) },
+		{ Y A C,                   LAMBDA(  y + c                  ) },
+		{ X A Y A C,               LAMBDA(  x + y + c              ) },
+		{ C S X,                   LAMBDA(  c - x                  ) }, // Subtraction
+		{ C S Y,                   LAMBDA(  c - y                  ) },
+		{ X S OP Y A C CP,         LAMBDA(  x - ( y + c )          ) },
+		{ OP X A C CP S Y,         LAMBDA(  ( x + c ) - y          ) },
+		{ Y S OP X A C CP,         LAMBDA(  y - ( x + c )          ) },
+		{ OP Y A C CP S X,         LAMBDA(  ( y + c ) - x          ) },
+		{ OP X M Y CP A C,         LAMBDA(  ( x * y ) + c          ) }, // Multiplication
+		{ OP X A C CP M Y,         LAMBDA(  ( x + c ) * y          ) },
+		{ X M OP Y A C CP,         LAMBDA(  x * ( y + c )          ) },
+		{ X M C,                   LAMBDA(  x * c                  ) },
+		{ Y M C,                   LAMBDA(  y * c                  ) },
+		{ X M Y M C,               LAMBDA(  x * y * c              ) },
+		{ Pi M OP X A C CP,	   LAMBDA(  M_PI * ( x + c )	   ) },
+		{ Pi M OP Y A C CP,	   LAMBDA(  M_PI * ( y + c )	   ) },
+		{ TAU M OP X A C CP,	   LAMBDA(  2 * M_PI * ( x + c )   ) },
+		{ TAU M OP Y A C CP,	   LAMBDA(  2 * M_PI * ( y + c )   ) },
+		{ X D C,                   LAMBDA(  x / c                  ) }, // Division
+		{ C D X,                   LAMBDA(  c / x                  ) },
+		{ Y D C,                   LAMBDA(  y / c                  ) },
+		{ C D Y,                   LAMBDA(  c / y                  ) },
+		{ C A OP X D Y CP,         LAMBDA(  c + ( x / y )          ) },
+		{ C A OP Y D X CP,         LAMBDA(  c + ( y / x )          ) },
+		{ X A OP Y D C CP,	   LAMBDA(  x + ( y / c )	   ) },
+		{ X A OP C D Y CP,	   LAMBDA(  x + ( c / y ) 	   ) },
+ 		{ Y A OP X D C CP,	   LAMBDA(  y + ( x / c )	   ) },
+		{ Y A OP C D X CP,	   LAMBDA(  y + ( c / x ) 	   ) },
+		{ OP X A C CP D Y,         LAMBDA(  ( x + c ) / y          ) },
+		{ X D OP Y A C CP,         LAMBDA(  x / ( y + c )          ) },
+		{ OP Y A C CP D X,         LAMBDA(  ( y + c ) / x          ) },
+		{ Y D OP X A C CP,         LAMBDA(  y / ( x + c )          ) },
+		{ OP X A C CP O Y,	   LAMBDA(  fmodf( x + c , y )	   ) }, // Modulo
+		{ OP Y A C CP O X,	   LAMBDA(  fmodf( y + c , x )	   ) },
+		{ X O OP Y A C CP,	   LAMBDA(  fmodf( x , y + c )	   ) },
+		{ Y O OP X A C CP,	   LAMBDA(  fmodf( y , x + c)	   ) },
+		{ X O C,		   LAMBDA(  fmodf( x , c )	   ) },
+		{ Y O C,		   LAMBDA(  fmodf( y , c )  	   ) },
+		{ X S2 A C,                LAMBDA(  x * x + c              ) }, // Quadratic
+		{ Y S2 A C,                LAMBDA(  y * y + c              ) },
+		{ OP X A C CP S2,          LAMBDA(  ( x + c ) * ( x + c )  ) },
+		{ OP Y A C CP S2,          LAMBDA(  ( y + c ) * ( y + c )  ) },
+		{ X S2 A Y A C,            LAMBDA(  x * x + y + c          ) },
+		{ Y S2 A X A C,            LAMBDA(  y * y + x + c          ) },
+		{ X S2 A C Y,              LAMBDA(  x * x + c * y          ) },
+		{ Y S2 A C X,              LAMBDA(  y * y + c * x          ) },
+		{ R OP X A C CP,           LAMBDA(  sqrt( x + c )          ) }, // Square Root
+		{ R OP Y A C CP,           LAMBDA(  sqrt( y + c )          ) },
+		{ C SX,			   LAMBDA(  powf( c , x )	   ) }, // Powers
+		{ C SY,			   LAMBDA(  powf( c , y )	   ) },
+		{ C SX SA SY,		   LAMBDA(  powf( c , x + y ) 	   ) },
+		{ C SX SY,		   LAMBDA(  powf( c , x * y )	   ) },
+		{ X SC,			   LAMBDA(  powf( x , c ) 	   ) },
+		{ Y SC,			   LAMBDA(  powf( y , c )	   ) },
+		{ X SY SA SC, 		   LAMBDA(  powf( x , y + c )	   ) },
+		{ Y SX SA SC,		   LAMBDA(  powf( y , x + c )	   ) },
+		{ X SC SY,		   LAMBDA(  powf( x , c * y )	   ) },
+		{ Y SC SX,		   LAMBDA(  powf( y , c * x )	   ) },
+                { P X A C P,               LAMBDA(  abs( x + c )           ) }, // Modulus
+		{ P Y A C P,               LAMBDA(  abs( y + c )           ) },
+		{ MIN OP X A C COMMA Y CP, LAMBDA(  sMIN( x + c, y )   ) }, // Minmax
+		{ MIN OP X COMMA C CP,     LAMBDA(  sMIN( x, c )       ) },
+      		{ MIN OP Y COMMA C CP,     LAMBDA(  sMIN( y, c )       ) },
+     		{ MAX OP X A C COMMA Y CP, LAMBDA(  sMAX( x + c, y )   ) },
+		{ MAX OP X COMMA C CP,     LAMBDA(  sMAX( x, c )       ) },
+		{ MAX OP Y COMMA C CP,     LAMBDA(  sMAX( y, c )       ) },
+		{ SIN OP X A C CP,         LAMBDA(  sin( x + c )           ) }, // Trigonometric
+		{ SIN OP Y A C CP,         LAMBDA(  sin( y + c )           ) },
+		{ SIN OP X A Y CP,         LAMBDA(  sin( x + y )           ) },
+ 		{ SIN OP C X CP,           LAMBDA(  sin( c * x )           ) },
+		{ SIN OP C Y CP,           LAMBDA(  sin( c * y )           ) },
+		{ SIN OP X Y CP,           LAMBDA(  sin( x * y )           ) },
+		{ COS OP X A C CP,         LAMBDA(  cos( x + c )           ) },
+		{ COS OP Y A C CP,         LAMBDA(  cos( y + c )           ) },
+		{ COS OP X A Y CP,         LAMBDA(  cos( x + y )           ) },
+ 		{ COS OP C X CP,           LAMBDA(  cos( c * x )           ) },
+		{ COS OP C Y CP,           LAMBDA(  cos( c * y )           ) },
+		{ COS OP X Y CP,           LAMBDA(  cos( x * y )           ) },
+		{ TAN OP X A C CP,         LAMBDA(  tan( x + c )           ) },
+		{ TAN OP Y A C CP,         LAMBDA(  tan( y + c )           ) },
+		{ TAN OP X A Y CP,         LAMBDA(  tan( x + y )           ) },
+ 		{ TAN OP C X CP,           LAMBDA(  tan( c * x )           ) },
+		{ TAN OP C Y CP,           LAMBDA(  tan( c * y )           ) },
+		{ TAN OP X Y CP,           LAMBDA(  tan( x * y )           ) },
+		{ ASIN OP X A C CP,        LAMBDA(  asin( x + c )          ) },
+		{ ASIN OP Y A C CP,        LAMBDA(  asin( y + c )          ) },
+		{ ASIN OP X A Y CP,        LAMBDA(  asin( x + y )          ) },
+ 		{ ASIN OP C X CP,          LAMBDA(  asin( c * x )          ) },
+		{ ASIN OP C Y CP,          LAMBDA(  asin( c * y )          ) },
+		{ ASIN OP X Y CP,          LAMBDA(  asin( x * y )          ) },
+		{ ACOS OP X A C CP,        LAMBDA(  acos( x + c )          ) },
+		{ ACOS OP Y A C CP,        LAMBDA(  acos( y + c )          ) },
+		{ ACOS OP X A Y CP,        LAMBDA(  acos( x + y )          ) },
+ 		{ ACOS OP C X CP,          LAMBDA(  acos( c * x )          ) },
+		{ ACOS OP C Y CP,          LAMBDA(  acos( c * y )          ) },
+		{ ACOS OP X Y CP,          LAMBDA(  acos( x * y )          ) },
+		{ ATAN OP X A C CP,        LAMBDA(  atan( x + c )          ) },
+		{ ATAN OP Y A C CP,        LAMBDA(  atan( y + c )          ) },
+		{ ATAN OP X A Y CP,        LAMBDA(  atan( x + y )          ) },
+ 		{ ATAN OP C X CP,          LAMBDA(  atan( c * x )          ) },
+		{ ATAN OP C Y CP,          LAMBDA(  atan( c * y )          ) },
+		{ ATAN OP X Y CP,          LAMBDA(  atan( x * y )          ) },
+		{ LOG OP X A C CP,         LAMBDA(  log( x + c )           ) }, // Logarithmic
+		{ LOG OP Y A C CP,         LAMBDA(  log( y + c )           ) },
+		{ LOG2 OP X A C CP,        LAMBDA(  log2( x + c )          ) },
+		{ LOG2 OP Y A C CP,        LAMBDA(  log2( y + c )          ) },
+		{ LOG10 OP X A C CP,       LAMBDA(  log10( x + c )         ) },
+		{ LOG10 OP Y A C CP,       LAMBDA(  log10( y + c )         ) },
+		{ E SX SA SC,              LAMBDA(  exp( x + c )           ) }, // Exponential
+		{ E SY SA SC,              LAMBDA(  exp( y + c )           ) },
+		{ E SC SX,                 LAMBDA(  exp( c * x )           ) },
+		{ E SC SY,                 LAMBDA(  exp( c * y )           ) },
+		{ "2" SX SA SC,            LAMBDA(  powf( 2, x + c )       ) },
+		{ "2" SY SA SC,            LAMBDA(  powf( 2, y + c )       ) },
+		{ "2" SC SX,               LAMBDA(  powf( 2, c * x )       ) },
+		{ "2" SC SY,               LAMBDA(  powf( 2, c * y )       ) },
+		{ "10" SX SA SC,           LAMBDA(  powf( 10, x + c )      ) },
+		{ "10" SY SA SC,           LAMBDA(  powf( 10, y + c )      ) },
+		{ "10" SC SX,              LAMBDA(  powf( 10, c * x )      ) },
+		{ "10" SC SY,              LAMBDA(  powf( 10, c * y )      ) },
+
+		{ IF X G Z T Y H C,	   LAMBDA(  (x > 0) ? y : c	   ) }, // Conditional
+		{ IF X L Z T Y H C,	   LAMBDA(  (x < 0) ? y : c	   ) },
+		{ IF X Q Z T Y H C,	   LAMBDA(  (x == 0) ? y : c	   ) },
+		{ IF X G Z T C H Y,	   LAMBDA(  (x > 0) ? c : y	   ) },
+		{ IF X L Z T C H Y,	   LAMBDA(  (x < 0) ? c : y	   ) },
+		{ IF X Q Z T C H Y,	   LAMBDA(  (x == 0) ? c : y	   ) },
+		{ IF X G Z T W H Z,	   LAMBDA(  (x > 0) ? 1 : 0	   ) },
+		{ IF X L Z T W H Z,	   LAMBDA(  (x < 0) ? 1 : 0	   ) },
+		{ IF X Q Z T W H Z,	   LAMBDA(  (x == 0) ? 1 : 0	   ) },
+		{ IF X G Z T X H C,	   LAMBDA(  (x > 0) ? x : c	   ) },
+		{ IF X L Z T X H C,	   LAMBDA(  (x < 0) ? x : c	   ) },
+		{ IF X Q Z T X H C,	   LAMBDA(  (x == 0) ? x : c	   ) },
+		{ IF X G Z T C H X,	   LAMBDA(  (x > 0) ? c : x	   ) },
+		{ IF X L Z T C H X,	   LAMBDA(  (x < 0) ? c : x	   ) },
+		{ IF X Q Z T C H X,	   LAMBDA(  (x == 0) ? c : x	   ) },
+
+		{ IF Y G Z T X H C,	   LAMBDA(  (y > 0) ? x : c	   ) },
+		{ IF Y L Z T X H C,	   LAMBDA(  (y < 0) ? x : c	   ) },
+		{ IF Y Q Z T X H C,	   LAMBDA(  (y == 0) ? x : c	   ) },
+		{ IF Y G Z T C H X,	   LAMBDA(  (y > 0) ? c : x	   ) },
+		{ IF Y L Z T C H X,	   LAMBDA(  (y < 0) ? c : x	   ) },
+		{ IF Y Q Z T C H X,	   LAMBDA(  (y == 0) ? c : x	   ) },
+		{ IF Y G Z T W H Z,	   LAMBDA(  (y > 0) ? 1 : 0	   ) },
+		{ IF Y L Z T W H Z,	   LAMBDA(  (y < 0) ? 1 : 0	   ) },
+		{ IF Y Q Z T W H Z,	   LAMBDA(  (y == 0) ? 1 : 0	   ) },
+		{ IF Y G Z T Y H C,	   LAMBDA(  (y > 0) ? y : c	   ) },
+		{ IF Y L Z T Y H C,	   LAMBDA(  (y < 0) ? y : c	   ) },
+		{ IF Y Q Z T Y H C,	   LAMBDA(  (y == 0) ? y : c	   ) },
+		{ IF Y G Z T C H Y,	   LAMBDA(  (y > 0) ? c : y	   ) },
+		{ IF Y L Z T C H Y,	   LAMBDA(  (y < 0) ? c : y	   ) },
+		{ IF Y Q Z T C H Y,	   LAMBDA(  (y == 0) ? c : y	   ) },
+
+		{ IF X G Y T C H Z,	   LAMBDA(  (x > y) ? c : 0	   ) },
+		{ IF X L Y T C H Z,        LAMBDA(  (x < y) ? c : 0	   ) },
+		{ IF X Q Y T C H Z,	   LAMBDA(  (x == y) ? c : 0	   ) },
+		{ IF Y G X T C H Z,	   LAMBDA(  (y > x) ? c : 0	   ) },
+		{ IF Y L X T C H Z,        LAMBDA(  (y < x) ? c : 0	   ) },
+		{ IF X G Y T X H Z,	   LAMBDA(  (x > y) ? x : 0	   ) },
+		{ IF X L Y T X H Z,        LAMBDA(  (x < y) ? x : 0	   ) },
+		{ IF X Q Y T X H Z,	   LAMBDA(  (x == y) ? x : 0	   ) },
+		{ IF Y G X T X H Z,	   LAMBDA(  (y > x) ? x : 0	   ) },
+		{ IF Y L X T X H Z,        LAMBDA(  (y < x) ? x : 0	   ) },
+		{ IF X G Y T Y H Z,	   LAMBDA(  (x > y) ? y : 0	   ) },
+		{ IF X L Y T Y H Z,        LAMBDA(  (x < y) ? y : 0	   ) },
+		{ IF X Q Y T Y H Z,	   LAMBDA(  (x == y) ? y : 0	   ) },
+		{ IF Y G X T Y H Z,	   LAMBDA(  (y > x) ? y : 0	   ) },
+		{ IF Y L X T Y H Z,        LAMBDA(  (y < x) ? y : 0	   ) },
+
+		{ IF X G C T Y H Z,	   LAMBDA(  (x > c) ? y : 0	   ) },
+		{ IF X L C T Y H Z,        LAMBDA(  (x < c) ? y : 0	   ) },
+		{ IF X Q C T Y H Z,	   LAMBDA(  (x == c) ? y : 0	   ) },
+		{ IF C G X T Y H Z,	   LAMBDA(  (c > x) ? y : 0	   ) },
+		{ IF C L X T Y H Z,        LAMBDA(  (c < x) ? y : 0	   ) },
+		{ IF X G C T X H Z,	   LAMBDA(  (x > c) ? x : 0	   ) },
+		{ IF X L C T X H Z,        LAMBDA(  (x < c) ? x : 0	   ) },
+		{ IF X Q C T X H Z,	   LAMBDA(  (x == c) ? x : 0	   ) },
+		{ IF C G X T X H Z,	   LAMBDA(  (c > x) ? x : 0	   ) },
+		{ IF C L X T X H Z,        LAMBDA(  (c < x) ? x : 0	   ) },
+		{ IF X G C T X H Y,	   LAMBDA(  (x > c) ? x : y	   ) },
+		{ IF X L C T X H Y,        LAMBDA(  (x < c) ? x : y	   ) },
+		{ IF X Q C T X H Y,	   LAMBDA(  (x == c) ? x : y	   ) },
+		{ IF C G X T X H Y,	   LAMBDA(  (c > x) ? x : y	   ) },
+		{ IF C L X T X H Y,        LAMBDA(  (c < x) ? x : y	   ) },
+
+		{ IF Y G C T X H Z,	   LAMBDA(  (y > c) ? x : 0	   ) },
+		{ IF Y L C T X H Z,        LAMBDA(  (y < c) ? x : 0	   ) },
+		{ IF Y Q C T X H Z,	   LAMBDA(  (y == c) ? x : 0	   ) },
+		{ IF C G Y T X H Z,	   LAMBDA(  (c > y) ? x : 0	   ) },
+		{ IF C L Y T X H Z,        LAMBDA(  (c < y) ? x : 0	   ) },
+		{ IF Y G C T Y H Z,	   LAMBDA(  (y > c) ? y : 0	   ) },
+		{ IF Y L C T Y H Z,        LAMBDA(  (y < c) ? y : 0	   ) },
+		{ IF Y Q C T Y H Z,	   LAMBDA(  (y == c) ? y : 0	   ) },
+		{ IF C G Y T Y H Z,	   LAMBDA(  (c > y) ? y : 0	   ) },
+		{ IF C L Y T Y H Z,        LAMBDA(  (c < y) ? y : 0	   ) },
+		{ IF Y G C T Y H X,	   LAMBDA(  (y > c) ? y : x	   ) },
+		{ IF Y L C T Y H X,        LAMBDA(  (y < c) ? y : x	   ) },
+		{ IF Y Q C T Y H X,	   LAMBDA(  (y == c) ? y : x	   ) },
+		{ IF C G Y T Y H X,	   LAMBDA(  (c > y) ? y : x	   ) },
+		{ IF C L Y T Y H X,        LAMBDA(  (c < y) ? y : x	   ) },
+
+	};
+
+#undef X
+#undef Y
+#undef C
+#undef A
+#undef S
+#undef O
+#undef OP
+#undef CP
+#undef P
+#undef M
+#undef D
+#undef R
+#undef S2
+#undef S3
+#undef s0
+#undef s1
+#undef s2
+#undef E
+#undef SA
+#undef SX
+#undef SY
+#undef SC
+#undef COMMA
+#undef MIN
+#undef MAX
+#undef SIN
+#undef COS
+#undef TAN
+#undef ASIN
+#undef ACOS
+#undef ATAN
+#undef LOG
+#undef LOG2
+#undef LOG10
+#undef IF
+#undef G
+#undef L
+#undef Q
+#undef Z
+#undef W
+#undef T
+#undef H
+#undef Pi
+#undef TAU
+
+} // end namespace SubmarineA0
+
+struct AOFuncDisplay : Knob {
+	std::shared_ptr<Font> font;
+	AOFuncDisplay() {
+		box.size.x = 80;
+		box.size.y = 15;
+		snap = true;
+		smooth = false;
+		speed = 0.5f;
+		font = Font::load(assetGlobal("res/fonts/DejaVuSans.ttf"));
+	}
+	void draw(NVGcontext *vg) override {
+		nvgFontSize(vg, 16);
+		nvgFontFaceId(vg, font->handle);
+		nvgFillColor(vg, nvgRGBA(0x28, 0xb0, 0xf3, 0xff));
+		nvgTextAlign(vg, NVG_ALIGN_CENTER);
+		nvgText(vg, 41.5, 13, SubmarineAO::functions[value].name.c_str(), NULL);
+	}
+};
+
+struct AOConstDisplay : Knob {
+	std::shared_ptr<Font> font;
+	AOConstDisplay() {
+		box.size.x = 80;
+		box.size.y = 15;
+		snap = true;
+		speed = 0.005;
+		font = Font::load(assetGlobal("res/fonts/DejaVuSans.ttf"));
+	}
+	void draw(NVGcontext *vg) override {
+		char mtext[41];
+		sprintf(mtext, "C=%4.2f", ((int)value)/100.0f);
+		nvgFontSize(vg, 16);
+		nvgFontFaceId(vg, font->handle);
+		nvgFillColor(vg, nvgRGBA(0x28, 0xb0, 0xf3, 0xff));
+		nvgTextAlign(vg, NVG_ALIGN_CENTER);
+		nvgText(vg, 41.5, 13, mtext, NULL);
+	}
+};
+
+template <unsigned int x, unsigned int y>
+struct AO1 : Module {
+	enum ParamIds {
+		PARAM_FUNC_1,
+		PARAM_CONST_1 = x * y,
+		NUM_PARAMS = 2 * x * y
+	};
+	enum InputIds {
+		INPUT_X_1,
+		INPUT_Y_1 = x,
+		NUM_INPUTS = x + y
+	};
+	enum OutputIds {
+		OUTPUT_X_1,
+		OUTPUT_Y_1 = x,
+		NUM_OUTPUTS = x + y
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+
+	AO1() : Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	void step() override {
+		float vx[x];
+		for (unsigned int ix = 0; ix < x; ix++) {
+			vx[ix] = inputs[INPUT_X_1 + ix].value;
+		}
+		for (unsigned int iy = 0; iy < y; iy++) {
+			float vy = inputs[INPUT_Y_1 + iy].value;
+			for (unsigned int ix = 0; ix < x; ix++) {
+				unsigned int f = params[PARAM_FUNC_1 + ix + iy * x].value;
+				if (f >= SubmarineAO::functions.size())
+					f = SubmarineAO::functions.size() - 1;
+				if (f > 0)
+					vy = vx[ix] = SubmarineAO::functions[f].func(vx[ix], vy, ((int)params[PARAM_CONST_1 + ix + iy * x].value)/100.0f);
+				// if f is equal to 0, then both x and y pass (crossing) through the module unchanged.
+			}
+			outputs[OUTPUT_Y_1 + iy].value = std::isfinite(vy)?vy:0.0f;
+		}
+		for (unsigned int ix = 0; ix < x; ix++) {
+			outputs[OUTPUT_X_1 + ix].value = std::isfinite(vx[ix])?vx[ix]:0.0f;
+		}
+	}
+};
+
+template <unsigned int x, unsigned int y>
+struct AOWidget : ModuleWidget {
+	AOWidget(AO1<x,y> *module) : ModuleWidget(module) {
+		setPanel(SubHelper::LoadPanel(plugin, "AO-1", x*y));
+		for (unsigned int ix = 0; ix < x; ix++) {
+			addInput(Port::create<SilverPort>(Vec(4, 61 + ix * 46), Port::INPUT, module, AO1<x,y>::INPUT_X_1 + ix));
+			addOutput(Port::create<SilverPort>(Vec(46 + y * 90, 61 + ix * 46), Port::OUTPUT, module, AO1<x,y>::OUTPUT_X_1 + ix));
+		}
+		for (unsigned int iy = 0; iy < y; iy++) {
+			addInput(Port::create<SilverPort>(Vec(70 + 90 * iy, 19), Port::INPUT, module, AO1<x,y>::INPUT_Y_1 + iy));
+			addOutput(Port::create<SilverPort>(Vec(70 + 90 * iy, 335), Port::OUTPUT, module, AO1<x,y>::OUTPUT_Y_1 + iy));
+		}
+		for (unsigned int iy = 0; iy < y; iy++) {
+			for (unsigned int ix = 0; ix < x; ix++) {
+				addParam(ParamWidget::create<AOFuncDisplay>(Vec(42.5 + 90 * iy, 59 + 46 * ix), module, AO1<x,y>::PARAM_FUNC_1 + ix + iy * x, 0.0f, SubmarineAO::functions.size() - 1.0f, 0.0f ));
+				addParam(ParamWidget::create<AOConstDisplay>(Vec(42.5 + 90 * iy, 78 + 46 * ix), module, AO1<x,y>::PARAM_CONST_1 + ix + iy * x, -10000.0f, 10000.0f, 0.0f));
+			}
+		}
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, AO106) {
+   Model *modelAO106 = Model::create<AO1<6,1>, AOWidget<6,1>>("Submarine (Free)", "A0-106", "A0-106 Arithmetic Operators", UTILITY_TAG, MULTIPLE_TAG);
+   return modelAO106;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, AO112) {
+   Model *modelAO112 = Model::create<AO1<6,2>, AOWidget<6,2>>("Submarine (Free)", "A0-112", "A0-112 Arithmetic Operators", UTILITY_TAG, MULTIPLE_TAG);
+   return modelAO112;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, AO118) {
+   Model *modelAO118 = Model::create<AO1<6,3>, AOWidget<6,3>>("Submarine (Free)", "A0-118", "A0-118 Arithmetic Operators", UTILITY_TAG, MULTIPLE_TAG);
+   return modelAO118;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, AO124) {
+   Model *modelAO124 = Model::create<AO1<6,4>, AOWidget<6,4>>("Submarine (Free)", "A0-124", "A0-124 Arithmetic Operators", UTILITY_TAG, MULTIPLE_TAG);
+   return modelAO124;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, AO136) {
+   Model *modelAO136 = Model::create<AO1<6,6>, AOWidget<6,6>>("Submarine (Free)", "A0-136", "A0-136 Arithmetic Operators", UTILITY_TAG, MULTIPLE_TAG);
+   return modelAO136;
+}

plugins/community/repos/SubmarineFree/src/BB-120.cpp

@@ -1,89 +0,0 @@
-#include "DS.hpp"
-
-namespace rack_plugin_SubmarineFree {
-
-struct BB_120 : DS_Module {
-	static const int deviceCount = 20;
-	enum ParamIds {
-		NUM_PARAMS
-	};
-	enum InputIds {
-		INPUT_CLK,
-		INPUT_CV,
-		NUM_INPUTS
-	};
-	enum OutputIds {
-		OUTPUT_1,
-		OUTPUT_2,
-		OUTPUT_3,
-		OUTPUT_4,
-		OUTPUT_5,
-		OUTPUT_6,
-		OUTPUT_7,
-		OUTPUT_8,
-		OUTPUT_9,
-		OUTPUT_10,
-		OUTPUT_11,
-		OUTPUT_12,
-		OUTPUT_13,
-		OUTPUT_14,
-		OUTPUT_15,
-		OUTPUT_16,
-		OUTPUT_17,
-		OUTPUT_18,
-		OUTPUT_19,
-		OUTPUT_20,
-		NUM_OUTPUTS
-	};
-	enum LightIds {
-		NUM_LIGHTS
-	};
-
-	float sample[deviceCount] = {};
-	DS_Schmitt schmittTrigger;
-
-	BB_120() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
-	void step() override;
-};
-
-void BB_120::step() {
-	int triggered = true;
-	if (inputs[INPUT_CLK].active) {
-		triggered = schmittTrigger.redge(this, inputs[INPUT_CLK].value);
-	}
-	if (triggered) {
-		for (int i = deviceCount - 1; i; i--)
-			sample[i] = sample[i - 1];
-		sample[0] = inputs[INPUT_CV].value;
-	}
-	for (int i = 0; i < deviceCount; i++)
-		outputs[OUTPUT_1 + i].value = sample[i];
-}
-
-struct BB120 : ModuleWidget {
-	BB120(BB_120 *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BB-120.svg")));
-
-		addInput(Port::create<sub_port_blue>(Vec(4.5,19), Port::INPUT, module, BB_120::INPUT_CLK));
-		addInput(Port::create<sub_port>(Vec(31.5,34), Port::INPUT, module, BB_120::INPUT_CV));
-
-		for (int i = 0; i < BB_120::deviceCount; i+=2) {
-			int offset = 15 * i;
-
-			addOutput(Port::create<sub_port>(Vec(4,53 + offset), Port::OUTPUT, module, BB_120::OUTPUT_1 + i));
-			addOutput(Port::create<sub_port>(Vec(31,68 + offset), Port::OUTPUT, module, BB_120::OUTPUT_1 + i + 1));
-		}
-	}
-	void appendContextMenu(Menu *menu) override {
-		((DS_Module *)module)->appendContextMenu(menu);
-	}
-};
-
-} // namespace rack_plugin_SubmarineFree
-
-using namespace rack_plugin_SubmarineFree;
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BB120) {
-   Model *modelBB120 = Model::create<BB_120, BB120>("SubmarineFree", "BB-120", "BB-120 20-Stage Bucket Brigade Sample and Hold", LOGIC_TAG, DELAY_TAG, SAMPLE_AND_HOLD_TAG, MULTIPLE_TAG);
-   return modelBB120;
-}

plugins/community/repos/SubmarineFree/src/BB1.cpp

@@ -0,0 +1,107 @@
+#include <global_pre.hpp>
+#include <global.hpp>
+#include "DS.hpp"
+#include <random>
+#include <chrono>
+
+namespace rack_plugin_SubmarineFree {
+
+template <int x>
+struct BB_1 : DS_Module {
+	int doResetFlag = 0;
+	int doRandomFlag = 0;
+	enum ParamIds {
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT_CLK,
+		INPUT_CV,
+		NUM_INPUTS
+	};
+	enum OutputIds {
+		OUTPUT_1,
+		NUM_OUTPUTS = x
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+
+	float sample[x] = {};
+	DS_Schmitt schmittTrigger;
+
+	BB_1() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	void step() override {
+		if (doResetFlag) doReset();
+		if (doRandomFlag) doRandomize();
+		int triggered = true;
+		if (inputs[INPUT_CLK].active) {
+			triggered = schmittTrigger.redge(this, inputs[INPUT_CLK].value);
+		}
+		if (triggered) {
+			for (int i = x - 1; i; i--)
+				sample[i] = sample[i - 1];
+			sample[0] = inputs[INPUT_CV].value;
+		}
+		for (int i = 0; i < x; i++)
+			outputs[OUTPUT_1 + i].value = sample[i];
+	}
+	void doRandomize() {
+		doRandomFlag = 0;
+		std::default_random_engine generator(std::chrono::system_clock::now().time_since_epoch().count());
+		std::uniform_real_distribution<float> distribution(voltage0, voltage1);
+		for (int i = 0; i < x; i++) {
+			outputs[OUTPUT_1 + i].value = sample[i] = distribution(generator);
+		}
+	}
+	void doReset() {
+		doResetFlag = 0;
+		for (int i = 0; i < x; i++)
+			outputs[OUTPUT_1 + i].value = sample[i] = 0.0f;
+	}
+	void onRandomize() override {
+		if (rack::global->gPaused) {
+			doRandomize();
+		}
+		else {
+			doResetFlag = 0;
+			doRandomFlag = 1;
+		}
+	}
+	void onReset() override {
+		if (rack::global->gPaused) {
+			doReset();
+		}
+		else {
+			doRandomFlag = 0;
+			doResetFlag = 1;
+		}
+	}
+};
+
+struct BB120 : ModuleWidget {
+	BB120(BB_1<20> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/BB-120.svg")));
+
+		addInput(Port::create<BluePort>(Vec(4.5,19), Port::INPUT, module, BB_1<20>::INPUT_CLK));
+		addInput(Port::create<SilverPort>(Vec(31.5,34), Port::INPUT, module, BB_1<20>::INPUT_CV));
+
+		for (int i = 0; i < 20; i+=2) {
+			int offset = 15 * i;
+
+			addOutput(Port::create<SilverPort>(Vec(4,53 + offset), Port::OUTPUT, module, BB_1<20>::OUTPUT_1 + i));
+			addOutput(Port::create<SilverPort>(Vec(31,68 + offset), Port::OUTPUT, module, BB_1<20>::OUTPUT_1 + i + 1));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BB120) {
+   Model *modelBB120 = Model::create<BB_1<20>, BB120>("Submarine (Free)", "BB-120", "BB-120 20-Stage Bucket Brigade Sample and Hold", LOGIC_TAG, DELAY_TAG, SAMPLE_AND_HOLD_TAG, MULTIPLE_TAG);
+   return modelBB120;
+}

plugins/community/repos/SubmarineFree/src/BP.cpp

@@ -1,147 +0,0 @@
-#include "SubmarineFree.hpp"
-
-namespace rack_plugin_SubmarineFree {
-
-struct BP : Module {
-	enum ParamIds {
-		NUM_PARAMS
-	};
-	enum InputIds {
-		NUM_INPUTS
-	};
-	enum OutputIds {
-		NUM_OUTPUTS
-	};
-	enum LightIds {
-		NUM_LIGHTS
-	};
-
-	BP() : Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
-	void step() override;
-
-	// For more advanced Module features, read Rack's engine.hpp header file
-	// - toJson, fromJson: serialization of internal data
-	// - onSampleRateChange: event triggered by a change of sample rate
-	// - onReset, onRandomize, onCreate, onDelete: implements special behavior when user clicks these from the context menu
-};
-
-void BP::step() {
-}
-
-struct BP101 : ModuleWidget {
-	BP101(BP *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BP-101.svg")));
-	}
-};
-
-struct BP102 : ModuleWidget {
-	BP102(BP *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BP-102.svg")));
-	}
-};
-
-struct BP104 : ModuleWidget {
-	BP104(BP *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BP-104.svg")));
-	}
-};
-
-struct BP108 : ModuleWidget {
-	BP108(BP *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BP-108.svg")));
-	}
-};
-
-struct BP110 : ModuleWidget {
-	BP110(BP *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BP-110.svg")));
-	}
-};
-
-struct BP112 : ModuleWidget {
-	BP112(BP *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BP-112.svg")));
-	}
-};
-
-struct BP116 : ModuleWidget {
-	BP116(BP *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BP-116.svg")));
-	}
-};
-
-struct BP120 : ModuleWidget {
-	BP120(BP *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BP-120.svg")));
-	}
-};
-
-struct BP124 : ModuleWidget {
-	BP124(BP *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BP-124.svg")));
-	}
-};
-
-struct BP132 : ModuleWidget {
-	BP132(BP *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/BP-132.svg")));
-	}
-};
-
-} // namespace rack_plugin_SubmarineFree
-
-using namespace rack_plugin_SubmarineFree;
-
-// Specify the Module and ModuleWidget subclass, human-readable
-// author name for categorization per plugin, module slug (should never
-// change), human-readable module name, and any number of tags
-// (found in `include/tags.hpp`) separated by commas.
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP101) {
-   Model *modelBP101 = Model::create<BP, BP101>("SubmarineFree", "BP-101", "BP-101 Blanking Plate", BLANK_TAG);
-   return modelBP101;
-}
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP102) {
-   Model *modelBP102 = Model::create<BP, BP102>("SubmarineFree", "BP-102", "BP-102 Blanking Plate", BLANK_TAG);
-   return modelBP102;
-}
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP104) {
-   Model *modelBP104 = Model::create<BP, BP104>("SubmarineFree", "BP-104", "BP-104 Blanking Plate", BLANK_TAG);
-   return modelBP104;
-}
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP108) {
-   Model *modelBP108 = Model::create<BP, BP108>("SubmarineFree", "BP-108", "BP-108 Blanking Plate", BLANK_TAG);
-   return modelBP108;
-}
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP110) {
-   Model *modelBP110 = Model::create<BP, BP110>("SubmarineFree", "BP-110", "BP-110 Blanking Plate", BLANK_TAG);
-   return modelBP110;
-}
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP112) {
-   Model *modelBP112 = Model::create<BP, BP112>("SubmarineFree", "BP-112", "BP-112 Blanking Plate", BLANK_TAG);
-   return modelBP112;
-}
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP116) {
-   Model *modelBP116 = Model::create<BP, BP116>("SubmarineFree", "BP-116", "BP-116 Blanking Plate", BLANK_TAG);
-   return modelBP116;
-}
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP120) {
-   Model *modelBP120 = Model::create<BP, BP120>("SubmarineFree", "BP-120", "BP-120 Blanking Plate", BLANK_TAG);
-   return modelBP120;
-}
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP124) {
-   Model *modelBP124 = Model::create<BP, BP124>("SubmarineFree", "BP-124", "BP-124 Blanking Plate", BLANK_TAG);
-   return modelBP124;
-}
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP132) {
-   Model *modelBP132 = Model::create<BP, BP132>("SubmarineFree", "BP-132", "BP-132 Blanking Plate", BLANK_TAG);
-   return modelBP132;
-}

plugins/community/repos/SubmarineFree/src/BP1.cpp

@@ -0,0 +1,64 @@
+#include "SubmarineFree.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+template <int x>
+struct BP1 : ModuleWidget {
+	BP1(Module *module) : ModuleWidget(module) {
+		setPanel(SubHelper::LoadPanel(plugin, "BP-1", x));
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP101) {
+   Model *modelBP101 = Model::create<Module, BP1<1>>("Submarine (Free)", "BP-101", "BP-101 Blanking Plate", BLANK_TAG);
+   return modelBP101;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP102) {
+   Model *modelBP102 = Model::create<Module, BP1<2>>("Submarine (Free)", "BP-102", "BP-102 Blanking Plate", BLANK_TAG);
+   return modelBP102;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP104) {
+   Model *modelBP104 = Model::create<Module, BP1<4>>("Submarine (Free)", "BP-104", "BP-104 Blanking Plate", BLANK_TAG);
+   return modelBP104;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP108) {
+   Model *modelBP108 = Model::create<Module, BP1<8>>("Submarine (Free)", "BP-108", "BP-108 Blanking Plate", BLANK_TAG);
+   return modelBP108;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP110) {
+   Model *modelBP110 = Model::create<Module, BP1<10>>("Submarine (Free)", "BP-110", "BP-110 Blanking Plate", BLANK_TAG);
+   return modelBP110;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP112) {
+   Model *modelBP112 = Model::create<Module, BP1<12>>("Submarine (Free)", "BP-112", "BP-112 Blanking Plate", BLANK_TAG);
+   return modelBP112;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP116) {
+   Model *modelBP116 = Model::create<Module, BP1<16>>("Submarine (Free)", "BP-116", "BP-116 Blanking Plate", BLANK_TAG);
+   return modelBP116;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP120) {
+   Model *modelBP120 = Model::create<Module, BP1<20>>("Submarine (Free)", "BP-120", "BP-120 Blanking Plate", BLANK_TAG);
+   return modelBP120;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP124) {
+   Model *modelBP124 = Model::create<Module, BP1<24>>("Submarine (Free)", "BP-124", "BP-124 Blanking Plate", BLANK_TAG);
+   return modelBP124;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, BP132) {
+   Model *modelBP132 = Model::create<Module, BP1<32>>("Submarine (Free)", "BP-132", "BP-132 Blanking Plate", BLANK_TAG);
+   return modelBP132;
+}

plugins/community/repos/SubmarineFree/src/ComponentLibrary/Port.cpp

@@ -0,0 +1,62 @@
+#include "../SubmarineFree.hpp"
+#include "util/color.hpp"
+
+void SilverPort::draw(NVGcontext *vg) {
+	float radius = box.size.x / 2.0f;
+
+	// Shadow
+	{
+		nvgBeginPath(vg);
+		nvgCircle(vg, radius, radius * 1.2, radius);
+		nvgFillColor(vg, nvgRGBAf(0, 0, 0, 0.15));
+		nvgFill(vg);
+	}
+
+	// Switch
+	{
+		nvgBeginPath(vg);
+		nvgRect(vg, 6, 6, 13, 13);
+		nvgFillColor(vg, nvgRGB(0,0,0));
+		nvgFill(vg);
+		nvgBeginPath(vg);
+		nvgRect(vg, 10, 6, 5, 13);
+		nvgFillPaint(vg, nvgLinearGradient(vg, radius, 19, radius, radius, nvgRGB(0x60, 0x60, 0x60), nvgRGB(0,0,0)));
+		nvgFill(vg);
+	}
+
+	// Port body
+	{
+		nvgBeginPath(vg);
+		nvgCircle(vg, radius, radius, 7);
+		nvgStrokeWidth(vg, 4);
+		nvgStrokePaint(vg, nvgRadialGradient(vg, radius + 0.3, radius + 1, 0, 9, nvgRGB(0x20, 0x20, 0x20), col));
+		nvgStroke(vg);
+	}
+
+	// Outer rim
+	{
+		nvgBeginPath(vg);
+		nvgMoveTo(vg, 0.66556777, 9.9934984);
+		nvgArc(vg, radius, radius, radius - 1, M_PI + 0.2076, -0.2076, NVG_CW);
+		nvgArc(vg, 24.5, 12.5, 2.5, 1.467 - M_PI, M_PI - 1.467, NVG_CCW);
+		nvgArc(vg, radius, radius, radius - 1, 0.2076, M_PI - 0.2076, NVG_CW);
+		nvgArc(vg, 0.5, 12.5, 2.5, 1.467, -1.467, NVG_CCW);
+		nvgClosePath(vg);
+		//nvgCircle(vg, radius, radius, 8.5709);
+		nvgCircle(vg, radius, radius, 8.0);
+		nvgPathWinding(vg, NVG_HOLE);
+		nvgStrokeColor(vg, nvgRGB(0x66,0x66,0x66));
+		nvgStrokeWidth(vg, 0.80645);
+		if (type == Port::OUTPUT) {
+			nvgFillPaint(vg, nvgRadialGradient(vg, radius + 0.3, radius + 1, 1, 12, col, nvgRGB(0x3f, 0x3f, 0x3f)));
+			nvgStrokeColor(vg, nvgRGB(0x36,0x36,0x36));
+		}
+		else {
+			nvgFillPaint(vg, nvgRadialGradient(vg, radius + 0.3, radius + 1, 1, 12, col, nvgRGB(0xff, 0xff, 0xff)));
+			nvgStrokeColor(vg, nvgRGB(0x66,0x66,0x66));
+		}
+		nvgFill(vg);
+		nvgStroke(vg);
+	}
+
+}

plugins/community/repos/SubmarineFree/src/ComponentLibrary/components.hpp

@@ -2,6 +2,27 @@
 // Ports
 //////////////////

+struct SilverPort : Port {
+	NVGcolor col = nvgRGB(0xf0, 0xf0, 0xf0);
+	SilverPort() {
+		box.size.x = 25;
+		box.size.y = 25;
+	}
+	void draw(NVGcontext *vg) override;
+};
+
+struct RedPort : SilverPort {
+	RedPort() { col = nvgRGB(0xff, 0x20, 0x20); }
+};
+
+struct BluePort : SilverPort {
+	BluePort() { col = nvgRGB(0x29, 0xb2, 0xef); }
+};
+
+struct BlackPort : SilverPort {
+	BlackPort() { col = nvgRGB(0x40, 0x40, 0x40); }
+};
+/*
 struct sub_port : SVGPort {
 	sub_port() {
 		setSVG(SVG::load(assetPlugin(plugin, "res/Components/sub_port.svg")));
@@ -26,6 +47,7 @@ struct sub_port_black : SVGPort {
 	}
 };

+*/
 //////////////////
 // Switches
 //////////////////
@@ -83,6 +105,9 @@ struct sub_btn : SVGSwitch, ToggleSwitch {
 		addFrame(SVG::load(assetPlugin(plugin, "res/Components/sub_btn.svg")));
 		addFrame(SVG::load(assetPlugin(plugin, "res/Components/sub_btn_a.svg")));
 	}
+	void step() override {
+		setValue(module->params[paramId].value);
+	}
 };

 //////////////////
@@ -96,76 +121,52 @@ struct LightKnob : Knob {
 	/** Radii in standard units */
 	float radius = 19.0;
 	int enabled = 1;
-	LightKnob() {}
+	LightKnob() {smooth = false;}
 	void draw(NVGcontext *vg) override;
 	void setEnabled(int val);
 	void setRadius(int r);
 };

-struct sub_knob_small : LightKnob {
-	sub_knob_small() {
-		setRadius(12.0);
-	}
-};
-
-struct sub_knob_med : LightKnob {
-	sub_knob_med() {
-		setRadius(19.0);
-	}
-};
-
-struct sub_knob_large : LightKnob {
-	sub_knob_large() {
-		setRadius(27.0);
-	}
-};
-
-struct sub_knob_small_narrow : sub_knob_small {
-	sub_knob_small_narrow() {
-		minAngle = -0.75*M_PI;
-		maxAngle = 0.75*M_PI;
-	}
-};
-
-struct sub_knob_med_narrow : sub_knob_med {
-	sub_knob_med_narrow() {
-		minAngle = -0.75*M_PI;
-		maxAngle = 0.75*M_PI;
+template <class K>
+struct TinyKnob : K {
+	TinyKnob() {
+		K::setRadius(9.0f);
 	}
 };

-struct sub_knob_large_narrow : sub_knob_large {
-	sub_knob_large_narrow() {
-		minAngle = -0.75*M_PI;
-		maxAngle = 0.75*M_PI;
+template <class K>
+struct SmallKnob : K {
+	SmallKnob() {
+		K::setRadius(12.0f);
 	}
 };

-struct sub_knob_small_snap : sub_knob_small {
-	sub_knob_small_snap() {
-		snap = true;
-		smooth = false;
+template <class K>
+struct MedKnob : K {
+	MedKnob() {
+		K::setRadius(19.0f);
 	}
 };

-struct sub_knob_med_snap : sub_knob_med {
-	sub_knob_med_snap() {
-		snap = true;
-		smooth = false;
+template <class K>
+struct LargeKnob : K {
+	LargeKnob() {
+		K::setRadius(27.0f);
 	}
 };

-struct sub_knob_large_snap : sub_knob_large {
-	sub_knob_large_snap() {
-		snap = true;
-		smooth = false;
+template <class K>
+struct SnapKnob : K {
+	SnapKnob() {
+		K::snap = true;
 	}
 };

-struct sub_knob_med_snap_narrow : sub_knob_med_snap {
-	sub_knob_med_snap_narrow() {
-		minAngle = -0.75*M_PI;
-		maxAngle = 0.75*M_PI;
+template <class K>
+struct NarrowKnob : K {
+	NarrowKnob() {
+		K::minAngle = -0.75*M_PI;
+		K::maxAngle = 0.75*M_PI;
 	}
 };


plugins/community/repos/SubmarineFree/src/DS.cpp

@@ -22,7 +22,7 @@ void DS_Module::fromJson(json_t *rootJ) {

 void DS_Module::onReset() {
 	voltage0 = 0.0f;
-	voltage1 = 5.0f;
+	voltage1 = 10.0f;
 }

 float DS_Module::output(int state) {

plugins/community/repos/SubmarineFree/src/EO1.cpp

@@ -0,0 +1,457 @@
+/* Portions of this code derive from Fundamental/src/Scope.cpp - Copyright 2017 by Andrew Belt */
+#include <string.h>
+#include "SubmarineFree.hpp"
+#include "dsp/digital.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+#define BUFFER_SIZE 800
+#define PRE_SIZE 100
+
+#define sMAX(a,b) (((a)>(b))?(a):(b))
+
+struct EO_102 : Module {
+	enum ParamIds {
+		PARAM_SCALE_1,
+		PARAM_SCALE_2,
+		PARAM_OFFSET_1,
+		PARAM_OFFSET_2,
+		PARAM_TRIGGER,
+		PARAM_TIME,
+		PARAM_INDEX_1,
+		PARAM_INDEX_2,
+		PARAM_INDEX_3,
+		PARAM_RUNMODE,
+		PARAM_RUN,
+		PARAM_PRE,
+		PARAM_MODE_1,
+		PARAM_MODE_2,
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT_1,
+		INPUT_2,
+		INPUT_EXT,
+		NUM_INPUTS
+	};
+	enum OutputIds {
+		NUM_OUTPUTS
+	};
+	enum LightIds {
+		LIGHT_TRIGGER,
+		NUM_LIGHTS
+	};
+
+	float buffer[2][BUFFER_SIZE] = {};
+	int bufferIndex = 0;
+	float frameIndex = 0;
+
+	float preBuffer[2][PRE_SIZE] = {};
+	int preBufferIndex = 0;
+	float preFrameIndex = 0;
+	int preCount = 0;
+
+	SchmittTrigger trigger;
+	PulseGenerator triggerLight;
+	float runMode;
+	int traceMode[2];
+	int traceStep;
+
+	EO_102() : Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	void step() override;
+	void startFrame(void);
+};
+
+void EO_102::startFrame() {
+	triggerLight.trigger(0.1f);
+	frameIndex = 0;
+	preCount = (int)(params[PARAM_PRE].value + 0.5f);
+	for (int i = 0; i < 2; i++) {
+		for (int s = 0; s < preCount; s++) {
+			buffer[i][s] = preBuffer[i][(preBufferIndex + (PRE_SIZE * 2) - preCount + s) % PRE_SIZE];
+		}
+		traceMode[i] = (int)(params[PARAM_MODE_1 + i].value + 0.5f);
+	}
+	bufferIndex = preCount;
+	traceStep = 1;
+}
+
+void EO_102::step() {
+	if (runMode > 0.5f) {
+		if (params[PARAM_RUNMODE].value < 0.5f)
+		//	runningButtonWidget->setValue(1.0f);
+			engineSetParam(this, PARAM_RUN, 1.0f);
+	}
+	runMode = params[PARAM_RUNMODE].value;
+	// Compute time
+	float deltaTime = powf(2.0f, params[PARAM_TIME].value);
+	int frameCount = (int)ceilf(deltaTime * engineGetSampleRate());
+	lights[LIGHT_TRIGGER].value = triggerLight.process(engineGetSampleTime());
+
+	// Add frame to preBuffer
+	for (int i = 0; i < 2; i++) {
+		if (params[PARAM_MODE_1 + i].value > 0.5f) {
+			if (traceStep) {
+				preBuffer[i][preBufferIndex] = fabs(inputs[INPUT_1 + i].value);
+			}
+			preBuffer[i][preBufferIndex] = sMAX(preBuffer[i][preBufferIndex], (float)fabs(inputs[INPUT_1 + i].value));
+		}
+	}
+	if (++preFrameIndex >= frameCount) {
+		preFrameIndex = 0;
+		for (int i = 0; i < 2; i++) {
+			if (params[PARAM_MODE_1 + i].value < 0.5f) {
+				preBuffer[i][preBufferIndex] = inputs[INPUT_1 + i].value;
+			}
+		}
+		preBufferIndex++;
+		if (preBufferIndex >= PRE_SIZE) {
+			preBufferIndex = 0;
+		}
+	}
+
+	// Add frame to buffer
+	if (bufferIndex < BUFFER_SIZE) {
+		for (int i = 0; i < 2; i++) {
+			if (traceMode[i]) {
+				if (traceStep) {
+					buffer[i][bufferIndex] = fabs(inputs[INPUT_1 + i].value);
+				}
+				buffer[i][bufferIndex] = sMAX(buffer[i][bufferIndex], (float)fabs(inputs[INPUT_1 + i].value));
+			}
+		}
+		traceStep = 0;
+		if (++frameIndex >= frameCount) {
+			frameIndex = 0;
+			for (int i = 0; i < 2; i++) {
+				if (!traceMode[i]) {
+					buffer[i][bufferIndex] = inputs[INPUT_1 + i].value;
+				}
+			}
+			bufferIndex++;
+			traceStep = 1;
+		}
+	}
+
+	int triggerInput = INPUT_1;
+	if (inputs[INPUT_EXT].active)
+		triggerInput = INPUT_EXT;
+
+	// Are we waiting on the next trigger?
+	if (bufferIndex >= BUFFER_SIZE) {
+		// Trigger immediately if nothing connected to trigger input
+		if (!inputs[triggerInput].active) {
+			startFrame();
+			return;
+		}
+
+		// Reset the Schmitt trigger so we don't trigger immediately if the input is high
+		if (frameIndex == 0) {
+			trigger.reset();
+		}
+		frameIndex++;
+
+		float gate = inputs[triggerInput].value;
+		int triggered = trigger.process(rescale(gate, params[PARAM_TRIGGER].value - 0.1f, params[PARAM_TRIGGER].value, 0.0f, 1.0f));
+
+		if (params[PARAM_RUN].value > 0.5f) {
+			if (triggered) {
+				startFrame();
+				if (runMode > 0.5f) // Continuous run mode
+					engineSetParam(this, PARAM_RUN, 0.0f);
+				return;
+			}
+		}
+	}
+}
+
+struct EO_Display : TransparentWidget {
+	EO_102 *module;
+
+	void drawTrace(NVGcontext *vg, float *values, float offset, float scale, NVGcolor col, int mode) {
+		if (!values)
+			return;
+		float scaling = powf(2.0, scale);
+		nvgSave(vg);
+		Rect b = Rect(Vec(0, 0), box.size);
+		nvgScissor(vg, b.pos.x, b.pos.y, b.size.x, b.size.y);
+		nvgBeginPath(vg);
+		for (int i = 0; i < BUFFER_SIZE; i++) {
+			float x, y;
+			x = (float)i / (BUFFER_SIZE - 1) * b.size.x;
+			y = ((values[i] * scaling + offset ) / 20.0f - 0.8f) * -b.size.y;
+			if (i == 0)
+				nvgMoveTo(vg, x, y);
+			else
+				nvgLineTo(vg, x, y);
+		}
+		if (mode) {
+			nvgLineTo(vg, b.size.x, (offset / 20.0f - 0.8f) * -b.size.y);
+			nvgLineTo(vg, 0, (offset / 20.0f - 0.8f) * -b.size.y);
+			nvgClosePath(vg);
+			nvgFillColor(vg, col);
+			nvgGlobalCompositeOperation(vg, NVG_LIGHTER);
+			nvgFill(vg);
+		}
+		else {
+			nvgStrokeColor(vg, col);
+			nvgLineCap(vg, NVG_ROUND);
+			nvgMiterLimit(vg, 2.0f);
+			nvgStrokeWidth(vg, 1.5f);
+			nvgGlobalCompositeOperation(vg, NVG_LIGHTER);
+			nvgStroke(vg);
+		}
+		nvgResetScissor(vg);
+		nvgRestore(vg);
+	}
+
+	void drawIndex(NVGcontext *vg, float value) {
+		Rect b = Rect(Vec(0, 0), box.size);
+		nvgScissor(vg, b.pos.x, b.pos.y, b.size.x, b.size.y);
+		value = value * b.size.x;
+
+		nvgStrokeColor(vg, nvgRGBA(0xff, 0xff, 0xff, 0x40));
+		{
+			nvgBeginPath(vg);
+			nvgMoveTo(vg, value, 0);
+			nvgLineTo(vg, value, b.size.y);
+			nvgClosePath(vg);
+		}
+		nvgStroke(vg);
+		nvgResetScissor(vg);
+	}
+	void drawIndexV(NVGcontext *vg, float value) {
+		Rect b = Rect(Vec(0, 0), box.size);
+		nvgScissor(vg, b.pos.x, b.pos.y, b.size.x, b.size.y);
+		value = (1-value) * b.size.y;
+
+		nvgStrokeColor(vg, nvgRGBA(0xff, 0xff, 0xff, 0x40));
+		{
+			nvgBeginPath(vg);
+			nvgMoveTo(vg, 0, value);
+			nvgLineTo(vg, b.size.x, value);
+			nvgClosePath(vg);
+		}
+		nvgStroke(vg);
+		nvgResetScissor(vg);
+	}
+
+	void drawTrigger(NVGcontext *vg, float value, float offset, float scale) {
+		Rect b = Rect(Vec(0, 0), box.size);
+		float scaling = powf(2.0f, scale);
+		float y = ((value * scaling + offset ) / 20.0f - 0.8f) * -b.size.y;
+		if (y < 0) return;
+		if (y > b.size.y) return;
+		nvgScissor(vg, b.pos.x, b.pos.y, b.size.x, b.size.y);
+
+		nvgStrokeColor(vg, nvgRGBA(0xff, 0xff, 0xff, 0x40));
+		{
+			nvgBeginPath(vg);
+			nvgMoveTo(vg, 0, y);
+			nvgLineTo(vg, b.size.x, y);
+			nvgClosePath(vg);
+		}
+		nvgStroke(vg);
+		nvgResetScissor(vg);
+	}
+
+	void drawPre(NVGcontext *vg, float value) {
+		if (value == 0.0f)
+			return;
+		Rect b = Rect(Vec(0, 0), box.size);
+		nvgScissor(vg, b.pos.x, b.pos.y, b.size.x, b.size.y);
+		value = value * b.size.x;
+
+		nvgStrokeColor(vg, nvgRGBA(0xff, 0x40, 0x40, 0x80));
+		{
+			nvgBeginPath(vg);
+			nvgMoveTo(vg, value, 0);
+			nvgLineTo(vg, value, b.size.y);
+			nvgClosePath(vg);
+		}
+		nvgStroke(vg);
+		nvgResetScissor(vg);
+	}
+
+	void drawMask(NVGcontext *vg, float value) {
+		if (value == 0.0f)
+			return;
+		Rect b = Rect(Vec(0, 0), box.size);
+		nvgScissor(vg, b.pos.x, b.pos.y, b.size.x, b.size.y);
+		value = value * b.size.x;
+
+		nvgFillColor(vg, nvgRGBA(0xff, 0x40, 0x40, 0x40));
+		{
+			nvgBeginPath(vg);
+			nvgRect(vg, 0, 0, value, b.size.y);
+			nvgClosePath(vg);
+		}
+		nvgFill(vg);
+		nvgResetScissor(vg);
+	}
+
+	void draw(NVGcontext *vg) override {
+		NVGcolor col = nvgRGBA(0x28, 0xb0, 0xf3, 0xc0);
+		for (int i = 0; i < 2; i++) {
+			if (module->inputs[EO_102::INPUT_1 + i].active) {
+				drawTrace(vg, module->buffer[i], module->params[EO_102::PARAM_OFFSET_1 + i].value, module->params[EO_102::PARAM_SCALE_1 + i].value, col, module->traceMode[i]);
+			}
+			col = nvgRGBA(0xed, 0x2c, 0x24, 0xc0);
+		}
+		drawIndex(vg, clamp(module->params[EO_102::PARAM_INDEX_1].value, 0.0f, 1.0f));
+		drawIndex(vg, clamp(module->params[EO_102::PARAM_INDEX_2].value, 0.0f, 1.0f));
+		drawIndexV(vg, clamp(module->params[EO_102::PARAM_INDEX_3].value, 0.0f, 1.0f));
+		if (module->inputs[EO_102::INPUT_EXT].active)
+			drawTrigger(vg, module->params[EO_102::PARAM_TRIGGER].value, 0.0f, 1.0f);
+		else
+			drawTrigger(vg, module->params[EO_102::PARAM_TRIGGER].value, module->params[EO_102::PARAM_OFFSET_1].value, module->params[EO_102::PARAM_SCALE_1].value);
+		drawMask(vg, clamp(module->params[EO_102::PARAM_PRE].value, 0.0f, 1.0f * PRE_SIZE) / BUFFER_SIZE);
+		drawPre(vg, 1.0f * module->preCount / BUFFER_SIZE);
+	}
+};
+
+struct EO_Measure : TransparentWidget {
+	std::shared_ptr<Font> font;
+	EO_102 *module;
+	char measureText[41];
+	NVGcolor col;
+
+	EO_Measure() {
+		font = Font::load(assetGlobal( "res/fonts/DejaVuSans.ttf"));
+	}
+
+	virtual void updateText() {
+	}
+
+	void draw(NVGcontext *vg) override {
+		updateText();
+		nvgFontSize(vg, 14);
+		nvgFontFaceId(vg, font->handle);
+		nvgFillColor(vg, col);
+		nvgTextAlign(vg, NVG_ALIGN_CENTER);
+		nvgText(vg, box.size.x / 2, 12, measureText, NULL);
+	}
+};
+
+struct EO_Measure_Horz : EO_Measure {
+	void updateText() override {
+		float deltaTime = powf(2.0f, module->params[EO_102::PARAM_TIME].value);
+		int frameCount = (int)ceilf(deltaTime * engineGetSampleRate());
+		frameCount *= BUFFER_SIZE;
+		float width = (float)frameCount * fabs(module->params[EO_102::PARAM_INDEX_1].value - module->params[EO_102::PARAM_INDEX_2].value) / engineGetSampleRate();
+
+		if (width < 0.00000995f)
+			sprintf(measureText, "%4.3f\xc2\xb5s", width * 1000000.0f);
+		else if (width < 0.0000995f)
+			sprintf(measureText, "%4.2f\xc2\xb5s", width * 1000000.0f);
+		else if (width < 0.000995f)
+			sprintf(measureText, "%4.1f\xc2\xb5s", width * 1000000.0f);
+		else if (width < 0.00995f)
+			sprintf(measureText, "%4.3fms", width * 1000.0f);
+		else if (width < 0.0995f)
+			sprintf(measureText, "%4.2fms", width * 1000.0f);
+		else if (width < 0.995f)
+			sprintf(measureText, "%4.1fms", width * 1000.0f);
+		else if (width < 9.95f)
+			sprintf(measureText, "%4.3fs", width);
+		else if (width < 99.5f)
+			sprintf(measureText, "%4.2fs", width);
+		else
+			sprintf(measureText, "%4.1fs", width);
+	}
+};
+
+struct EO_Measure_Vert : EO_Measure {
+	int index = 0;
+	void updateText() override {
+		float height = ((module->params[EO_102::PARAM_INDEX_3].value - 0.2f) * 20.0f - module->params[EO_102::PARAM_OFFSET_1 + index].value) / powf(2, module->params[EO_102::PARAM_SCALE_1 + index].value);
+
+		float ah = fabs(height);
+		if (ah < 0.00000995f)
+			sprintf(measureText, "%4.3f\xc2\xb5V", height * 1000000.0f);
+		else if (ah < 0.0000995f)
+			sprintf(measureText, "%4.2f\xc2\xb5V", height * 1000000.0f);
+		else if (ah < 0.000995f)
+			sprintf(measureText, "%4.1f\xc2\xb5V", height * 1000000.0f);
+		else if (ah < 0.00995f)
+			sprintf(measureText, "%4.3fmV", height * 1000.0f);
+		else if (ah < 0.0995f)
+			sprintf(measureText, "%4.2fmV", height * 1000.0f);
+		else if (ah < 0.995f)
+			sprintf(measureText, "%4.1fmV", height * 1000.0f);
+		else if (ah < 9.95f)
+			sprintf(measureText, "%4.3fV", height);
+		else if (ah < 99.5f)
+			sprintf(measureText, "%4.2fV", height);
+		else
+			sprintf(measureText, "%4.1fV", height);
+	}
+};
+
+struct EO102 : ModuleWidget {
+	EO102(EO_102 *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/EO-102.svg")));
+
+		{
+			EO_Display * display = new EO_Display();
+			display->module = module;
+			display->box.pos = Vec(2.5, 14);
+			display->box.size = Vec(box.size.x - 5, 236);
+			addChild(display);
+		}
+		{
+			EO_Measure_Horz * display = new EO_Measure_Horz();
+			display->module = module;
+			display->box.pos = Vec(284, 272);
+			display->box.size = Vec(54, 16);
+			display->col = nvgRGBA(0xff, 0xff, 0xff, 0xff);
+			addChild(display);
+		}
+		{
+			EO_Measure_Vert * display = new EO_Measure_Vert();
+			display->module = module;
+			display->box.pos = Vec(341, 254);
+			display->box.size = Vec(62, 16);
+			display->index = 0;
+			display->col = nvgRGBA(0x28, 0xb0, 0xf3, 0xff);
+			addChild(display);
+		}
+		{
+			EO_Measure_Vert * display = new EO_Measure_Vert();
+			display->module = module;
+			display->box.pos = Vec(341, 272);
+			display->box.size = Vec(62, 16);
+			display->index = 1;
+			display->col = nvgRGBA(0xed, 0x2c, 0x24, 0xff);
+			addChild(display);
+		}
+
+		for (int i = 0; i < 2; i++) {
+			addInput(createInputCentered<BluePort>(Vec(16.5 + 75 * i, 326.5), module, EO_102::INPUT_1 + i));
+			addParam(createParamCentered<sub_sw_2>(Vec(16.5 + 75 * i, 280), module, EO_102::PARAM_MODE_1 + i, 0.0f, 1.0f, 0.0f));
+			addParam(createParamCentered<MedKnob<LightKnob>>(Vec(50 + 75 * i, 320), module, EO_102::PARAM_OFFSET_1 + i, -10.0f, 10.0f, 0.0f));
+			addParam(createParamCentered<SnapKnob<MedKnob<LightKnob>>>(Vec(50 + 75 * i, 270), module, EO_102::PARAM_SCALE_1 + i, -5.0f, 5.0f, 0.0f));
+		}
+		addParam(createParamCentered<MedKnob<LightKnob>>(Vec(172.5, 320), module, EO_102::PARAM_TIME, -6.0f, -16.0f, -14.0f));
+		addParam(createParamCentered<SnapKnob<MedKnob<LightKnob>>>(Vec(172.5, 270), module, EO_102::PARAM_PRE, 0.0f, 1.0f * PRE_SIZE, 0.0f));
+
+		addInput(createInputCentered<BluePort>(Vec(211.5, 326.5), module, EO_102::INPUT_EXT));
+		addParam(createParamCentered<MedKnob<LightKnob>>(Vec(245, 320), module, EO_102::PARAM_TRIGGER, -10.0f, 10.0f, 0.0f));
+		addChild(createLightCentered<TinyLight<BlueLight>>(Vec(226, 333), module, EO_102::LIGHT_TRIGGER));
+		addParam(createParamCentered<sub_sw_2>(Vec(211.5, 280), module, EO_102::PARAM_RUNMODE, 0.0f, 1.0f, 0.0f));
+		addParam(createParamCentered<sub_btn>(Vec(245, 280), module, EO_102::PARAM_RUN, 0.0f, 1.0f, 1.0f));
+
+		addParam(createParamCentered<MedKnob<LightKnob>>(Vec(290, 320), module, EO_102::PARAM_INDEX_1, 0.0f, 1.0f, 0.0f));
+		addParam(createParamCentered<MedKnob<LightKnob>>(Vec(332, 320), module, EO_102::PARAM_INDEX_2, 0.0f, 1.0f, 1.0f));
+		addParam(createParamCentered<MedKnob<LightKnob>>(Vec(376, 320), module, EO_102::PARAM_INDEX_3, 0.0f, 1.0f, 0.2f));
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, EO102) {
+   Model *modelEO102 = Model::create<EO_102, EO102>("Submarine (Free)", "EO-102", "EO-102 Envelope Oscilloscope", VISUAL_TAG);
+   return modelEO102;
+}

plugins/community/repos/SubmarineFree/src/FF-110.cpp

@@ -1,75 +0,0 @@
-#include "DS.hpp"
-
-namespace rack_plugin_SubmarineFree {
-
-struct FF_110 : DS_Module {
-	static const int deviceCount = 10;
-	enum ParamIds {
-		NUM_PARAMS
-	};
-	enum InputIds {
-		INPUT,
-		NUM_INPUTS
-	};
-	enum OutputIds {
-		OUTPUT_1,
-		OUTPUT_2,
-		OUTPUT_3,
-		OUTPUT_4,
-		OUTPUT_5,
-		OUTPUT_6,
-		OUTPUT_7,
-		OUTPUT_8,
-		OUTPUT_9,
-		OUTPUT_10,
-		NUM_OUTPUTS
-	};
-	enum LightIds {
-		NUM_LIGHTS
-	};
-
-	int state[deviceCount] = {0,0,0,0,0,0,0,0,0,0};
-	DS_Schmitt schmittTrigger[deviceCount];
-
-	FF_110() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
-	void step() override;
-};
-
-void FF_110::step() {
-	if (inputs[INPUT].active) {
-		if (schmittTrigger[0].redge(this, inputs[INPUT].value))
-			state[0] = !state[0];
-	}
-	outputs[OUTPUT_1].value = state[0]?voltage1:voltage0;
-	for (int i = 1; i < deviceCount; i++) {
-		if (schmittTrigger[i].redge(this, state[i-1]?voltage0:voltage1))
-					state[i] = !state[i];
-		outputs[OUTPUT_1 + i].value = state[i]?voltage1:voltage0;
-	}
-}
-
-struct FF110 : ModuleWidget {
-	FF110(FF_110 *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/FF-110.svg")));
-
-		addInput(Port::create<sub_port_blue>(Vec(2.5,19), Port::INPUT, module, FF_110::INPUT));
-
-		for (int i = 0; i < FF_110::deviceCount; i++) {
-			int offset = 29 * i;
-
-			addOutput(Port::create<sub_port_blue>(Vec(2.5,77 + offset), Port::OUTPUT, module, FF_110::OUTPUT_1 + i));
-		}
-	}
-	void appendContextMenu(Menu *menu) override {
-		((DS_Module *)module)->appendContextMenu(menu);
-	}
-};
-
-} // namespace rack_plugin_SubmarineFree
-
-using namespace rack_plugin_SubmarineFree;
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, FF110) {
-   Model *modelFF110 = Model::create<FF_110, FF110>("SubmarineFree", "FF-110", "FF-110 10-Stage Flip-Flop Counter", LOGIC_TAG, MULTIPLE_TAG);
-   return modelFF110;
-}

plugins/community/repos/SubmarineFree/src/FF-120.cpp

@@ -1,87 +0,0 @@
-#include "DS.hpp"
-
-namespace rack_plugin_SubmarineFree {
-
-struct FF_120 : DS_Module {
-	static const int deviceCount = 20;
-	enum ParamIds {
-		NUM_PARAMS
-	};
-	enum InputIds {
-		INPUT,
-		NUM_INPUTS
-	};
-	enum OutputIds {
-		OUTPUT_1,
-		OUTPUT_2,
-		OUTPUT_3,
-		OUTPUT_4,
-		OUTPUT_5,
-		OUTPUT_6,
-		OUTPUT_7,
-		OUTPUT_8,
-		OUTPUT_9,
-		OUTPUT_10,
-		OUTPUT_11,
-		OUTPUT_12,
-		OUTPUT_13,
-		OUTPUT_14,
-		OUTPUT_15,
-		OUTPUT_16,
-		OUTPUT_17,
-		OUTPUT_18,
-		OUTPUT_19,
-		OUTPUT_20,
-		NUM_OUTPUTS
-	};
-	enum LightIds {
-		NUM_LIGHTS
-	};
-
-	int state[deviceCount] = {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0};
-	DS_Schmitt schmittTrigger[deviceCount];
-
-	FF_120() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
-	void step() override;
-};
-
-void FF_120::step() {
-	if (inputs[INPUT].active) {
-		if (schmittTrigger[0].redge(this, inputs[INPUT].value))
-			state[0] = !state[0];
-	}
-	outputs[OUTPUT_1].value = state[0]?voltage1:voltage0;
-	for (int i = 1; i < deviceCount; i++) {
-		if (schmittTrigger[i].redge(this, state[i-1]?voltage0:voltage1))
-					state[i] = !state[i];
-		outputs[OUTPUT_1 + i].value = state[i]?voltage1:voltage0;
-	}
-}
-
-struct FF120 : ModuleWidget {
-	FF120(FF_120 *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/FF-120.svg")));
-
-		addInput(Port::create<sub_port_blue>(Vec(17.5,19), Port::INPUT, module, FF_120::INPUT));
-
-		for (int i = 0; i < FF_120::deviceCount; i+=2) {
-			int offset = 15 * i;
-
-			addOutput(Port::create<sub_port_blue>(Vec(4,53 + offset), Port::OUTPUT, module, FF_120::OUTPUT_1 + i));
-			addOutput(Port::create<sub_port_blue>(Vec(31,68 + offset), Port::OUTPUT, module, FF_120::OUTPUT_1 + i + 1));
-		}
-	}
-	void appendContextMenu(Menu *menu) override {
-		((DS_Module *)module)->appendContextMenu(menu);
-	}
-};
-
-} // namespace rack_plugin_SubmarineFree
-
-using namespace rack_plugin_SubmarineFree;
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, FF120) {
-   Model *modelFF120 = Model::create<FF_120, FF120>("SubmarineFree", "FF-120", "FF-120 20-Stage Flip-Flop Counter", LOGIC_TAG, MULTIPLE_TAG);
-   return modelFF120;
-}
-

plugins/community/repos/SubmarineFree/src/FF-212.cpp

@@ -1,90 +0,0 @@
-#include "DS.hpp"
-
-namespace rack_plugin_SubmarineFree {
-
-struct FF_212 : DS_Module {
-	static const int deviceCount = 12;
-	enum ParamIds {
-		NUM_PARAMS
-	};
-	enum InputIds {
-		INPUT_1,
-		INPUT_2,
-		INPUT_3,
-		INPUT_4,
-		INPUT_5,
-		INPUT_6,
-		INPUT_7,
-		INPUT_8,
-		INPUT_9,
-		INPUT_10,
-		INPUT_11,
-		INPUT_12,
-		NUM_INPUTS
-	};
-	enum OutputIds {
-		OUTPUT_1,
-		OUTPUT_2,
-		OUTPUT_3,
-		OUTPUT_4,
-		OUTPUT_5,
-		OUTPUT_6,
-		OUTPUT_7,
-		OUTPUT_8,
-		OUTPUT_9,
-		OUTPUT_10,
-		OUTPUT_11,
-		OUTPUT_12,
-		NUM_OUTPUTS
-	};
-	enum LightIds {
-		NUM_LIGHTS
-	};
-
-	int state[deviceCount] = {0,0,0,0,0,0,0,0,0,0,0,0};
-	DS_Schmitt schmittTrigger[deviceCount];
-
-	FF_212() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
-	void step() override;
-};
-
-void FF_212::step() {
-	for (int i = 0; i < deviceCount; i++) {
-		if (inputs[INPUT_1 + i].active) {
-			if (schmittTrigger[i].redge(this, inputs[INPUT_1 + i].value))
-				state[i] = !state[i];
-		}
-		else {
-			if (i) {
-				if (schmittTrigger[i].redge(this, state[i-1]?voltage0:voltage1))
-					state[i] = !state[i];
-			}
-		}
-		outputs[OUTPUT_1 + i].value = state[i]?voltage1:voltage0;
-	}
-}
-
-struct FF212 : ModuleWidget {
-	FF212(FF_212 *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/FF-212.svg")));
-
-		for (int i = 0; i < FF_212::deviceCount; i++) {
-			int offset = 29 * i;
-			addInput(Port::create<sub_port_blue>(Vec(4,19 + offset), Port::INPUT, module, FF_212::INPUT_1 + i));
-
-			addOutput(Port::create<sub_port_blue>(Vec(62,19 + offset), Port::OUTPUT, module, FF_212::OUTPUT_1 + i));
-		}
-	}
-	void appendContextMenu(Menu *menu) override {
-		((DS_Module *)module)->appendContextMenu(menu);
-	}
-};
-
-} // namespace rack_plugin_SubmarineFree
-
-using namespace rack_plugin_SubmarineFree;
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, FF212) {
-   Model *modelFF212 = Model::create<FF_212, FF212>("SubmarineFree", "FF-212", "FF-212 Edge Triggered Flip-Flops", LOGIC_TAG, MULTIPLE_TAG);
-   return modelFF212;
-}

plugins/community/repos/SubmarineFree/src/FF1.cpp

@@ -0,0 +1,134 @@
+#include <global_pre.hpp>
+#include <global.hpp>
+#include "DS.hpp"
+#include <random>
+#include <chrono>
+
+namespace rack_plugin_SubmarineFree {
+
+template <int deviceCount>
+struct FF_1 : DS_Module {
+	int doResetFlag = 0;
+	int doRandomFlag = 0;
+	enum ParamIds {
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT,
+		NUM_INPUTS
+	};
+	enum OutputIds {
+		OUTPUT_1,
+		NUM_OUTPUTS = deviceCount
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+
+	int state[deviceCount] = {};
+	DS_Schmitt schmittTrigger[deviceCount];
+
+	FF_1() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+
+	void step() override {
+		if (doResetFlag) doReset();
+		if (doRandomFlag) doRandomize();
+		if (inputs[INPUT].active) {
+			if (schmittTrigger[0].redge(this, inputs[INPUT].value))
+				state[0] = !state[0];
+		}
+		outputs[OUTPUT_1].value = state[0]?voltage1:voltage0;
+		for (int i = 1; i < deviceCount; i++) {
+			if (schmittTrigger[i].fedge(this, state[i-1]?voltage1:voltage0))
+						state[i] = !state[i];
+			outputs[OUTPUT_1 + i].value = state[i]?voltage1:voltage0;
+		}
+	}
+	void doRandomize() {
+		doRandomFlag = 0;
+		std::default_random_engine generator(std::chrono::system_clock::now().time_since_epoch().count());
+		std::uniform_int_distribution<int> distribution(0,1);
+		state[0] = distribution(generator);
+		outputs[OUTPUT_1].value = state[0]?voltage1:voltage0;
+		for (int i = 1; i < deviceCount; i++) {
+			state[i] = distribution(generator);
+			schmittTrigger[i].set(state[i-1]);
+			outputs[OUTPUT_1 + i].value = state[i]?voltage1:voltage0;
+		}
+	}
+	void doReset() {
+		doResetFlag = 0;
+		for (int i = 0; i < deviceCount; i++) {
+			state[i] = 0;
+			if (i) schmittTrigger[i].reset();
+			outputs[OUTPUT_1 + i].value = voltage0;
+		}
+	}
+	void onRandomize() override {
+		if (rack::global->gPaused) {
+			doRandomize();
+		}
+		else {
+			doResetFlag = 0;
+			doRandomFlag = 1;
+		}
+	}
+	void onReset() override {
+		if (rack::global->gPaused) {
+			doReset();
+		}
+		else {
+			doRandomFlag = 0;
+			doResetFlag = 1;
+		}
+	}
+};
+
+struct FF110 : ModuleWidget {
+	FF110(FF_1<10> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/FF-110.svg")));
+
+		addInput(Port::create<BluePort>(Vec(2.5,19), Port::INPUT, module, FF_1<10>::INPUT));
+
+		for (int i = 0; i < 10; i++) {
+			int offset = 29 * i;
+
+			addOutput(Port::create<BluePort>(Vec(2.5,77 + offset), Port::OUTPUT, module, FF_1<10>::OUTPUT_1 + i));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+struct FF120 : ModuleWidget {
+	FF120(FF_1<20> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/FF-120.svg")));
+
+		addInput(Port::create<BluePort>(Vec(17.5,19), Port::INPUT, module, FF_1<20>::INPUT));
+
+		for (int i = 0; i < 20; i+=2) {
+			int offset = 15 * i;
+
+			addOutput(Port::create<BluePort>(Vec(4,53 + offset), Port::OUTPUT, module, FF_1<20>::OUTPUT_1 + i));
+			addOutput(Port::create<BluePort>(Vec(31,68 + offset), Port::OUTPUT, module, FF_1<20>::OUTPUT_1 + i + 1));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, FF110) {
+   Model *modelFF110 = Model::create<FF_1<10>, FF110>("Submarine (Free)", "FF-110", "FF-110 10-Stage Flip-Flop Counter", LOGIC_TAG, MULTIPLE_TAG);
+   return modelFF110;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, FF120) {
+   Model *modelFF120 = Model::create<FF_1<20>, FF120>("Submarine (Free)", "FF-120", "FF-120 20-Stage Flip-Flop Counter", LOGIC_TAG, MULTIPLE_TAG);
+   return modelFF120;
+}

plugins/community/repos/SubmarineFree/src/FF2.cpp

@@ -0,0 +1,131 @@
+#include <global_pre.hpp>
+#include <global.hpp>
+#include "DS.hpp"
+#include <random>
+#include <chrono>
+
+namespace rack_plugin_SubmarineFree {
+
+template <int x>
+struct FF_2 : DS_Module {
+	int doResetFlag = 0;
+	int doRandomFlag = 0;
+	enum ParamIds {
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT_1,
+		NUM_INPUTS = x
+	};
+	enum OutputIds {
+		OUTPUT_1,
+		NUM_OUTPUTS = x
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+
+	int state[x] = {};
+	DS_Schmitt schmittTrigger[x];
+
+	FF_2() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	void step() override {
+		if (doResetFlag) doReset();
+		if (doRandomFlag) doRandomize();
+		for (int i = 0; i < x; i++) {
+			if (inputs[INPUT_1 + i].active) {
+				if (schmittTrigger[i].redge(this, inputs[INPUT_1 + i].value))
+					state[i] = !state[i];
+			}
+			else {
+				if (i) {
+					if (schmittTrigger[i].fedge(this, state[i-1]?voltage1:voltage0))
+						state[i] = !state[i];
+				}
+			}
+			outputs[OUTPUT_1 + i].value = state[i]?voltage1:voltage0;
+		}
+	}
+	void doRandomize() {
+		doRandomFlag = 0;
+		std::default_random_engine generator(std::chrono::system_clock::now().time_since_epoch().count());
+		std::uniform_int_distribution<int> distribution(0,1);
+		for (int i = 0; i < x; i++) {
+		 	state[i] = distribution(generator);
+			if (i) if (!inputs[INPUT_1 + i].active) schmittTrigger[i].set(state[i-1]);
+			outputs[OUTPUT_1 + i].value = state[i]?voltage1:voltage0;
+		}
+	}
+	void doReset() {
+		doResetFlag = 0;
+		for (int i = 0; i < x; i++) {
+			state[i] = 0;
+			if (!inputs[INPUT_1 + i].active) schmittTrigger[i].reset();
+			outputs[OUTPUT_1 + i].value = voltage0;
+		}
+	}
+	void onRandomize() override {
+		if (rack::global->gPaused) {
+			doRandomize();
+		}
+		else {
+			doResetFlag = 0;
+			doRandomFlag = 1;
+		}
+	}
+	void onReset() override {
+		if (rack::global->gPaused) {
+			doReset();
+		}
+		else {
+			doRandomFlag = 0;
+			doResetFlag = 1;
+		}
+	}
+};
+
+struct FF206 : ModuleWidget {
+	FF206(FF_2<6> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/FF-206.svg")));
+
+		for (int i = 0; i < 6; i++) {
+			int offset = 58 * i;
+			addInput(Port::create<BluePort>(Vec(2.5,19 + offset), Port::INPUT, module, FF_2<6>::INPUT_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(2.5,47 + offset), Port::OUTPUT, module, FF_2<6>::OUTPUT_1 + i));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+struct FF212 : ModuleWidget {
+	FF212(FF_2<12> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/FF-212.svg")));
+
+		for (int i = 0; i < 12; i++) {
+			int offset = 29 * i;
+			addInput(Port::create<BluePort>(Vec(4,19 + offset), Port::INPUT, module, FF_2<12>::INPUT_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(62,19 + offset), Port::OUTPUT, module, FF_2<12>::OUTPUT_1 + i));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, FF206) {
+   Model *modelFF206 = Model::create<FF_2<6>, FF206>("Submarine (Free)", "FF-206", "FF-206 Edge Triggered Flip-Flops", LOGIC_TAG, MULTIPLE_TAG);
+   return modelFF206;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, FF212) {
+   Model *modelFF212 = Model::create<FF_2<12>, FF212>("Submarine (Free)", "FF-212", "FF-212 Edge Triggered Flip-Flops", LOGIC_TAG, MULTIPLE_TAG);
+   return modelFF212;
+}

plugins/community/repos/SubmarineFree/src/LA-108.cpp → plugins/community/repos/SubmarineFree/src/LA1.cpp

@@ -1,10 +1,11 @@
+/* Portions of this code derive from Fundamental/src/Scope.cpp - Copyright © 2016 by Andrew Belt */
 #include <string.h>
 #include "DS.hpp"

-#define BUFFER_SIZE 512
-
 namespace rack_plugin_SubmarineFree {

+#define BUFFER_SIZE 512
+
 struct LA_108 : DS_Module {
 	enum ParamIds {
 		PARAM_TRIGGER,
@@ -55,7 +56,6 @@ struct LA_108 : DS_Module {
 	int preCount = 0;

 	DS_Schmitt trigger;
-	sub_btn *resetButtonWidget;

 	LA_108() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
 	void step() override;
@@ -126,7 +126,7 @@ void LA_108::step() {
 		int triggered = trigger.edge(this, gate, edge);

 		if (params[PARAM_RUN].value < 0.5f) { // Continuous run mode
-			resetButtonWidget->setValue(0.0f);
+			engineSetParam(this, PARAM_RESET, 0.0f);
 			// Reset if triggered
 			float holdTime = 0.1f;
 			if (triggered) {
@@ -144,7 +144,7 @@ void LA_108::step() {
 			if (params[PARAM_RESET].value > 0.5f) {
 				if (triggered) {
 					startFrame();
-					resetButtonWidget->setValue(0.0f);
+					engineSetParam(this, PARAM_RESET, 0.0f);
 					return;
 				}
 			}
@@ -309,22 +309,21 @@ struct LA108 : ModuleWidget {
 		}

 		for (int i = 0; i < 8; i++) {
-			addInput(Port::create<sub_port_blue>(Vec(4, 20 + 35 * i), Port::INPUT, module, LA_108::INPUT_1 + i));
+			addInput(Port::create<BluePort>(Vec(4, 20 + 35 * i), Port::INPUT, module, LA_108::INPUT_1 + i));
 			addChild(ModuleLightWidget::create<TinyLight<BlueLight>>(Vec(30, 22 + 35 * i), module, LA_108::LIGHT_1 + i));
 		}

-		addInput(Port::create<sub_port_blue>(Vec(4, 310), Port::INPUT, module, LA_108::INPUT_EXT));
+		addInput(Port::create<BluePort>(Vec(4, 310), Port::INPUT, module, LA_108::INPUT_EXT));
 		addChild(ModuleLightWidget::create<TinyLight<BlueLight>>(Vec(30, 312), module, LA_108::LIGHT_EXT));

-		addParam(ParamWidget::create<sub_knob_med_snap>(Vec(39, 301), module, LA_108::PARAM_TRIGGER, 0.0f, 8.0f, 0.0f));
+		addParam(ParamWidget::create<SnapKnob<MedKnob<LightKnob>>>(Vec(39, 301), module, LA_108::PARAM_TRIGGER, 0.0f, 8.0f, 0.0f));
 		addParam(ParamWidget::create<sub_sw_2>(Vec(82, 308), module, LA_108::PARAM_EDGE, 0.0f, 1.0f, 0.0f));
 		addParam(ParamWidget::create<sub_sw_2>(Vec(108, 308), module, LA_108::PARAM_RUN, 0.0f, 1.0f, 0.0f));
-		module->resetButtonWidget = ParamWidget::create<sub_btn>(Vec(151, 312), module, LA_108::PARAM_RESET, 0.0f, 1.0f, 0.0f);
-		addParam(module->resetButtonWidget);
-		addParam(ParamWidget::create<sub_knob_med>(Vec(171, 301), module, LA_108::PARAM_TIME, -6.0f, -16.0f, -14.0f));
-		addParam(ParamWidget::create<sub_knob_small>(Vec(214, 315), module, LA_108::PARAM_INDEX_1, 0.0f, 1.0f, 0.0f));
-		addParam(ParamWidget::create<sub_knob_small>(Vec(242, 315), module, LA_108::PARAM_INDEX_2, 0.0f, 1.0f, 1.0f));
-		addParam(ParamWidget::create<sub_knob_small_snap>(Vec(271, 315), module, LA_108::PARAM_PRE, 0.0f, 32.0f, 0.0f));
+		addParam(ParamWidget::create<sub_btn>(Vec(151, 312), module, LA_108::PARAM_RESET, 0.0f, 1.0f, 0.0f));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(171, 301), module, LA_108::PARAM_TIME, -6.0f, -16.0f, -14.0f));
+		addParam(ParamWidget::create<SmallKnob<LightKnob>>(Vec(214, 315), module, LA_108::PARAM_INDEX_1, 0.0f, 1.0f, 0.0f));
+		addParam(ParamWidget::create<SmallKnob<LightKnob>>(Vec(242, 315), module, LA_108::PARAM_INDEX_2, 0.0f, 1.0f, 1.0f));
+		addParam(ParamWidget::create<SnapKnob<SmallKnob<LightKnob>>>(Vec(271, 315), module, LA_108::PARAM_PRE, 0.0f, 32.0f, 0.0f));
 	}
 	void appendContextMenu(Menu *menu) override {
 		((DS_Module *)module)->appendContextMenu(menu);
@@ -336,6 +335,6 @@ struct LA108 : ModuleWidget {
 using namespace rack_plugin_SubmarineFree;

 RACK_PLUGIN_MODEL_INIT(SubmarineFree, LA108) {
-   Model *modelLA108 = Model::create<LA_108, LA108>("SubmarineFree", "LA-108", "LA-108 Logic Analyser", LOGIC_TAG, VISUAL_TAG);
+   Model *modelLA108 = Model::create<LA_108, LA108>("Submarine (Free)", "LA-108", "LA-108 Logic Analyser", LOGIC_TAG, VISUAL_TAG);
    return modelLA108;
 }

plugins/community/repos/SubmarineFree/src/LD-106.cpp

@@ -1,123 +0,0 @@
-#include "DS.hpp"
-
-namespace rack_plugin_SubmarineFree {
-
-struct LD_106 : DS_Module {
-	static const int deviceCount = 6;
-	enum ParamIds {
-		PARAM_CUTOFF_1,
-		PARAM_CUTOFF_2,
-		PARAM_CUTOFF_3,
-		PARAM_CUTOFF_4,
-		PARAM_CUTOFF_5,
-		PARAM_CUTOFF_6,
-		PARAM_WIDTH_1,
-		PARAM_WIDTH_2,
-		PARAM_WIDTH_3,
-		PARAM_WIDTH_4,
-		PARAM_WIDTH_5,
-		PARAM_WIDTH_6,
-		NUM_PARAMS
-	};
-	enum InputIds {
-		INPUT_1,
-		INPUT_2,
-		INPUT_3,
-		INPUT_4,
-		INPUT_5,
-		INPUT_6,
-		NUM_INPUTS
-	};
-	enum OutputIds {
-		OUTPUT_1,
-		OUTPUT_2,
-		OUTPUT_3,
-		OUTPUT_4,
-		OUTPUT_5,
-		OUTPUT_6,
-		NUM_OUTPUTS
-	};
-	enum LightIds {
-		NUM_LIGHTS
-	};
-
-	DS_Schmitt schmittState[deviceCount];
-
-	LD_106() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
-	void step() override;
-};
-
-void LD_106::step() {
-	for (int i = 0; i < deviceCount; i++) {
-		outputs[OUTPUT_1 + i].value = output(schmittState[i].state(params[PARAM_CUTOFF_1 + i].value - params[PARAM_WIDTH_1 + i].value, params[PARAM_CUTOFF_1 + i].value + params[PARAM_WIDTH_1 + i].value, inputs[INPUT_1 + i].value));
-	}
-}
-
-struct LD106 : ModuleWidget {
-	ParamWidget *cutoffWidgets[LD_106::deviceCount];
-	ParamWidget *widthWidgets[LD_106::deviceCount];
-	LD106(LD_106 *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/LD-106.svg")));
-
-		for (int i = 0; i < LD_106::deviceCount; i++) {
-			int offset = 58 * i;
-			addInput(Port::create<sub_port>(Vec(4,19 + offset), Port::INPUT, module, LD_106::INPUT_1 + i));
-
-			addOutput(Port::create<sub_port_blue>(Vec(62,19 + offset), Port::OUTPUT, module, LD_106::OUTPUT_1 + i));
-
-			cutoffWidgets[i] = ParamWidget::create<sub_knob_small>(Vec(4, 47 + offset), module, LD_106::PARAM_CUTOFF_1 + i, -10.0f, 10.0f, 5.0f);
-			addParam(cutoffWidgets[i]);
-			widthWidgets[i] = ParamWidget::create<sub_knob_small>(Vec(62, 47 + offset), module, LD_106::PARAM_WIDTH_1 + i, 0.0f, 5.0f, 1.0f);
-			addParam(widthWidgets[i]);
-		}
-	}
-	void appendContextMenu(Menu *menu) override;
-};
-
-struct LDMenuItem: MenuItem {
-	LD106 *ld106;
-	float cutoff;
-	float width;
-	void onAction(EventAction &e) override {
-		for (int i = 0; i < LD_106::deviceCount; i++) {
-			ld106->cutoffWidgets[i]->setValue(cutoff);
-			ld106->widthWidgets[i]->setValue(width);
-		}
-	}
-};
-
-void LD106::appendContextMenu(Menu *menu) {
-	menu->addChild(MenuEntry::create());
-	LD106 *ld106 = dynamic_cast<LD106*>(this);
-	assert(ld106);
-	LDMenuItem *menuItem = MenuItem::create<LDMenuItem>("Cutoff 5V");
-	menuItem->ld106 = ld106;
-	menuItem->cutoff = 5.0f;
-	menuItem->width = 1.0f;
-	menu->addChild(menuItem);
-	menuItem = MenuItem::create<LDMenuItem>("Cutoff 0V");
-	menuItem->ld106 = ld106;
-	menuItem->cutoff = 0.0f;
-	menuItem->width = 0.0f;
-	menu->addChild(menuItem);
-	menuItem = MenuItem::create<LDMenuItem>("Cutoff 2.5V");
-	menuItem->ld106 = ld106;
-	menuItem->cutoff = 2.5f;
-	menuItem->width = 0.5f;
-	menu->addChild(menuItem);
-	menuItem = MenuItem::create<LDMenuItem>("TTL Levels");
-	menuItem->ld106 = ld106;
-	menuItem->cutoff = 1.4f;
-	menuItem->width = 0.6f;
-	menu->addChild(menuItem);
-	((LD_106 *)module)->appendContextMenu(menu);
-}
-
-} // namespace rack_plugin_SubmarineFree
-
-using namespace rack_plugin_SubmarineFree;
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, LD106) {
-   Model *modelLD106 = Model::create<LD_106, LD106>("SubmarineFree", "LD-106", "LD-106 Schmitt Trigger Line Drivers", LOGIC_TAG, MULTIPLE_TAG);
-   return modelLD106;
-}

plugins/community/repos/SubmarineFree/src/LD1.cpp

@@ -0,0 +1,168 @@
+#include "DS.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+template <int x>
+struct LD_1 : DS_Module {
+	enum ParamIds {
+		PARAM_CUTOFF_1,
+		PARAM_WIDTH_1 = x,
+		NUM_PARAMS = x + x
+	};
+	enum InputIds {
+		INPUT_1,
+		NUM_INPUTS = x
+	};
+	enum OutputIds {
+		OUTPUT_1,
+		NUM_OUTPUTS = x
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+
+	DS_Schmitt schmittState[x];
+
+	LD_1() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	void step() override {
+		for (int i = 0; i < x; i++) {
+			outputs[OUTPUT_1 + i].value = output(schmittState[i].state(params[PARAM_CUTOFF_1 + i].value - params[PARAM_WIDTH_1 + i].value, params[PARAM_CUTOFF_1 + i].value + params[PARAM_WIDTH_1 + i].value, inputs[INPUT_1 + i].value));
+		}
+	}
+};
+
+struct LD103 : ModuleWidget {
+	static const int deviceCount = 3;
+	ParamWidget *cutoffWidgets[deviceCount];
+	ParamWidget *widthWidgets[deviceCount];
+	LD103(LD_1<deviceCount> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/LD-103.svg")));
+
+		for (int i = 0; i < deviceCount; i++) {
+			int offset = 116 * i;
+			addInput(Port::create<SilverPort>(Vec(2.5,19 + offset), Port::INPUT, module, LD_1<3>::INPUT_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(2.5,103 + offset), Port::OUTPUT, module, LD_1<3>::OUTPUT_1 + i));
+
+			cutoffWidgets[i] = ParamWidget::create<TinyKnob<LightKnob>>(Vec(6, 48.5 + offset), module, LD_1<3>::PARAM_CUTOFF_1 + i, -10.0f, 10.0f, 5.0f);
+			addParam(cutoffWidgets[i]);
+			widthWidgets[i] = ParamWidget::create<TinyKnob<LightKnob>>(Vec(6, 80.5 + offset), module, LD_1<3>::PARAM_WIDTH_1 + i, 0.0f, 5.0f, 1.0f);
+			addParam(widthWidgets[i]);
+		}
+	}
+	void appendContextMenu(Menu *menu) override;
+};
+
+struct LDMenuItem3: MenuItem {
+	LD103 *ld103;
+	float cutoff;
+	float width;
+	void onAction(EventAction &e) override {
+		for (int i = 0; i < LD103::deviceCount; i++) {
+			ld103->cutoffWidgets[i]->setValue(cutoff);
+			ld103->widthWidgets[i]->setValue(width);
+		}
+	}
+};
+
+void LD103::appendContextMenu(Menu *menu) {
+	menu->addChild(MenuEntry::create());
+	LD103 *ld103 = dynamic_cast<LD103*>(this);
+	assert(ld103);
+	LDMenuItem3 *menuItem = MenuItem::create<LDMenuItem3>("Cutoff 5V");
+	menuItem->ld103 = ld103;
+	menuItem->cutoff = 5.0f;
+	menuItem->width = 1.0f;
+	menu->addChild(menuItem);
+	menuItem = MenuItem::create<LDMenuItem3>("Cutoff 0V");
+	menuItem->ld103 = ld103;
+	menuItem->cutoff = 0.0f;
+	menuItem->width = 0.0f;
+	menu->addChild(menuItem);
+	menuItem = MenuItem::create<LDMenuItem3>("Cutoff 2.5V");
+	menuItem->ld103 = ld103;
+	menuItem->cutoff = 2.5f;
+	menuItem->width = 0.5f;
+	menu->addChild(menuItem);
+	menuItem = MenuItem::create<LDMenuItem3>("TTL Levels");
+	menuItem->ld103 = ld103;
+	menuItem->cutoff = 1.4f;
+	menuItem->width = 0.6f;
+	menu->addChild(menuItem);
+	((DS_Module *)module)->appendContextMenu(menu);
+}
+
+struct LD106 : ModuleWidget {
+	static const int deviceCount = 6;
+	ParamWidget *cutoffWidgets[deviceCount];
+	ParamWidget *widthWidgets[deviceCount];
+	LD106(LD_1<deviceCount> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/LD-106.svg")));
+
+		for (int i = 0; i < deviceCount; i++) {
+			int offset = 58 * i;
+			addInput(Port::create<SilverPort>(Vec(4,19 + offset), Port::INPUT, module, LD_1<6>::INPUT_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(62,19 + offset), Port::OUTPUT, module, LD_1<6>::OUTPUT_1 + i));
+
+			cutoffWidgets[i] = ParamWidget::create<SmallKnob<LightKnob>>(Vec(4, 47 + offset), module, LD_1<6>::PARAM_CUTOFF_1 + i, -10.0f, 10.0f, 5.0f);
+			addParam(cutoffWidgets[i]);
+			widthWidgets[i] = ParamWidget::create<SmallKnob<LightKnob>>(Vec(62, 47 + offset), module, LD_1<6>::PARAM_WIDTH_1 + i, 0.0f, 5.0f, 1.0f);
+			addParam(widthWidgets[i]);
+		}
+	}
+	void appendContextMenu(Menu *menu) override;
+};
+
+struct LDMenuItem: MenuItem {
+	LD106 *ld106;
+	float cutoff;
+	float width;
+	void onAction(EventAction &e) override {
+		for (int i = 0; i < LD106::deviceCount; i++) {
+			ld106->cutoffWidgets[i]->setValue(cutoff);
+			ld106->widthWidgets[i]->setValue(width);
+		}
+	}
+};
+
+void LD106::appendContextMenu(Menu *menu) {
+	menu->addChild(MenuEntry::create());
+	LD106 *ld106 = dynamic_cast<LD106*>(this);
+	assert(ld106);
+	LDMenuItem *menuItem = MenuItem::create<LDMenuItem>("Cutoff 5V");
+	menuItem->ld106 = ld106;
+	menuItem->cutoff = 5.0f;
+	menuItem->width = 1.0f;
+	menu->addChild(menuItem);
+	menuItem = MenuItem::create<LDMenuItem>("Cutoff 0V");
+	menuItem->ld106 = ld106;
+	menuItem->cutoff = 0.0f;
+	menuItem->width = 0.0f;
+	menu->addChild(menuItem);
+	menuItem = MenuItem::create<LDMenuItem>("Cutoff 2.5V");
+	menuItem->ld106 = ld106;
+	menuItem->cutoff = 2.5f;
+	menuItem->width = 0.5f;
+	menu->addChild(menuItem);
+	menuItem = MenuItem::create<LDMenuItem>("TTL Levels");
+	menuItem->ld106 = ld106;
+	menuItem->cutoff = 1.4f;
+	menuItem->width = 0.6f;
+	menu->addChild(menuItem);
+	((DS_Module *)module)->appendContextMenu(menu);
+}
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, LD103) {
+   Model *modelLD103 = Model::create<LD_1<3>, LD103>("Submarine (Free)", "LD-103", "LD-103 Schmitt Trigger Line Drivers", LOGIC_TAG, MULTIPLE_TAG);
+   return modelLD103;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, LD106) {
+   Model *modelLD106 = Model::create<LD_1<6>, LD106>("Submarine (Free)", "LD-106", "LD-106 Schmitt Trigger Line Drivers", LOGIC_TAG, MULTIPLE_TAG);
+   return modelLD106;
+}

plugins/community/repos/SubmarineFree/src/NG-112.cpp

@@ -1,77 +0,0 @@
-#include "DS.hpp"
-
-namespace rack_plugin_SubmarineFree {
-
-struct NG_112 : DS_Module {
-	static const int deviceCount = 12;
-	enum ParamIds {
-		NUM_PARAMS
-	};
-	enum InputIds {
-		INPUT_1,
-		INPUT_2,
-		INPUT_3,
-		INPUT_4,
-		INPUT_5,
-		INPUT_6,
-		INPUT_7,
-		INPUT_8,
-		INPUT_9,
-		INPUT_10,
-		INPUT_11,
-		INPUT_12,
-		NUM_INPUTS
-	};
-	enum OutputIds {
-		OUTPUT_1,
-		OUTPUT_2,
-		OUTPUT_3,
-		OUTPUT_4,
-		OUTPUT_5,
-		OUTPUT_6,
-		OUTPUT_7,
-		OUTPUT_8,
-		OUTPUT_9,
-		OUTPUT_10,
-		OUTPUT_11,
-		OUTPUT_12,
-		NUM_OUTPUTS
-	};
-	enum LightIds {
-		NUM_LIGHTS
-	};
-
-	NG_112() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
-	void step() override;
-};
-
-void NG_112::step() {
-	for (int i = 0; i < deviceCount; i++) {
-		outputs[OUTPUT_1 + i].value = (inputs[INPUT_1 + i].value < midpoint())?voltage1:voltage0;
-	}
-}
-
-struct NG112 : ModuleWidget {
-	NG112(NG_112 *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/NG-112.svg")));
-
-		for (int i = 0; i < NG_112::deviceCount; i++) {
-			int offset = 29 * i;
-			addInput(Port::create<sub_port_blue>(Vec(4,19 + offset), Port::INPUT, module, NG_112::INPUT_1 + i));
-
-			addOutput(Port::create<sub_port_blue>(Vec(62,19 + offset), Port::OUTPUT, module, NG_112::OUTPUT_1 + i));
-		}
-	}
-	void appendContextMenu(Menu *menu) override {
-		((DS_Module *)module)->appendContextMenu(menu);
-	}
-};
-
-} // namespace rack_plugin_SubmarineFree
-
-using namespace rack_plugin_SubmarineFree;
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, NG112) {
-   Model *modelNG112 = Model::create<NG_112, NG112>("SubmarineFree", "NG-112", "NG-112 NOT Gates", LOGIC_TAG, MULTIPLE_TAG);
-   return modelNG112;
-}

plugins/community/repos/SubmarineFree/src/NG1.cpp

@@ -0,0 +1,74 @@
+#include "DS.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+template <int x>
+struct NG_1 : DS_Module {
+	enum ParamIds {
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT_1,
+		NUM_INPUTS = x
+	};
+	enum OutputIds {
+		OUTPUT_1,
+		NUM_OUTPUTS = x
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+
+	NG_1() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	void step() override {
+		for (int i = 0; i < x; i++) {
+			outputs[OUTPUT_1 + i].value = (inputs[INPUT_1 + i].value < midpoint())?voltage1:voltage0;
+		}
+	}
+};
+
+struct NG106 : ModuleWidget {
+	NG106(NG_1<6> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/NG-106.svg")));
+
+		for (int i = 0; i < 6; i++) {
+			int offset = 58 * i;
+			addInput(Port::create<BluePort>(Vec(2.5,19 + offset), Port::INPUT, module, NG_1<6>::INPUT_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(2.5,47 + offset), Port::OUTPUT, module, NG_1<6>::OUTPUT_1 + i));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+struct NG112 : ModuleWidget {
+	NG112(NG_1<12> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/NG-112.svg")));
+
+		for (int i = 0; i < 12; i++) {
+			int offset = 29 * i;
+			addInput(Port::create<BluePort>(Vec(4,19 + offset), Port::INPUT, module, NG_1<12>::INPUT_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(62,19 + offset), Port::OUTPUT, module, NG_1<12>::OUTPUT_1 + i));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, NG106) {
+   Model *modelNG106 = Model::create<NG_1<6>, NG106>("Submarine (Free)", "NG-106", "NG-106 NOT Gates", LOGIC_TAG, MULTIPLE_TAG);
+   return modelNG106;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, NG112) {
+   Model *modelNG112 = Model::create<NG_1<12>, NG112>("Submarine (Free)", "NG-112", "NG-112 NOT Gates", LOGIC_TAG, MULTIPLE_TAG);
+   return modelNG112;
+}

plugins/community/repos/SubmarineFree/src/OG-106.cpp

@@ -1,82 +0,0 @@
-#include "DS.hpp"
-
-namespace rack_plugin_SubmarineFree {
-
-struct OG_106 : DS_Module {
-	static const int deviceCount = 6;
-	enum ParamIds {
-		NUM_PARAMS
-	};
-	enum InputIds {
-		INPUT_A_1,
-		INPUT_A_2,
-		INPUT_A_3,
-		INPUT_A_4,
-		INPUT_A_5,
-		INPUT_A_6,
-		INPUT_B_1,
-		INPUT_B_2,
-		INPUT_B_3,
-		INPUT_B_4,
-		INPUT_B_5,
-		INPUT_B_6,
-		NUM_INPUTS
-	};
-	enum OutputIds {
-		OUTPUT_1,
-		OUTPUT_2,
-		OUTPUT_3,
-		OUTPUT_4,
-		OUTPUT_5,
-		OUTPUT_6,
-		NUM_OUTPUTS
-	};
-	enum LightIds {
-		NUM_LIGHTS
-	};
-
-	OG_106() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
-	void step() override;
-};
-
-void OG_106::step() {
-	int setCount = 0;
-	for (int i = 0; i < deviceCount; i++) {
-		if (inputs[INPUT_A_1 + i].active)
-			if (inputs[INPUT_A_1 + i].value > midpoint())
-				setCount++;
-		if (inputs[INPUT_B_1 + i].active)
-			if (inputs[INPUT_B_1 + i].value > midpoint())
-				setCount++;
-		if (outputs[OUTPUT_1 + i].active) {
-			outputs[OUTPUT_1 + i].value = (setCount > 0)?voltage1:voltage0;
-			setCount = 0;
-		}
-	}
-}
-
-struct OG106 : ModuleWidget {
-	OG106(OG_106 *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/OG-106.svg")));
-
-		for (int i = 0; i < OG_106::deviceCount; i++) {
-			int offset = 58 * i;
-			addInput(Port::create<sub_port_blue>(Vec(4,19 + offset), Port::INPUT, module, OG_106::INPUT_A_1 + i));
-			addInput(Port::create<sub_port_blue>(Vec(4,47 + offset), Port::INPUT, module, OG_106::INPUT_B_1 + i));
-
-			addOutput(Port::create<sub_port_blue>(Vec(62,33 + offset), Port::OUTPUT, module, OG_106::OUTPUT_1 + i));
-		}
-	}
-	void appendContextMenu(Menu *menu) override {
-		((DS_Module *)module)->appendContextMenu(menu);
-	}
-};
-
-} // namespace rack_plugin_SubmarineFree
-
-using namespace rack_plugin_SubmarineFree;
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, OG106) {
-   Model *modelOG106 = Model::create<OG_106, OG106>("SubmarineFree", "OG-106", "OG-106 OR Gates", LOGIC_TAG, MULTIPLE_TAG);
-   return modelOG106;
-}

plugins/community/repos/SubmarineFree/src/OG1.cpp

@@ -0,0 +1,87 @@
+#include "DS.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+template <int x>
+struct OG_1 : DS_Module {
+	enum ParamIds {
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT_A_1,
+		INPUT_B_1 = x,
+		NUM_INPUTS = x + x
+	};
+	enum OutputIds {
+		OUTPUT_1,
+		NUM_OUTPUTS = x
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+
+	OG_1() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	void step() override {
+		int setCount = 0;
+		for (int i = 0; i < x; i++) {
+			if (inputs[INPUT_A_1 + i].active)
+				if (inputs[INPUT_A_1 + i].value > midpoint())
+					setCount++;
+			if (inputs[INPUT_B_1 + i].active)
+				if (inputs[INPUT_B_1 + i].value > midpoint())
+					setCount++;
+			if (outputs[OUTPUT_1 + i].active) {
+				outputs[OUTPUT_1 + i].value = (setCount > 0)?voltage1:voltage0;
+				setCount = 0;
+			}
+		}
+	}
+};
+
+struct OG104 : ModuleWidget {
+	OG104(OG_1<4> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/OG-104.svg")));
+
+		for (int i = 0; i < 4; i++) {
+			int offset = 87 * i;
+			addInput(Port::create<BluePort>(Vec(2.5,19 + offset), Port::INPUT, module, OG_1<4>::INPUT_A_1 + i));
+			addInput(Port::create<BluePort>(Vec(2.5,47 + offset), Port::INPUT, module, OG_1<4>::INPUT_B_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(2.5,75 + offset), Port::OUTPUT, module, OG_1<4>::OUTPUT_1 + i));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+struct OG106 : ModuleWidget {
+	OG106(OG_1<6> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/OG-106.svg")));
+
+		for (int i = 0; i < 6; i++) {
+			int offset = 58 * i;
+			addInput(Port::create<BluePort>(Vec(4,19 + offset), Port::INPUT, module, OG_1<6>::INPUT_A_1 + i));
+			addInput(Port::create<BluePort>(Vec(4,47 + offset), Port::INPUT, module, OG_1<6>::INPUT_B_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(62,33 + offset), Port::OUTPUT, module, OG_1<6>::OUTPUT_1 + i));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, OG104) {
+   Model *modelOG104 = Model::create<OG_1<4>, OG104>("Submarine (Free)", "OG-104", "OG-104 OR Gates", LOGIC_TAG, MULTIPLE_TAG);
+   return modelOG104;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, OG106) {
+   Model *modelOG106 = Model::create<OG_1<6>, OG106>("Submarine (Free)", "OG-106", "OG-106 OR Gates", LOGIC_TAG, MULTIPLE_TAG);
+   return modelOG106;
+}

plugins/community/repos/SubmarineFree/src/PG-112.cpp

@@ -1,102 +0,0 @@
-#include "DS.hpp"
-#include "dsp/digital.hpp"
-
-namespace rack_plugin_SubmarineFree {
-
-struct PG_112 : DS_Module {
-	static const int deviceCount = 12;
-	enum ParamIds {
-		PARAM_1,
-		PARAM_2,
-		PARAM_3,
-		PARAM_4,
-		PARAM_5,
-		PARAM_6,
-		PARAM_7,
-		PARAM_8,
-		PARAM_9,
-		PARAM_10,
-		PARAM_11,
-		PARAM_12,
-		NUM_PARAMS
-	};
-	enum InputIds {
-		INPUT_1,
-		INPUT_2,
-		INPUT_3,
-		INPUT_4,
-		INPUT_5,
-		INPUT_6,
-		INPUT_7,
-		INPUT_8,
-		INPUT_9,
-		INPUT_10,
-		INPUT_11,
-		INPUT_12,
-		NUM_INPUTS
-	};
-	enum OutputIds {
-		OUTPUT_1,
-		OUTPUT_2,
-		OUTPUT_3,
-		OUTPUT_4,
-		OUTPUT_5,
-		OUTPUT_6,
-		OUTPUT_7,
-		OUTPUT_8,
-		OUTPUT_9,
-		OUTPUT_10,
-		OUTPUT_11,
-		OUTPUT_12,
-		NUM_OUTPUTS
-	};
-	enum LightIds {
-		NUM_LIGHTS
-	};
-	DS_Schmitt schmitt[deviceCount];
-	PulseGenerator pulse[deviceCount];
-
-	PG_112() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
-	void step() override;
-};
-
-void PG_112::step() {
-	float deltaTime = 1.0f / engineGetSampleRate();
-	for (int i = 0; i < deviceCount; i++) {
-		if (schmitt[i].redge(this, inputs[INPUT_1 + i].value)) {
-			pulse[i].process(deltaTime);
-			pulse[i].trigger(powf(10.0f, params[PARAM_1 + i].value));
-			outputs[OUTPUT_1 + i].value = voltage1;
-		}
-		else {
-			outputs[OUTPUT_1 + i].value = pulse[i].process(deltaTime)?voltage1:voltage0;
-		}
-	}
-}
-
-struct PG112 : ModuleWidget {
-	PG112(PG_112 *module) : ModuleWidget(module) {
-		setPanel(SVG::load(assetPlugin(plugin, "res/PG-112.svg")));
-
-		for (int i = 0; i < PG_112::deviceCount; i++) {
-			int offset = 29 * i;
-			addInput(Port::create<sub_port_blue>(Vec(4,19 + offset), Port::INPUT, module, PG_112::INPUT_1 + i));
-
-			addOutput(Port::create<sub_port_blue>(Vec(92,19 + offset), Port::OUTPUT, module, PG_112::OUTPUT_1 + i));
-
-			addParam(ParamWidget::create<sub_knob_small>(Vec(33,19.5 + offset), module, PG_112::PARAM_1 + i, -5.0f, 2.0f, -2.0f));
-		}
-	}
-	void appendContextMenu(Menu *menu) override {
-		((DS_Module *)module)->appendContextMenu(menu);
-	}
-};
-
-} // namespace rack_plugin_SubmarineFree
-
-using namespace rack_plugin_SubmarineFree;
-
-RACK_PLUGIN_MODEL_INIT(SubmarineFree, PG112) {
-   Model *modelPG112 = Model::create<PG_112, PG112>("SubmarineFree", "PG-112", "PG-112 Pulse Generators", LOGIC_TAG, MULTIPLE_TAG);
-   return modelPG112;
-}

plugins/community/repos/SubmarineFree/src/PG1.cpp

@@ -0,0 +1,90 @@
+#include "DS.hpp"
+#include "dsp/digital.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+template <int x>
+struct PG_1 : DS_Module {
+	enum ParamIds {
+		PARAM_1,
+		NUM_PARAMS = x
+	};
+	enum InputIds {
+		INPUT_1,
+		NUM_INPUTS = x
+	};
+	enum OutputIds {
+		OUTPUT_1,
+		NUM_OUTPUTS = x
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+	DS_Schmitt schmitt[x];
+	PulseGenerator pulse[x];
+
+	PG_1() : DS_Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	void step() override {
+		float deltaTime = 1.0f / engineGetSampleRate();
+		for (int i = 0; i < x; i++) {
+			if (schmitt[i].redge(this, inputs[INPUT_1 + i].value)) {
+				pulse[i].process(deltaTime);
+				pulse[i].trigger(powf(10.0f, params[PARAM_1 + i].value));
+				outputs[OUTPUT_1 + i].value = voltage1;
+			}
+			else {
+				outputs[OUTPUT_1 + i].value = pulse[i].process(deltaTime)?voltage1:voltage0;
+			}
+		}
+	}
+};
+
+struct PG104 : ModuleWidget {
+	PG104(PG_1<4> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/PG-104.svg")));
+
+		for (int i = 0; i < 4; i++) {
+			int offset = 87 * i;
+			addInput(Port::create<BluePort>(Vec(2.5,19 + offset), Port::INPUT, module, PG_1<4>::INPUT_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(2.5,75 + offset), Port::OUTPUT, module, PG_1<4>::OUTPUT_1 + i));
+
+			addParam(ParamWidget::create<SmallKnob<LightKnob>>(Vec(3,47.5 + offset), module, PG_1<4>::PARAM_1 + i, -5.0f, 2.0f, -2.0f));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+struct PG112 : ModuleWidget {
+	PG112(PG_1<12> *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/PG-112.svg")));
+
+		for (int i = 0; i < 12; i++) {
+			int offset = 29 * i;
+			addInput(Port::create<BluePort>(Vec(4,19 + offset), Port::INPUT, module, PG_1<12>::INPUT_1 + i));
+
+			addOutput(Port::create<BluePort>(Vec(92,19 + offset), Port::OUTPUT, module, PG_1<12>::OUTPUT_1 + i));
+
+			addParam(ParamWidget::create<SmallKnob<LightKnob>>(Vec(33,19.5 + offset), module, PG_1<12>::PARAM_1 + i, -5.0f, 2.0f, -2.0f));
+		}
+	}
+	void appendContextMenu(Menu *menu) override {
+		((DS_Module *)module)->appendContextMenu(menu);
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, PG104) {
+   Model *modelPG104 = Model::create<PG_1<4>, PG104>("Submarine (Free)", "PG-104", "PG-104 Pulse Generators", LOGIC_TAG, MULTIPLE_TAG);
+   return modelPG104;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, PG112) {
+   Model *modelPG112 = Model::create<PG_1<12>, PG112>("Submarine (Free)", "PG-112", "PG-112 Pulse Generators", LOGIC_TAG, MULTIPLE_TAG);
+   return modelPG112;
+}

plugins/community/repos/SubmarineFree/src/PO12.cpp

@@ -0,0 +1,509 @@
+#include "SubmarineFree.hpp"
+#include "dsp/functions.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+struct PO_Util {
+	static constexpr float deg0   = 0.0f;
+	static constexpr float deg30  =         M_PI / 6.0f;
+	static constexpr float deg45  =         M_PI / 4.0f;
+	static constexpr float deg60  =         M_PI / 3.0f;
+	static constexpr float deg90  =         M_PI / 2.0f;
+	static constexpr float deg120 = 2.0f  * M_PI / 3.0f;
+	static constexpr float deg135 = 3.0f  * M_PI / 4.0f;
+	static constexpr float deg150 = 5.0f  * M_PI / 6.0f;
+	static constexpr float ph0 = 0.0f;
+	static constexpr float ph30 = 1.0f / 12.0f;
+	static constexpr float ph45 = 0.125f;
+	static constexpr float ph60 = 1.0f / 6.0f;
+	static constexpr float ph90 = 0.25f;
+	static constexpr float ph120 = 1.0f / 3.0f;
+	static constexpr float ph135 = 0.375f;
+	static constexpr float ph150 = 5.0f / 12.0f;
+	static constexpr float ph180 = 0.5f;
+	static constexpr float ph210 = 7.0f / 12.0f;
+	static constexpr float ph225 = 0.625;
+	static constexpr float ph240 = 2.0f / 3.0f;
+	static constexpr float ph270 = 0.75f;
+	static constexpr float ph300 = 5.0f / 6.0f;
+	static constexpr float ph315 = 0.875f;
+	static constexpr float ph330 = 11.0f / 12.0f;
+
+	float sin(float phase);
+	float tri(float phase);
+	float saw(float phase);
+	float sqr(float phase);
+	float rsn(float phase);
+};
+
+float PO_Util::sin(float phase) {
+	return 5.0f * sinf(phase);
+}
+
+float PO_Util::tri(float phase) {
+	phase -= floor(phase);
+	if (phase < 0.25f)
+		return 20.0f * phase;
+	if (phase < 0.75f)
+		return 20.0f * (0.5f - phase);
+	return 20.0f * (phase - 1.0f);
+}
+
+float PO_Util::saw(float phase) {
+	phase -= floor(phase);
+	if (phase < 0.5f)
+		return 10.0f * phase;
+	return 10.0f * (phase - 1.0f);
+}
+
+float PO_Util::sqr(float phase) {
+	phase -= floor(phase);
+	return (phase < 0.5f)?5.0f:-5.0f;
+}
+
+float PO_Util::rsn(float phase) {
+	return 10.0f * fabs(sinf(phase)) - 5.0f;
+}
+
+struct PO_101 : Module, PO_Util {
+
+	enum ParamIds {
+		PARAM_TUNE,
+		PARAM_FINE,
+		PARAM_WAVE,
+		PARAM_PHASE_1,
+		PARAM_PHASE_2,
+		PARAM_PHASE_3,
+		PARAM_PHASE_4,
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT_NOTE_CV,
+		INPUT_PHASE_1,
+		INPUT_PHASE_2,
+		INPUT_PHASE_3,
+		INPUT_PHASE_4,
+		NUM_INPUTS
+	};
+	enum OutputIds {
+		OUTPUT_1,
+		OUTPUT_2,
+		OUTPUT_3,
+		OUTPUT_4,
+		OUTPUT_5,
+		OUTPUT_6,
+		OUTPUT_7,
+		OUTPUT_8,
+		OUTPUT_9,
+		OUTPUT_10,
+		OUTPUT_11,
+		OUTPUT_12,
+		OUTPUT_13,
+		OUTPUT_14,
+		OUTPUT_15,
+		OUTPUT_16,
+		OUTPUT_17,
+		OUTPUT_18,
+		OUTPUT_19,
+		OUTPUT_20,
+		NUM_OUTPUTS
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+
+	PO_101() : Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	void step() override;
+	void sin(float phase);
+	void tri(float phase);
+	void saw(float phase);
+	void sqr(float phase);
+	void rsn(float phase);
+	float phase = 0.0f;
+	float baseFreq = 261.626f;
+};
+
+void PO_101::sin(float phase) {
+	phase *= (2 * M_PI);
+	if (outputs[OUTPUT_1].active || outputs[OUTPUT_9].active)
+		outputs[OUTPUT_9].value = -(outputs[OUTPUT_1].value = PO_Util::sin(phase + deg0));
+	if (outputs[OUTPUT_2].active || outputs[OUTPUT_10].active)
+		outputs[OUTPUT_10].value = -(outputs[OUTPUT_2].value = PO_Util::sin(phase + deg30));
+	if (outputs[OUTPUT_3].active || outputs[OUTPUT_11].active)
+		outputs[OUTPUT_11].value = -(outputs[OUTPUT_3].value = PO_Util::sin(phase + deg45));
+	if (outputs[OUTPUT_4].active || outputs[OUTPUT_12].active)
+		outputs[OUTPUT_12].value = -(outputs[OUTPUT_4].value = PO_Util::sin(phase + deg60));
+	if (outputs[OUTPUT_5].active || outputs[OUTPUT_13].active)
+		outputs[OUTPUT_13].value = -(outputs[OUTPUT_5].value = PO_Util::sin(phase + deg90));
+	if (outputs[OUTPUT_6].active || outputs[OUTPUT_14].active)
+		outputs[OUTPUT_14].value = -(outputs[OUTPUT_6].value = PO_Util::sin(phase + deg120));
+	if (outputs[OUTPUT_7].active || outputs[OUTPUT_15].active)
+		outputs[OUTPUT_15].value = -(outputs[OUTPUT_7].value = PO_Util::sin(phase + deg135));
+	if (outputs[OUTPUT_8].active || outputs[OUTPUT_16].active)
+		outputs[OUTPUT_16].value = -(outputs[OUTPUT_8].value = PO_Util::sin(phase + deg150));
+	for (int i = 0; i < 4; i++) {
+		if (outputs[OUTPUT_17 + i].active) {
+			float offset = params[PARAM_PHASE_1 + i].value;
+			if (inputs[INPUT_PHASE_1 + i].active)
+				offset += inputs[INPUT_PHASE_1 + i].value * 0.4f;
+			offset *= 2 * M_PI;
+			outputs[OUTPUT_17 + i].value = PO_Util::sin(phase + offset);
+		}
+	}
+}
+
+void PO_101::tri(float phase) {
+	if (outputs[OUTPUT_1].active || outputs[OUTPUT_9].active)
+		outputs[OUTPUT_9].value = -(outputs[OUTPUT_1].value = PO_Util::tri(phase + ph0));
+	if (outputs[OUTPUT_2].active || outputs[OUTPUT_10].active)
+		outputs[OUTPUT_10].value = -(outputs[OUTPUT_2].value = PO_Util::tri(phase + ph30));
+	if (outputs[OUTPUT_3].active || outputs[OUTPUT_11].active)
+		outputs[OUTPUT_11].value = -(outputs[OUTPUT_3].value = PO_Util::tri(phase + ph45));
+	if (outputs[OUTPUT_4].active || outputs[OUTPUT_12].active)
+		outputs[OUTPUT_12].value = -(outputs[OUTPUT_4].value = PO_Util::tri(phase + ph60));
+	if (outputs[OUTPUT_5].active || outputs[OUTPUT_13].active)
+		outputs[OUTPUT_13].value = -(outputs[OUTPUT_5].value = PO_Util::tri(phase + ph90));
+	if (outputs[OUTPUT_6].active || outputs[OUTPUT_14].active)
+		outputs[OUTPUT_14].value = -(outputs[OUTPUT_6].value = PO_Util::tri(phase + ph120));
+	if (outputs[OUTPUT_7].active || outputs[OUTPUT_15].active)
+		outputs[OUTPUT_15].value = -(outputs[OUTPUT_7].value = PO_Util::tri(phase + ph135));
+	if (outputs[OUTPUT_8].active || outputs[OUTPUT_16].active)
+		outputs[OUTPUT_16].value = -(outputs[OUTPUT_8].value = PO_Util::tri(phase + ph150));
+	for (int i = 0; i < 4; i++) {
+		if (outputs[OUTPUT_17 + i].active) {
+			float offset = params[PARAM_PHASE_1 + i].value;
+			if (inputs[INPUT_PHASE_1 + i].active)
+				offset += inputs[INPUT_PHASE_1 + i].value * 0.4f;
+			outputs[OUTPUT_17 + i].value = PO_Util::tri(phase + offset);
+		}
+	}
+}
+
+void PO_101::saw(float phase) {
+	if (outputs[OUTPUT_1].active)
+		outputs[OUTPUT_1].value = PO_Util::saw(phase + ph0);
+	if (outputs[OUTPUT_2].active)
+		outputs[OUTPUT_2].value = PO_Util::saw(phase + ph30);
+	if (outputs[OUTPUT_3].active)
+		outputs[OUTPUT_3].value = PO_Util::saw(phase + ph45);
+	if (outputs[OUTPUT_4].active)
+		outputs[OUTPUT_4].value = PO_Util::saw(phase + ph60);
+	if (outputs[OUTPUT_5].active)
+		outputs[OUTPUT_5].value = PO_Util::saw(phase + ph90);
+	if (outputs[OUTPUT_6].active)
+		outputs[OUTPUT_6].value = PO_Util::saw(phase + ph120);
+	if (outputs[OUTPUT_7].active)
+		outputs[OUTPUT_7].value = PO_Util::saw(phase + ph135);
+	if (outputs[OUTPUT_8].active)
+		outputs[OUTPUT_8].value = PO_Util::saw(phase + ph150);
+	if (outputs[OUTPUT_9].active)
+		outputs[OUTPUT_9].value = PO_Util::saw(phase + ph180);
+	if (outputs[OUTPUT_10].active)
+		outputs[OUTPUT_10].value = PO_Util::saw(phase + ph210);
+	if (outputs[OUTPUT_11].active)
+		outputs[OUTPUT_11].value = PO_Util::saw(phase + ph225);
+	if (outputs[OUTPUT_12].active)
+		outputs[OUTPUT_12].value = PO_Util::saw(phase + ph240);
+	if (outputs[OUTPUT_13].active)
+		outputs[OUTPUT_13].value = PO_Util::saw(phase + ph270);
+	if (outputs[OUTPUT_14].active)
+		outputs[OUTPUT_14].value = PO_Util::saw(phase + ph300);
+	if (outputs[OUTPUT_15].active)
+		outputs[OUTPUT_15].value = PO_Util::saw(phase + ph315);
+	if (outputs[OUTPUT_16].active)
+		outputs[OUTPUT_16].value = PO_Util::saw(phase + ph330);
+	for (int i = 0; i < 4; i++) {
+		if (outputs[OUTPUT_17 + i].active) {
+			float offset = params[PARAM_PHASE_1 + i].value;
+			if (inputs[INPUT_PHASE_1 + i].active)
+				offset += inputs[INPUT_PHASE_1 + i].value * 0.4f;
+			outputs[OUTPUT_17 + i].value = PO_Util::saw(phase + offset);
+		}
+	}
+}
+
+void PO_101::sqr(float phase) {
+	if (outputs[OUTPUT_1].active || outputs[OUTPUT_9].active)
+		outputs[OUTPUT_9].value = -(outputs[OUTPUT_1].value = PO_Util::sqr(phase + ph0));
+	if (outputs[OUTPUT_2].active || outputs[OUTPUT_10].active)
+		outputs[OUTPUT_10].value = -(outputs[OUTPUT_2].value = PO_Util::sqr(phase + ph30));
+	if (outputs[OUTPUT_3].active || outputs[OUTPUT_11].active)
+		outputs[OUTPUT_11].value = -(outputs[OUTPUT_3].value = PO_Util::sqr(phase + ph45));
+	if (outputs[OUTPUT_4].active || outputs[OUTPUT_12].active)
+		outputs[OUTPUT_12].value = -(outputs[OUTPUT_4].value = PO_Util::sqr(phase + ph60));
+	if (outputs[OUTPUT_5].active || outputs[OUTPUT_13].active)
+		outputs[OUTPUT_13].value = -(outputs[OUTPUT_5].value = PO_Util::sqr(phase + ph90));
+	if (outputs[OUTPUT_6].active || outputs[OUTPUT_14].active)
+		outputs[OUTPUT_14].value = -(outputs[OUTPUT_6].value = PO_Util::sqr(phase + ph120));
+	if (outputs[OUTPUT_7].active || outputs[OUTPUT_15].active)
+		outputs[OUTPUT_15].value = -(outputs[OUTPUT_7].value = PO_Util::sqr(phase + ph135));
+	if (outputs[OUTPUT_8].active || outputs[OUTPUT_16].active)
+		outputs[OUTPUT_16].value = -(outputs[OUTPUT_8].value = PO_Util::sqr(phase + ph150));
+	for (int i = 0; i < 4; i++) {
+		if (outputs[OUTPUT_17 + i].active) {
+			float offset = params[PARAM_PHASE_1 + i].value;
+			if (inputs[INPUT_PHASE_1 + i].active)
+				offset += inputs[INPUT_PHASE_1 + i].value * 0.4f;
+			outputs[OUTPUT_17 + i].value = PO_Util::sqr(phase + offset);
+		}
+	}
+}
+
+void PO_101::rsn(float phase) {
+	phase *= (2 * M_PI);
+	if (outputs[OUTPUT_1].active || outputs[OUTPUT_9].active)
+		outputs[OUTPUT_9].value = (outputs[OUTPUT_1].value = PO_Util::rsn(phase + deg0));
+	if (outputs[OUTPUT_2].active || outputs[OUTPUT_10].active)
+		outputs[OUTPUT_10].value = (outputs[OUTPUT_2].value = PO_Util::rsn(phase + deg30));
+	if (outputs[OUTPUT_3].active || outputs[OUTPUT_11].active)
+		outputs[OUTPUT_11].value = (outputs[OUTPUT_3].value = PO_Util::rsn(phase + deg45));
+	if (outputs[OUTPUT_4].active || outputs[OUTPUT_12].active)
+		outputs[OUTPUT_12].value = (outputs[OUTPUT_4].value = PO_Util::rsn(phase + deg60));
+	if (outputs[OUTPUT_5].active || outputs[OUTPUT_13].active)
+		outputs[OUTPUT_13].value = (outputs[OUTPUT_5].value = PO_Util::rsn(phase + deg90));
+	if (outputs[OUTPUT_6].active || outputs[OUTPUT_14].active)
+		outputs[OUTPUT_14].value = (outputs[OUTPUT_6].value = PO_Util::rsn(phase + deg120));
+	if (outputs[OUTPUT_7].active || outputs[OUTPUT_15].active)
+		outputs[OUTPUT_15].value = (outputs[OUTPUT_7].value = PO_Util::rsn(phase + deg135));
+	if (outputs[OUTPUT_8].active || outputs[OUTPUT_16].active)
+		outputs[OUTPUT_16].value = (outputs[OUTPUT_8].value = PO_Util::rsn(phase + deg150));
+	for (int i = 0; i < 4; i++) {
+		if (outputs[OUTPUT_17 + i].active) {
+			float offset = params[PARAM_PHASE_1 + i].value;
+			if (inputs[INPUT_PHASE_1 + i].active)
+				offset += inputs[INPUT_PHASE_1 + i].value * 0.4f;
+			offset *= 2 * M_PI;
+			outputs[OUTPUT_17 + i].value = PO_Util::rsn(phase + offset);
+		}
+	}
+}
+
+void PO_101::step() {
+	float freq = baseFreq * powf(2.0f, (params[PARAM_TUNE].value + 3.0f * quadraticBipolar(params[PARAM_FINE].value)) / 12.0f + (inputs[INPUT_NOTE_CV].active?inputs[INPUT_NOTE_CV].value:0.0f));
+	float deltaTime = freq / engineGetSampleRate();
+	phase += deltaTime;
+	double intPart;
+	phase = modf(phase, &intPart);
+
+	{
+		float waveShape = clamp(params[PARAM_WAVE].value, 0.0f, 4.0f);
+		if (waveShape < 0.5f)
+			sin(phase);
+		else if (waveShape < 1.5f)
+			tri(phase);
+		else if (waveShape < 2.5f)
+			saw(phase);
+		else if (waveShape < 3.5f)
+			sqr(phase);
+		else
+			rsn(phase);
+	}
+
+}
+
+struct PO_204 : Module, PO_Util {
+
+	enum ParamIds {
+		PARAM_TUNE,
+		PARAM_FINE,
+		PARAM_WAVE_1,
+		PARAM_WAVE_2,
+		PARAM_WAVE_3,
+		PARAM_WAVE_4,
+		PARAM_PHASE_1,
+		PARAM_PHASE_2,
+		PARAM_PHASE_3,
+		PARAM_PHASE_4,
+		PARAM_MULT_1,
+		PARAM_MULT_2,
+		PARAM_MULT_3,
+		PARAM_MULT_4,
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT_TUNE,
+		INPUT_WAVE_1,
+		INPUT_WAVE_2,
+		INPUT_WAVE_3,
+		INPUT_WAVE_4,
+		INPUT_PHASE_1,
+		INPUT_PHASE_2,
+		INPUT_PHASE_3,
+		INPUT_PHASE_4,
+		INPUT_MULT_1,
+		INPUT_MULT_2,
+		INPUT_MULT_3,
+		INPUT_MULT_4,
+		NUM_INPUTS
+	};
+	enum OutputIds {
+		OUTPUT_1,
+		OUTPUT_2,
+		OUTPUT_3,
+		OUTPUT_4,
+		NUM_OUTPUTS
+	};
+	enum LightIds {
+		NUM_LIGHTS
+	};
+
+	PO_204() : Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	void step() override;
+	float phase = 0.0f;
+	float baseFreq = 261.626f;
+};
+
+void PO_204::step() {
+	float freq = baseFreq * powf(2.0f, (params[PARAM_TUNE].value + 3.0f * quadraticBipolar(params[PARAM_FINE].value)) / 12.0f + (inputs[INPUT_TUNE].active?inputs[INPUT_TUNE].value:0.0f));
+	float deltaTime = freq / engineGetSampleRate();
+	phase += deltaTime;
+	double intPart;
+	phase = modf(phase, &intPart);
+	for (int i = 0; i < 4; i++) {
+		if (outputs[OUTPUT_1 + i].active) {
+			float offset = phase + params[PARAM_PHASE_1 + i].value;
+			if (inputs[INPUT_PHASE_1 + i].active)
+				offset += inputs[INPUT_PHASE_1 + i].value * 0.4f;
+			offset *= floor(clamp(params[PARAM_MULT_1 + i].value + (inputs[INPUT_MULT_1 + i].active?inputs[INPUT_MULT_1 + i].value:0.0f) * 16.0f / 10.0f, 1.0f, 16.5f));
+			float wave = params[PARAM_WAVE_1 + i].value + (inputs[INPUT_WAVE_1 + i].active?inputs[INPUT_WAVE_1 + i].value:0.0f);
+			double waveSection;
+			wave = modf(clamp(wave, 0.0f, 10.0f), &waveSection);
+			float w1 = 0.0f;
+			float w2 = 0.0f;
+			switch ((int)waveSection) {
+				case 0:
+					w1 = PO_Util::sin(offset * 2 * M_PI);
+					w2 = PO_Util::saw(offset);
+					break;
+				case 1:
+					w1 = PO_Util::saw(offset);
+					w2 = PO_Util::rsn(offset * 2 * M_PI);
+					break;
+				case 2:
+					w1 = PO_Util::rsn(offset * 2 * M_PI);
+					w2 = PO_Util::tri(offset);
+					break;
+				case 3:
+					w1 = PO_Util::tri(offset);
+					w2 = PO_Util::sqr(offset);
+					break;
+				case 4:
+					w1 = PO_Util::sqr(offset);
+					w2 = PO_Util::sin(offset * 2 * M_PI);
+					break;
+				case 5:
+					w1 = PO_Util::sin(offset * 2 * M_PI);
+					w2 = PO_Util::tri(offset);
+					break;
+				case 6:
+					w1 = PO_Util::tri(offset);
+					w2 = PO_Util::saw(offset);
+					break;
+				case 7:
+					w1 = PO_Util::saw(offset);
+					w2 = PO_Util::sqr(offset);
+					break;
+				case 8:
+					w1 = PO_Util::sqr(offset);
+					w2 = PO_Util::rsn(offset * 2 * M_PI);
+					break;
+				case 9:
+					w1 = PO_Util::rsn(offset * 2 * M_PI);
+					w2 = PO_Util::sin(offset * 2 * M_PI);
+					break;
+				default:
+					w2 = w1 = PO_Util::sin(offset * 2 * M_PI);
+					break;
+			}
+			outputs[OUTPUT_1 + i].value = w1 * (1.0f - wave) + w2 * wave;
+		}
+	}
+}
+
+struct PO_Layout : ModuleWidget {
+	PO_Layout(PO_101 *module) : ModuleWidget(module) {}
+	void Layout() {
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(66, 39), module, PO_101::PARAM_FINE, -1.0f, +1.0f, 0.0f));
+		addParam(ParamWidget::create<NarrowKnob<SnapKnob<MedKnob<LightKnob>>>>(Vec(121, 39), module, PO_101::PARAM_WAVE, 0.0f, +4.0f, 0.0f));
+
+		addInput(Port::create<SilverPort>(Vec(45,19), Port::INPUT, module, PO_101::INPUT_NOTE_CV));
+
+		addOutput(Port::create<SilverPort>(Vec(77.5,100), Port::OUTPUT, module, PO_101::OUTPUT_1));
+		addOutput(Port::create<SilverPort>(Vec(110,109), Port::OUTPUT, module, PO_101::OUTPUT_2));
+		addOutput(Port::create<SilverPort>(Vec(142.5,100), Port::OUTPUT, module, PO_101::OUTPUT_3));
+		addOutput(Port::create<SilverPort>(Vec(133.5,132.5), Port::OUTPUT, module, PO_101::OUTPUT_4));
+		addOutput(Port::create<SilverPort>(Vec(142.5,165), Port::OUTPUT, module, PO_101::OUTPUT_5));
+		addOutput(Port::create<SilverPort>(Vec(133.5,197.5), Port::OUTPUT, module, PO_101::OUTPUT_6));
+		addOutput(Port::create<SilverPort>(Vec(142.5,230), Port::OUTPUT, module, PO_101::OUTPUT_7));
+		addOutput(Port::create<SilverPort>(Vec(110,221), Port::OUTPUT, module, PO_101::OUTPUT_8));
+		addOutput(Port::create<SilverPort>(Vec(77.5,230), Port::OUTPUT, module, PO_101::OUTPUT_9));
+		addOutput(Port::create<SilverPort>(Vec(45,221), Port::OUTPUT, module, PO_101::OUTPUT_10));
+		addOutput(Port::create<SilverPort>(Vec(12.5,230), Port::OUTPUT, module, PO_101::OUTPUT_11));
+		addOutput(Port::create<SilverPort>(Vec(21.5,197.5), Port::OUTPUT, module, PO_101::OUTPUT_12));
+		addOutput(Port::create<SilverPort>(Vec(12.5,165), Port::OUTPUT, module, PO_101::OUTPUT_13));
+		addOutput(Port::create<SilverPort>(Vec(21.5,132.5), Port::OUTPUT, module, PO_101::OUTPUT_14));
+		addOutput(Port::create<SilverPort>(Vec(12.5,100), Port::OUTPUT, module, PO_101::OUTPUT_15));
+		addOutput(Port::create<SilverPort>(Vec(45,109), Port::OUTPUT, module, PO_101::OUTPUT_16));
+
+		for (int i = 0; i < 4; i++) {
+			addInput(Port::create<SilverPort>(Vec(10 + 45 * i,260), Port::INPUT, module, PO_101::INPUT_PHASE_1 + i));
+			addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(3.5 + 45 * i, 290), module, PO_101::PARAM_PHASE_1 + i, -1.0f, +1.0f, 0.0f));
+			addOutput(Port::create<SilverPort>(Vec(10 + 45 * i,333), Port::OUTPUT, module, PO_101::OUTPUT_17 + i));
+		}
+	}
+};
+
+struct PO101 : PO_Layout {
+	PO101(PO_101 *module) : PO_Layout(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/PO-101.svg")));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(11, 39), module, PO_101::PARAM_TUNE, -54.0f, +54.0f, 0.0f));
+		Layout();
+	}
+};
+
+struct PO102 : PO_Layout {
+	PO102(PO_101 *module) : PO_Layout(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/PO-102.svg")));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(11, 39), module, PO_101::PARAM_TUNE, -96.0f, 72.0f, -12.0f));
+		module->baseFreq = 1.0f;
+		Layout();
+	}
+};
+
+struct PO204 : ModuleWidget {
+	PO204(PO_204 *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/PO-204.svg")));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(60, 19), module, PO_204::PARAM_TUNE, -90.0f, +54.0f, 0.0f));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(105, 19), module, PO_204::PARAM_FINE, -1.0f, +1.0f, 0.0f));
+		addInput(Port::create<SilverPort>(Vec(17.5, 25.5), Port::INPUT, module, PO_204::INPUT_TUNE));
+
+		for (int i = 0; i < 4; i++) {
+			addParam(ParamWidget::create<SmallKnob<LightKnob>>(Vec(5, 89 + 70 * i), module, PO_204::PARAM_WAVE_1 + i, 0.0f, 10.0f, 5.0f));
+			addParam(ParamWidget::create<SmallKnob<LightKnob>>(Vec(45, 89 + 70 * i), module, PO_204::PARAM_PHASE_1 + i, -1.0f, +1.0f, 0.0f));
+			addParam(ParamWidget::create<SnapKnob<SmallKnob<LightKnob>>>(Vec(85, 89 + 70 * i), module, PO_204::PARAM_MULT_1 + i, 1.0f, 16.0f, 1.0f));
+			addInput(Port::create<SilverPort>(Vec(4.5, 125 + 70 * i), Port::INPUT, module, PO_204::INPUT_WAVE_1 + i));
+			addInput(Port::create<SilverPort>(Vec(44.5, 125 + 70 * i), Port::INPUT, module, PO_204::INPUT_PHASE_1 + i));
+			addInput(Port::create<SilverPort>(Vec(84.5, 125 + 70 * i), Port::INPUT, module, PO_204::INPUT_MULT_1 + i));
+			addOutput(Port::create<SilverPort>(Vec(120.5, 125 + 70 * i), Port::OUTPUT, module, PO_204::OUTPUT_1 + i));
+		}
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, PO101) {
+   Model *modelPO101 = Model::create<PO_101, PO101>("Submarine (Free)", "PO-101", "PO-101 Phased VCO", OSCILLATOR_TAG, MULTIPLE_TAG, DIGITAL_TAG);
+   return modelPO101;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, PO102) {
+   Model *modelPO102 = Model::create<PO_101, PO102>("Submarine (Free)", "PO-102", "PO-102 Phased LFO", OSCILLATOR_TAG, MULTIPLE_TAG, DIGITAL_TAG);
+   return modelPO102;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, PO204) {
+   Model *modelPO204 = Model::create<PO_204, PO204>("Submarine (Free)", "PO-204", "PO-204 Phase Modulation Engine", OSCILLATOR_TAG, QUAD_TAG, DIGITAL_TAG);
+   return modelPO204;
+}

plugins/community/repos/SubmarineFree/src/SS1.cpp

@@ -0,0 +1,174 @@
+#include "SubmarineFree.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+struct SS_112 : Module {
+	static constexpr int deviceCount = 12;
+	SS_112() : Module(0, deviceCount, 0, 0) {}
+};
+
+struct SS112 : ModuleWidget {
+	SS112(SS_112 *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/SS-112.svg")));
+		for (int i = 0; i < SS_112::deviceCount; i++) {
+			addInput(Port::create<SilverPort>(Vec(2.5,19 + i * 29), Port::INPUT, module, i));
+		}
+	}
+};
+
+struct SS_208 : Module {
+	static constexpr int deviceCount = 8;
+	SS_208() : Module(0, 0, deviceCount, 0) {
+		outputs[0].value = M_PI;
+		outputs[1].value = 2 * M_PI;
+		outputs[2].value = M_E;
+		outputs[3].value = M_SQRT1_2;
+		outputs[4].value = M_SQRT2;
+		outputs[5].value = powf(3.0f, 0.5f);
+		outputs[6].value = powf(5.0f, 0.5f);
+		outputs[7].value = powf(7.0f, 0.5f);
+	}
+};
+
+struct SS208 : ModuleWidget {
+	SS208(SS_208 *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/SS-208.svg")));
+		for (int i = 0; i < SS_208::deviceCount; i++) {
+			addOutput(Port::create<SilverPort>(Vec(2.5,19 + 43 * i), Port::OUTPUT, module, i));
+		}
+	}
+};
+
+struct SS_212 : Module {
+	static constexpr int deviceCount = 12;
+	int v = 0;
+	void setValues() {
+		for (int i = 0; i < deviceCount; i++) {
+			outputs[i].value = v + 1.0f * i / 12.0f;
+		}
+	}
+
+	SS_212() : Module(0, 0, deviceCount, 0) {
+		setValues();
+	}
+
+	json_t *toJson() override {
+		json_t *rootJ = json_object();
+		json_object_set_new(rootJ, "octave", json_integer(v));
+		return rootJ;
+	}
+
+	void fromJson(json_t *rootJ) override {
+		json_t *intJ = json_object_get(rootJ, "octave");
+		if (intJ)
+			v = json_integer_value(intJ);
+		setValues();
+	}
+};
+
+struct SS212 : ModuleWidget {
+	SS212(SS_212 *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/SS-212.svg")));
+		for (int i = 0; i < SS_212::deviceCount; i++) {
+			addOutput(Port::create<SilverPort>(Vec(2.5,19 + i * 29), Port::OUTPUT, module, i));
+		}
+	}
+
+	void appendContextMenu(Menu *menu) override;
+};
+
+struct SSMenuItem : MenuItem {
+	SS_212 *ss_212;
+	int v;
+	void onAction(EventAction &e) override {
+		ss_212->v = v;
+		ss_212->setValues();
+	}
+	void step() override {
+		rightText = CHECKMARK(ss_212->v == v);
+	}
+};
+
+void SS212::appendContextMenu(Menu *menu) {
+	char label[20];
+	menu->addChild(MenuEntry::create());
+	SS_212 *ss_212 = dynamic_cast<SS_212*>(this->module);
+        assert(ss_212);
+	for (int i = -5; i < 5; i++) {
+		sprintf(label, "Octave %d", i);
+		SSMenuItem *menuItem = MenuItem::create<SSMenuItem>(label);
+		menuItem->ss_212 = ss_212;
+		menuItem->v = i;
+		menu->addChild(menuItem);
+	}
+}
+
+struct SS_221 : Module {
+	static constexpr int deviceCount = 21;
+	SS_221() : Module(0, 0, deviceCount, 0) {
+		for (int i = 0; i < deviceCount; i++) {
+			outputs[i].value = 10.0f - i;
+		}
+	}
+};
+
+struct SS221 : ModuleWidget {
+	SS221(SS_221 *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/SS-221.svg")));
+		for (int i = 0; i < SS_221::deviceCount; i++) {
+			addOutput(Port::create<SilverPort>(Vec(2.5 + 45 * (i % 2),19 + i * 16), Port::OUTPUT, module, i));
+		}
+	}
+};
+
+struct SS_220 : Module {
+	static constexpr int deviceCount = 12;
+	static constexpr int deviceSetCount = 10;
+	SS_220() : Module(0, 0, deviceCount * deviceSetCount, 0) {
+		for (int j = 0; j < deviceSetCount; j++) {
+			for (int i = 0; i < deviceCount; i++) {
+				outputs[j * deviceCount + i].value = (j - 5.0f) + 1.0f * i / 12.0f;
+			}
+		}
+	}
+};
+
+struct SS220 : ModuleWidget {
+	SS220(SS_220 *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/SS-220.svg")));
+		for (int j = 0; j < SS_220::deviceSetCount; j++) {
+			for (int i = 0; i < SS_220::deviceCount; i++) {
+				addOutput(Port::create<SilverPort>(Vec(2.5 + 30 * j, 19 + i * 29), Port::OUTPUT, module, j * SS_220::deviceCount + i));
+			}
+		}
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, SS112) {
+   Model *modelSS112 = Model::create<SS_112, SS112>("Submarine (Free)", "SS-112", "SS-112 12 Input Sinks", UTILITY_TAG);
+   return modelSS112;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, SS208) {
+   Model *modelSS208 = Model::create<SS_208, SS208>("Submarine (Free)", "SS-208", "SS-208 8 Irrational Output Voltage Sources", UTILITY_TAG);
+   return modelSS208;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, SS212) {
+   Model *modelSS212 = Model::create<SS_212, SS212>("Submarine (Free)", "SS-212", "SS-212 12 Chromatic Output Voltage Sources", UTILITY_TAG);
+   return modelSS212;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, SS220) {
+   Model *modelSS220 = Model::create<SS_220, SS220>("Submarine (Free)", "SS-220", "SS-220 120 Chromatic Output Voltage Sources", UTILITY_TAG);
+   return modelSS220;
+}
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, SS221) {
+   Model *modelSS221 = Model::create<SS_221, SS221>("Submarine (Free)", "SS-221", "SS-221 21 Output Voltage Sources", UTILITY_TAG);
+   return modelSS221;
+}

plugins/community/repos/SubmarineFree/src/SubmarineFree.cpp

@@ -1,18 +1,55 @@
 #include "SubmarineFree.hpp"

+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, AG104);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, AG106);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, AO106);
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, AO112);
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, AO118);
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, AO124);
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, AO136);
+
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, BB120);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, EO102);
+
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, FF110);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, FF120);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, FF212);
+
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, LA108);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, LD103);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, LD106);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, NG106);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, NG112);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, OG104);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, OG106);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, PG104);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, PG112);
+
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, PO101);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, PO102);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, PO204);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, SS112);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, SS208);
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, SS212);
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, SS220);
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, SS221);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, TD116);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, TD202);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, TF101);
+
+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, TM105);
+
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, WK101);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, WK205);

@@ -22,6 +59,7 @@ RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, XF104);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, XF201);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, XF202);

+RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, XG104);
 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, XG106);

 RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, BP101);
@@ -37,21 +75,58 @@ RACK_PLUGIN_MODEL_DECLARE(SubmarineFree, BP132);

 RACK_PLUGIN_INIT(SubmarineFree) {
    RACK_PLUGIN_INIT_ID();
+   RACK_PLUGIN_INIT_VERSION("0.6.8");

 	// Add all Models defined throughout the plugin
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, AG104);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, AG106);
+
+   RACK_PLUGIN_MODEL_ADD(SubmarineFree, AO106);
+   RACK_PLUGIN_MODEL_ADD(SubmarineFree, AO112);
+   RACK_PLUGIN_MODEL_ADD(SubmarineFree, AO118);
+   RACK_PLUGIN_MODEL_ADD(SubmarineFree, AO124);
+   RACK_PLUGIN_MODEL_ADD(SubmarineFree, AO136);
+
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, BB120);
+
+   RACK_PLUGIN_MODEL_ADD(SubmarineFree, EO102);
+
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, FF110);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, FF120);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, FF212);
+
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, LA108);
+
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, LD103);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, LD106);
+
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, NG106);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, NG112);
+
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, OG104);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, OG106);
+
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, PG104);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, PG112);
+
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, PO101);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, PO102);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, PO204);
+
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, SS112);
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, SS208);
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, SS212);
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, SS220);
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, SS221);
+
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, TD116);
+
+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, TD202);
+
+   RACK_PLUGIN_MODEL_ADD(SubmarineFree, TF101);
+
+   RACK_PLUGIN_MODEL_ADD(SubmarineFree, TM105);
+
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, WK101);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, WK205);

@@ -61,6 +136,7 @@ RACK_PLUGIN_INIT(SubmarineFree) {
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, XF201);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, XF202);

+	RACK_PLUGIN_MODEL_ADD(SubmarineFree, XG104);
 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, XG106);

 	RACK_PLUGIN_MODEL_ADD(SubmarineFree, BP101);

plugins/community/repos/SubmarineFree/src/SubmarineFree.hpp

@@ -9,3 +9,11 @@ RACK_PLUGIN_DECLARE(SubmarineFree);
 #endif // USE_VST2

 #include "ComponentLibrary/components.hpp"
+
+struct SubHelper {
+	static std::shared_ptr<SVG> LoadPanel(const char/*Plugin*/ *_plugin, const char *str, int num) {
+		char workingSpace[100];
+		snprintf(workingSpace, 100, "res/%s%02d.svg", str, num);
+		return SVG::load(assetPlugin(_plugin, workingSpace));
+	}
+};

plugins/community/repos/SubmarineFree/src/TD1.cpp

@@ -0,0 +1,254 @@
+#include <global_pre.hpp>
+#include <global_ui.hpp>
+#include "SubmarineFree.hpp"
+#include "window.hpp"
+#include "torpedo.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+struct TD_116;
+
+struct TDInput : Torpedo::PatchInputPort {
+	TD_116 *tdModule;
+	TDInput(TD_116 *module, unsigned int portNum) : Torpedo::PatchInputPort((Module *)module, portNum) { tdModule = module; }
+	void received(std::string pluginName, std::string moduleName, json_t *rootJ) override;
+	NVGcolor decodeColor(std::string colorStr);
+};
+
+struct TD_116 : Module {
+	TDInput inPort = TDInput(this, 0);
+	Torpedo::PatchOutputPort outPort = Torpedo::PatchOutputPort(this, 0);
+	TD_116() : Module (0, 1, 1, 0) {outPort.size(1);}
+	void step() override {
+		inPort.process();
+		outPort.process();
+	}
+	void sendText(std::string text) {
+		json_t *rootJ = json_object();;
+
+		// text
+		json_object_set_new(rootJ, "text", json_string(text.c_str()));
+
+		outPort.send("SubmarineFree", "TDNotesText", rootJ);
+	}
+	std::string text;
+	int fontSize = 12;
+	NVGcolor fg = nvgRGB(0x28, 0xb0, 0xf3);
+	NVGcolor bg = nvgRGB(0,0,0);
+	int isDirty = false;
+	int isDirtyC = false;
+};
+
+struct TDText : LedDisplayTextField {
+	TD_116 *tdModule;
+	NVGcolor bgColor = nvgRGB(0x00, 0x00, 0x00);
+	int fontSize = 12;
+	TDText() {
+		color = nvgRGB(0x28, 0xb0, 0xf3);
+	}
+	void onTextChange() override {
+		LedDisplayTextField::onTextChange();
+		tdModule->sendText(text);
+	}
+	int getTextPosition(Vec mousePos) override {
+	    bndSetFont(font->handle);
+	    int textPos = bndIconLabelTextPosition(rack::global_ui->window.gVg, textOffset.x, textOffset.y,
+	      box.size.x - 2*textOffset.x, box.size.y - 2*textOffset.y,
+	      -1, fontSize, text.c_str(), mousePos.x, mousePos.y);
+	    bndSetFont(rack::global_ui->window.gGuiFont->handle);
+	    return textPos;
+	}
+	void draw(NVGcontext *vg) override {
+		nvgScissor(vg, 0, 0, box.size.x, box.size.y);
+		//Background
+		nvgBeginPath(vg);
+		nvgRoundedRect(vg, 0, 0, box.size.x, box.size.y, 5.0);
+		nvgFillColor(vg, bgColor);
+		nvgFill(vg);
+
+		//Text
+		if (font->handle >= 0) {
+			bndSetFont(font->handle);
+
+			NVGcolor highlightColor = color;
+			highlightColor.a = 0.5;
+			int begin = min(cursor, selection);
+			int end = (this == rack::global_ui->widgets.gFocusedWidget) ? max(cursor, selection) : -1;
+			bndIconLabelCaret(vg, textOffset.x, textOffset.y,
+				box.size.x - 2*textOffset.x, box.size.y - 2*textOffset.y,
+				-1, color, fontSize, text.c_str(), highlightColor, begin, end);
+		}
+		nvgResetScissor(vg);
+		bndSetFont(rack::global_ui->window.gGuiFont->handle);
+	}
+};
+
+NVGcolor TDInput::decodeColor(std::string colorStr) {
+	int r = (colorStr[0] - 'A') * 16 + (colorStr[1] - 'A');
+	int g = (colorStr[2] - 'A') * 16 + (colorStr[3] - 'A');
+	int b = (colorStr[4] - 'A') * 16 + (colorStr[5] - 'A');
+	return nvgRGB(r, g, b);
+}
+
+void TDInput::received(std::string pluginName, std::string moduleName, json_t *rootJ) {
+	if (pluginName.compare("SubmarineFree")) return;
+	if (!moduleName.compare("TDNotesText")) {
+		json_t *text = json_object_get(rootJ, "text");
+		if (text) {
+			tdModule->text.assign(json_string_value(text));
+			tdModule->isDirty = true;
+		}
+	}
+	else if (!moduleName.compare("TDNotesColor")) {
+		json_t *size = json_object_get(rootJ, "size");
+		if (size) {
+			tdModule->fontSize = json_number_value(size);
+			tdModule->isDirtyC = true;
+		}
+		json_t *fg = json_object_get(rootJ, "fg");
+		if (fg) {
+			tdModule->fg = decodeColor(std::string(json_string_value(fg)));
+			tdModule->isDirtyC = true;
+		}
+		json_t *bg = json_object_get(rootJ, "bg");
+		if (bg) {
+			tdModule->bg = decodeColor(std::string(json_string_value(bg)));
+			tdModule->isDirtyC = true;
+		}
+	}
+}
+
+struct TD116 : ModuleWidget {
+	TDText *textField;
+
+	TD116(TD_116 *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/TD-116.svg")));
+
+		addInput(Port::create<BlackPort>(Vec(4,19), Port::INPUT, module, 0));
+		addOutput(Port::create<BlackPort>(Vec(211,19), Port::OUTPUT, module, 0));
+
+		textField = Widget::create<TDText>(mm2px(Vec(3.39962, 15.8373)));
+		textField->box.size = mm2px(Vec(74.480, 102.753));
+		textField->multiline = true;
+		textField->tdModule = module;
+		addChild(textField);
+	}
+
+	json_t *toJson() override {
+		json_t *rootJ = ModuleWidget::toJson();
+
+		json_object_set_new(rootJ, "text", json_string(textField->text.c_str()));
+		json_object_set_new(rootJ, "size", json_real(textField->fontSize));
+		json_object_set_new(rootJ, "fg", json_string(colorToHexString(textField->color).c_str()));
+		json_object_set_new(rootJ, "bg", json_string(colorToHexString(textField->bgColor).c_str()));
+
+		return rootJ;
+	}
+
+	void fromJson(json_t *rootJ) override {
+		ModuleWidget::fromJson(rootJ);
+
+		json_t *textJ = json_object_get(rootJ, "text");
+		if (textJ)
+			textField->text = json_string_value(textJ);
+		json_t *sizeJ = json_object_get(rootJ, "size");
+		if (sizeJ)
+			textField->fontSize = json_number_value(sizeJ);
+		json_t *fgJ = json_object_get(rootJ, "fg");
+		if (fgJ) {
+			if (json_is_object(fgJ))
+				textField->color = jsonToColor(fgJ);
+			else
+				textField->color = colorFromHexString(json_string_value(fgJ));
+		}
+		json_t *bgJ = json_object_get(rootJ, "bg");
+		if (bgJ) {
+			if (json_is_object(bgJ))
+				textField->bgColor = jsonToColor(bgJ);
+			else
+				textField->bgColor = colorFromHexString(json_string_value(bgJ));
+		}
+	}
+
+	void step() override {
+		TD_116 *tdModule = dynamic_cast<TD_116 *>(module);
+		if (tdModule->isDirty) {
+			textField->text = tdModule->text;
+			tdModule->isDirty = false;
+		}
+		if (tdModule->isDirtyC) {
+			textField->fontSize = tdModule->fontSize;
+			textField->color = tdModule->fg;
+			textField->bgColor = tdModule->bg;
+			tdModule->isDirtyC = false;
+		}
+		ModuleWidget::step();
+	}
+
+	void reset() override {
+		textField->fontSize = 12;
+		textField->text = "";
+		textField->color = nvgRGB(0x28, 0xb0, 0xf3);
+		textField->bgColor = nvgRGB(0,0,0);
+		ModuleWidget::reset();
+	}
+
+	void appendContextMenu(Menu *menu) override;
+};
+
+struct TD116_MenuItem : MenuItem {
+	TD116 *widget;
+	NVGcolor color;
+	void onAction(EventAction &e) override {
+		widget->textField->tdModule->fg = color;
+		widget->textField->color = color;
+	}
+};
+
+void TD116::appendContextMenu(Menu *menu) {
+	menu->addChild(MenuEntry::create());
+	TD116_MenuItem *m = MenuItem::create<TD116_MenuItem>("Blue");
+	m->widget = this;
+	m->color = nvgRGB(0x28, 0xb0, 0xf3);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD116_MenuItem>("Yellow");
+	m->widget = this;
+	m->color = nvgRGB(0xc9, 0xb7, 0x0e);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD116_MenuItem>("Red");
+	m->widget = this;
+	m->color = nvgRGB(0xff, 0x13, 0x13);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD116_MenuItem>("Green");
+	m->widget = this;
+	m->color = nvgRGB(0x0a, 0xff, 0x13);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD116_MenuItem>("Orange");
+	m->widget = this;
+	m->color = nvgRGB(0xff, 0xa5, 0x2d);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD116_MenuItem>("Pink");
+	m->widget = this;
+	m->color = nvgRGB(0xff, 0x7d, 0xec);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD116_MenuItem>("White");
+	m->widget = this;
+	m->color = nvgRGB(0xff, 0xff, 0xff);
+	menu->addChild(m);
+
+}
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, TD116) {
+   Model *modelTD116 = Model::create<TD_116, TD116>("Submarine (Free)", "TD-116", "TD-116 Text Display", VISUAL_TAG);
+   return modelTD116;
+}

plugins/community/repos/SubmarineFree/src/TD2.cpp

@@ -0,0 +1,179 @@
+#include <global_pre.hpp>
+#include <global_ui.hpp>
+#include "SubmarineFree.hpp"
+#include "window.hpp"
+#include "torpedo.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+struct TDVText : LedDisplayTextField {
+	NVGcolor bgColor;
+	TDVText() {
+		multiline = false;
+		color = nvgRGB(0x28, 0xb0, 0xf3);
+		bgColor = nvgRGBA(0, 0, 0, 0);
+	}
+	void draw(NVGcontext *vg) override {
+		nvgScissor(vg, 0, 0, box.size.x, box.size.y);
+
+		nvgBeginPath(vg);
+		nvgRoundedRect(vg, 0, 0, box.size.x, box.size.y, 2);
+		nvgFillColor(vg, bgColor);
+		nvgFill(vg);
+
+		nvgTranslate(vg, 24, 0);
+		nvgRotate(vg, M_PI / 2.0f);
+		//Text
+		if (font->handle >= 0) {
+			bndSetFont(font->handle);
+
+			NVGcolor highlightColor = color;
+			highlightColor.a = 0.5;
+			int begin = min(cursor, selection);
+			int end = (this == rack::global_ui->widgets.gFocusedWidget) ? max(cursor, selection) : -1;
+			bndIconLabelCaret(vg, textOffset.y, textOffset.x,
+				box.size.y - 2*textOffset.y, box.size.x - 2*textOffset.x,
+				-1, color, 28, text.c_str(), highlightColor, begin, end);
+		}
+		nvgResetScissor(vg);
+		bndSetFont(rack::global_ui->window.gGuiFont->handle);
+	}
+};
+
+struct TD202 : ModuleWidget {
+	TDVText *textField;
+
+	TD202(Module *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/TD-202.svg")));
+
+		textField = Widget::create<TDVText>(Vec(2, 15));
+		textField->box.size = Vec(26, 350);
+		addChild(textField);
+	}
+
+	json_t *toJson() override {
+		json_t *rootJ = ModuleWidget::toJson();
+
+		json_object_set_new(rootJ, "text", json_string(textField->text.c_str()));
+		json_object_set_new(rootJ, "fg", json_string(colorToHexString(textField->color).c_str()));
+		json_object_set_new(rootJ, "bg", json_string(colorToHexString(textField->bgColor).c_str()));
+
+		return rootJ;
+	}
+
+	void fromJson(json_t *rootJ) override {
+		ModuleWidget::fromJson(rootJ);
+
+		json_t *textJ = json_object_get(rootJ, "text");
+		if (textJ)
+			textField->text = json_string_value(textJ);
+		json_t *fgJ = json_object_get(rootJ, "fg");
+		if (fgJ) {
+			if (json_is_object(fgJ))
+				textField->color = jsonToColor(fgJ);
+			else
+				textField->color = colorFromHexString(json_string_value(fgJ));
+		}
+		json_t *bgJ = json_object_get(rootJ, "bg");
+		if (bgJ) {
+			if (json_is_object(bgJ))
+				textField->bgColor = jsonToColor(bgJ);
+			else
+				textField->bgColor = colorFromHexString(json_string_value(bgJ));
+		}
+	}
+
+	void reset() override {
+		textField->text = "";
+		textField->multiline = false;
+		textField->color = nvgRGB(0x28, 0xb0, 0xf3);
+		textField->bgColor = nvgRGBA(0, 0, 0, 0);
+		ModuleWidget::reset();
+	}
+
+	void appendContextMenu(Menu *menu) override;
+};
+
+struct TD202_MenuItem : MenuItem {
+	TD202 *widget;
+	NVGcolor color;
+	void onAction(EventAction &e) override {
+		widget->textField->color = color;
+	}
+};
+
+struct TD202_MenuItemB : MenuItem {
+	TD202 *widget;
+	NVGcolor color;
+	void onAction(EventAction &e) override {
+		widget->textField->bgColor = color;
+	}
+};
+
+void TD202::appendContextMenu(Menu *menu) {
+	menu->addChild(MenuEntry::create());
+	TD202_MenuItem *m = MenuItem::create<TD202_MenuItem>("Blue");
+	m->widget = this;
+	m->color = nvgRGB(0x28, 0xb0, 0xf3);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD202_MenuItem>("Yellow");
+	m->widget = this;
+	m->color = nvgRGB(0xc9, 0xb7, 0x0e);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD202_MenuItem>("Red");
+	m->widget = this;
+	m->color = nvgRGB(0xff, 0x13, 0x13);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD202_MenuItem>("Green");
+	m->widget = this;
+	m->color = nvgRGB(0x0a, 0xff, 0x13);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD202_MenuItem>("Orange");
+	m->widget = this;
+	m->color = nvgRGB(0xff, 0xa5, 0x2d);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD202_MenuItem>("Pink");
+	m->widget = this;
+	m->color = nvgRGB(0xff, 0x7d, 0xec);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD202_MenuItem>("White");
+	m->widget = this;
+	m->color = nvgRGB(0xff, 0xff, 0xff);
+	menu->addChild(m);
+
+	m = MenuItem::create<TD202_MenuItem>("Black");
+	m->widget = this;
+	m->color = nvgRGB(0x00, 0x00, 0x00);
+	menu->addChild(m);
+
+	menu->addChild(MenuEntry::create());
+	TD202_MenuItemB *b = MenuItem::create<TD202_MenuItemB>("Background - None");
+	b->widget = this;
+	b->color = nvgRGBA(0, 0, 0, 0);
+	menu->addChild(b);
+
+	b = MenuItem::create<TD202_MenuItemB>("Background - Black");
+	b->widget = this;
+	b->color = nvgRGB(0, 0, 0);
+	menu->addChild(b);
+
+	b = MenuItem::create<TD202_MenuItemB>("Background - White");
+	b->widget = this;
+	b->color = nvgRGB(0xff, 0xff, 0xff);
+	menu->addChild(b);
+}
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, TD202) {
+   Model *modelTD202 = Model::create<Module, TD202>("Submarine (Free)", "TD-202", "TD-202 Vertical Text Display", VISUAL_TAG);
+   return modelTD202;
+}

plugins/community/repos/SubmarineFree/src/TF1.cpp

@@ -0,0 +1,133 @@
+#include "SubmarineFree.hpp"
+#include "torpedo.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+struct TF_101 : Module  {
+	enum ParamIds {
+		PARAM_FG_RED,
+		PARAM_FG_GREEN,
+		PARAM_FG_BLUE,
+		PARAM_BG_RED,
+		PARAM_BG_GREEN,
+		PARAM_BG_BLUE,
+		PARAM_FONT_SIZE,
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT_FG_RED,
+		INPUT_FG_GREEN,
+		INPUT_FG_BLUE,
+		INPUT_BG_RED,
+		INPUT_BG_GREEN,
+		INPUT_BG_BLUE,
+		INPUT_FONT_SIZE,
+		NUM_INPUTS
+	};
+	enum OutputIds {
+		OUTPUT_TOR,
+		NUM_OUTPUTS
+	};
+	enum LightIds {
+		LIGHT_FG_RED,
+		LIGHT_FG_GREEN,
+		LIGHT_FG_BLUE,
+		LIGHT_BG_RED,
+		LIGHT_BG_GREEN,
+		LIGHT_BG_BLUE,
+		NUM_LIGHTS
+	};
+
+	float prevValues[7];
+	int isDirty = false;
+	Torpedo::PatchOutputPort outPort = Torpedo::PatchOutputPort(this, OUTPUT_TOR);
+	TF_101() : Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {
+		prevValues[0] = 0.1569f;
+		prevValues[1] = 0.6902f;
+		prevValues[2] = 0.9529f;
+		prevValues[6] = 12.0f;
+		outPort.size(1);
+	}
+	void step() override;
+	std::string encodeColor(float r, float g, float b) {
+		std::string out;
+		out.push_back('A'+(int)(r * 255) / 16);
+		out.push_back('A'+(int)(r * 255) % 16);
+		out.push_back('A'+(int)(g * 255) / 16);
+		out.push_back('A'+(int)(g * 255) % 16);
+		out.push_back('A'+(int)(b * 255) / 16);
+		out.push_back('A'+(int)(b * 255) % 16);
+
+		return out;
+	}
+};
+
+void TF_101::step() {
+	for (int i = 0; i < 6; i++) {
+		float newValue = clamp(params[PARAM_FG_RED + i].value + inputs[INPUT_FG_RED + i].value / 10.0f, 0.0f, 1.0f);
+		lights[LIGHT_FG_RED + i].value = newValue;
+		if (prevValues[i] != newValue) {
+			isDirty = true;
+			prevValues[i] = newValue;
+		}
+	}
+	float newValue = clamp(params[PARAM_FONT_SIZE].value + inputs[INPUT_FONT_SIZE].value * 2.0f, 6.0f, 26.0f);
+	if (prevValues[6] != newValue) {
+		isDirty = true;
+		prevValues[6] = newValue;
+	}
+	if (isDirty) {
+		isDirty = false;
+		json_t *rootJ = json_object();
+		json_object_set_new(rootJ, "fg", json_string(encodeColor(prevValues[0], prevValues[1], prevValues[2]).c_str()));
+		json_object_set_new(rootJ, "bg", json_string(encodeColor(prevValues[3], prevValues[4], prevValues[5]).c_str()));
+		json_object_set_new(rootJ, "size", json_real(prevValues[6]));
+		outPort.send("SubmarineFree", "TDNotesColor", rootJ);
+	}
+	outPort.process();
+}
+
+struct WhiteLight : GrayModuleLightWidget {
+	WhiteLight() {
+		addBaseColor(nvgRGB(0xff, 0x00, 0x00));
+		addBaseColor(nvgRGB(0x00, 0xff, 0x00));
+		addBaseColor(nvgRGB(0x00, 0x00, 0xff));
+	}
+};
+
+
+struct TF101 : ModuleWidget {
+	TF101(TF_101 *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/TF-101.svg")));
+
+		addInput(Port::create<SilverPort>(Vec(4,66.5), Port::INPUT, module, TF_101::INPUT_FG_RED));
+		addInput(Port::create<SilverPort>(Vec(4,106.5), Port::INPUT, module, TF_101::INPUT_FG_GREEN));
+		addInput(Port::create<SilverPort>(Vec(4,146.5), Port::INPUT, module, TF_101::INPUT_FG_BLUE));
+		addInput(Port::create<SilverPort>(Vec(4,200.5), Port::INPUT, module, TF_101::INPUT_BG_RED));
+		addInput(Port::create<SilverPort>(Vec(4,240.5), Port::INPUT, module, TF_101::INPUT_BG_GREEN));
+		addInput(Port::create<SilverPort>(Vec(4,280.5), Port::INPUT, module, TF_101::INPUT_BG_BLUE));
+		addInput(Port::create<SilverPort>(Vec(4,334.5), Port::INPUT, module, TF_101::INPUT_FONT_SIZE));
+
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(46, 60), module, TF_101::PARAM_FG_RED, 0.0f, 1.0f, 0.1569f));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(46, 100), module, TF_101::PARAM_FG_GREEN, 0.0f, 1.0f, 0.6902f));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(46, 140), module, TF_101::PARAM_FG_BLUE, 0.0f, 1.0f, 0.9529f));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(46, 194), module, TF_101::PARAM_BG_RED, 0.0f, 1.0f, 0.0f));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(46, 234), module, TF_101::PARAM_BG_GREEN, 0.0f, 1.0f, 0.0f));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(46, 274), module, TF_101::PARAM_BG_BLUE, 0.0f, 1.0f, 0.0f));
+		addParam(ParamWidget::create<MedKnob<LightKnob>>(Vec(46, 328), module, TF_101::PARAM_FONT_SIZE, 6.0f, 26.0f, 12.0f));
+
+		addChild(ModuleLightWidget::create<MediumLight<WhiteLight>>(Vec(10, 51), module, TF_101::LIGHT_FG_RED));
+		addChild(ModuleLightWidget::create<MediumLight<WhiteLight>>(Vec(10, 185), module, TF_101::LIGHT_BG_RED));
+
+		addOutput(Port::create<BlackPort>(Vec(61,19), Port::OUTPUT, module, TF_101::OUTPUT_TOR));
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, TF101) {
+   Model *modelTF101 = Model::create<TF_101, TF101>("Submarine (Free)", "TF-101", "TF-101 Text Display Format Control", VISUAL_TAG);
+   return modelTF101;
+}

plugins/community/repos/SubmarineFree/src/TM1.cpp

@@ -0,0 +1,137 @@
+#include "SubmarineFree.hpp"
+#include "torpedo.hpp"
+#include "dsp/digital.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+struct TM_105;
+
+struct TM_105InPort : Torpedo::RawInputPort {
+	TM_105 *tmModule;
+	TM_105InPort(TM_105 *module, unsigned int portNum) : RawInputPort((Module *)module, portNum) {tmModule = module;}
+	void received(std::string appId, std::string message) override;
+	void error(unsigned int errorType) override;
+};
+
+struct TM_Msg {
+	std::string appId;
+	std::string msg;
+};
+
+struct TM_105 : Module  {
+	enum ParamIds {
+		NUM_PARAMS
+	};
+	enum InputIds {
+		INPUT_1,
+		INPUT_2,
+		INPUT_3,
+		INPUT_4,
+		INPUT_5,
+		NUM_INPUTS
+	};
+	enum OutputIds {
+		OUTPUT_TOR,
+		NUM_OUTPUTS
+	};
+	enum LightIds {
+		LIGHT_Q_1,
+		LIGHT_Q_2,
+		LIGHT_Q_3,
+		LIGHT_Q_4,
+		LIGHT_Q_5,
+		LIGHT_M_1,
+		LIGHT_M_2,
+		LIGHT_M_3,
+		LIGHT_M_4,
+		LIGHT_M_5,
+		LIGHT_E_1,
+		LIGHT_E_2,
+		LIGHT_E_3,
+		LIGHT_E_4,
+		LIGHT_E_5,
+		NUM_LIGHTS
+	};
+
+	std::vector<TM_Msg> queue;
+	unsigned int count = 0;
+	unsigned int index = 0;
+	TM_105InPort inPort1 = TM_105InPort(this, INPUT_1);
+	TM_105InPort inPort2 = TM_105InPort(this, INPUT_2);
+	TM_105InPort inPort3 = TM_105InPort(this, INPUT_3);
+	TM_105InPort inPort4 = TM_105InPort(this, INPUT_4);
+	TM_105InPort inPort5 = TM_105InPort(this, INPUT_5);
+	PulseGenerator msgPulses[5];
+	PulseGenerator errPulses[5];
+	Torpedo::RawOutputPort outPort = Torpedo::RawOutputPort(this, OUTPUT_TOR);
+	TM_105() : Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {
+		for (unsigned int i = 0; i < 5; i++) {
+			queue.push_back(TM_Msg());
+		}
+	}
+	void step() override;
+};
+
+void TM_105InPort::received(std::string appId, std::string msg) {
+	if (tmModule->count >= 5) {
+		return;
+	}
+	unsigned int newPos = (tmModule->index + tmModule->count) % 5;
+	tmModule->queue[newPos].appId.assign(appId);
+	tmModule->queue[newPos].msg.assign(msg);
+	tmModule->count++;
+	tmModule->msgPulses[_portNum - TM_105::INPUT_1].trigger(0.1f);
+}
+
+void TM_105InPort::error(unsigned int errorType) {
+	tmModule->errPulses[_portNum - TM_105::INPUT_1].trigger(0.1f);
+}
+
+void TM_105::step() {
+	inPort1.process();
+	inPort2.process();
+	inPort3.process();
+	inPort4.process();
+	inPort5.process();
+	if (!outPort.isBusy()) {
+		if (count) {
+			unsigned int sendPos = (count + index) % 5;
+			outPort.send(queue[sendPos].appId, queue[sendPos].msg);
+			index++;
+			index %= 5;
+			count--;
+		}
+	}
+	for(unsigned int i = 0; i < 5; i++) {
+		lights[LIGHT_Q_1 + i].value = count > i;
+		lights[LIGHT_M_1 + i].value = msgPulses[i].process(engineGetSampleTime());
+		lights[LIGHT_E_1 + i].value = errPulses[i].process(engineGetSampleTime());
+	}
+	outPort.process();
+}
+
+struct TM105 : ModuleWidget {
+	TM105(TM_105 *module) : ModuleWidget(module) {
+		setPanel(SVG::load(assetPlugin(plugin, "res/TM-105.svg")));
+		for (unsigned int i = 0; i < 5; i++) {
+			addInput(Port::create<BlackPort>(Vec(2.5,29 + 32 * i), Port::INPUT, module, TM_105::INPUT_1 + i));
+			addChild(ModuleLightWidget::create<TinyLight<BlueLight>>(Vec(2.5, 53 + 32 * i), module, TM_105::LIGHT_M_1 + i));
+			addChild(ModuleLightWidget::create<TinyLight<RedLight>>(Vec(24.5, 53 + 32 * i), module, TM_105::LIGHT_E_1 + i));
+		}
+		addChild(ModuleLightWidget::create<TinyLight<BlueLight>>(Vec(13.5, 260), module, TM_105::LIGHT_Q_1));
+		addChild(ModuleLightWidget::create<TinyLight<BlueLight>>(Vec(13.5, 265), module, TM_105::LIGHT_Q_2));
+		addChild(ModuleLightWidget::create<TinyLight<BlueLight>>(Vec(13.5, 270), module, TM_105::LIGHT_Q_3));
+		addChild(ModuleLightWidget::create<TinyLight<RedLight>>(Vec(13.5, 275), module, TM_105::LIGHT_Q_4));
+		addChild(ModuleLightWidget::create<TinyLight<RedLight>>(Vec(13.5, 280), module, TM_105::LIGHT_Q_5));
+		addOutput(Port::create<BlackPort>(Vec(2.5,232), Port::OUTPUT, module, TM_105::OUTPUT_TOR));
+	}
+};
+
+} // namespace rack_plugin_SubmarineFree
+
+using namespace rack_plugin_SubmarineFree;
+
+RACK_PLUGIN_MODEL_INIT(SubmarineFree, TM105) {
+   Model *modelTM105 = Model::create<TM_105, TM105>("Submarine (Free)", "TM-105", "TM-105 Torpedo Message Merge", UTILITY_TAG);
+   return modelTM105;
+}

plugins/community/repos/SubmarineFree/src/UpdateRing.hpp

@@ -0,0 +1,29 @@
+//
+// UpdateRing is similar in approach to double buffering
+//
+// UpdateRing provides a number (2) of objects so that the
+// module can communicate with the moduleWidget. Previously I
+// have used mutexes to do this, but I would rather not use
+// a blocking lock_guard in the audio thread.
+//
+// Double buffering does not offer the same guarantees, but if
+// the code is kept tight, it should be good enough for practical purposes.
+//
+// When the module has something to communicate, it asks for a pointer to the
+// background object, It writes into this, and the swaps the buffers
+//
+// When the moduleWidget is checking for something to read, it asks for
+// a pointer to the foreground object, which it then can read.
+//
+// This process should minimize the risk of tearing artifacts in the process
+//
+
+template <class T>
+struct UpdateRing {
+	T items[2];
+	unsigned int bufCount = 0;
+	T* fg() { return items + (bufCount % 2); }
+	T* bg() { return items + ((bufCount + 1) % 2); }
+	void swap() { bufCount++; };
+};
+

plugins/community/repos/SubmarineFree/src/WK-101.cpp → plugins/community/repos/SubmarineFree/src/WK12.cpp

@@ -3,6 +3,14 @@
 #include "torpedo.hpp"
 #include <fstream>
 #include <cctype>
+#include "UpdateRing.hpp"
+
+namespace rack_plugin_SubmarineFree {
+
+struct WK_Update {
+	float offsets[12];
+	int isDirty = false;
+};

 struct WK_Tuning {
 	std::string name;
@@ -11,20 +19,13 @@ struct WK_Tuning {

 std::vector<WK_Tuning> tunings;

-// (todo) mutex
 int tuningsLoaded = false;

-namespace rack_plugin_SubmarineFree {
-
-#ifdef USE_VST2
-#define Plugin const char
-#endif // USE_VST2
-
 struct WK_Tunings {
 	static void loadTuningsFromWK(const char *path);
-	static void loadTuningsFromScala(Plugin *_plugin);
+	static void loadTuningsFromScala(const char /*Plugin*/ *_plugin);
 	static void loadScalaFile(std::string path);
-	static void loadTunings(Plugin *_plugin) {
+	static void loadTunings(const char /*Plugin*/ *_plugin) {
 		if (tuningsLoaded)
 			return;
 		tuningsLoaded = true;
@@ -73,7 +74,7 @@ void WK_Tunings::loadTuningsFromWK(const char *path) {
 	}
 	else {
 		std::string message = stringf("SubmarineFree WK: JSON parsing error at %s %d:%d %s", error.source, error.line, error.column, error.text);
-		//warn(message.c_str());
+		warn(message.c_str());
 	}
 	fclose(file);
 }
@@ -116,7 +117,7 @@ void WK_Tunings::loadScalaFile(std::string path) {
 				line.append(1,c);
 				strings[i].erase(0,1);
 				if (!std::isdigit(c) && (c != '/') && (c != '.')) {
-					//warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
+					warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
 					return;
 				}
 				if (c == '.')
@@ -124,7 +125,7 @@ void WK_Tunings::loadScalaFile(std::string path) {
 				if (c == '/' && !ratio)
 					ratio = line.size();
 				if (decimal && ratio) {
-					//warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
+					warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
 					return;
 				}
 			}
@@ -133,13 +134,13 @@ void WK_Tunings::loadScalaFile(std::string path) {
 					float d = std::stof(line, nullptr);
 					d -= (i-1) * 100.0;
 					if ((d < -50.0) || (d > 50.0)) {
-						//warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
+						warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
 						return;
 					}
 					tuning.offsets[(i-1)%12] = d;
 				}
 				catch (std::exception &err) {
-					//warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
+					warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
 					return;
 				}
 			}
@@ -151,20 +152,20 @@ void WK_Tunings::loadScalaFile(std::string path) {
 						int inum = std::stoi(num,nullptr);
 						int idenom = std::stoi(denom, nullptr);
 						if (!idenom) {
-							//warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
+							warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
 							return;
 						}
 						float r = (1.0f * inum / idenom);
 						float d = 1200.0 * log2(r);
 						d -= (i-1) * 100.0;
 						if ((d < -50.0) || (d > 50.0)) {
-							//warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
+							warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
 							return;
 						}
 						tuning.offsets[(i-1)%12] = d;
 					}
 					catch (std::exception &err) {
-						//warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
+						warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
 						return;
 					}
 				}
@@ -174,13 +175,13 @@ void WK_Tunings::loadScalaFile(std::string path) {
 						float d = 1200.0 * log2(inum);
 						d -= (i-1) * 100.0;
 						if ((d < -50.0) || (d > 50.0)) {
-							//warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
+							warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
 							return;
 						}
 						tuning.offsets[(i-1)%12] = d;
 					}
 					catch (std::exception &err) {
-						//warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
+						warn("SubmarineFree WK: Scala file format error in %s", stringFilename(path).c_str());
 						return;
 					}
 				}
@@ -191,12 +192,12 @@ void WK_Tunings::loadScalaFile(std::string path) {
 		tunings[index].name = tuning.name;
 		for (int i = 0; i < 12; i++)
 			tunings[index].offsets[i] = tuning.offsets[i];
-		//info("SubmarineFree WK: Loaded Scala file %s", tuning.name.c_str());
+		info("SubmarineFree WK: Loaded Scala file %s", tuning.name.c_str());
 	}

 }

-void WK_Tunings::loadTuningsFromScala(Plugin *_plugin) {
+void WK_Tunings::loadTuningsFromScala(const char /*Plugin*/ *_plugin) {
 	std::vector<std::string> dirList = systemListEntries(assetPlugin(_plugin, "Scala"));
 	for (auto entry : dirList) {
 		if (systemIsDirectory(entry)) continue;
@@ -255,14 +256,20 @@ struct WK_101 : Module {
 		NUM_LIGHTS
 	};
 	float tunings[12];
-	int isDirty = 0;
 	int toSend = 0;
-	std::mutex mtx;
+	UpdateRing<WK_Update> updateRing;
 	Torpedo::PatchOutputPort outPort = Torpedo::PatchOutputPort(this, OUTPUT_TOR);
 	WK101_InputPort inPort = WK101_InputPort(this, INPUT_TOR);

-	WK_101() : Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {}
+	WK_101() : Module(NUM_PARAMS, NUM_INPUTS, NUM_OUTPUTS, NUM_LIGHTS) {outPort.size(5);}
 	void step() override;
+	void PrepareUpdate() {
+		WK_Update *upd = updateRing.bg();
+		for (int i = 0; i < 12; i++)
+			upd->offsets[i] = tunings[i];
+		upd->isDirty = true;
+		updateRing.swap();
+	}
 };

 void WK_101::step() {
@@ -297,10 +304,13 @@ void WK101_InputPort::received(std::string pluginName, std::string moduleName, j
 			tunings[i] = json_number_value(j1);
 	}
 	{
-		std::lock_guard<std::mutex> guard(wkModule->mtx);
+		//std::lock_guard<std::mutex> guard(wkModule->mtx);
+		//wkModule->isDirty = true;
+		WK_Update *upd = wkModule->updateRing.bg();
 		for (int i = 0; i < 12; i++)
-			wkModule->tunings[i] = tunings[i];
-		wkModule->isDirty = true;
+			upd->offsets[i] = tunings[i];
+		upd->isDirty = true;
+		wkModule->updateRing.swap();
 	}
 }

@@ -331,15 +341,15 @@ struct WK101_MenuItem : MenuItem {
 	void onAction(EventAction &e) override {
 		for (int i = 0; i < 12; i++)
 			module->tunings[i] = tunings[index].offsets[i];
-		module->isDirty = true;
+		module->PrepareUpdate();
 		module->toSend = true;
 	}
 };

-struct WK_Param : sub_knob_med {
+struct WK_Param : MedKnob<LightKnob> {

 	void onChange(EventChange &e) override {
-		sub_knob_med::onChange(e);
+		MedKnob<LightKnob>::onChange(e);
 		WK_101 *module = dynamic_cast<WK_101 *>(this->module);
 		module->tunings[paramId - WK_101::PARAM_1] = value;
 		module->toSend = true;
@@ -351,10 +361,10 @@ struct WK101 : ModuleWidget {
 	WK101(WK_101 *module) : ModuleWidget(module) {
 		setPanel(SVG::load(assetPlugin(plugin, "res/WK-101.svg")));

-		addInput(Port::create<sub_port>(Vec(4,29), Port::INPUT, module, WK_101::INPUT_CV));
-		addOutput(Port::create<sub_port>(Vec(43,29), Port::OUTPUT, module, WK_101::OUTPUT_CV));
-		addInput(Port::create<sub_port_black>(Vec(82,29), Port::INPUT, module, WK_101::INPUT_TOR));
-		addOutput(Port::create<sub_port_black>(Vec(121,29), Port::OUTPUT, module, WK_101::OUTPUT_TOR));
+		addInput(Port::create<SilverPort>(Vec(4,29), Port::INPUT, module, WK_101::INPUT_CV));
+		addOutput(Port::create<SilverPort>(Vec(43,29), Port::OUTPUT, module, WK_101::OUTPUT_CV));
+		addInput(Port::create<BlackPort>(Vec(82,29), Port::INPUT, module, WK_101::INPUT_TOR));
+		addOutput(Port::create<BlackPort>(Vec(121,29), Port::OUTPUT, module, WK_101::OUTPUT_TOR));

 		for (int i = 0; i < 5; i++)
 		{
@@ -402,11 +412,13 @@ void WK101::step() {
 	int isDirty = 0;
 	WK_101 *module = dynamic_cast<WK_101 *>(this->module);
 	{
-		std::lock_guard<std::mutex> guard(module->mtx);
-		if (module->isDirty) {
+		//std::lock_guard<std::mutex> guard(module->mtx);
+		WK_Update *upd  = module->updateRing.fg();
+		if (upd->isDirty) {
 			for (int i = 0; i < 12; i++)
-				tunings[i] = module->tunings[i];
-			isDirty = 1;
+				tunings[i] = upd->offsets[i];
+			upd->isDirty = false;
+			isDirty = true;
 		}
 	}
 	if (isDirty) {
@@ -512,10 +524,10 @@ struct WK205 : ModuleWidget {
 	WK205(WK_205 *module) : ModuleWidget(module) {
 		setPanel(SVG::load(assetPlugin(plugin, "res/WK-205.svg")));

-		addInput(Port::create<sub_port_black>(Vec(2.5,19), Port::INPUT, module, WK_205::INPUT_TOR));
+		addInput(Port::create<BlackPort>(Vec(2.5,19), Port::INPUT, module, WK_205::INPUT_TOR));
 		for (int i = 0; i < WK_205::deviceCount; i++) {
-			addInput(Port::create<sub_port>(Vec(2.5,63 + i * 60), Port::INPUT, module, WK_205::INPUT_CV_1 + i));
-			addOutput(Port::create<sub_port>(Vec(2.5,92 + i * 60), Port::OUTPUT, module, WK_205::OUTPUT_CV_1 + i));
+			addInput(Port::create<SilverPort>(Vec(2.5,63 + i * 60), Port::INPUT, module, WK_205::INPUT_CV_1 + i));
+			addOutput(Port::create<SilverPort>(Vec(2.5,92 + i * 60), Port::OUTPUT, module, WK_205::OUTPUT_CV_1 + i));
 		}

 		WK_Tunings::loadTunings(plugin);
@@ -539,11 +551,10 @@ void WK205::appendContextMenu(Menu *menu) {
 using namespace rack_plugin_SubmarineFree;

 RACK_PLUGIN_MODEL_INIT(SubmarineFree, WK101) {
-   Model *modelWK101 = Model::create<WK_101, WK101>("SubmarineFree", "WK-101", "WK-101 Das Wohltemperierte Klavier", QUANTIZER_TAG, TUNER_TAG);
-   return modelWK101;
+   Model *modelWK101 = Model::create<WK_101, WK101>("Submarine (Free)", "WK-101", "WK-101 Das Wohltemperierte Klavier", QUANTIZER_TAG, TUNER_TAG);
 }

 RACK_PLUGIN_MODEL_INIT(SubmarineFree, WK205) {
-   Model *modelWK205 = Model::create<WK_205, WK205>("SubmarineFree", "WK-205", "WK-205 Das Wohltemperierte Klavier Nano", QUANTIZER_TAG, TUNER_TAG, MULTIPLE_TAG);
+   Model *modelWK205 = Model::create<WK_205, WK205>("Submarine (Free)", "WK-205", "WK-205 Das Wohltemperierte Klavier Nano", QUANTIZER_TAG, TUNER_TAG, MULTIPLE_TAG);
    return modelWK205;
 }

plugins/community/repos/SubmarineFree/src/XF-101.cpp

@@ -59,11 +59,11 @@ struct XF101 : ModuleWidget {
 		XF_LightKnob *fader;
 		setPanel(SVG::load(assetPlugin(plugin, "res/XF-101.svg")));

-		addInput(Port::create<sub_port>(Vec(27.5,18), Port::INPUT, module, XF_101::INPUT_A_1));
-		addInput(Port::create<sub_port>(Vec(127.5,18), Port::INPUT, module, XF_101::INPUT_B_1));
-		addInput(Port::create<sub_port>(Vec(27.5,74), Port::INPUT, module, XF_101::INPUT_CV_1));
+		addInput(Port::create<SilverPort>(Vec(27.5,18), Port::INPUT, module, XF_101::INPUT_A_1));
+		addInput(Port::create<SilverPort>(Vec(127.5,18), Port::INPUT, module, XF_101::INPUT_B_1));
+		addInput(Port::create<SilverPort>(Vec(27.5,74), Port::INPUT, module, XF_101::INPUT_CV_1));

-		addOutput(Port::create<sub_port>(Vec(127.5,74), Port::OUTPUT, module, XF_101::OUTPUT_1));
+		addOutput(Port::create<SilverPort>(Vec(127.5,74), Port::OUTPUT, module, XF_101::OUTPUT_1));

 		addParam(ParamWidget::create<sub_sw_2>(Vec(41, 46), module, XF_101::PARAM_CV_1, 0.0f, 1.0f, 0.0f));
 		addParam(ParamWidget::create<sub_sw_3>(Vec(125, 43.5), module, XF_101::PARAM_MODE_1, 0.0f, 2.0f, 0.0f));
@@ -83,6 +83,6 @@ struct XF101 : ModuleWidget {
 using namespace rack_plugin_SubmarineFree;

 RACK_PLUGIN_MODEL_INIT(SubmarineFree, XF101) {
-   Model *modelXF101 = Model::create<XF_101, XF101>("SubmarineFree", "XF-101", "XF-101 Single Mono Cross Fader", MIXER_TAG);
+   Model *modelXF101 = Model::create<XF_101, XF101>("Submarine (Free)", "XF-101", "XF-101 Single Mono Cross Fader", MIXER_TAG);
    return modelXF101;
 }

plugins/community/repos/SubmarineFree/src/XF-102.cpp

@@ -84,11 +84,11 @@ struct XF102 : ModuleWidget {
 		setPanel(SVG::load(assetPlugin(plugin, "res/XF-102.svg")));
 		for (int i = 0; i < XF_102::deviceCount; i++) {
 			int offset = 88 * i;
-			addInput(Port::create<sub_port>(Vec(27.5,18 + offset), Port::INPUT, module, XF_102::INPUT_A_1 + i));
-			addInput(Port::create<sub_port>(Vec(127.5,18 + offset), Port::INPUT, module, XF_102::INPUT_B_1 + i));
-			addInput(Port::create<sub_port>(Vec(27.5,74 + offset), Port::INPUT, module, XF_102::INPUT_CV_1 + i));
+			addInput(Port::create<SilverPort>(Vec(27.5,18 + offset), Port::INPUT, module, XF_102::INPUT_A_1 + i));
+			addInput(Port::create<SilverPort>(Vec(127.5,18 + offset), Port::INPUT, module, XF_102::INPUT_B_1 + i));
+			addInput(Port::create<SilverPort>(Vec(27.5,74 + offset), Port::INPUT, module, XF_102::INPUT_CV_1 + i));

-			addOutput(Port::create<sub_port>(Vec(127.5,74 + offset), Port::OUTPUT, module, XF_102::OUTPUT_1 + i));
+			addOutput(Port::create<SilverPort>(Vec(127.5,74 + offset), Port::OUTPUT, module, XF_102::OUTPUT_1 + i));

 			addParam(ParamWidget::create<sub_sw_2>(Vec(41, 46 + offset), module, XF_102::PARAM_CV_1 + i, 0.0f, 1.0f, 0.0f));
 			addParam(ParamWidget::create<sub_sw_3>(Vec(125, 43.5 + offset), module, XF_102::PARAM_MODE_1 + i, 0.0f, 2.0f, 0.0f));
@@ -111,6 +111,6 @@ struct XF102 : ModuleWidget {
 using namespace rack_plugin_SubmarineFree;

 RACK_PLUGIN_MODEL_INIT(SubmarineFree, XF102) {
-   Model *modelXF102 = Model::create<XF_102, XF102>("SubmarineFree", "XF-102", "XF-102 Dual Mono Cross Fader", MIXER_TAG, DUAL_TAG);
+   Model *modelXF102 = Model::create<XF_102, XF102>("Submarine (Free)", "XF-102", "XF-102 Dual Mono Cross Fader", MIXER_TAG, DUAL_TAG);
    return modelXF102;
 }

plugins/community/repos/SubmarineFree/src/XF-104.cpp

@@ -91,11 +91,11 @@ struct XF104 : ModuleWidget {
 		setPanel(SVG::load(assetPlugin(plugin, "res/XF-104.svg")));
 		for (int i = 0; i < XF_104::deviceCount; i++) {
 			int offset = 88 * i;
-			addInput(Port::create<sub_port>(Vec(27.5,18 + offset), Port::INPUT, module, XF_104::INPUT_A_1 + i));
-			addInput(Port::create<sub_port>(Vec(127.5,18 + offset), Port::INPUT, module, XF_104::INPUT_B_1 + i));
-			addInput(Port::create<sub_port>(Vec(27.5,74 + offset), Port::INPUT, module, XF_104::INPUT_CV_1 + i));
+			addInput(Port::create<SilverPort>(Vec(27.5,18 + offset), Port::INPUT, module, XF_104::INPUT_A_1 + i));
+			addInput(Port::create<SilverPort>(Vec(127.5,18 + offset), Port::INPUT, module, XF_104::INPUT_B_1 + i));
+			addInput(Port::create<SilverPort>(Vec(27.5,74 + offset), Port::INPUT, module, XF_104::INPUT_CV_1 + i));

-			addOutput(Port::create<sub_port>(Vec(127.5,74 + offset), Port::OUTPUT, module, XF_104::OUTPUT_1 + i));
+			addOutput(Port::create<SilverPort>(Vec(127.5,74 + offset), Port::OUTPUT, module, XF_104::OUTPUT_1 + i));

 			addParam(ParamWidget::create<sub_sw_2>(Vec(41, 46 + offset), module, XF_104::PARAM_CV_1 + i, 0.0f, 1.0f, 0.0f));
 			addParam(ParamWidget::create<sub_sw_3>(Vec(125, 43.5 + offset), module, XF_104::PARAM_MODE_1 + i, 0.0f, 2.0f, 0.0f));
@@ -130,6 +130,6 @@ struct XF104 : ModuleWidget {
 using namespace rack_plugin_SubmarineFree;

 RACK_PLUGIN_MODEL_INIT(SubmarineFree, XF104) {
-   Model *modelXF104 = Model::create<XF_104, XF104>("SubmarineFree", "XF-104", "XF-104 Quad Mono Cross Fader", MIXER_TAG, QUAD_TAG);
+   Model *modelXF104 = Model::create<XF_104, XF104>("Submarine (Free)", "XF-104", "XF-104 Quad Mono Cross Fader", MIXER_TAG, QUAD_TAG);
    return modelXF104;
 }

plugins/community/repos/SubmarineFree/src/XF-201.cpp

@@ -63,14 +63,14 @@ struct XF201 : ModuleWidget {
 		setPanel(SVG::load(assetPlugin(plugin, "res/XF-201.svg")));
 		for (int i = 0; i < XF_201::deviceCount; i++) {
 			int offset = 176 * i;
-			addInput(Port::create<sub_port>(Vec(3,18 + offset), Port::INPUT, module, XF_201::INPUT_A_1 + i));
-			addInput(Port::create<sub_port_red>(Vec(3,45 + offset), Port::INPUT, module, XF_201::INPUT_AR_1 + i));
-			addInput(Port::create<sub_port>(Vec(92,18 + offset), Port::INPUT, module, XF_201::INPUT_B_1 + i));
-			addInput(Port::create<sub_port_red>(Vec(92,45 + offset), Port::INPUT, module, XF_201::INPUT_BR_1 + i));
-			addInput(Port::create<sub_port>(Vec(3,120 + offset), Port::INPUT, module, XF_201::INPUT_CV_1 + i));
+			addInput(Port::create<SilverPort>(Vec(3,18 + offset), Port::INPUT, module, XF_201::INPUT_A_1 + i));
+			addInput(Port::create<RedPort>(Vec(3,45 + offset), Port::INPUT, module, XF_201::INPUT_AR_1 + i));
+			addInput(Port::create<SilverPort>(Vec(92,18 + offset), Port::INPUT, module, XF_201::INPUT_B_1 + i));
+			addInput(Port::create<RedPort>(Vec(92,45 + offset), Port::INPUT, module, XF_201::INPUT_BR_1 + i));
+			addInput(Port::create<SilverPort>(Vec(3,120 + offset), Port::INPUT, module, XF_201::INPUT_CV_1 + i));

-			addOutput(Port::create<sub_port>(Vec(92,93 + offset), Port::OUTPUT, module, XF_201::OUTPUT_1 + i));
-			addOutput(Port::create<sub_port_red>(Vec(92,120 + offset), Port::OUTPUT, module, XF_201::OUTPUTR_1 + i));
+			addOutput(Port::create<SilverPort>(Vec(92,93 + offset), Port::OUTPUT, module, XF_201::OUTPUT_1 + i));
+			addOutput(Port::create<RedPort>(Vec(92,120 + offset), Port::OUTPUT, module, XF_201::OUTPUTR_1 + i));

 			addParam(ParamWidget::create<sub_sw_2>(Vec(28, 154.5 + offset), module, XF_201::PARAM_CV_1 + i, 0.0f, 1.0f, 0.0f));
 			addParam(ParamWidget::create<sub_sw_3>(Vec(65, 152 + offset), module, XF_201::PARAM_MODE_1 + i, 0.0f, 2.0f, 0.0f));
@@ -92,6 +92,6 @@ struct XF201 : ModuleWidget {
 using namespace rack_plugin_SubmarineFree;

 RACK_PLUGIN_MODEL_INIT(SubmarineFree, XF201) {
-   Model *modelXF201 = Model::create<XF_201, XF201>("SubmarineFree", "XF-201", "XF-201 Single Stereo Cross Fader", MIXER_TAG);
+   Model *modelXF201 = Model::create<XF_201, XF201>("Submarine (Free)", "XF-201", "XF-201 Single Stereo Cross Fader", MIXER_TAG);
    return modelXF201;
 }

plugins/community/repos/SubmarineFree/src/XF-202.cpp

@@ -64,14 +64,14 @@ struct XF202 : ModuleWidget {
 		setPanel(SVG::load(assetPlugin(plugin, "res/XF-202.svg")));
 		for (int i = 0; i < XF_202::deviceCount; i++) {
 			int offset = 176 * i;
-			addInput(Port::create<sub_port>(Vec(3,18 + offset), Port::INPUT, module, XF_202::INPUT_A_1 + i));
-			addInput(Port::create<sub_port_red>(Vec(3,45 + offset), Port::INPUT, module, XF_202::INPUT_AR_1 + i));
-			addInput(Port::create<sub_port>(Vec(92,18 + offset), Port::INPUT, module, XF_202::INPUT_B_1 + i));
-			addInput(Port::create<sub_port_red>(Vec(92,45 + offset), Port::INPUT, module, XF_202::INPUT_BR_1 + i));
-			addInput(Port::create<sub_port>(Vec(3,120 + offset), Port::INPUT, module, XF_202::INPUT_CV_1 + i));
+			addInput(Port::create<SilverPort>(Vec(3,18 + offset), Port::INPUT, module, XF_202::INPUT_A_1 + i));
+			addInput(Port::create<RedPort>(Vec(3,45 + offset), Port::INPUT, module, XF_202::INPUT_AR_1 + i));
+			addInput(Port::create<SilverPort>(Vec(92,18 + offset), Port::INPUT, module, XF_202::INPUT_B_1 + i));
+			addInput(Port::create<RedPort>(Vec(92,45 + offset), Port::INPUT, module, XF_202::INPUT_BR_1 + i));
+			addInput(Port::create<SilverPort>(Vec(3,120 + offset), Port::INPUT, module, XF_202::INPUT_CV_1 + i));

-			addOutput(Port::create<sub_port>(Vec(92,93 + offset), Port::OUTPUT, module, XF_202::OUTPUT_1 + i));
-			addOutput(Port::create<sub_port_red>(Vec(92,120 + offset), Port::OUTPUT, module, XF_202::OUTPUTR_1 + i));
+			addOutput(Port::create<SilverPort>(Vec(92,93 + offset), Port::OUTPUT, module, XF_202::OUTPUT_1 + i));
+			addOutput(Port::create<RedPort>(Vec(92,120 + offset), Port::OUTPUT, module, XF_202::OUTPUTR_1 + i));

 			addParam(ParamWidget::create<sub_sw_2>(Vec(28, 154.5 + offset), module, XF_202::PARAM_CV_1 + i, 0.0f, 1.0f, 0.0f));
 			addParam(ParamWidget::create<sub_sw_3>(Vec(65, 152 + offset), module, XF_202::PARAM_MODE_1 + i, 0.0f, 2.0f, 0.0f));
@@ -93,6 +93,6 @@ struct XF202 : ModuleWidget {
 using namespace rack_plugin_SubmarineFree;

 RACK_PLUGIN_MODEL_INIT(SubmarineFree, XF202) {
-   Model *modelXF202 = Model::create<XF_202, XF202>("SubmarineFree", "XF-202", "XF-202 Dual Stereo Cross Fader", MIXER_TAG, DUAL_TAG);
+   Model *modelXF202 = Model::create<XF_202, XF202>("Submarine (Free)", "XF-202", "XF-202 Dual Stereo Cross Fader", MIXER_TAG, DUAL_TAG);
    return modelXF202;
 }

plugins/community/repos/SubmarineFree/src/XF.hpp

@@ -35,7 +35,7 @@ struct XF_Controls {
 	XF_Correlator *correlator;
 };

-struct XF_LightKnob : sub_knob_large_narrow {
+struct XF_LightKnob : LargeKnob<NarrowKnob<LightKnob>> {
 	int cv;
 	int link;
 	void step() override;
