Merge branch 'DISTRHO:main' into update-surge

.github/workflows/build.yml

@@ -3,7 +3,7 @@ name: build
 on: [push, pull_request]

 env:
-  CACHE_VERSION: 14
+  CACHE_VERSION: 15
   CARDINAL_UNDER_WINE: 1
   CIBUILD: true
   DEBIAN_FRONTEND: noninteractive

deps/PawPaw

@@ -1 +1 @@
-Subproject commit f6eaed13bdeccec013d81ba2261f98aa8f452702
+Subproject commit dd0fd459be75110d76b633e606a1a1dbc607b2ab

docs/CARDINAL-MODULES.md

@@ -185,6 +185,17 @@ Unlike Rack, Cardinal does not use PPQN (pulses per quarter note) values, but BB

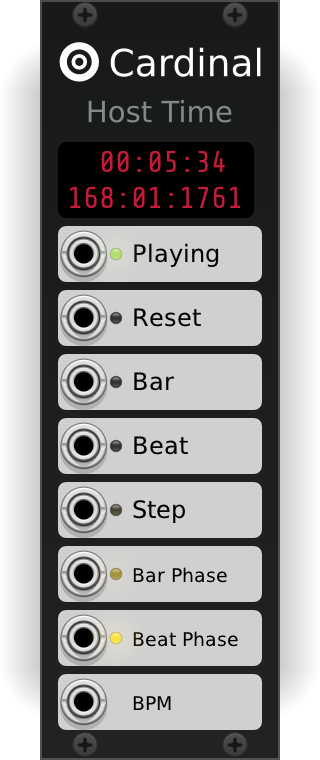

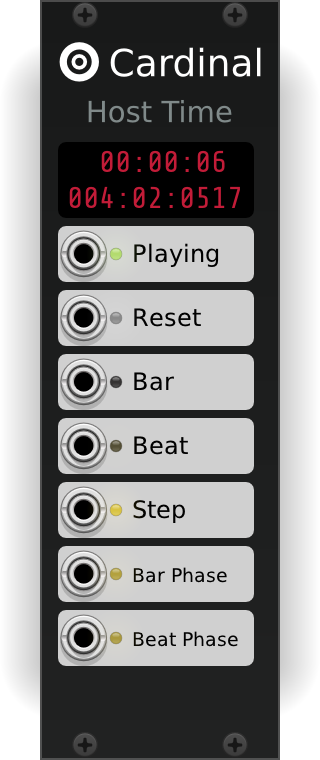

 The top of the panel has a timer display to help understand how and what the host is doing.
 The first line is the song time in seconds, and second line is the BBT.

+The meaning of the outputs is:
+
+- Playing: On if the host transport is rolling or Off if paused/stopped
+- Reset: Trigger for when the host transport has been relocated or has been restarted
+- Bar: Trigger for bar change
+- Beat: Trigger for beat change
+- Step: Trigger for step change
+- Bar Phase: 0-10v smooth ramp for the bar position (with bar division being a right-click option)
+- Beat Phase: 0-10v smooth ramp for the beat position
+- BPM: Volts per Beat per Second, as supported by Impromptu Clocked/Clkd and ZZC Clock
+
 ## Extra modules

 ### Blank

dpf

@@ -1 +1 @@
-Subproject commit d4c2ce6e3da43ae328876146b60d2d2cca5caa44
+Subproject commit d38701abff789f44f2f483a6360416a9adbcc8f9

plugins/Makefile

@@ -1846,7 +1846,7 @@ LV2_RESOURCES += $(PLUGIN_LIST:%=../bin/CardinalFX.lv2/resources/PluginManifests
 LV2_RESOURCES += $(RESOURCE_FILES:%=../bin/Cardinal.lv2/resources/%)
 LV2_RESOURCES += $(RESOURCE_FILES:%=../bin/CardinalFX.lv2/resources/%)

-# MOD builds only have LV2 FX variant for now
+# wasm builds only have standalone and mini
 else ifeq ($(WASM),true)

 MINI_RESOURCES  = $(MINIPLUGIN_LIST:%=../bin/CardinalMini.lv2/resources/PluginManifests/%.json)

src/Makefile.cardinal.mk

@@ -294,7 +294,9 @@ endif

 ifeq ($(WASM),true)

+ifneq ($(DEBUG),true)
 LINK_FLAGS += -O3
+endif
 LINK_FLAGS += -sALLOW_MEMORY_GROWTH
 LINK_FLAGS += -sINITIAL_MEMORY=64Mb
 LINK_FLAGS += -sLZ4=1
@@ -337,7 +339,12 @@ SYMLINKED_DIRS_RESOURCES += surgext/build/surge-data/fx_presets
 SYMLINKED_DIRS_RESOURCES += surgext/build/surge-data/wavetables
 SYMLINKED_DIRS_RESOURCES += WSTD-Drums/res/samples
 endif
+
+ifeq ($(CARDINAL_VARIANT),mini)
+LINK_FLAGS += $(foreach d,$(SYMLINKED_DIRS_RESOURCES),--preload-file=../../bin/CardinalMini.lv2/resources/$(d)@/resources/$(d))
+else
 LINK_FLAGS += $(foreach d,$(SYMLINKED_DIRS_RESOURCES),--preload-file=../../bin/CardinalNative.lv2/resources/$(d)@/resources/$(d))
+endif

 else ifeq ($(HAIKU),true)
